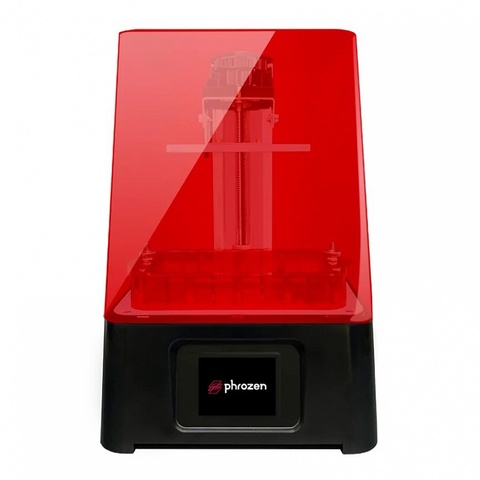

Phrozen sonic mini lcd resin 3d printer


Phrozen Sonic Mini 4K 3D Printer Phrozen Technology｜Desktop LCD 3D Printer｜8K High Resolution

Lead time: 1~2 weeks

Please note that the Sonic Mini 4K available for purchase on our website is already equipped with the new T-plate. Customers do not need to purchase the upgrade kit along with the printer.

The Sonic Mini 4K is the most beginner-friendly 4K 3D printer on the market, offering ultra-high resolution with 722 PPI, the highest PPI ever! The printer offers 4K resolution printing at 35μm with a large printing area of 6.1", producing highly detailed 3D printed parts that match your exact 3D printing designs, regardless of the size of your model.

Using Monochrome LCD technology, the Sonic Mini 4K is one of the fastest 3D printers on the market, being able to print one layer in ONLY two seconds! Our LCD screens work for over 2000 hours and we provide a free 3-month warranty as our guarantee.

Model Credit @nikita. lebedev.art

Note: To create 3D models in 4K quality, we highly recommend Phrozen Sonic Mini 4K as it performs best with our Aqua-Gray 4K resin, and allows users to create highly-detailed, intricate designs with 4K resolution.

Benefits
  1. 4K with 6.1" Printing Area: 3840 x 2160 Ultra-high-definition. Prints at 35μm with 722 PPI, the highest PPI ever, with a large printing area of 6.1"
  2. Monochrome LCD Screen: Prints up to 4 times faster than traditional 3D printers, taking only two seconds to print one layer. 2000 working hours guaranteed for all LCD screens, free 3-month warranty offered
  3. Super Easy to Use: Just use a USB flash drive to send over your data to the printer and with a few taps, you're good to go
  4. Mini but Mighty: Compact & lightweight, easy to store and fits in different settings for both personal or professional uses
  5. Multi-Resin Compatibility: Works best with Phrozen Aqua-Gray 4K, also compatible with 3rd party resins
Specs
  • System: Phrozen OS
  • Operation: 2. 8in Touch Panel
  • Slicer Software: ChiTu Box V1.6.5
  • Connectivity: USB
  • Technology: Resin 3D Printer - LCD Type
  • Light Source: 405nm ParaLED Matrix 2.0
  • XY Resolution: 35μm
  • Layer Thickness: 0.01-0.30mm
  • Maximum Printing Speed: 80mm/ hour
  • Power Requirement: DC 24V；2A
  • Printer Size: 23 x 23 x 34 cm
  • Print Volume: 13.4 x 7.5 x 13 cm
  • Printer Weight: 5 kg

*All specifications have been tested in a laboratory. Please note that certain specifications may be subject to change without prior notice.

Shipping & Tariff

The purchase price does not include any taxes, tariffs, and/or shipping costs. Please note that we WILL NOT be providing a refund if a customer refuses to collect (or returns) their product(s) due to customs fees/duties and/or other related costs.

Customers will be responsible for customs clearance in all countries except Thailand and Brazil, and we will charge you in advance and pay on your behalf for any duties and taxes that are due on products purchased.

Please note that the shipping cost will vary from country to country; for the exact cost, please view our check-out page.

For more information, please refer to our Shipping Policy page.

Return & Warranty

Products can be returned within 14 calendar days from the date received. Product(s) can be exchanged within 30 calendar days from the date you received it if there is a manufacturing defect. To be eligible for an exchange, your item(s) must be unused and in the same condition as received with the original packaging. For more details, please refer to our Refund Policy page.

All products purchased from the official website of Phrozen are warranted under different terms. Phrozen offers a one-year warranty for all our products except consumables and components; this includes the LCD screen and the FEP film. All LCD screens for the Sonic Mini, Sonic Mini 4K, and Sonic 4K are covered under a 3-month warranty. For more details, please refer to our Warranty page.

Phrozen Sonic Mini 4K LCD 3D Printer

  1. Home
  2. Store
  3. Resin 3D Printers
  4. Phrozen3D
  5. Phrozen 3D Printers

The Phrozen Sonic Mini 4K LCD 3D Printer is a highly affordable and consumer-friendly 3D Printer suited for producing highly detailed 3D models that match your exact design, regardless of the size of your model. Offering a 4k resolution at 35µm, a large print area of 6. 1”in and ultra-high resolution of 722 PPI — the highest PPI to date — makes Sonic Mini 4K quite the powerhouse given its low-cost price point.

Remove from wishlist Add to wishlist loading...

Tagged: 3D Printers for Personal Use, Fully Assembled 3D Printers and 3D Printers

Product No. M-9MX-MWGV

List Price: $399.00
Price: $299.00
Price: $...
Order Now: Ships calculating... Free U.S. Shipping

4K 6.1”INCH MONOCHROME LCD

Using Monochrome LCD technology, the Sonic Mini 4K is capable of printing one layer in less than two seconds — up to 4 times faster than traditional 3D printers in the same class! Its 4K 6.1” monochrome LCD was specifically developed with the goal of achieving the incredibly high-level detail of 35 µm while also maintaining very high printing speeds and an affordable entry-level price and it is safe to say that the Sonic Mini 4K delivers on this promise.

The monochrome LCD is thermally stable and is guaranteed by the manufacturer to provide over 2000 hours of printing before requiring replacement.

FEATURES:

ParaLED MODULE:
  • Features a more uniform exposure, higher efficiency, and better heat dissipation than standard UV LED Modules.
PLUG AND PLAY SET-UP:
  • The Phrozen Sonic Mini 4K is essentially ready to use right out of the box. Simply attach the resin tank and set the build platform and within minutes you’ll be ready to start your first 3D print.
COMPATIBILITY:
  • The Phrozen Sonic Mini is compatible with most LCD, DLP, and SLA resins in the 405nm wavelength.

TECHNICAL SPECIFICATIONS:

PRINTER PROPERTIES:

  • Printing technology: LCD Stereolithography
  • Build Volume: 13.3 x 7.5 x 13 cm (135 x 75 x 130mm)
  • XY Resolution: 35µm
  • Z resolution: 10µm
  • Printing speed: 80 mm/h
  • Bed-leveling: n/a
  • Display 2. 8” in touchscreen
  • Third-party materials: yes
  • Materials: 405 nm UV resin

HARDWARE:

  • Machine Dimensions/Weight: 25 x 25 x 33cm; 5kg
  • Input Voltage: 100 – 240V
  • System Power: 40W
  • LCD Specification: 6.1” 4K Mono-LCD
  • Backlight Unit: paraLED Matrix 2.0
  • LED Wavelength: 405nm

HARDWARE Z-Axis:

  • Rail: Single Linear Rail
  • Screw: Lead Screw
  • Moving Sensor: Optical Switch

SOFTWARE:

  • Compatible File Format: STL
  • Connectivity: USB
  • Operating System: Windows 7 and up, Mac OS X 10.7 and up

WHAT’S INCLUDED:
  • Phrozen Sonic Mini 4K 3D Printer
  • Metal resin vat with FEP film pre-mounted
  • Build plate
  • Power supply
  • Printing Kit (Gloves, Wiper/Scraper, Funnel, etc.)
  • Instruction manual



WARRANTY:
  • 1-year standard manufacturer warranty
  • Note: Consumable parts are not included under the warranty. Consumables include spare FEP film, cleaning fluids and materials, curing equipment, safety gear, and post-processing equipment.

Phrozen Sonic Mini 3D printer

Out of stock

Add to compare

Item added to compare Go

Free shipping within Russia

34 900 ₽

Exchange of old equipment for a new one with a surcharge. Detailed information is available on the page or from our managers.

Notify me of admission

Official distributor

We work directly with manufacturers.

Any form of payment

See the 3D printer in action in our demo room.

Own warranty service

Warranty and post-warranty service for equipment purchased from us.

Permanent 10% discount on consumables

When you buy a 3D printer from us,
, you get a 10% discount on all consumables.

The Sonic Mini is a small budget 3D printer from Phrozen. Equipped with the patented ParaLED 2.0 Lite optical matrix, which provides accurate uniform illumination by reducing the emission angle of the LEDs and faster printing speed. It has stable printing due to the Z-axis single linear guide with screw pin. Its resolution accuracy is the same as that of the Sonic printer - 62 microns, but the print speed is lower - 50 mm/h, and the plotting area is smaller. Let's combine with any photopolymers with an illumination wave of 405 nanometers. The size of the printer itself is 25x25x30 cm, and the weight is only 5 kg. The Phrozen Sonic Mini comes with a metal print bath that has a much longer lifespan than a plastic print bath.

Sonic Mini is perfect for beginner 3D makers as well as for educational use.

Benefits of Sonic Mini 3D printer:

  • Fast printing - up to 50 mm/h.

  • Touch panel offline printing.

  • High accuracy and print quality across the entire build area.

  • Guaranteed printing for over 2000 hours thanks to the thermally stable mono-LCD display.

  • Compatible with all LCD resins, and most DLP.

  • Extremely simple operation. Start printing in 5 minutes: attach the print platform and resin bath, and send your file to print in 3 clicks.

    ! Phorzen Sonic Mini comes with a metal print bath.

    This year, the prize in the nomination "Breakthrough of the Year" in the Russian market can be safely given to Phrozen 3D printers from Taiwan. The company is not a newcomer, it was established back in 2014, but they boomed in the domestic market only this year, the demand for them grew almost instantly.


    Read more

    Payment and delivery

    Delivery scale

    Delivery to all regions of Russia and countries of the Customs Union.

    Free shipping

    When you buy a 3D printer (except assembly kits) you get free shipping.

    Cash

    In our store you can pay for your order in cash.

    Online payment on the website

    You can pay for orders with a bank card on the website of our online store.

    Buyers with this product

    Add to compare

    Product added to compare Go

    Out of stock

    Uniz Ultrasonic Cleaner UC-4060HL, 2L Accessories

    Add to Compare

    Item added to Compare Go

    Available

    Wanhao Boxman-1 UV Camera Accessories

    Add to compare

    Product added to compare Go

    Available

    Photopolymer resin HARZ Labs Model Resin, black (500 gr) Photopolymer resin for 3D printers

    Add to compare

    The item has been added to compare Go

    Out of stock

    ESUN Standard Photopolymer Resin Yellow (1L) Photopolymer resin for 3D printers

    Buy a set of films at a discount

    Add to compare

    Item added to compare Go

    Out of stock

    Bath film in Phrozen 3D printer Spare parts for 3D printers

    Similar Items

    Free Shipping

    Add to Compare

    Item added to Compare Go

    Out of stock

    3D Printer Elegoo Mars UV Photocuring LCD 3D printers

    Free shipping

    Add to compare

    Item added to compare Go

    Out of stock

    Anycubic Photon S 3D printer black 3D printers

    Free shipping

    Add to compare

    Item added to compare Go

    Out of production

    Wanhao GR1 3D printer 3D printers

    3D printer Phrozen Sonic Mini 4K Go

    Free shipping within Russia

    Buy a set with a 10% discount

    49 900 ₽

    Additional services

    Unpacking, setup, first run

    7 000 ₽

    • — Departure of the master
    • - Start-up and commissioning
    • - Preparing to print
    • - Installing Printing Software
    • – Software usability consulting
    • - Training in the use of

    Departure of the master in Moscow,
    for other cities - online consultation.

    Exchange of old equipment for a new one with a surcharge. Detailed information is available on the page or from our managers.

    Official distributor

    We work directly with manufacturers.

    Any form of payment

    The opportunity to see the 3D printer in action in our demo room.

    Own warranty service

    Warranty and post-warranty service for equipment purchased from us.

    Permanent 10% discount on consumables

    When you buy a 3D printer from us,
    , you get a 10% discount on all consumables.

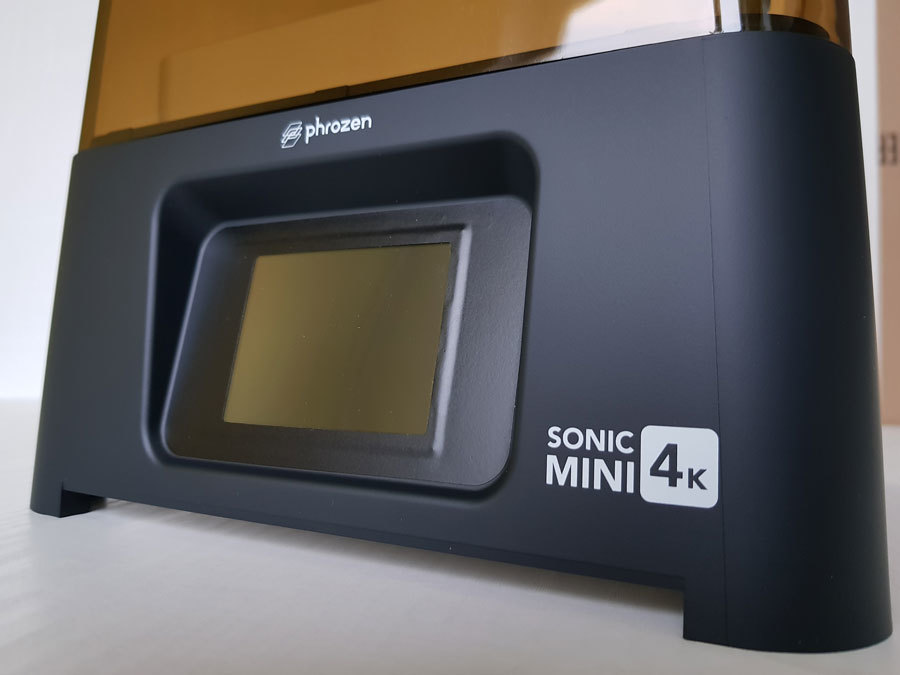

    The Phrozen Sonic Mini 4K 3D Printer is the most cost effective 4K resolution 3D printer on the market, offering ultra-high resolution with the highest pixel density ever – 722 PPI. Sonic Mini 4K delivers high detail, allowing you to print models that are true to size and design, no matter how complex the project.

    Using Mono LCD technology, Sonic Mini 4K is able to print one layer in 2 seconds, providing stable operation for more than 2000 hours.

    Advantages of the Phrozen Sonic Mini 4K 3D Printer:

    • 6.1” 4K Mono LCD: large printable area sensor with an incredibly high resolution of 3840x2160 px and 722 PPI provides the best print quality on the market.
    • Mono LCD: Mono LCD technology offers printing up to 4 times faster than traditional 3D printers, it takes only two seconds to print a single layer, and a lifetime of over 2000 hours.
    • Easy to use: Send print jobs via USB stick with a few touches on the display.
    • Small but Powerful: The Sonic Mini 4K has a compact and lightweight design, easy storage and print power suitable for both personal and professional use.
    • Compatibility: The Sonic Mini 4K is compatible with any resin with a wavelength of 405nm.

      • Manual
      • Gloves
      • Spatulas
      • Adapter
      • Hex
      • Funnel
      • USB stick
      • Foot pads
      • Print bed
      • Spare screws
      • Aluminum Print Bath
