Best 3d printer for dentistry

LCD Resin Printers for Crowns and Other Dental Appliances from China etc

Since the introduction of the first 3D printing technology in 1986, additive manufacturing has been showing impressive growth in the constantly increasing range of industries adopting the cutting-edge technologies. Dentistry is among those taking all the benefits of 3D printing most willingly and rapidly.

Credit: placervilledentistry.com

This is Top 3D Shop, and in this article, we are going to discuss different aspects of digital dentistry and find out which 3D printing solutions are the best fit for this application.

Biocompatible dental 3D printing for labs and clinics

Credit: dentalhospitalthailand.com

The traditional workflow in dentistry implies the cooperation of two parties involved in the process — dental clinics on the one side and prosthesis laboratories on the other, the interaction between the two requiring quite a lot of time and logistics. Since every patient has a unique dentition, dental labs mostly use manual production methods which are usually slow and assume the work of highly skilled dental technicians, still leaving a lot of room for probable imperfections in the final result. The use of 3D printing provides wide opportunities for low-cost mass customization, saving time and ensuring extremely high precision of printed models. A wide range of dedicated biocompatible materials with various properties allows for the creation of orthodontic models, crowns and bridges, surgical guides, aligners, retainers, splints, dentures, and other dental products that perfectly match the patient’s anatomy.

Applications of 3D printing in dental industry

Aligners

Credit: china-ortholab.com

Aligner production is an example of using 3D printing as a bridge to traditional manufacturing methods. First the dentist takes the impression of the patient’s mouth by means of intraoral scanning with further converting the scanned data to a CAD model, which is then edited to specify the stages of desired teeth shifting. When this is done, the model for each stage is printed, usually employing SLA technology. After that each printed model is placed into a thermoforming machine where a clear aligner is wrapped around it creating the patient-specific set of aligners.

Surgical guides

Credit: creativedentistry.ca

Surgical guides are used in medicine, dentistry in particular, to assist the surgical procedures. In dentistry surgical guides are of great help in implantation as they ensure the precise placing and fitting of the implant. The guides are placed directly over the patient's teeth and then removed during or after the surgery when no longer needed. Surgical guides not only increase the accuracy of the procedure, but also make it faster and less invasive thus shortening the recovery time. Different manufacturers offer special surgical guide resins to ensure the best printing results.

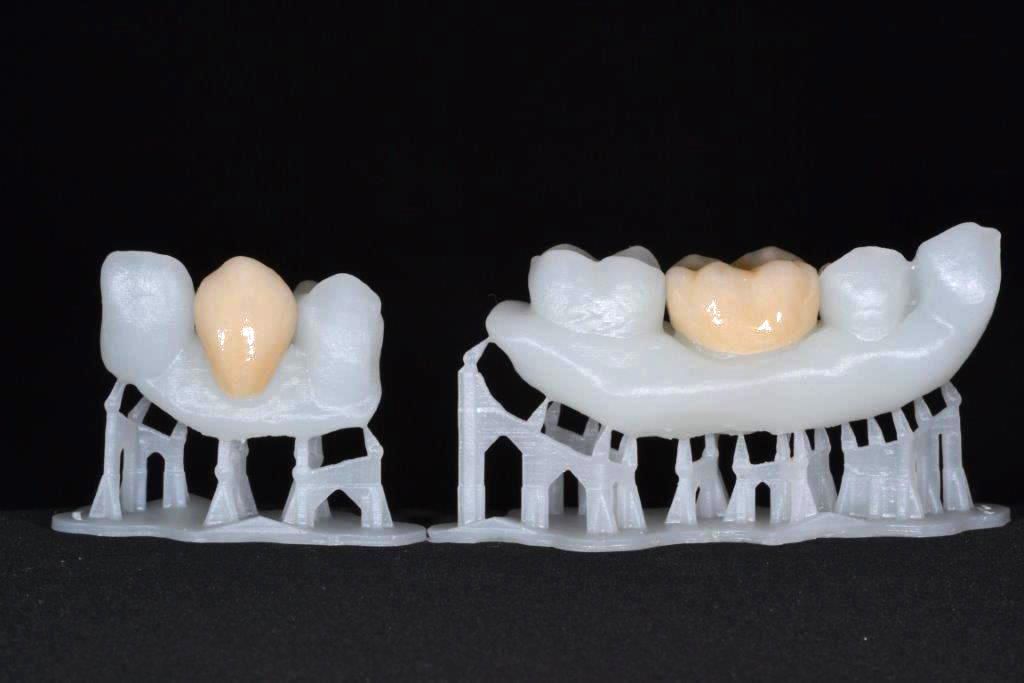

Crowns

Credit: dentalimplantxperts.com

3D printed dental crowns are becoming more widespread with the development of new biocompatible materials. First additive manufacturing was used only as a bridge to investment casting process helping create accurate casting patterns. Now there are a variety of materials, from special permanent crown resins, like Formlabs Digital Dentures Resin, to various metal alloys, that allow printing high-quality permanent crowns taking all the advantages 3D printing provides.

Dental models

Credit: dental.formlabs.com

Dental full arch or crown and bridge models with removable dies help dentists while planning denture restoration. Dental models are printed based on the digital impression of the patient's mouth so they are indispensable when it comes to checking fixed prosthetics that will be later used in a patient's treatment. Special materials, like Formlabs Dental Model Resin allow for precise models with matte smooth surface and a high level of detail.

How are dental models 3D printed?

The process of 3D printing in dentistry always starts with the dentist taking a digital impression of a patient’s mouth with an intraoral or desktop scanner. The obtained data is converted to a CAD model which can be saved and then used as a basis for creating dental print models when needed. The digital model is sliced using appropriate software and sent to the printer. Once printed, dental parts usually require some post-processing steps depending on the technology and type of material used.

Does dental 3D printing require special training?

The process of dental 3D printing is mainly automated and generally requires less special skills than dental technician’s work. Still, certain training is required, especially for those not familiar with additive manufacturing technologies in general. 3D printing equipment and material manufacturers usually offer training programs and support for their customers. In fact, digital dentistry allows for chair-side creation of some patient-specific dental products, while more complex parts have to be printed in dental labs by skilled professionals.

How to get digital models for a 3D printer

As mentioned, a dental 3D scanner (for example, Shining 3D Aoralscan 3) is used to capture the patient’s dental anatomy and take a digital impression of their teeth and gums. This digital impression is converted to a CAD file that is edited to create a digital model of the specific dental product, for example, a crown, depending on the particular case and treatment plan.

How to print dental custom trays

In traditional dentistry trays are used to get a patient's teeth impression, usually with plaster. The implementation of 3D technologies offers much more convenient and precise digital impressions made with an intraoral scanner. Yet impression trays are still widely used in dentistry either by those who prefer conventional methods, or in cases when digital scanning is impossible for some reason. The use of standard trays has always been a compromise as they can not guarantee the necessary precision which a custom-made 3D printed tray provides. The process of printing is the same as with other dental products, and the final result ensures getting highly precise dental products in a shorter time. Different manufacturers offer special resins for impression trays production.

Credit: dental.formlabs.com

Criteria for top dental 3D printers

Precision

Print precision is one of the key points to be considered when choosing a dental 3D printer. If you are going to print not only educational models just to show your patients the treatment process in detail (in that case almost any desktop 3D printer will do), but working dental products, then you should look for a high resolution device, as even subtle discrepancy can lead to a completely unsatisfying result.

Speed

Speed is always of great importance when it comes to business. High print speeds are helpful, whether we speak about dental labs or in case of chair-side printing in dental clinics, where rapid printing helps minimize the number of a patient’s appointments with the dentist.

Biocompatible materials support

It’s by far the main feature the printer should possess to be called dental. All dental products that come in contact with the patient’s mouth or skin should be certified biocompatible in your area, so it’s highly recommended to check the material compatibility list while choosing a dental 3D printer.

Dental printing materials

For today, the most popular technology for dental 3D printing is vat photopolymerization, which includes SLA, DLP and LCD-based processes, all of them using liquid resins that are cured by a light source. Hence the choice of special dental resins in the market is really vast. All dental resins are biocompatible and can be used for printing temporary or permanent dental parts with required properties.

Credit: megadas.com

Metal 3D printers are becoming more and more widespread in dentistry as they work with different metal and metal alloy powders, for example, titanium or cobalt chromium, traditionally used for fabrication of crowns, dentures, and stents. DMLS printers are capable of producing durable extremely precise models in a short time.

Another popular technology for dental 3D printing is material jetting that prints with liquid materials — plastics or polymers — which are cured by UV light. The technology boasts the exceptional accuracy of the printed models, but the printers utilizing this technology are usually bulky and expensive.

As for FDM printing, despite its popularity in a lot of other industries, it has not been widely used in dentistry, as FDM machines usually demonstrate lower accuracy than the other technologies mentioned above. However, new FDM 3D printer models show much higher resolution, accuracy, and dimensional stability, compared to their predecessors, and now dental industry can take advantage of all the benefits of FDM technology.

Best dental 3D printers 2022

Resin 3D printers

Phrozen Sonic 4K 2022

The Phrozen Sonic 4K 2022 is a desktop LCD-based resin 3D printer equipped with a monochrome 4K (3840 x 2160) LCD screen with the resolution of 772 PPI and the lifespan of 2000 hours. Due to the upgraded dedicated ParaLED Matrix 3.0 technology, the device can print layers at a minimum height of 10 microns. Together with the XY resolution of only 35 microns, it allows creating incredibly accurate precise models with a perfectly smooth surface finish. The Sonic 4K 2022 is a reliable and fast 3D printer capable of building a single layer in just two seconds. It can be operated via PC or a built-in 5" touchscreen and boasts wide connectivity options including Ethernet, USB, and Wi-Fi interfaces. The Phrozen Sonic 4K 2022 is designed to meet all the dental printing requirements. Apart from common for the Phrozen 3D printers ChiToBox slicer compatibility, the Sonic 4K 2022 comes with the proprietary Phrozen Dental Synergy Slicer targeted specifically at dental applications.

Credit: @bellwoodlab / Instagram

Pros

• High resolution and accuracy
• Fast print speed
• Sturdy aluminum construction
• Wide connectivity options
• 5" operating touchscreen

Cons

• The build volume is not very large

Phrozen Sonic XL 4K 2022

The Phrozen Sonic XL 4K 2022 is a professional desktop resin 3D printer designed specifically for the dental industry. The model is a larger version of the Phrozen Sonic 4K 2022 with a more spacious build volume of 200 x 125 x 200 mm. This allows printing fairly large parts or multiple dental models in one go for efficient time saving. All other printer specs are similar to the previous model, with the only difference in the XY resolution of 52 microns, compared to 35 microns of the Sonic 4K 2022, due to the larger build volume of the Sonic XL 4K. Despite this, the device is capable of producing astonishingly detailed precise parts with a flawlessly smooth surface finish at a high speed of 2 mm per layer. The printer is compatible with ChiToBox and comes with the designated Phrozen Dental Synergy Slicer. The Phrozen Sonic XL 4K can be successfully used not only for dental applications, but in jewelry fabrication and any other industry where the quality of the parts is of paramount importance.

Credit: @ALICEADMD / Twitter

Pros

• Large build volume
• Fast print speed
• High print quality
• Open material system
• Wide connectivity options

Cons

• The XY resolution is a bit lower compared to the Sonic 4K 2022

Uniz Slash 2

The Uniz Slash 2 is a professional desktop LCD 3D printer with a 8. 9" 4K LCD screen. The device boasts an amazing print speed of up to 200 mm/h ensuring extremely high time-efficiency of the printing process. The minimum layer height of 10 microns allows for highly detailed accurate models with flawless look and feel. With a sizable build volume of 192 x 120 x 200 mm you can print either large models or small runs of smaller parts at a time. The printer is equipped with an effective heat management system and a proprietary liquid cooling mechanism. All these features make the Uniz Slash 2 an indispensable tool for dentistry, jewelry, or any other industry with strict part quality requirements.

Credit: @coutelas_v / Instagram

Pros

• Incredibly high speed
• Automatic bed leveling
• High print quality
• Durable resin tank
• Cloud-based services

Cons

• No control screen

Uniz NBEE

The Uniz NBEE is a resin LCD-based 3D printer designed specially for the dental industry. The NBEE features extremely high print speed, being able to produce six dental models in 5 minutes. The printer’s build volume is 192 x 120 x 180 mm. With the minimum layer height of 25 microns, the device prints aligners, removable dies, surgical guides, crowns, bridges, and other dental appliances with exceptional quality. The NBEE can print either with a wide range of special Uniz photosensitive dental resins or with third-party materials.

Credit: uniz.com

Pros

• Extremely high speed
• High print quality
• Wide range of compatible dental resins

Cons

• High price

Formlabs Form 3B+

Credit: dental.formlabs.com

The Formlabs Form 3B+ is based on proprietary LFS (Low Force Stereolithography) technology that is aimed at improving the surface finish of the prints. The Form 3B+ is designed for digital dentistry and can print with minimum layer thickness of 25 microns. The build volume of the printer is 145 x 145 x 185 mm. The device can come alone or with post-processing equipment, including the Form Wash and Form Cure machines. Formlabs offers a wide range of biocompatible resins for different dental appliances (for example, Formlabs Dental LT Clear Resin).

Credit: dental.formlabs.com

Pros

• High print quality
• Wide range of biocompatible resins
• Can be a part of a complete solution

Cons

• Compatible only with proprietary materials
• Lower print speed, compared to LCD models

Nexa3D NXE400

The NXE400 is an industrial resin 3D printer based on proprietary Lubricant Sublayer Photo-curing (LSPc) technology. Due to this technology, the NXE400 is by far one of the fastest resin 3D printers in the market. The machine features a large build volume of 274 x 155 x 400 mm. The print quality the NXE400 is capable of is incredibly high. The NXE400 can be regarded as a reliable 3D printer for a dental lab, as now it supports all biocompatible photopolymer dental resins by Keystone Industries. Apart from that, the NXE400 is compatible with a wide range of other resins, including xPeek, xABS, and xFlex.

Credit: 3dprint.com

Pros

• Extremely high print speed
• High-quality prints with smooth surface finish
• Large build volume
• Wide range of compatible materials
• Dental biocompatible resins support

Cons

• Price can be too high for small companies

FDM 3D printers

Raise3D E2

The Raise3D E2 is an industrial desktop FDM 3D printer featuring the Independent Dual Extrusion System (IDEX) which opens up versatile printing opportunities, from dual-material and dual-color printing to using mirror and duplication modes that allow you to double the production volume. The E2 can print with the maximum nozzle temperature of 300 °C and is compatible with a wide range of filaments, such as PLA, ABS, HIPS, PC, TPU, TPE, Nylon, PETG, ASA, PP, PVA, glass and carbon fiber filled composites, and others. Featuring the auto bed leveling function and a flexible removable heated build plate, the E2 provides perfect first layer adhesion for high-quality accurate printing. The minimum layer height of 20 microns makes for detailed accurate parts with the quality perfectly suitable for printing dental models.

Credit: @priamond.de / Instagram

Pros

• IDEX system
• Auto bed leveling function
• Wide range of compatible materials
• Enclosed chamber with a HEPA filter
• Minimum layer height of 20 microns
• Flexible removable build plate

Cons

• Auto bed leveling can take pretty much time

Creality CR-5 Pro High-temp Version

The Creality CR-5 Pro High-Temp version industrial-grade FDM 3D printer sports a fully-enclosed impressively large build chamber of 300 x 225 x 380 mm. The extruder is equipped with a 0.4 mm nozzle with the maximum temperature of 300 °C and a cooling fan that helps prevent stringing and warping issues. The CR-5 Pro High-temp is compatible with a wide range of filaments, including high-temp materials, such as PLA, TPU, and ABS. Proper first layer adhesion is provided by the high-quality carbon glass heated print bed. A bunch of advanced features, such as auto bed leveling, filament run-out sensor, or print resume function make for consistent reliable printing experience.

Credit: Just Vlad / YouTube

Pros

• Large build volume
• Wide range of compatible materials, including high-temp filaments
• Carbon glass heated print bed
• Auto bed leveling function
• Filament runout sensor
• Print resume function

Cons

• 100 microns minimum layer height

Metal 3D printers

Farsoon FS121M

The Farsoon FS121M is an MLS (metal laser sintering) printer that can perform as a reliable and efficient device for a number of industries, dentistry being one of them. The FS121M sports a large build volume, which is a cylinder of ⌀ 120 x h 100 mm, and a high build speed, allowing for the production of up to 160 dental crowns in 3 hours. The device is equipped with a single 200W fiber laser, used in the Flight series printers. The Farsoon FS121M is a fully open system, providing compatibility with a great number of proprietary and third-party metal powders, including 316L, 17-4PH, Maraging Steel Grade 300, HX, Cu, CuSn10, CoCrMoW, and CoCrMo.

Pros

• Large build volume and compact footprint
• High print quality
• Fast print speed
• Use of more powerful and durable fiber laser
• Open system

BLT-A160D

The BLT-A160D is an industrial-grade SLM metal 3D printer designed specifically for the dental industry. The machine can print with Titanium and Cobalt Chromium alloys that are widely used in dentistry for producing high-quality stents and dentures. The A160D features a build volume of 160 x 160 x 100 mm and can print 20 cobalt chromium brackets for 7 hours or 20 two-way titanium alloy stents for 4 hours. The minimum layer height of 10 microns allows printing durable parts with smooth surface finish. Two 200W lasers ensure fast and accurate printing. The intelligent software provides real-time monitoring of the printing process, a safety interlocking mechanism, and a self-diagnostics function.

Credit: xa-blt.com

Pros

• High print quality
• Fast print speed
• Intelligent software
• Build plate construction for fast loading
• Water-injection filter

Cons

• Build volume is quite small for large-scale manufacture

Dental 3D printing software

Almost all dental 3D printing solutions include proprietary software specially designed for dental practices and labs. It usually guides the user through all the stages starting with uploading a 3D scan to a CAD file with the following creation of a 3D digital model of the custom-tailored dental product. The slicer converts the CAD model to a printable file, usually STL, and prepares the model for printing. When the task is done, the software sends the print job to the printer.

Credit: uniz.com

The use of dedicated software recommended by the manufacturer provides maximum compatibility and ensures the best results without any downtimes.

Post-processing equipment

Printing with resins, which is the most popular material in digital dentistry, always implies several post-processing steps; that is why a lot of dental printers can be purchased as part of a complete solution, including, besides the printer itself, machines for washing and post-curing the printed parts.

Credit: anycubic.com

Is dental 3D printing expensive?

Compact dental resin 3D printers suitable for in-office printing can cost about a few thousand dollars, while industrial-grade large machines’ price can be as high as tens of thousands dollars and more. Such devices are good for dental labs with big production volumes as they allow for fast continuous printing thus providing the fast ROI.

Pros and cons of dental 3D printing

Pros

• Digital dentistry is capable of producing highly accurate dental appliances that can be easily customized at no additional cost.
• 3D printing saves a lot of time both for patients and practitioners.
• The cost per part is in many cases lower for 3D printed models compared to those produced by traditional methods.
• The dental technician’s work requires much more expertise than creation of digitally printed models.
• The process of dental 3D printing is usually highly automated.
• The final result in dental 3D printing is more predictable and reliable than in traditional dentistry.

Credit: dentalproductsreport.com

Cons

• The startup price is rather high.

• Dental 3D printing requires special training (usually provided by the printer’s manufacturer).

• Not all materials can be used for 3D printing (though the existing variety is already wide enough and growing constantly).

Bottom line

Dental 3D printing is one of the most rapidly growing additive manufacturing industries, and its popularity among both practitioners and patients is easily explained. Digital dentistry saves time and money, provides much higher quality of the printed dental appliances, and makes the treatment less painful and invasive for the patient and more convenient for the dentist.

This is the Best Dental 3D Printer for Dentist

Dental 3D printers or 3D printing is a fast-growing technology in various business areas, most particularly in the field of a laboratory. A Dental 3D printer features a laser or light, blends or fuses a powder, and polymerizes a fluid with the technologically guided precision needed to generate small objects with complicated details.

A Dental 3D printer can generate models, parts as well as full restorations regardless of materials. Adding a 3D printer to your laboratory or practice can enhance effectiveness. There are many types of dental printers intended for the particular production level, laboratory sizes, and specific tasks. When choosing the most reliable 3D printing, check the program the printer is well-suited, the materials are capable of printing, and the support and training presented by the company.

3D Dental Printer in dentistry is exploding, and the market is full of different types of printers. We will help you get the right one by reviewing some of the best models on the market. They are all made from high-quality materials and have excellent capacity. Read on!

Our dental formula is one of the key aspects that symbolize beauty. If you have problems with them, you can fix them quickly, thanks to the advancement in technology. The 3d dental printer has significantly improved the experience of patients in dentistry.

They provide affordable fabrications by utilizing the printed dental appliance. It is a technology that is finding its way across other industries all over the world. Though this is the case, it is undeniable that the dental printer is a unique innovation in digital dental practice.

Every professional enjoys having a versatile device that can make their work more enjoyable. A 3d dental printer is one of those devices that bring joy to dentists. It can print functional dental appliances like monolithic dentures, nightguards, and clear aligners. It can also help dentists produce certified final products and not only models or prototypes. The printed items are therefore ready to use without requiring any polish.

As a lab technician looking for a 3d printer, the cost is not as important as the functionality. It would help if you searched for one that can efficiently utilize functional resins to develop diverse applications, including dentures base and indirect bonding trays. Such a printer can boost the dental workflow and expand the capabilities of digital dental practice.

Though many printers can fabricate surgical guides, not all can print final appliances as 3d dental printers do. These are different since they can use biocompatible resins to give you an impressive final appliance.

As you make a 3d printer comparison, you should understand the printer’s fabrication ecosystem to avoid being limited to only a few applications. You need a broad range of applications that you can use in digital dental practice. Your printer should also be in a support ecosystem designed for dentistry.

We can categorize 3D printing into two. If you have a big dental lab where you create many appliances every day, you should choose the industrial 3d printer. This type includes machines that have a high capacity to work. They are large and are suitable for high-volume laboratories.

An oral surgeon or a prosthodontist working at a small clinic needs a desktop 3d printer. The 3d dental printer comes at a lower price than the industrial type and has a manageable size. A Desktop dental printer is versatile but has a smaller platform. Regardless of the kind of dental printer you choose, you should ensure that it has certified resin capabilities to boost your dental workflow. It can help you print dentures, bridges, or even crowns so that you can offer your patients expanded treatment options.

A lot of dental labs rely on 3d dental printers to access customized items. Every patient has a unique morphology which makes dentists use matching implants or prostheses to match this. 3d printers make it easy for you to get an accurate model for a patients’ dentition for a successful dental restoration.

Many patients with dental problems need quick solutions, and 3d printing delivers that and much more. It is time-saving and also cost-effective. By modifying a 3d design, you can make a 3d printed device to fit well in a patient’s mouth to ease discomfort. It prevents you from redoing the entire process, like in the case of injection molding.

The market is full of dental printers and business models that try to make a difference in digital dental practice. As you make the dental 3d printer comparison, you should go for one that offers a wide variety of dental materials and uses advanced technology to increase productivity. It should also be able to help you create different dental appliances at a low cost.

Unlike the traditional plastic model, a 3D Printer is a more durable, precise, and stable alternative. The edges and lines on 3D printers are sharp, so there is no need for a lab technician to wear them down. 3D Printed model, on the other hand, has a complex formation with a superior level of detail.

These days, 3D printed implant model is the most after the product as it comes with high-quality detachable dies and an exceptionally flexible and detachable gingival mask. This is made of material comparable to a human gum, which is soft, thus allow lab technicians to do the job almost as if it was prepared straight in the mouth of the patient.

The most important benefit provided by 3D dental printing is that it saves you lots of time. After intra-oral scanning, the digital copy of the result is sent straight to a dental laboratory. The digital copy is received in just a matter of minutes as sending is effected electronically. The lab tech can start working right away. 3D dental printing also provides organized and clean working areas for the tech without dealing with plaster or inhaling grinding dust.

The DWX-51D 3D Dental Printer from Roland is intended for the flawless production of dental prosthetics. Using this machine doesn’t need expertise or experience as it is built for error-free and accurate filing. Due to its auto-milling features and touch button controls, the making of premium crowns, bridges, onlays, inlays, and abutments has been made almost foolproof.

Roland DWX-51D is made to produce crowns, copings, abutments, complete bridges, and other prosthetics from wax, zirconia, composite resin, PMMA gypsum, and gypsum with matchless accuracy and speed.

Produced and made up by Roland DG’s group of experts in Hamamatsu, Japan, this product has united its present range of proven dental technologies. The company has installed thousands of dental milling centers ever since entering the dental industry and gained an excellent reputation for trustworthiness and high-quality service. The after-sales support, customer service, and care are second to none.

This printer helps speed up the workflow in your clinic and increases revenue streams. 51D works with recent materials, and it connects seamlessly with digital CAD software and 3D scanners.

Roland 51D dental printer equipped with essential features including New C-clamp for fast adjustment and proper alignment, ten-station ATC, or Automatic Tool Changer for nonstop milling. It is also equipped with Diagnostic notification technology that alerts the technician of the status of the machine. The

5-axis dental milling mechanism can 5-axis synchronized machine to attain complex. Accepted for 3M ESPE LavaT Ultimate Restorative and comes with a mighty vacuum and anti-static ionizer intended for super clean calibration and dust reduction. It has advanced air blower technology to help hard to machine material.

There are many good reasons why dentists should consider this 3D dental printer in their clinic, such as its compact design is ideal for small hospitals or labs. It has a simplified virtual panel that allows for past operation; an advanced clamping system firmly holds a broad range of materials, the capability to connect 4 DWX-51D tools to one computer, well-matched with the industry-standard program.

If you want the most advanced 3D Dental Printer, the Asiga Max 3D printer from Whip Mix is the best choice. This provides exceptional output in a little footprint. Incorporated with 62μm High Definition print precision, this dental printer is optimized for crown and bridge, orthodontics, dental versions, surgical guides, custom rays as well as partial denture in the lab and clinical setting. This accommodates any material from any supplier for the utmost flexibility.

The Whip Mix Asiga scopes boast an open material scheme, so resins from 3rd party providers are well-matched for utmost versatility. Unlike another dental printer that uses a laser, this one uses a DLP light that leads to fine detail. This printer comes with a small footprint touchscreen interface: Wi-Fi connectivity and auto-support generation.

• Compact desktop solution
• 385nm wavelength
• UV-LED projector armed with High Definition chip
• Constant adjustment of layer thickness
• It has a light sensor for a constant projector performance.
