How to Get the Best Support Settings For Filament 3D Printing (Cura) – 3D Printerly

3D printing can get often complex, and you’re most likely to use support structures on your models from time to time. Whenever that happens, you need to make sure your support settings are calibrated appropriately. If not, your models can suffer a lot in terms of quality.

In this article, I’ll try to explain what support settings are and how you can get the best support settings for your 3D printer using the Cura software.

What Are Support Settings for 3D Printing in Cura?

Support settings in 3D printing are used to adjust how your supports are created. This can range from where supports will be created, to support density, support pattern, distances between the supports and the model, down to even support overhang angles. Default Cura settings work well mostly.

Supports are an important part of 3D printing especially for models that are complex, and have a lot of overarching parts. If you think of a 3D print in the shape of the letter “T”, the lines on the side would require support because it cannot print in midair.

A smart thing to do would be to change the orientation and have the extended overhangs flat on the build plate, leading to a situation where supports aren’t needed, but in many cases, you can’t avoid using supports.

When you do finally use supports on your models, there are plenty of support settings that you will find in your slicer, allowing you to make some useful changes to make your supports more practical.

One of these is creating your supports in a way that makes it easier to remove from the model afterwards. The specific setting that can help with this would be the “Support Interface Density” in Cura.

This setting basically changes how dense the top and bottom of the support structure will be.

If you decrease the Support Interface Density, your supports should be easier to remove, and vice versa.

We can also use a simpler setting that is not in the “Expert” category to make supports easier to remove which is the Support Z Distance which I’ll explain further in this article.

There are plenty of support settings in Cura that you’ll never have heard of, and usually won’t ever have to adjust, but some can be practical.

Many of these settings you won’t even see in Cura until you change your settings visibility view, ranging from Basic, Advanced, Expert, and Custom Selection. This is found by clicking the 3 lines on the right side of your Cura settings search box.

Here are some of the support settings that are in Cura for a better idea (settings visibility adjusted to “Advanced”):

• Support Structure – Choose between “Normal” supports or “Tree” supports (will explain “Tree” further in the article)
• Support Placement – Choose between supports created “Everywhere” or “Touching Buildplate”
• Support Overhang Angle – Minimum angle at which to create supports for overhanging parts
• Support Pattern – Pattern of the support structures
• Support Density – Determines how dense the support structures are
• Support Horizontal Expansion – Increases the width of supports
• Support Infill Layer Thickness – Layer height of infill within the supports (multiple of layer height)
• Gradual Support Infill Steps – Decreases density of supports along the bottom in steps
• Enable Support Interface – Enables several settings to adjust the layer directly between the support and the model (“Expert” visibility)
• Enable Support Roof – Produces a dense slab of material between the top of the support and the model
• Enable Support Floor – Produces a dense slab of material between the bottom of the support and the model

There are even more settings under the “Expert” visibility view in Cura.

Now that you see what support settings are and how they can be useful, let’s get into more detail about other support settings.

How Do I Get the Best Support Settings in Cura?

Here are some support settings in Cura that you may want to adjust if you want to get your support structures optimized.

• Support Structure
• Support Placement
• Support Overhang Angle
• Support Pattern
• Support Density
• Support Z Distance
• Enable Support Interface
• Gradual Support Infill Steps

Apart from these, you can usually leave the rest of the settings on default, and that will be just fine unless you have an advanced issue that needs to be addressed with your supports.

What is the Best Support Structure?

The first setting you get when viewing support settings in Cura is Support Structure, and you have either “Normal” or “Tree” to choose from here. This is the type of technique used to form support structures for your model.

For printing uncomplicated models that require standard overhangs, most people typically go with “Normal.” This is a setting where support structures are dropped straight down vertically and printed below the overhanging parts.

On the other hand, Tree supports are usually reserved for more complex models that have delicate/thin overhangs. I’ll explain Tree supports in more detail later on in this article.

Most people go with “Normal” since that’s pretty much the default setting for it and works fine for the majority of the models.

What is the Best Support Placement?

Support Placement is another essential setting where you can determine how support structures are placed. You can either select “Everywhere” or “Touching Buildplate.”

The difference between these two settings are pretty simple to understand.

When you choose “Touching Buildplate”, your supports will be produced on parts of the model where the support has a direct path to the build plate, without another part of the model getting in the way.

When you choose “Everywhere”, your supports will be produced all over the model, in line with what support settings you have set. It won’t matter if your part is complex and has twists and turns all around, your supports will be printed.

What is the Best Support Overhang Angle?

The Support Overhang Angle is the minimum angle that is needed for supported to be printed.

When you have an overhang of 0°, every single overhang will be created, while a Support Overhang Angle of 90° will won’t create anything in terms of supports.

The default value you’ll find in Cura is 45° which is right in the middle. The lower the angle, the more overhangs your printer will create, while the higher the angle, the fewer supports that will be made.

Depending on the performance and calibration of your 3D printer, you can successfully use a higher angle and still be fine with your 3D prints.

Many 3D printer hobbyists out there recommends a value around 50° for the Support Overhang Angle, to ensure your 3D prints still come out nicely and save a little material from less support structures.

I’d definitely test this out for your own 3D printer and see what works best for you.

A great way to test your 3D printer’s ability, as well as your overhang performance is to 3D print the Micro All-In-One 3D Printer Test (Thingiverse).

It doesn’t translate directly into what Support Overhang Angle you can use, but it does allow you to test your ability to increase it further.

What is the Best Support Pattern?

There are many support patterns to choose from in Cura, which gives us the option to customize how our supports are built up. Depending on what you are looking for, there is a best support pattern for you.

If you want supports that are sturdy and can hold up well, you’ll do well with the Triangles pattern which is the sturdiest of all patterns, while Grid also holds up well.

The Zig Zag pattern is the best support pattern for overhangs, along with the Lines pattern.

If you are wondering which support pattern is easiest to remove, I’d go with the Zig Zag pattern because it bends inwards, and pulls off in strips. Cura supports that are too strong should use a support pattern that’s easy to remove.

I’ll talk about the other support patterns further down in this article, so you can understand them a little better.

Support Pattern and Support Density (the next support setting to be discussed) share a link together. One Support Pattern’s density could produce more or less material within a 3D print.

For instance, the Gyroid Support Pattern with 5% infill could prove sufficient for a model while the Lines Support Pattern with the same infill may not hold up as good.

What is the Best Support Density?

Support Density in Cura is the rate at which support structures are filled with material. At higher values, the lines in support structures will be held close to each other, making it appear dense.

At lower values, the supports will be further apart, making the support structure less dense.

The default support density in Cura is 20%, which is fairly good for providing a sturdy support to your model. This is what most people go with, and it works just fine.

What you can do is actually lower your support density to 5-10% and have good support interface settings to ensure your support works well.

You usually won’t have to increase your support density up too high to have good supports.

When you increase your support density, it does improve overhangs and decreases sagging since the supports are connected together densely. You are less likely to see your support fail if there is an issue during the printing process.

The opposite side of increasing your support density is that your supports will be harder to remove due to more of an adhesion surface. You’ll also be using more material for the supports and your prints will take longer.

However, a great place to start is usually around 20%. You can go lower and higher both depending on the situation, but 20% density is a good rule of thumb to keep using your support structures with.

The support pattern has a significant effect on how much support density is actually provided, in terms of how much material is used. A 20% support density with the Lines pattern won’t be the same as with the Gyroid pattern.

What is the Best Support Z Distance?

The Support Z Distance is simply the distance from the top and bottom of your support to the 3D print itself. It provides you with clearance so you can remove your supports easier.

Getting this setting right is fairly easy because it is rounded up to a multiple of your layer height. Your default value within Cura will simply be equal to your layer height, though if you need more clearance, you can 2x the value.

One user who tried this out found that supports were a lot easier to remove. He printed with a layer height of 0.2mm and a Support Z Distance of 0.4mm.

You usually won’t have to change this setting, but it’s nice to know that it’s there if you want to make supports easier to remove.

Cura likes to call this setting “the most influential factor in how well the support adheres to the model.”

A high value of this distance allows for a bigger gap between the model and the support. This translates to easier post-processing and creates a smoother model surface due to the reduced contact area with the supports.

A low value is useful when you’re trying to support complex overhangs which is making the support print closer to the support, but supports will get harder to remove.

Try playing around with different values of these distances to find the perfect figure that works for you.

What is Enable Support Interface?

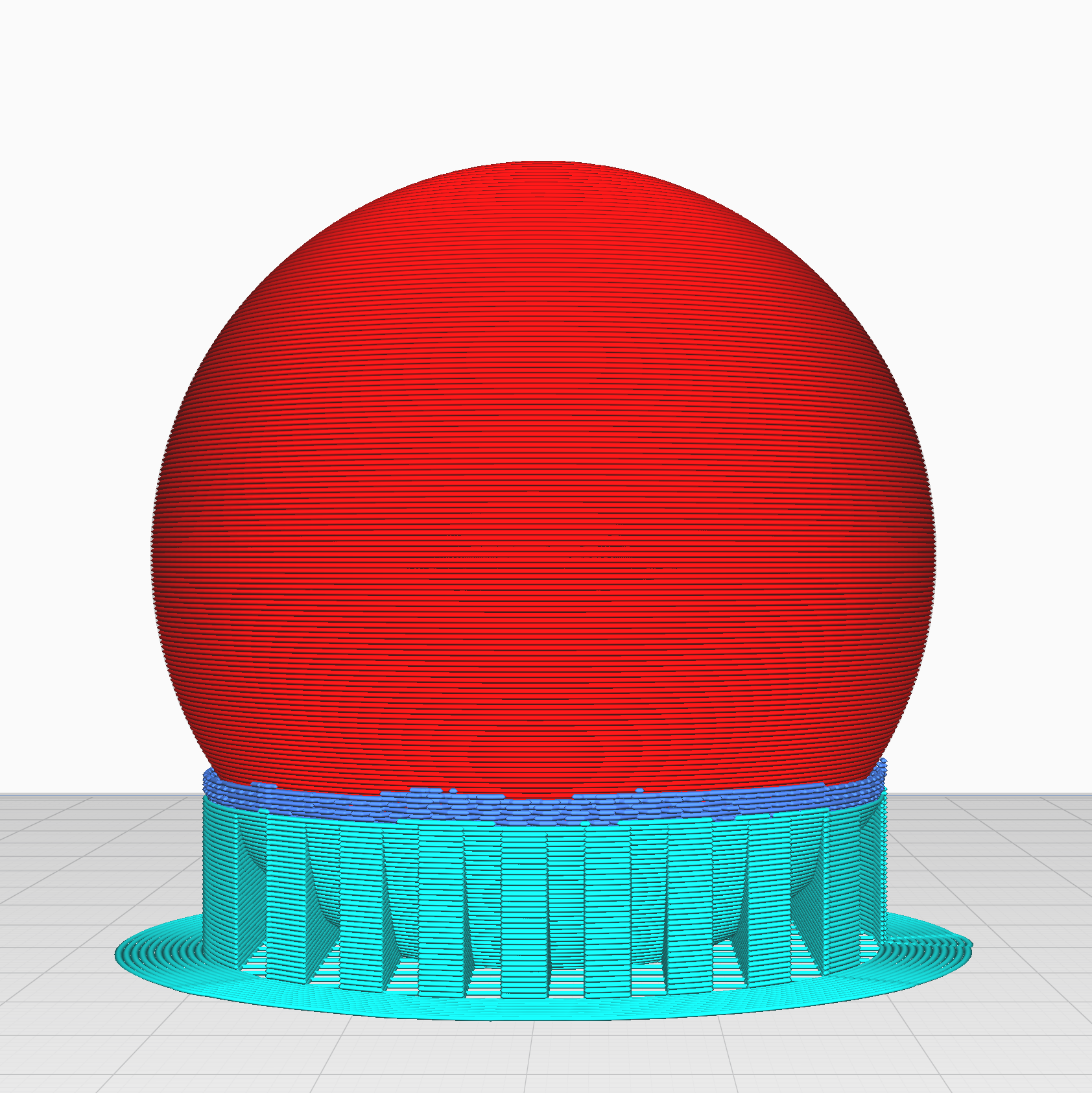

The Support Interface is simply a layer of support material between the normal supports and the model, otherwise seen as the contacting point. It is made to be denser than the actual supports because it requires more contact with the surfaces.

Cura should have this turned on by default, along with the “Enable Support Roof” and “Enable Support Floor” to generate those denser surfaces at the top and bottom of your supports.

Within these settings in the “Expert” view, you’ll also find Support Interface Thickness & Support Interface Density. With these settings, you can control how thick and dense the top and bottom connection points of your supports are.

What are Gradual Support Infill Steps?

Gradual Support Infill Steps are the number of times to reduce the support infill density by half as the infill goes from top to bottom. The highest density of infill will be at the top surfaces of the model, all the way up to your Support Infill Density setting.

People tend to leave this setting at 0, but you should try this setting out to save filament without reducing the functionality of your model. A good value to set is 3 for normal prints, while larger prints could be raised higher.

In the sphere of 3D printing, experimentation is key. By tinkering around with different support settings but staying within logical boundaries, you’ll eventually find out values that get you going remarkably. Patience is a must.

What you can do is install the “Cura Settings Guide” plug-in from the app’s interface. This is a great way for beginners to understand how the software works and what different settings actually stand for.

What is the Best Support Pattern for 3D Printing?

The best support pattern for 3D printing is the Zigzag pattern because it has a great balance of strength, speed, and ease of Removal.

When choosing the best support patterns for your 3D prints, I’d mostly stick to the Zigzag and the Lines pattern because of their balance of speed, strength, and ease of removal. Zigzag, in particular, is also the fastest to print versus other patterns.

The other Support Patterns include:

• Lines

Lines closely resembles Zigzag and is one of the best Support Patterns as well. It is, however, stronger than Zigzag and makes for support structures that will be a bit harder to remove. On the plus side, you get solid supports.

• Grid

The Grid Support Pattern forms support structures in the shape of two sets of straight lines perpendicular to each other. This is followed by consistent overlapping that goes on to form squares.

Grid produces average overhang quality but is highly recommended for strong, reliable supports. However, since there will be little flexibility, supports can get rather difficult to remove.

• Triangles

The Triangles pattern is the strongest of all support patterns. It forms an array of equilateral triangles that allow it to exhibit little to no flexibility.

It produces bad quality overhang angles and will be the most difficult support structures to remove from your prints.

• Concentric

The Concentric Support Pattern is great for cylindrical shapes and spheres. They are easy to remove and will bend towards the inside with minimal effort.

However, the Concentric pattern is known to mess up here and there, oftentimes leaving the support suspended in midair.

• Cross

The Cross Support Pattern is the easiest to remove out of all the Support Patterns in Cura. It exhibits cross-like shapes in your support structures and draws a fractional pattern in general.

Cross isn’t the one to use when you require sturdy and firm supports.

• Gyroid

The Gyroid pattern is strong and reliable. It features a wave-like pattern across the volume of the support structure and provides equal support to all the lines of the overhang.

Gyroid is highly recommended when printing with soluble support materials. The air comprising a single volume allows the solvent to quickly reach the internals of the support structure, allowing it to dissolve faster.

Different patterns have varying strengths and weaknesses.

Many people agree that Zigzag is the best Support Pattern that Cura has to offer. It’s fairly sturdy, reliable, and exceptionally easy to remove at the end of the print.

Lines is also another popular Support Pattern that many people choose to work with as well.

How to Get Custom Supports Settings Perfect in Cura

Cura has now provided access to custom supports, a feature which used to be reserved for Simplify3D which is a premium slicer.

We can access custom supports by downloading a plugin within the Cura software called Cylindrical Custom Supports, found in the Marketplace on the top right of the app.

Once you find the plugin and download it, you’ll be prompted to restart Cura where you’ll then have access to these very practical custom supports. I’ve used them successfully on many prints now, they work great.

One of the best things about it is how all you need is to click in one area, then click on another, and you’ll create a custom support between those two clicks.

You can easily customize the shape, size, max. size, type, and even setting on the Y direction. These aren’t just for show as you can really create some high level supports very quickly for your models.

For support shapes you can use the:

• Cylinder
• Cube
• Abutment
• Freeform
• Custom

Your standard support settings that you set will apply such as infill density and pattern.

Check out the video below to see a visual tutorial behind how these custom supports work.

Best Cura Tree Support Settings for Cura

For the best Tree support settings, most people recommend a Branch Angle of anywhere between 40-50°. For Branch Diameter, 2-3mm is a great place to start. Moreover, you want to make sure your Branch Distance is set to at least 6mm.

Here are the rest of the Tree support settings you can find under the “Experimental” tab in Cura.

• Tree Support Branch Diameter Angle – the angle of a branch’s diameter growing towards the bottom (defaults at 5°)
• Tree Support Collision Resolution – determines the accuracy of collision avoidance in branches (defaults same as Support Line Width)

I wrote an article called How to Use Cura Experimental Settings for 3D Printing which you can check out.

The video below by CHEP goes into some detail about Tree Supports.

For Branch Diameter Angle, many users have set it to 5°. We want this angle to be oriented in such a way so that the tree support can stand strong without wobbling or shaking.

For Tree Support Collision Resolution, 0.2mm is a good figure to start with. Increasing it further could make the tree branches appear low in quality, but you will be saving more time. Try experimenting to see what works for you.

Tree supports are Cura’s unique way of generating support structures for your model.

If normal supports are taking a long amount of time for a part that’s relatively small, you might want to consider Tree supports, but that’s not the only reason why you should do that.

These tend to use less filament and post-processing is undeniably the best part of Tree supports. What they do is envelop the model and form branches that collectively create a shell around the model.

Since those branches only support selected areas of the model and form a shell-like shape afterwards, they usually pop right off with little to no effort and increases the chance of a smoother surface quality.

However, I recommend using Tree supports for models that are complex. For simpler models like parts of a 3D printer with average overhangs, Tree supports won’t be ideal.

You’ll have to evaluate yourself whether what model is a good candidate for Cura’s distinct support generating technique.

Best Cura Support Settings for Miniatures

For printing miniatures, a 60° Support Overhang Angle is safe and effective. You’re also best off using the Lines Support Pattern for more details in your minis. Additionally, keep the Support Density to its default value (i. e. 20%) and that should get you off to a good start.

Using tree supports for miniatures is really popular because they tend to have more complex shapes and details, especially when there are swords, axes, extended limbs involved, and things of that nature.

One user mentioned how he takes the STL file of his miniatures, imports them into Meshmixer, then has the software generate some high quality tree supports. After that, you can simply export the updated file back into an STL and slice it in Cura.

Check out my article Best 3D Print Miniature Settings for Quality.

You can get mixed results with this. It’s worth a try, but for the most part, I’d stick with Cura. Depending on the model, selecting your Support Placement to Touching Buildplate can make sense, so they won’t build on top of your miniature.

Using normal supports can work, especially if you create your own custom supports, but tree supports do work really great for detailed minis. In some cases, tree supports can have difficulty coming into contact with the model.

If you experience this, try making your line width equal to your layer height.

Another thing to add is to make sure you are using a good orientation in order to minimize supports. The right rotation and angle for your 3D printed miniatures can make a significant difference in how it turns out.

The video below by 3D Printed Tabletop is great for dialing in your settings to print some amazing miniatures. It usually comes down to a small layer height and printing at a low speed.

If you can tune your 3D printer to successfully 3D print some good overhang angles, you can reduce the number of supports. As mentioned above, a good overhang angle is 50°, but if you can stretch to 60°, it will make for fewer supports.

The Support Z Distance is another important setting to be wary of when printing minis. Depending on your model and other settings, this can vary, but a value of 0.25mm seems to work as a general standard for many profiles I’ve seen while researching around.

High-quality minis require carefully optimized settings, and while it’s difficult to print them perfectly right from the get-go, trial-and-error will gradually get you there.

In addition, another setting called Support Line Width appearing under the “Quality” tab in Cura seems to play a role here. Decreasing its value would reduce the gap between your Tree support and model.

How Do I Fix Cura Support Settings That Are Too Strong?

To fix supports that are too strong, you should decrease your support density, as well as use the Zigzag support pattern. Increasing your Support Z Distance is a great method of making supports easier to remove. I’d also create your own custom supports, so they can be built as little as necessary.

The Support Z Distance can affect directly how hard or easy it is to remove supports from your model.

Found under “Expert” settings, Support Z Distance has two subsections – the Top Distance and the Bottom Distance. The values of these change in accordance with what you put under the main Support Z Distance setting.

You want the Z Distance value to be 2x your layer height so there is extra space between your model and the supports. This should make the supports a lot easier to remove, as well as being enough to properly support your model.

If you don’t want to use custom supports for any reason, like there are too many supports to add, you can use another feature in Cura called Support Blockers.

It is used to remove supports where you don’t want them to be created.

Whenever you slice a model on Cura, the software determines where support structures will be placed. However, if you see that support isn’t needed at a particular point, you could use the Support Blocker to remove unwanted supports.

It’s fairly simple, but you can get a better explanation by watching the video below.

How to 3D Print Support Structures Properly – Easy Guide (Cura) – 3D Printerly

3D print supports are an essential part of successfully creating 3D models. So, it’s a good idea to learn how to do supports properly.

I decided to put together an article for people to understand how supports work to improve your 3D printing experience.

3D printing supports can be done manually with custom supports or automatically by simply enabling supports in your slicer. You can adjust support settings such as support infill, pattern, overhang angle, Z distance, and even placement just on build plate or everywhere. Not all overhangs need supports.

Keep on reading through this article to learn some of the basics of creating support structures and more advanced techniques that you’ll find very useful.

What is Print Support Structure in 3D Printing?

Like it says in the name, support structures help support and hold the print up during 3D printing. In addition, these structures provide a foundation for the successive layers of the print to be built on.

As the print is built up from the print bed, not every section of the print will lie directly on the bed. In some cases, some of the print’s features, like bridges and overhangs, will extend over the print.

Since the printer cannot build these sections on thin air, print support structures come into play. They help secure the print to a print bed and provide a stable foundation for these features to be printed on.

After printing, you can then remove the support structures.

Does 3D Printing Require Supports? Can You 3D Print Without Supports?

Yes, you can 3D print models without support. Not every 3D model requires supports to be able to print. It all depends on the properties and the features of the model.

For example, look at the Daenerys Bust below. It has some slight overhangs, but you can still print it just fine without supports.

A key example of a 3D print that doesn’t need supports is the 3D Benchy. The red areas in Cura show overhangs angles above your “Support Overhang Angle” which is defaulted at 45°. Although you see plenty of overhangs, 3D printers can still handle certain printing situations without supports.

Here’s what the 3D Benchy would look like with supports with usual settings in Preview Mode. The supports are shown in the light blue around the model.

Here’s the 3D Benchy without supports enabled.

Let’s look at some of the features that determine if you need supports.

Bridging and Overhangs

If a model has features that hang over its main body and long unsupported beams and sections, it will need support.

Supports are necessary for models like this to provide a foundation for these features.

Complexity of the Model

If the model has a very complex geometry or design, it will need supports. These intricate designs will often have unsupported sections, and without supports, they won’t be printed correctly.

Orientation or Rotation

The model’s orientation will decide if it will use supports and how many supports will be used. For example, if the model is oriented at a steep angle, it will require more supports because more sections will hang over the main body.

For example, look at this assassin model. In its normal orientation, it requires quite a lot of support.

However, if you lay it down on the bed, the overhanging features lie on the bed, and the model doesn’t require supports.

Do 3D Printers (Cura) Automatically Add Supports?

No, Cura doesn’t automatically add supports, they have to be enabled manually by checking the “Generate Support” box. Once enabled, supports are created automatically in areas that have overhangs, where the angle can be adjusted with the “Support Overhang Angle” setting.

Cura provides plenty of other options for adjusting supports for your model. In addition, you can review the model and check for unsupported sections.

You can also choose the type of support that’s best for you. Cura offers two basic types of supports, the Normal and the Tree Supports.

How to Set Up & Enable 3D Printing Supports in Cura

Setting up and enabling 3D printing supports on Cura is quite easy. It is one of those things that you’ll get better at the more you do it.

Let me take you through the process.

Step 1: Import the Model Into Cura

• Click on “File > Open file(s)” on the toolbar or use the Ctrl + O shortcut

• Locate the 3D model on your PC and import it.

You can also drag the file in Cura directly and the 3D model should load.

Step 2: Enable Supports

There are two ways you can generate supports in Cura. You can either use the recommended print settings or your own custom options.

Here’s how to use the recommended settings.

• On the right side of the screen, click the print settings box.
• Check the box that says “Support”.

Alternatively, if you want more complex settings:

• From the same page, click “Custom”
• Locate the Support dropdown menu and click “Generate Support”.

• You should see various support settings pop up under the menu when you enable it.

Step 3: Edit Settings

• You can edit a variety of settings such as the infill density, support pattern, etc.
• You can also choose if you want your supports to touch the build plate only, or for it to be generated everywhere on your model.

How to Set Up Custom Supports in Cura

The Custom supports setting lets you manually place supports wherever you need them on your model. Some users prefer this option because automatic supports can generate more supports than required, resulting in increased printing time and material usage.

Most slicers like PrusaSlicer and Simplify3D provide settings for this. However, to use custom supports in Cura, you have to use a special plugin.

Here’s how you can do it.

Step 1: Install the Custom Supports Plugin

• Go to Cura Marketplace

• Under the Plugins tab, look for the “Custom Supports” & “Cylindric Custom Support” plugins

• Click on the plugins and install them

• Restart Cura

Step 2: Check for Islands/Overhangs on the Model

Islands are unsupported sections on the model that require supports. Here’s how to check for them.

• Import the model into Cura.
• Slice the model. (Note: Make sure all the support generation settings are turned off. )
• Rotate the model and check under it for sections that are shaded in red.

• These sections are the places that need supports.

Step 3: Place the Supports

• On the left-hand side, you should see a custom support toolbar. Click on the add supports icon.

• Here, you can choose between cube-shaped and cylinder-shaped supports.

• You can even modify the width of the base and angle it to increase the support’s stability.

• Click on where you want to add the supports. Once you do this, some blocks will appear in the area.
• Using the editing tools, modify the blocks until they take the shape you want.

• Make sure the blocks adequately cover the area. Also, make sure they are connected to the bed or any stable part of the model.

Step 4: Edit the supports.

• Go to the custom print settings and open the support dropdown menu.
• Here, you can change the support infill pattern, density, and a whole range of other settings as previously shown.

This next part is crucial. Once you’re done editing the supports, go up and turn off “Generate Support” before slicing the model so it doesn’t create the usual supports.

After you’ve turned it off, slice the model, and voilà, you’re done.

I prefer to use the Cylindric Custom Supports because you get a lot more options of creating custom supports, especially with the “Custom” setting where you can click one area for the starting point, then click the finish point to create a support that covers the main area.

Check out the video below to see a nice tutorial on how to do this.

How to Fix Supports Not Touching the Model

Sometimes you can have problems with your supports not touching the model. This will ruin the print because the overhangs will not have any foundation to build on.

Here are some common causes of this issue and their fixes.

Large Support Distances

The support distance is a gap between the supports and the print to enable easy removal. However, sometimes this distance can be too large, resulting in the supports not touching the model.

To fix this, make sure the Z Support Bottom Distance is equal to the height of one layer, while the top distance is also equal to the height of one layer.

The Z support bottom distance is usually hidden in Cura. To find it, search for Support Z Distance in the Cura search bar.

To make it permanent, right-click on the setting and select “Keep this setting visible”.

If you’re printing complex, complicated features that require more supports, you can play around with these values and reduce them. Just be careful not to make the value too low to avoid problems when removing supports.

Tiny Support Points

Another reason for supports not touching the model is that the areas to be supported are tiny. In this situation, the support will make enough contact with the print to support it.

You can fix this using two ways. The first way involves using Towers. Towers are a special type of support used in supporting tiny overhanging parts.

These towers are circular in cross-section. They taper down in diameter as they go up to support points smaller than their set diameter.

To use them, go to the Cura print settings and search for Tower. In the menu that pops up, tick Use Towers.

You can then select the “Tower Diameter” and the “Maximum Tower Supported Diameter” you want.

Once you do this, the tower will support any overhanging point on your print lower in diameter than this value.

The model on the left is using normal supports for the top points. The one on the right is using Tower supports for the tiny points.

The second option is to use Horizontal Expansion. This is better than towers for thin, long areas.

It instructs the printer to print sturdier supports to hold up these areas. You can use it by looking for the “Horizontal Expansion” setting in print settings.

Set the value to something like 0.2mm so your printer will be able to print the supports easily.

Why Are Your 3D Printing Supports Failing?

3D printing supports fail for many reasons. When these supports fail, it automatically affects the entire model, which results in a ruined print.

Let’s look at some of the common reasons why 3D printing supports fail:

• Poor first layer adhesion
• Insufficient or weak supports
• Unstable support footprint

How Do I Stop My 3D Printing Supports From Failing?

You can make changes in your print setup and your slicer settings to obtain better supports. Here’s how you can do it.

Make Sure Your Print Bed is Clean & Properly Leveled

A clean, well-leveled print bed creates an excellent first layer for your supports. Therefore, your supports will have a smaller chance of failing with a stable first layer.

So, make sure you clean your bed with a solvent like IPA before Printing. Also, make sure it’s appropriately leveled using this guide.

Optimize Your First Layer

As I said earlier, an excellent first layer helps increase the stability of the supports. However, a well-leveled print bed isn’t the only key to a great first layer.

So, make the first layer thicker than the rest to provide an adequate foundation for the supports. To do this, set the first layer percentage to 110% in Cura and print it slow.

Check my article called How to Get the Perfect First Layer on Your 3D Prints for more in-depth advice.

Use Additional, Stronger Supports

Sometimes, supports fail because they are weak, flimsy, or just insufficient to carry the print’s weight. To combat this:

• Increase the support’s infill density to about 20% to strengthen it.
• Change the support’s pattern to a stronger one like Grid or Zig Zag
• Print the support on a raft to increase its footprint and stability.

For more info on how to stop your supports from failing, you can check out my article on How to Get the Perfect Support Settings.

How Do I Use the Cura Support Air Gap?

The Cura support air gap tool introduces a gap between your supports and the print to make the print easier to remove.

However, you have to be careful when setting these gaps. Too much of a gap can result in the support not touching the prints, while too little can make the supports hard to remove.

The optimal setting for the support air gap varies by location. Most people recommend using a gap of one or two times the layer height (0.2mm for most printers) for the Support Z Distance.

To change it, search for “Support Z Distance” in the Cura search bar and input your new value when it pops up.

How Do I Use Cura Support Blockers?

Cura support blocker is a pretty handy tool in the slicer that lets you control the areas where supports are automatically generated. Using this, you can select specific areas for the slicer to skip while generating supports.

Here’s how you can use it.

Step 1: Initialize the Support Blocker

• Click on your model
• Click on the support blocker icon on the left panel

• Click on the area where you want supports blocked. A cube should appear there.
• Using the move and scale tools, manipulate the box until it covers the entire area.

Step 3: Slice the Model

The areas within the support blockers will not contain supports.

The video below is a quick minute tutorial to show you exactly how it looks. You can easily adjust the size of the support blocker area and create multiple blocks to stop supports from being created in specific parts.

How Do I Use Cura Tree Supports?

Tree supports are a relatively new addition to Cura. However, they have many advantages over normal supports, and they produce a better, cleaner print.

Tree supports have a trunk-like structure with branches that wrap around the print to support it. This setup makes the supports much easier to remove after Printing.

It also consumes less plastic after Printing. Let me take you through how you can use Tree supports.

• Import your model into Cura.
• Go to the supports sub-menu under print settings.
• Under “Support Structure” menu, select “Tree”.

• Choose if you want your support base only to touch the build plate, or everywhere on your print.
• Slice the model

Now you’ve successfully used Tree Supports. However, before using Tree Supports, you should know that they take slightly longer to slice and print.

Check out the video below by CHEP on how to create Tree Supports in Cura.

Conical Supports

There is actually another option that is between Normal Supports & Tree Supports called Conical Supports which produces an angled support structure in a cone shape that gets smaller or larger towards the bottom.

Simply search “conical” to find this setting which is under “Experimental” settings in Cura. You’ll also find “Conical Support Angle” & Conical Support Minimum Width” to adjust how these supports are built.

The video below shows you how they work.

Supports are an integral part of creating a top-quality 3D print. I hope as you apply the tips provided in this article, you’ll learn how to use Cura supports properly.

Good luck and happy printing!

Cura 3D tutorial for beginners

3DPrintStory     3D printing process     Cura 3D tutorial for beginners

 G0 F7200 X19.698 Y28.262 Z.36 G1 F1500 E0 G1 F1350 X22.467 Y26.175 E0.15654 G1 X23.338 Y25.568 E0.20447 G1 X24.246 Y25.027 E0.25218
