Tim_Jason_Sparr December 7, 2015, 1:58pm

so i just got my scanner a new imac and run and installed parallels and have windows 10 running smoothly on my mac … installed the intel real sense sdk as part of the xyz packaged software and i keep getting a error 5041 device not found , please try again message , i have updated the software and controlled all drive updates for the usb 3 ports , its still not working , can any one help …

1 Like

Xeno December 8, 2015, 11:33am

Did you assign the right USB port to Parallels ?,

when you plug in your device, Parallels should ask where you want the USB device connected to, Win or OSX.

Tim_Jason_Sparr December 8, 2015, 3:16pm

yes i did … im just wondering if perhaps the scanner has an internal fault as the button on the scanner lights up … i shall look into trying the scanner on a up to date pc ( local pc outlet ) … if it gives the same error perhaps its a hardware problem … will let hou know … Thanks for you help …

micahwelner December 16, 2015, 4:43pm

@Tim_Jason_Sparr did you ever figure this out! i was about to purchase the XYZ before i realized it wasn’t mac friendly. then i remember parallels which i already had a copy of. did you ever get it to work through parallels? hope so! let me know thanks happy holidays

Tim_Jason_Sparr December 17, 2015, 9:43am

I haven’t managed yet to run it through parallels . I went to a PC shop and they had it up and running on a new pc with the latest intel chip . I have a new iMac ( literally a month old) and the technician at the pc shop thought there may be an issue with the type of intel chipset that mac uses . its all down to the intel real sense camera that the device uses and perhaps also usb power issues . It may be a graphics card issue too . For now if you haven’t a pc I’m not sure if its going to work . Which is a shame , would be nice if xyz-printing had a wiki or its own help page on this considering the 3d printer (junior) runs ok on my iMac , suppose its about licensing with intel or microsoft or something … anyone else manage to solve this …please help out as i have a scanner doing nothing … would have been nice to get it up and running for the holidays …

pomusa March 10, 2017, 3:08am

I bought this item recently and it was missing the SD card. I was wondering if you still have the driver for Windows 10?

thanks

Boon

Tim_Jason_Sparr March 10, 2017, 7:25am

i will take a look … its now still in its box … will try to get it running this weekend

PAK5000 August 12, 2019, 7:43pm

I get the same error on a windows 10 pc. and there was no SD card in the box. and i can’t find the driver on their site. also, on the first machine i installed this on, it never prompted for a driver. the scan quality was just very low and compared to the how to videos, it took me a lot longer to get a scan. then the scan button would not enable. the button on the scanner lit up but did nothing. that was in xyz handy. i tried 3d sense. as soon as i hit the scan button the app crashed. so tech support said try another pc. xyzhandy wants a mystery driver and 3dsense does not detect a scanner. i think the scanner went bad and am working with them to get a replacement.

updating all the windows drivers, the intel realsense and graphic card drivers, did get it working for a short time on the original pc. but there was no SD card. and the apps never prompted for a driver. i think it is just a bad scanner they need to replace.

XYZPrinting 3D Scanner 1.0 A In-Depth Review

8.3Expert Score

XYZPrinting 3D Scanner 1.0 A

XYZPrinting 1. 0 A is a gift for all the creative minds who are seeking access to unique scanning machines at a low cost.

Affordability

Quality

Speed

Capability

Practicality

User Expectations

PROS

Top-quality scanning.
Can be used straightway out of the box.
Extremely light in weight.
Hassle-free working.
Software is simple and easy to use.

CONS

Some scans produced by the scanner are of very low resolution.

Table of Contents

3D Scanner 1.0 A is a portable high-resolution 3D scanner that can be connected to a laptop or desktop for scanning objects and producing 3D files.

It works using a technology called Intel RealSense Camera. Much of the processing of the technology is very similar to the structured light 3D scanning method.

XYZPrinting is a manufacturer based in Taiwan that has come up with an eccentric design that enables the scanner to work in four different modes and area sizes.

The typical scan areas that 3D Scanner 1.0 A is compatible scanning are 60 cm * 60 cm * 30 cm, 80 cm * 50 cm * 80 cm, 100 cm * 100 cm * 200 cm and the size of an average human head.

Let’s look at the scanner in-depth to find interesting facts about the same.

Features

1.0 A works by connecting your device with a USB cord. Doing so gives you considerable mobility because of its compact size and lightweight nature.

The manufacturer also supplies its users with XYZScan Handy – a scanning and post-processing software to let them edit the models after scanning. Below are some of the features that make work easier for the operators.

Four Different Scanning Modes

The scanner can classify scan subjects as:

Object that can scan dimensions up to 60 cm * 60 cm * 30 cm.
Head capable of scanning dimensions up to 80 cm * 50 cm * 80 cm.
Full-body scans up to 100 cm * 100 cm * 200 cm.
Mask about the size of a human head.

3D Scanner 1.0 A works differently while scanning each of those categories to ensure that users get maximum output while scanning them all.

Maneuverable and Portable

1.0 A 3D scanner connects to your computer using a USB cord. Doing so grants greater mobility. Also, the machine is small in size and light in weight.

You can easily move around a specific scanning subject to achieve greater precision. Else, you can attach it to your laptop screen and move it while doing the scan.

Simple Editing and Exporting

By using XYZ Scan Handy, users can scan and post-process models of varying geometries. It has a very user-friendly interface that lets you process a scan within a very short time.

The program is equipped with tools that make the functions of editing and exporting much easier and hassle-free for users.

Easy Sharing Option

Whether it’s a historical artifact in high-definition or any other object, using XYZPrinting 1.0 A you can share them all on your online 3D gallery or on SketchFab to communicate with your audience in a better way.

Full-color Capture

The scanner allows you for a real-time scan. Users can keep a check over its full-color image in a synchronized manner on their laptop screen while scanning the subject. This ensures you capture every single detail correctly.

Specifications


Technology	structured light technology
Price	299. 99 $
Dimensions	41 mm * 157 mm * 61 mm
Maximum Size	100 mm * 100 mm * 200 mm
Weighs	0.28 kg
Operating Range	30 – 50 cm
Connectivity	USB 3.0 Cable

XYZPrinting 1.0 A’s dimensions are 41 mm * 157 mm * 61 mm. It scans objects based on structured light technology. The maximum size of the part or functional prototype that it can process is 100 mm * 100 mm * 200 mm.

The scanner weighs 0.28 kilograms and is extremely easy to carry from one place to the other. It can deliver a scan resolution of 1 mm and has a frequency of 30 fps.

The machine’s operating range is from 30 to 50 centimeters and can deliver files in OBJ, PLY, and STL formats. Users can connect with the scanner using a USB 3.0 Cable.

It runs well with Windows as well as Mac operating system. XYZPrinting 1.0 A can achieve a color image size of up to 1920 * 1080 pixels.

Price

XYZ 3D Printing 3D Scanner 1.0 A is available for $299.99.

First Impression

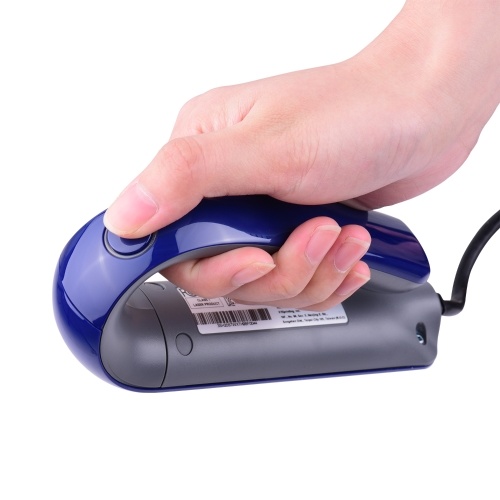

The scanner’s modular design makes it a perfect handheld 3D scanner. XYZPrinting’s design team has given ample thought to how they can make their design suited for hands and movable scanning rather than fixed scanning.

That’s why you see a curvy little body typically with a straight line and a semi-circle. The machine is colored in red, white, and silver over its front, switchboard, and back.

Setup

3D Scanner 1.0 A is ready to use out of the box. It’s completely assembled. Of course, it’s up to you to decide whether you wish to watch some typical tutorials to get a grip of the scanner and then start using it or straightway.

Scan Type

credit: 3dscanexpert

The scanner is based on Intel’s RealSense Technology which works similarly to structured light technology. This process makes use of an LED light source, typically a projector to project light rays on an object.

With the help of an infrared sensor, the reflected light patterns are then converted into a scanned image. The benefit of this technology over laser 3D scanning technology is that it works faster without majorly compromising on the scan accuracy.

Scan Quality

Credit: 3dscanexpert

Because of classifying scan subjects into four different modes, the accuracy level of 1.0 A’s scan image gets slightly higher than other scanners without such a feature.

Also, a lot of the credit goes to the scanning software that comes into play after capturing the scanned image. It lets you play with it easily, thereby allowing you to edit what’s not good.

All of that leads to a further increase in the accuracy which makes the creation of extremely detailed scans, capable of producing amazing geometries, possible.

Software

Credit: 3dscanexpert

XYZ Scan Handy is an all-around 3D scanning assistant. It’s extremely dynamic and friendly. The application lets users take complete control of the process and have a glance over scanned images appearing in real-time and full color.

Even beginners can quickly grasp the ins and out of scanning. Four different modes of scanning make the work relatively easy for operators.

The minimum scan volume on 1.0 A is 5 cm * 5 cm * 5 cm. Its scan resolution range is 1 to 2.5 mm. The depth and color image size is 640 * 480 at 30 fps.

The program allows users to edit the scanned model. You can crop off unwanted areas, switch view angles, as well as fine-tune the color of your 3D model. Also, the out scan files can be in multiple formats such as OBJ, PLY, STL, or FBX. The scanned files can be exported in color, thanks to the new inkjet technology used by the manufacturer.

Customer Support

Apart from the online ticketing system, the technical team of XYZPrinting can be reached out via phone, Skype, or telephone.

Parameters Influencing Buying Decision

The complete summary with important points about the scanner is mentioned below in brief.

3D Scanner Cost: Offering four different modes of scanning at a price under $300, XYZ 3D printing has ensured flexibility is accessible for beginners in the field. 3D Scanner 1.0 A is extremely affordable for those who wish to deviate a little from the general type of scanning machines.

3D Scanner Speed: Thanks to Intel’s RealSense Technology, 1.0 A enables users to scan objects of varying geometries at very fast speeds. Without compromising on resolution, the machine lets operators scan at 30 fps which is amazing.

3D Scan Quality: A scan resolution of 1 to 2.5 mm is possible while scanning a subject anywhere in the range of 3.93 and 27.55 inches which is fairly competitive for scanners offered in the same price range.

3D Scanner Capability: Four different scan modes enabling users to scan objects of varying geometries states a lot about 1. 0 A’s capabilities. Apart from that hassle-free software with automatic detection of distance and speed and extremely user-friendly design lets anyone can easily and rapidly.

3D Scanner Practicality: The scanner finds its application in everyday life scanning, education, research as well as rapid prototyping.

3D Scanner User Expectations: Beginner-level users, as well as intermediates, will identify 1.0 A as a comforting device. Its new and eccentric nature lures the operators to think differently and uses distinct strategies for scanning.

The Verdict

3D Scanner 1.0 A 1.0 A by XYZ 3D printing is affordable and effective. Most importantly, it comes from a reliable manufacturer. It provides users with the flexibility to use it with their own hands.

Particular characteristics like its portability, editing and exporting with ease, uploading online, availability of files in various formats, different scan modes are not available in the scanners found in the same price range. And that’s what makes the scanner more popular.

Although the machine has its own set of flaws like any other, its unique features provide an edge to lead the competition. It’s a gift for all the creative minds who are seeking access to unique scanning machines at a low cost.

Top 13 3D scanners on the market!・Cults

In the past, 3D scanners were mainly used for industrial and professional applications. For example, scanning architectural objects or creating digital models for films. As technology advances, the price continues to drop. Now, 3D scanning gives the average person the ability to custom-make just about anything they want. With more affordable prices, 3D scanning is becoming more accessible to consumers for personal use.

But first, a basic overview of 3D scanning:

A 3D scanner scans real objects and passes the image data to a 3D modeling program. The object can then be manipulated in the software and - if desired - exported and created on a 3D printer.

1. Select any object (or person!) you want to scan

Why is 3D scanning useful?

Imagine if you could scan your body and see how clothes fit and look online before you order them? 3D scanning technology can do just that. For example, bodylabs uses 3D scanning to understand how products will work for customers based on their body shape and posture.

2. Scan it and customize it in 3D modeling software

After scanning the object, you can reduce the size or edit it with free 3D design software. You can then choose to 3D print the edited file.

3. Export your model and print it in 3D!

After scanning the model and editing it to your liking, you can export it to .stl format and send it to a printer to bring it to life.

We have listed the 3D scanners below in ascending order of price (from cheapest to most expensive). Their rating does not necessarily reflect our judgment of the quality of the product. We've included some handy YouTube videos that go into more detail about each product.

1. XBox Kinect 3D Scanner - $95 USD

If you want to get by on the cheap, there are ways to use your old Xbox 360 or Xbox One Kinect device to get great results! If you have a Kinect.

2. iSense 3D Scanner for iPhone/iPad - $99

This scanner was developed by 3D Systems as part of the Cubify family. Although they don't sell 3D printers anymore, they keep their 3D scanner in the market. Like a structure sensor, iSense attaches to an iPad or iPhone. Its range of motion is 0.5m more than the Sense.

3. XYZprinting 3D Scanner - $139

XYZprinting 3D Scanner is the cheapest portable 3D scanner on the market. At under $200, it's perfect for anyone looking to get into 3D scanning on a budget.

The size of the scanner is 60 cm x 60 cm x 30 cm, so it is best used for small items. It also uses the new Intel RealSense image capture software, which means it can connect to any Windows device with a 4th generation Intel processor.

4. BQ Ciclop 3D Scanner Kit - $199

This open source hardware project has been released under an open source license so that all mechanical design, electronics and software information is available to the community for further development . The full package costs about 199 USD. You can even download the design and print it in 3D!

5. Structure Sensor for iPad - $379

Arguably the best scanner on the market, the Structure Sensor was developed through a Kickstarter campaign that attracted over 3,500 people and raised $1.2 million. Structure Sensor turns your regular iPad into a 3D scanner that captures three streams of data at 30 frames per second.

6. Cubify Sense - $399 USD

Cubify Sense is a portable pen scanner that makes it easy to manually scan 3D objects. This makes it possible to use Sense in quite unique areas, with both advantages and disadvantages. Sense is compatible with Windows and Mac OS.

7. Matter And Form MFS1V1 Desktop 3D Scanner - $467 USD

The first ever crowdfunded 3D scanner, Matter and Form, is a Toronto-based company that has raised nearly half a million dollars to develop this product. It uses a 3D laser scanner with a movable camera head and a 360-degree rotating platform.

MFS1V1 generates a detailed point cloud, which again works very well in some scenarios and less well in others.

8. XYZprinting Da Vinci 1.0 Pro 3-in-1 3D Printer - $810

Da Vinci 1.0 Pro is both a 3D scanner and a 3D printer. It uses a laser diode module with a 2 megapixel camera (higher resolution than 1.2 megapixel iPad scanners). Please note that this machine uses proprietary 3D printing consumables.

9. Einscan-S - $999

Einscan-S has two scanning modes: automatic and free. The first one is the easiest: just place an object on the rotating surface of the Einscan turntable and the machine will scan it in just 3 minutes with an accuracy of .1mm. For large models, free scan mode works by rotating the scanner on a tripod around the object. Einscan-S generates one STL file that can be sent directly to your 3D printer. Einscan-S produces 3D printable models with greater accuracy (using "Light Structure Phase Shift Technology" instead of lasers) than competitors, providing industrial quality 3D scanning technology within a consumer's budget.

10. IIIDScan PrimeSense 3D Scanner - $1441 USD

Greater accuracy comes at a price. This tripod-mounted 3D scanner is unique in that it uses a short-range image sensor capable of scanning 3D objects in more detail and at a faster rate than other scanners on the market.

11. Fuel3D Scanify - US$1,500

This is a very high speed handheld 3D scanner capable of capturing an object in less than 1/10th of a second. In this regard, it differs significantly from the other 3D scanners on this list. In practice, it's more like taking a 3D photograph than manually scanning an object. Fuel3D Scanify uses a dual HD stereo laser camera combined with photometric data from three xenon flashes to create reasonably realistic 3D scans in the blink of an eye (so to speak). High tech.

12. NextEngine 3D Scanner HD - $2,995 USD

The NextEngine 3D Scanner HD combines portability with very high accuracy - much better than the scanners at the top of this list. Of course, the higher the accuracy, the higher the price! It uses an electro-optical system with a laser array that scans in tandem. The advantage is that the high-precision scanner has no size limits. The scanner comes with its own mesh creation software package, and you can also check out their NURBS and Solid modeling packages as options.

This is the scanner for those who want to get really serious results from their 3D scanning efforts. If you check out the gallery on their site, you can see how much more detailed NextEngine scans are compared to some of the cheaper scanners on this list. Of course, these are the company's own comparisons for marketing purposes, so feel free to take them with a grain of salt!

13. DAVID SLS-2 Laser Scanner - $3,275

The scanner is expensive, but it has a unique use of "light scanning". The company boasts that you can scan everything from insects to elephants. We are told that the SLS-2 can scan 1.2 million peaks in a few seconds. Blimey!

What if none of these scanners work for you? What if you want the best of the best? What if you have several thousand dollars set aside for a 3D scanning budget? If you happen to be in this position, take a look at some of these bad guys. ..

Arctec Eva 3D Scanner - $19,800 (CAD 26,300) dollars)

Creaform HandySCAN 700 - 56 9$00 (CAD 77,700)

This is our list of the best 3D scanners on the market. We hope you find it useful.

via Pinshape

This page has been translated using machine translation. Suggest the best translation

Pros and cons of the Sense 3D scanner

If you already have a 3D printer, you have probably downloaded and printed some of the most popular objects, and then started to master 3D modeling programs on your own and realized that official programs are quite expensive, often more expensive your printer. It's great if you were given a gift or you downloaded the program unofficially, but like any professional program, a 3D modeling program requires a lot of time to master the basics of modeling and a lot of training. And the printer costs and you need to print and earn money on it. But there is also an easy way to create 3D objects, namely 3D scanning. The Sense 3D scanner from 3D Systems will allow you to quickly and easily create 3D objects for printing on a 3D printer.

How the Sense works

The Sense 3D Scanner is quite light, and very similar in design and shape to a sci-fi movie device. To scan, you need to hold Sense in your hands and move around the object being scanned. The scanner projects an invisible and eye-safe infrared grid onto the object, which is then detected by the scanner's webcam. Your computer converts the data received from the scanner, using the supplied software, into a 3D object. The scanner also has a regular webcam that transmits the color and brightness of the scanned object to the 3D model..

The same technology is used by Microsoft for its Xbox consoles with a gesture-based Kinect made by PrimeSense (which was recently acquired by Apple).

The scanning process is quite simple: you start the program and select the size of the object, with preset options; for a person (head and shoulders, or the whole body), or for manual control of a range of sizes: from small (from 20 cm) to large (up to 3 meters).

Following the prompts on your computer screen with the help of the software, you point the scanner at the object, press the spacebar to start the scanning process and move around the object, after a series of pictures on the PC screen, the program checks the correct distance from the object, tracks, and recommends how you to move. If you are too far away, or it loses track of the object, the program will warn you with a sound signal and a message on the screen. Thanks to this smart and friendly software, you will quickly master the process of scanning to get the best result.

Sense scan quality

The scanner has a few minor issues. For example, the included USB cable is only 2 meters long, which in some cases is a limitation if you are scanning to a desktop computer. If you are using a laptop, scanning is only limited by the battery life of your laptop. A wireless connection (such as Wi-Fi or Bluetooth) would have been preferable and would have made the scanner more flexible. Starting and stopping a scan from the scanner itself rather than using the keyboard would also be very helpful. Let's hope that 3D Systems engineers will implement this in the following models.

The biggest problem with 3D scanning in general and the Sense scanner in particular is scanning; shiny, transparent, or matte black objects. The reason for this is the low reflectivity of objects with such a coating. This can result either in the fact that the object is not detected at all, or the object is grossly distorted during scanning. When scanning the head, for example, the scanner fails to detect shiny, metallic glasses, and instead of making them transparent and separate from the face, the scanner converts them into part of the face and looks like a 3D object on the monitor is quite creepy. Therefore, we do not recommend scanning objects with low reflectivity.

What can it scan?

The Sense 3D Scanner works best with medium sized objects. If you intend to scan small objects, up to 20 cm, then the laser MakerBot Digitizer, which is designed specifically for small objects, is equipped with a turntable and simple software, does an excellent job with this task.

But for scanning people, interior items, household appliances, etc. The Sense 3D scanner fits like no other.

Results

After the scan is completed, the program processes all received data and gives you a 3D model. You can edit it by cutting out the excess (for example, if other objects you don't need got into the scanning field), smooth the object, scale it, etc. This process is quite simple. When using a regular computer mouse, you will quickly learn how to edit objects.

Preparing to print on a 3D printer

When the scan is completed, it can be exported to STL, PLY or OBJ file, these are the most common file formats used by 3D printers.

Summary

Sense is a full 3D scanner, but it is limited by the capabilities of the scanning system it uses.
