Winbo 3d printer review
Winbo Introduces User-Friendly Desktop FDM-Value 3D Printer - 3DPrint.com
China-based 3D printer manufacturer Winbo Smart Tech Co., Ltd. has had a banner year – showing off its 3D printing capabilities to massive global trade platform and Winbo reseller Alibaba in a facilities tour, seeing its user-friendly Super Helper put to good use in classrooms all over the world, and recently introducing its large format Dragon(L)4 3D printer and its new, reliable desktop 3D printer, the FDM-Value Plus.
But now, this 3D printing powerhouse is back with another new product, the little brother to the FDM-Value Plus: the FDM-Value 3D printer.
The FDM-Value Plus features a build size of 255 x 225 x 305 mm, and the high-quality FDM-Value is just about the same size at 255 x 225 x 255 mm. It offers the same ease of use, but at an even lower cost of $999, and it’s available in black and white.
The 3D printer offers high accuracy and stability, and comes with a built-in WiFi module that supports Android, iOS, and Windows, so you can operate the FDM-Value from your computer, tablet, or smartphone with ease; the 3D printer also allows users to print from an SD card. It also features an automatic shutoff once your print is done, to reduce energy waste and save on electricity.
Speaking of automatic, the FDM-Value also features auto-leveling – instead of having to manually adjust each time (though this option exists if you prefer it), one click will automatically adjust the build plate. If the power goes out unexpectedly while you’re in the middle of a print job, the FDM-Value comes with a built-in memory module that will store your progress so you can pick back up where you left off once the power comes back. In addition, the 3D printer will automatically pause the build if it detects a filament break and ask if you’d like to replace it.
This goes part and parcel with the 3D printer’s easy-to-use, 3.5″ full-color touchscreen, which is leaned out from the machine at a 60° angle and supports six different languages.
Winbo recommends that the FDM-Value be used with PLA filament for best results, but it can also work with PETG and ABS, among others.
Winbo suggests that if you do choose to use these other filaments, you shouldn’t print anything with a build area greater than 150 x 150 x 150 mm, and that you take the time to find the proper settings for the nozzle temperature, fan speed, and bed temperature.
The FDM-Value 3D printer also comes with a brush for cleaning filament from around the nozzle and a glass build plate that’s easy to remove, thanks to a small clasp. The printer is fully enclosed for safety purposes, and its alloy nozzle, which heats up in less than two minutes, offers uniform heating, smooth extrusion, and fast, precise printing. Other 3D printer specs include:
- 20-100 mm per second print speed
- 0.05-0.35 mm layer thickness
- 0.01 mm positioning accuracy
- 0.4 mm nozzle diameter
Don’t forget about the user-friendly Winware slicing software either – it comes in seven languages, offers three different types of support and five different fill modes, and lets users set the print speed for each part separately.
Discuss this and other 3D printing topics at 3DPrintBoard.com or share your thoughts in the Facebook comments below.
[Images: Winbo]
Stay up-to-date on all the latest news from the 3D printing industry and receive information and offers from third party vendors.
Tagged with: 3d printing touchscreen • desktop 3D printer • FDM-Value • new 3d printer • winbo • winbo 3d printing • Winbo Smart Tech Co. Ltd
Please enable JavaScript to view the comments powered by Disqus.
Test drive Winbo Super Helper SH-105 / Sudo Null IT News
Hello friends!
We have previously reviewed the Winbo Super Helper budget 3D printer . They told more about its technical capabilities, and we were very much asked to add more photos of the printed models. Correct!
We have prepared a mini-review on the practical use of Winbo to show real print results on a printer without post-processing.
Recall the main characteristics of Winbo SH-105 :
Thread diameter: 1.75 mm
Printing technology: FDM \ FFF
Plastic type: PLA
Size of construction area: 105 × 105 × 155 mm
Number of extruders (printheads): 1
Layer thickness: 0.04 - 0, 25
Nozzle diameter (mm): 0.4
Printing speed: 50-100 mm / s
Display: LCD
Resolution: 50 mic
Connection interface: USB, SD
Software: Winware
Operating systems: Windows 10, Windows 8, Windows 7
Printer weight: 3.6 kg
Printer dimensions: 258 × 326 × 375 mm
A couple of words about calibration and settings
On the flash drive that comes in the kit, there is already configured software to work with the printer. According to the classics, this is a slightly reworked CURA with “wired” settings for the printer. You can immediately start working without scoring your head with the program settings. You just need to check the temperature parameters and the height of the layer.
The printer is calibrated by 4 points. The table can be raised and lowered with 4 bolts, although it is very inconvenient to reach the far bolts.
It is good that calibration should not be done so often. Usually after taking off the print table.
At first we decided to print something simple. Chose a funny figure of a shaman.
Layer thickness 0.1. Printing time is about 2 hours. Height 5.6 cm. Plastic PLA Esun purple .
Toys for adults
Then we decided to choose something more or less usable for printing.
We stopped at the entertainment model - parts of the modular lock for board games with thumbnails. Walls and latches were printed separately. The latches hold all the elements together, and as a result you can assemble a whole city from labyrinths, dungeons, buildings and much more.
Layer thickness - 0.15, material PLA ESUN .
As a result, after printing, painting and assembling parts, something like this might turn out:
Print stability check
The most common concern about Winbo Super Helper is that because of the design of the printer, it cannot print consistently well across the entire table surface and that the aluminum profile will sag under the weight of the extruder's head.
In order to dispel all doubts, we decided to print test models, arranging rectangular columns at the extreme points of the table and in the center.
No problems with printing. The columns show that Winbo printed exactly the same models at all points without any deviations.
The printer has a bowden feed mechanism, that is, the motor is located on the body and not on the printer head, respectively, the extruder is light and there is nothing to bend the aluminum profile.
Pangolin rescue operation
When a pangolin modelka came across on a stand, we could not resist =)
This model got an upgrade about 6 times. Its creator Amao Chan, concerned about the extinction of a rare species of animals called "pangolin", really wanted to attract public attention and sought to make an interesting and functional souvenir model.
On Super Helper model printed in about a day.
They used white ESUN PLA, although then they understood their mistake - it was necessary to take Wood, it would have been more effective =) I
printed pangolin in 5 visits from 6 parts: the body - 4 parts, 1 - feet, 1 - stand.
Kinder surprises
Previously, we already printed kinder surprises on FlashForge Inventor II. This idea pleased everyone, both children and adults. It was fun to watch how, at the exhibition, eggs with surprise aroused more interest than complex functional models, and not only among children =) We decided to try and compare what quality we get when printing on Winbo.
Layer thickness is 0.15, printing time of one typewriter is about 50 minutes.
findings
We tested the strength of the Winbo Super Helper for the whole week, printed without interruption, day and night. But he did not disappoint, he managed on the "top five", consistently printed without failures and problems! Print quality is very decent for a budget printer.
They have not yet reached the truly functional and useful models, they have covered only the entertainment direction, but there will be more!
We would recommend a 3D printer for use at home for adults, and as a useful toy for children (the main thing is not to forget that children should use the printer only in the presence of adults and after careful reading the instructions!).
pros
- super cost / quality ratio

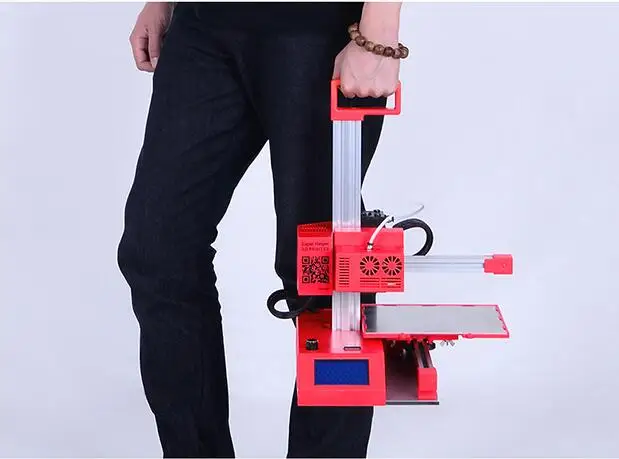

- low weight
- simple software
- comes fully assembled
- bowden feed, which means light print head (in this case it’s a plus)
Minuses
- unheated platform, prints only PLA
- calibration by 4 points
- difficult access to some bolts for calibration
- the printer is noisy (not much, but noisy)
Now there is a special offer on the Winbo Super Helper SH-105 printer, and you can purchase it for 12 900 rubles. in the online store cvetmir3d.ru !
Join us in the social. networks to keep abreast of the latest events:
Facebook
VKontakte
YouTube Color World
Company Team
Winbo 3D printer in Ukraine
UAH 58,900
Construction area - 255 x 255 x 255 mm
Functional and technological desktop FDM 3D printer. Satisfies the needs of both the beginner in 3D printing and more advanced users.
Works with PLA, ABS and PETG 3D plastics to cover most common needs.
When buying a 3D printer, we provide training on how to work with the device without fail! We guarantee technical support during operation and highly qualified service.
Available
Product quantity 3D printer Winbo FDM-Value
Categories: 3D printers, Buy 3D printer
- Description
- Details
- Reviews (0)
Description
Winbo 3D printer
We present to your attention a functional and high-quality Winbo 3D printer. This is a powerful 3D printing device that reproduces 3D models with a high degree of detail. The Winbo 3D printer is equipped with many useful features that make 3D printing much easier. The layer height in this device starts from 50 microns, and a rather large construction area significantly expands the list of products available for reproduction.
So, with this 3D printer, you can perform not only single, but also small-scale production, reducing production time.
The instrument is controlled by a 3.5" color touch screen. The menu is simple and ergonomic, it is very convenient to work with the printer. The device's high print speed is also captivating. And even at its high values, the quality is maximally preserved. Many varieties of 3D plastic with a filament diameter of 3 mm are available for work, so the Winbo FDM-Value 3D printer will make your wildest fantasies come true.
Features
- Automatic platform calibration. No more manual calibration! With just one press of a button, the WInbo 3D printer will automatically set the required table level;
- Automatic shutdown. Upon completion of 3D printing, the device turns off by itself, which helps to reduce energy costs;
- Plastic feed and tear control. A smart device monitors the supply of a plastic thread, so you will be insured against the end of the working material;
- Resume 3D printing after power off.
A similar function is present in CreatBot 3D printers and sometimes saves the day. If an unexpected power failure occurs during operation, after it is resumed, the 3D printing process will continue from the same place; - Integrated nozzle cleaning brush. The problem of contamination of the nozzle, both inside and outside, is always relevant. Manufacturers of the Winbo 3D printer found a way to partially solve this problem by equipping the FDM-Value with a special brush;
- 3D printing via WiFi and SD card. This printer has the ability to 3D print over WiFi, which greatly increases the autonomy of the 3D printer;
- The menu supports 6 languages. The menu is available in English, German, Spanish, Japanese, French and Chinese as standard. Navigation is simple and convenient, even a child can figure out how to operate the device;
- Cross-platform. The device supports various operating systems, including Windows, IOS and Android on tablets, smartphones and personal computers.
Specifications
| Print technology | Fused Deposition Modeling |
| Construction area size | 255x255x255 mm |
| Thread diameter | 3 mm |
| Recommended 3D plastic | PLA, ABS, PETG, etc. |
| Layer height | 50-350 micron |
| Carriage travel speed | 20-100 mm/s |
| Nozzle diameter | 0.4 mm |
| Positioning accuracy | 0.001 mm Z 0.005 mm XY |
| Extruder heating temperature | 0-260°C |
| Platform temperature | 0-100°C |
| Extruder heating time | ˂2 minutes |
| Platform heating time | ˂15 minutes |
| Software | Winware |
| Supported operating systems | Windows, Linux |
| Supported file formats | stl, obj, 3mf, amf, dae, bmp, jpg, png |
| File format for 3D printing | . Gcode |
| Supported 3D modeling software | SolidWorks, PRO-E,UG, Auto CAD, 3Ds Max, Maya, Rhino, 3D-ONE, etc. |
| Power | 100-240V, 50-60 Hz |
| Power | 500 W |
| 3D printer dimensions | 403x422x532 mm (LxWxH) |
| Package dimensions | 525x550x650 mm (LxWxH) |
| 3D printer weight | 28 kg |
| Package weight | 36 kg |
