Raise3D n2 plus 3d printer with dual extruder
Dual Extruder 3D Printer | Pro2 Series Starting at $3,999
Dual Extruder 3D Printer | Pro2 Series Starting at $3,999Search for:
Dual Extruder 3D Printers from Raise3D
Raise3D’s award-winning Pro2 Series is recognized as a benchmark and gold standard for professional 3D printing applications and 24/ 7 reliability. From Raise3D’s Pro2 Series is the Pro2 and the Pro2 Plus, dual extruder 3D printers with high-resolution, for manufacturing and rapid-prototyping projects of varying sizes.
The Pro2 Series has a metal build plate for even heat distribution, along with a full metal frame for smooth movement and precise positioning, and is compatible with a variety of 3D printing materials. The Pro2 Series is complete with precaution measures to save work, a 7-inch touch screen for efficient monitoring of the 3D printing process, and a HEPA air filter. As with all 3D printers from Raise3D, the Pro2 Series can pair with: ideaMaker, a 3D slicer software, ideaMaker Library, a platform for sharing 3D printer files with those in the Raise3D community, and RaiseCloud, a cloud-based 3D printing management platform. Finally, as with all Raise3D products, the Pro2 Series is both ISO 9001 and ISO 14001 certified.
Raise3D’s award-winning Pro2 Series is recognized as a benchmark and gold standard for professional 3D printing applications and 24/ 7 reliability.
CertificationsThe Pro2 Series is CE, CB, RoHS and FCC certified.
Please visit here for the details of each certificate.
Printer DetailsThe Pro2 dual extruder 3D printer can print up to 12 x 12 x 11.8 inch | 305 x 305 x 300 mm. The Pro2 Plus 3D printer can print up to 12 x 12 x 23.8 inch | 305 x 305 x 605 mm.
This flexibility allows the Pro2 Series to produce various kinds of tools, parts, and components.
Some uses for 3D printers with this kind of build volume is in creating 3D printed tools to make professional manufacturing and rapid-prototyping more efficient.
Download spec table
What is a dual extruder 3D printer?A dual extruder 3D printer can produce 3D printed objects with different kinds of 3D printing materials (also known as filaments) and colors within a single print job.
What are the dual extruders for?Dual extruders enable the 3D printer to produce objects with multiple filaments, such as a water-soluble 3D printing material, and multiple colors.
Technical DetailsHigh repeatability
Lightning speed
1.5 mm lifting distance
Compatible with flexible filamentsWhy is high repeatability good for a 3D printer? What does high reliability mean?
3D printing is a process where an object is built up by thin layers.
The 3D printer needs to move back and forth along the length of the model to create those thin layers. If the printer loses its position during that back-and-forth motion, the 3D printing process will no longer be aligned, and the 3D printed object will be ruined. The high repeatability and reliability ensure the printer does not become misaligned during the back-and-forth movements.
What does lightning speed mean?
Lightning speed refers to the overall amount of time the 3D printer takes to print an object. However, this speed is heavily influenced by the type of project being printed and how quickly the printer can switch directions during the back-and-forth movement. Having a <1 second switch time means the Pro2 Series can change directions while printing an object. This shortens the overall time needed to complete a 3D printing process. Keep in mind, the general time savings will still be influenced by the project type.
Why is a 1.
5 mm lifting distance beneficial to a 3D printer?
Lifting distance refers to the clearance between the idle printing nozzle and the object being printed. There needs to be some distance between both to ensure the printer’s nozzle does not interfere with the printing. The 1.5 mm lifting distance on the Pro2 Series maintains enough distance between the idle nozzle and the model to not affect the printing process.
Capable of Printing a Variety of Filaments Up to 300℃PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill
Buy Filaments
Material Compatibility Metal Build Plate HEPA Air Filter Touch Screen & Software Monitoring Precaution Measures Full Metal Frame
The Pro2 Series is compatible with a variety of 3D printing materials (known as filaments) to meet project requirementsDepending on the project goals, more than one 3D printing filament is necessary to accommodate varying structural or functional requirements (some such requirements include flexibility, and strength).
Sometimes multiple filaments are required within the same print job. Having a 3D printer that is compatible with different filament types is both cost-saving and practical for print jobs multiple filaments.
The build plate is a heated, flat surface in every 3D printer where all projects are printed. An even heat surface on a build plate is crucial for creating high-quality 3D printed parts. It also ensures that all 3D printing filaments are not damaged due to unequal heat distribution.
HEPA air filtration removes toxic particles released during the 3D printing processThe Pro2 Series has HEPA air filtration to clean the air of any particles (including nano-particles) released during the 3D printing process. The HEPA air filter works effectively in classrooms, offices, and in large and small workspaces.
The Pro2 Series’ HEPA air filtration operates silently, designed to work quietly in the background of any workspace.
The Pro2 Series’ 7-inch touch screens allow users to interact with the printer directly. It also provides on-screen assistance and visual model selections to simplify operating and monitoring the 3D printer and 3D printing process. As with all Raise3D 3D printers, the Pro2 Series is compatible with ideaMaker, a 3D slicing software, and RaiseCloud, a cloud-based 3D printing management platform. This wireless connection allows users to keep track of every print job while on the move.
Precaution measures are installed to save work in case the 3D printing material runs out or if there is a power outagePower loss can cancel and ruin an ongoing 3D printing project. However, the Pro2 Series’ power loss secures the 3D printing process in an unexpected power outage.
In addition, the filament run-out sensor on the Pro2 Series extruders prevents ruined print jobs due to running out of filament.
High-quality 3D printing comes from high-quality 3D printers. The Pro2 Series uses a full metal frame to create a specific motion system that allows the machine to smoothly glide as it prints. This motion system works with precise positioning to ensure 3D print jobs are as accurate as possible. Interchangeable nozzles allow the Pro2 Series to print at different levels of detail.
Raise3D EcosystemPair ideaMaker and RaiseCloud with any of our 3D printers to create a Raise3D ecosystem for the best efficiency when 3D printing.
ideaMakerideaMaker is a free 3D slicing software from Raise3D, compatible with Raise3D printers and third-party printers.
Learn More
RaiseCloudRaiseCloud is a cloud-based 3D printing management platform capable of remotely monitoring the printing process and organizing print jobs for more efficient 3D printing.
Learn More
ideaMaker LibraryideaMaker Library provides users with slicing profiles for various filaments, including Raise3D filaments and OFP certified filaments, simplifying the settings of printing parameters for different filaments.
Learn More
Raise3D AcademyAccess Raise3D Academy for step-by-step guides and “how-to” articles, covering topics ranging from setting up and giving maintenance to the 3D printer to performing 3D printing.
Learn More
Raise3D SupportContact Raise3D’s Support Center with any questions regarding a specific printer.
Learn More
Pro2 Series Technical Specifications
DownloadPro2
Pro2 Plus
GENERAL
Build Volume (W × D × H)
Single Extrusion Print: 12 × 12 × 11.8 inch/ 305 × 305 × 300 mm
Dual Extrusion Print: 11 × 12 × 11.8 inch/ 280 × 305 × 300 mm
Single Extrusion Print: 12 × 12 × 23.8 inch/ 305 × 305 × 605 mm
Dual Extrusion Print: 11 × 12 × 23.8 inch/ 280 × 305 × 605 mm
Machine Size (W × D × H)
24.4 × 23.2 × 29.9 inch/ 620 × 590 × 760 mm
24.4 × 23.2 × 43.5 inch/ 620 × 590 × 1105 mm
Print Technology
FFF
Print Head System
Dual-head with electronic lifting system
Filament Diameter
1.
75 mm
XYZ Step Size
0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed
30–150 mm/s
Build Plate
Heated aluminum build plate with magnetic holding
Max Build Plate Temperature
110ºC
Heated Bed Material
Silicone
Build Plate Leveling
Pre-calibrated leveling
Filament Run-out Sensor
Available
Supported Materials
PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill
Layer Height
0.
01-0.25mm
Nozzle Diameter
0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
Max Nozzle Temperature
300ºC
Connectivity
Wi-Fi, LAN, USB port, Live camera
Noise Emission (Acoustic)
＜50 dB(A) when building
Operating Ambient Temperature
15-30ºC, 10-90% RH non-condensing
Storage Temperature
-25℃ to +55℃, 10-90% RH non-condensing
Filter
HEPA filter with activated charcoal
Technical Certifications
CB, CE, FCC, RoHS
Net Weight
50. 2 kg
59.3 kg
Gross Weight (Carton Only)
62.7 kg
71.8 kg
Gross Weight (Carton with Pallet)
70.5 kg
79.6 kg
ELECTRICAL
Power Supply Input
100-240 V AC, 50/ 60 Hz 230 V @ 3.3 A
Power Supply Output
24 V DC, 600 W
SOFTWARE
Slicing Software
ideaMaker
Supported File Types
STL/ OBJ/ 3MF/ OLTP
Supported OS
WINDOWS/ macOS/ Linux
Machine Code Type
GCODE
PRINTER CONTROLLER
User Interface
7-inch Touch Screen
Network
Wi-Fi, Ethernet
Power Loss Recovery
Available
Screen Resolution
1024 × 600
Motion Controller
Atmel ARM Cortex M7.
400 MHZ FPU
Logic Controller
NXP i.MX6, Quad core 1 GHz ARM processor
Memory
1 GB
Onboard Flash
16 GB
OS
Embedded Linux
Ports
USB 2.0 × 2, Ethernet × 1

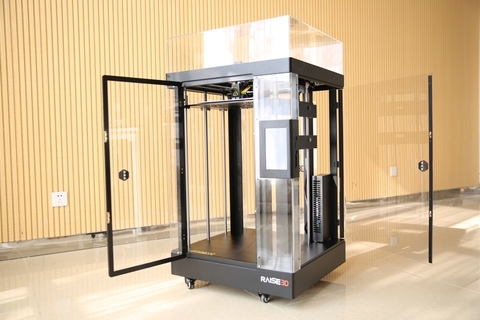

Raise3D N2 Plus Fully Enclosed DUAL Extruder 3D Printer
- Home
- Store
- Raise3D N2 Plus Fully Enclosed DUAL Extruder 3D Printer
The Raise3D N2 Plus Dual enables you to create huge 3D prints within its GIGANTIC build volume of 12" x 12" x 24". Not only that, but it comes stock with Dual Extrusion and is fully enclosed with an all-aluminum metal frame.
Other features include a 7" full-color touchscreen, heated bed, and hotend capable of reaching 300C. At under $4000, the Raise N2 Plus Dual is an amazing value and less than half the cost of any other 3D printer with those features.
Remove from wishlist Add to wishlist loading...
Available Add-ons (7)
Show More Addons
Product No. M-GAU-0Q1H
| List Price: | $3,899.00 |
|---|---|
Massive, Fully Enclosed Build Area
The Raise3D N2 Plus Dual has a gigantic build volume of 12" x 12" x 24", making it the largest printer available from Raise3D. Additionally, the entire printer is fully enclosed with a sturdy aluminum metal frame and ABS, acrylic, and polycarbonate casing. The fully enclosed design not only improves print quality when printing with materials such as ABS, but also greatly enhances the safety of the printer, making the N2 Plus Dual a great fit for schools and businesses.
7" Full Color Touchscreen
The Raise3D N2 Plus Dual has a number of great features, one of which is the 7" full color touchscreen built right into the printer. Calibrate your N2 Plus Dual, monitor your print process, and edit your settings all at the touch of your fingertip. The touchscreen can access your print files via WiFi, LAN, USB or SD card.
Print recovery
The touchscreen is also integrated with the N2 Plus Dual's print resuming feature, allowing you to immediately resume a print that was interrupted due to a power outage or accidental shut-off. No more frustration from having to start a print all over.
Endless Material Possibilities
The Raise3D N2 Plus Dual comes with a heated bed and their V2 Hot End capable of temperatures up to 300 C. This makes the N2 Plus Dual compatible with almost any material you can find, including our selection of PLA, ABS, PETG, Nylon, Carbon Fiber, TPU/TPE (Flexibles), Metal Composites (with the upgrade to a wear resistant nozzle), and more! For a full list, check out our Filament Comparison Guide.
Dual Extrusion
The Raise3D N2 Plus Dual comes stock with dual extruders. With dual extrusion, your printing capabilities aren't just doubled, they're exponentially increased! Print with two different colors at the same time, or pair one material with a dissolvable support material like PVA and HIPS. With soluble support, you can print complex models with ease.
This abstract rabbit design is possible with dual extrusion!
Technical Specifications
- Print Technology: FFF
- Build Volume (WxDxH): 12x12x24 inch / 305x305x610 mm
- Layer Resolution: 0.01~0.25 mm
- Filament Type: PLA, ABS, PETG, Nylon, Carbon Fiber, TPU/TPE (Flexibles), Metal Composites, and more.
- Note: This printer comes with brass nozzles, an upgrade to a wear resistant nozzle is required to print abrasive filaments.
- Filament Size: 1.75mm
- Printing Surface: Buildtak
- Heated Build Platform: Yes
- Enclosure: Yes
- Nozzle Diameter: 0.
4 mm (0.016 in) - Nozzle Working Temperature: 170-300 ℃
- Number of Nozzles: 2
- Printing Speed: 10 ~ 150 mm/s
- Moving Speed: 150 ~ 300 mm/s
- Positioning Accuracy: XY-axes: 0.0125 mm, Z-axis: 0.00125 mm
Shipping Notice
Please note that due to the size and packaging of this machine, your Raise3D N2 Plus Dual will ship on a pallet via freight, which could extend delivery times. If you are shipping a Raise3D printer to a residential address, the freight company will call you to schedule a delivery. Shipments made to commercial addresses will be made without the need to schedule a delivery.
Best Dual Extruder 3D Printers & 2022 Updates
Dual extruder 3D printers take the mono-color slumber away. 3D printing using multiple colors, multiple materials to reinforce specific areas, or using dissolvable filaments such as PVA or HIPS to achieve a smooth finish.
We've been lucky enough to try a few dual extruder 3D printers firsthand and have come up with our recommendations for the best dual extruder printers available in 2022.
We also explain the differences between different types of dual extruders (IDEX, mixed color 3D printing, dual extruder upgrade) and whether you should upgrade your printer. nine0003
Contents
- What are the advantages of a dual extruder 3D printer?
- What is the best dual extruder 3D printer?
- Budget Dual Extruder 3D Printers (under $1,000)
- 1. Geeetech A20M / A10M - Best Budget Dual Extruder 3D Printers
- 2. BIBO 3D Printer (Touch Laser if purchased with laser engraver) 3. Flashforge Creator Pro 2 - Affordable IDEX
- 3D Printer 4. BCN3D Sigma D25 - IDEX 9 3D Printer0010
- 5. Ultimaker S3 - Highly Accurate Dual Extruder 3D Printer
- 6. Raise3D Pro2 / Pro2 Plus
- 7. Ultimaker S5
- Best Dual Extruder Upgrades
- 8. Mosaic Palette 2S / 2S Pro - Best Upgrades dual extrusion filament splicer
- 9. Prusa Multi Material Upgrade 2S - Prusa Upgrade Kit
- Dual extruder 3D printer FAQ
What are the advantages of dual extruder 3D printer? nine0039
The main advantages of a dual extruder 3D printer include:
Better for supports: one extruder prints your material of choice, such as ABS or PLA, while the second extruder prints water-soluble supports, such as PVA filament.
These supports dissolve easily in water and produce smoother prints without having to manually remove them.
Multiple Colors: Dual filament 3D printers can print multiple colors of the same filament type such as PLA for stunning multi-color details. nine0003
Multiple parts at the same time (IDEX): IDEX 3D printers such as the BCN3D Sigma D25 have two extruders that work completely separately and can print different parts at the same time.
What is the best dual extruder 3D printer?
That's why we've ranked the best dual extruder 3D printers on the market. We rated these printers for value for money, reliability, build volume, ease of use, and various other features. nine0003
Budget Dual Extruder 3D Printers (under $1,000)
These amazing 3D printers break the rules of the definition of "dual extruder 3D printing".
To be clear, they can be loaded with two separate filaments, such as red and yellow PLA, but they will come out of the same nozzle, mixing the two colors during the printing process. Some call it dual nozzle 3D printing. nine0003
The results are amazing. Connect red, orange and yellow threads and watch your printed vase look like an exotic cocktail. The printers offer four dual 3D printing modes: single color, dual color, gradient and mixed. This provides a huge selection of print designs for such an inexpensive dual extruder 3D printer.
In terms of specifications, the A20M has a good working volume of 255 x 255 x 255 mm, while the A10M is only slightly smaller. The A20M also boasts improved stability as it is better anchored. Overall, this is an accurate (layer resolution down to 0.1 mm), interesting and inexpensive two-color 3D printer that combines colors and filaments through a single nozzle. nine0079 single nozzle geeetech a20m filament mixer.
2. BIBO 3D printer (touch laser if purchased with laser engraver)
- Dual extruder 3D printer cost: $599
- Assembly volume: 214 x 180 x 160
How do we get started with the BIBO eccentric printer? Well, the most important thing is that it also performs another function.
It can be used as a laser engraver! The engraver can permanently carve your favorite designs on wood, as well as cut paper or felt materials - and print in 3D! nine0003
You can purchase BIBO as a 3D printer kit or pre-assembled, with or without a laser engraver. And if he performs another function, this does not mean that he cannot succeed in both. In fact, this is a very efficient multi-extruder 3D printer with a minimum layer height of 0.05 mm and stable printing in a closed working chamber.
This is a great printer, crazy and ambitious. Even the product images on Amazon showcase the machine's character and personality. We love it. nine0003
3. Flashforge Creator Pro 2 - affordable 3D printer IDEX
- Creator Pro 2 price: $649
- Assembly volume: 200 x 148 x 150 mm
The popular and beloved Flashforge Creator Pro has started to show its age since it was released in 2016, so Flashforge followed it up with the vastly improved Creator Pro 2.
assembly volume on the x-axis. It retained a minimum resolution of 100 microns and a Teflon tube extruder for 3D printing of PLA, ABS and nylon in a closed working chamber. nine0003
However, the main change that makes this printer so profitable is undoubtedly the IDEX upgrade. In the IDEX 3D printer, the nozzles work independently, unlike the dependent, attached nozzles on the original Creator Pro, with different modes such as Mirror Mode for 3D printing multiple identical models at the same time - a big time saver, trust me.
Other quality-of-life improvements include an improved touch screen interface, as well as important nozzle updates that prevent unused nozzles from oozing out and messing up the print bed or even causing errors. You won't find a more affordable IDEX printer. nine0003
4. BCN3D Sigma D25 — IDEX 3D printer
- Manufacturer: Spain
- Price: $3,995
- Assembly volume: 210 x 297 x 210 mm
Spanish 3D printer manufacturer BCN3D has made a name for itself with reliable dual extruder 3D printers.
All of their printers, including the Sigma and Epsilon series, use BCN3D's IDEX (Independent Dual Extruder System) 3D printing technology, a unique and key advantage. nine0003
IDEX 3D printing allows each extruder to move completely independently, not limited to working on the same model at the same time as in other 3D printers. Two different parts can be created at the same time, cutting the time required to create several small parts in half. The Sigma D25 also features high quality E3D hot ends for quality printing on a variety of materials, including stiffer filaments, and a filament low sensor informs you when the filament has run out. nine0003
For those who need a 3D printer for rapid prototyping, being able to print multiple parts for testing at the same time is a huge advantage. The BCN3D Sigma D25 uses 2.85mm filaments instead of the standard 1.75mm so be aware of this, but is compatible with any 2.85mm filament. You can use a variety of 3D printer nozzle sizes, from 0.
3mm to 1.0mm, and a clear and easy-to-navigate touch screen interface.
Interestingly, Sigma D25 is also an open source 3D printer: printer firmware, workflow, software and other files are available on BCN3D GitHub. It works seamlessly with the Cura 3D slicer and is easy to set up and use right from the start. Overall this is a great, reliable and efficient dual extruder 3D printer. With a resolution of 50 microns, this is a high quality, high resolution 3D printer for accurate rapid prototyping. nine0003
5. Ultimaker S3 - very precise dual extruder 3D printer
- Manufacturing company Holland
- Ultimaker S3 price: $3,850
- Assembly volume: 230 x 190 x 200 mm
Ultimaker is another behemoth of desktop 3D printing, producing award-winning deposition modeling printers. With a dual extruder and incredible precision down to 20 microns, the Ultimaker S3 is a fantastic option for small businesses, manufacturers and prosumers.
nine0003
For precision multi-material 3D printing, nothing beats the Ultimaker S3. It is widely used to create accurate architectural models as building design prototypes, to create accurate industrial and engineering prototypes, and in many other industries. Upon release, it won dozens of awards and is still one of the best dual extruder 3D printers.
With a print volume of 230 x 190 x 200 mm, the Ultimaker S3 can handle most printing needs. It also has a built-in camera that allows you to monitor the printing process remotely. nine0003
Connected via WiFi, Ethernet or USB stick, the Ultimaker S3 is designed to be easy to use. While the Ultimaker 3 doesn't come cheap at $3,850, it's accurate, fast, reliable, and easy to use. This makes it overall one of the best dual extruder 3D printers on the market today.
6. Raise3D Pro2 / Pro2 Plus
- Price: $3,999
- Assembly volume: 305 x 305 x 300 mm
Also featured in our overall ranking of the best 3D printers, the Raise3D Pro2 series impresses with its reliability, size and range of printable materials.
In addition to standard PLA, ABS, and PETG printing, the Pro2 and Pro2 Plus 3D print with nylon, polycarbonate, carbon fiber, ASA, and metal-filled filaments on either of the two extruders. nine0003
Its big brother, the Raise3D Pro2 Plus, costs $5,999
The Raise3D Pro2 also boasts a fantastic build volume of 305 x 305 x 300mm, enough for everyday and industrial printing. The printer is also very accurate, with a minimum layer height of 0.01mm, and is equipped with a 7-inch touch screen for easy printer control. The Raise3D Pro2 costs just under $4,000 and overall is a fantastic dual-extruder printer for the price. nine0003
7. Ultimaker S5
- Price: $5,995 - Available at Dynamism Store
- Assembly volume: 330 x 240 x 300 mm
Ultimaker is highly regarded, and for good reason - the company can't go wrong. After the Ultimaker 3, the Ultimaker S5 is an updated, improved and slightly more expensive dual extruder 3D printer that will compete with the Makerbot Method.
A 330 x 250 x 300mm large-format 3D printer built for more scalable production, the Ultimaker S5 already has satisfied customers at Volkswagen, Decathlon and many more. It features a very advanced print leveling system, an improved touch screen, and can be connected to a phone via the Ultimaker app, which notifies you when a print is complete. The Ultimaker S5 is undoubtedly a great dual extruder 3D printer. nine0003
Best Dual Extruder Upgrades
8. Mosaic Palette 2S / 2S Pro - Best Upgrades for Dual Extrusion Filament Splicer
- Palette 2S Price: $599
- Palette 2S Pro Price: $799
If you want to print multiple colors without a dual extruder, consider Palette as well. Instead of 3D printing with two multi-colored filaments from separate extruders, the Palette 2S and 2S Pro fuse up to four multi-colored filaments - or different materials - together during printing to create multi-color or multi-material parts. nine0003
They work by running your model through specially designed software - CANVAS for Palette - to assign different colors to different areas of your model before printing.
When a particular area needs to be printed, the Palette software splices the colored filaments to print that particular area in the material or color you choose.
This makes Palette ideal for creating architectural models for construction projects, colorful desktop models of your favorite designs or D&D models, and multicolor prototyping businesses. The standard Palette 2S model includes all of these features, while the Palette 2S Pro can also splice up to 20% faster and comes with an extended 2-year warranty and replacement parts. nine0003
Palette is compatible with hundreds of 3D printers, including almost all of the most popular options. For more information, you can check your printer's compatibility here, and as for choosing between the Palette 2S and 2S Pro: The 2S Pro cuts filament 20% faster and comes with a longer warranty - so if that's important to you, spend the extra money on 2S Pro.
9. Prusa Multi Material Upgrade 2S - Prusa Upgrade Kit
- Price: $299
While you can upgrade the palette for most 3D printers, Prusa printer owners can purchase a similar Multi Material Upgrade kit that allows you to print up to 5 different materials at the same time.
Prusa printers are some of the best 3D printers under $1,000 and this upgrade turns your Prusa into a multi-color or multi-material 3D printer.
MMU2S is an improvement over the previous version of the Multi Material Upgrade Kit 2.0, key changes include a material feed sensor, buffer and a much improved overall calibration process. nine0003
The Filament Sensor goes further, checking not only for the presence of filament, but also to see if it has reached the Bondtech gears for printing. This provides much more reliable extrusion and makes filament calibration and loading easier.
The filament buffer also saves you the hassle because each of your filaments (especially if you're using all 5!) won't get tangled or tangled. Organizing and separating each filament also saves space on your desk or 3D printer table.
Q&A for Dual Extruder 3D Printers
What is a dual extruder 3D printer?
Dual extruder 3D printers have two print heads or nozzles instead of one print head like standard FDM 3D printers.
Dual printing frees you from the limitations of using only one type of 3D printer filament and allows you to create multicolored parts with ease.
Dual head 3D printing improves printing with soluble supports such as HIPS and PVA and also allows multi-color parts to be printed. nine0079 Most budget dual extruder 3D printers are dual nozzle printers, meaning they have two nozzles but extrude from a single head, but we also include more advanced printers. These advanced options include IDEX 3D printers with two printheads that move completely independently for efficient and versatile printing.
What are the main types of dual extruder 3D printers?
The main types are:
1. Dependent Dual Extruder 3D Printers - Most inexpensive multi-extruder 3D printers are dependent, that is, two nozzles that extrude separate filaments are attached to one print head. They follow the same path, filling areas (such as a support or main part) in turn. nine0079 2. Dual Extruder Independent 3D Printers (IDEX 3D Printers) - IDEX extruders use two printheads independently of each other, doubling productivity when printing multiple parts at the same time.
3. Dual Extruder Printer Upgrades - These upgrade kits, such as the Palette 2S series and Prusa Multi Material Upgrade 2.0, transform a single extruder 3D printer into a printer that can print up to 5 colors at once using splicing systems and specialized software and plans for filling 3D models. nine0079 4. Mixed color 3D printers are some of the cheapest dual extruder 3D printers, and maybe not even dual extruders. They use one printhead and one nozzle, but two filaments to mix the colors while melting. You can print models in half color, or mix colors like red and blue to create a purple tint.
Can the 3D printer be upgraded with a dual extruder?
Yes, you can. Dual extruder upgrades such as Palette 2S (compatible with most popular 3D printers) and Prusa Multi Material Upgrade 2.0 (for Prusa 3D printers) will turn your standard FDM printer into a multi-color 3D printer. nine0079 However, manually modifying a 3D printer and adding a second extruder is more difficult.
There are guides for turning your 3D printer into a dual extruder 3D printer like the Ender 3, but for the less tech-savvy, we recommend avoiding this.
Should I buy a 3D printer with two extruders?
If you want to print multi-color prints at home for fun or create better quality smooth surface prototypes using dissolvable supports, a dual extruder 3D printer is worth getting. nine0079 However, if you don't need multimaterial or multicolor prints, or want to print high resolution character models that are better suited to resin 3D printing, for example, then it might not be worth it.
Raise3D Pro2 Plus 3D printer in Moscow
Out of stock
Add to compare
Item added to compare Go nine0003
Free shipping within Russia
577 000 ₽
Exchange of old equipment for a new one with a surcharge.
Detailed information is available on the page or from our managers. nine0003
Notify me of admission
Official distributor
We work directly with manufacturers.
Any form of payment
The opportunity to see the 3D printer in action in our demo room.
Own warranty service
Warranty and post-warranty service for equipment purchased from us. nine0003
Permanent 10% discount on consumables
When you buy a 3D printer from us,
you get a 10% discount on all consumables.
The new Raise3D Pro2 Plus 3D printer models are ideal for low volume production and 3D printed farms.
But they are also suitable for use in companies that seek to optimize and reduce the cost of the production process through 3D printing of prototypes, mockups, master models and other products. nine0003
Pro2 Plus printers are similar in appearance to their predecessors Raise3D N-series, but they are distinguished by a number of design differences and improvements.
Key features and benefits of 3D printers
- More accurate printing
Excellent quality and detail thanks to sophisticated kinematics and interchangeable nozzles with different diameters.
For the highest detail, a nozzle with a diameter of 0.2 mm is suitable.
The minimum layer thickness is 0.01 mm. nine0079 The X/Y positioning accuracy is 0.78125 microns.
- Large plot area:
- when printing with 2 extruders: 280×305×605 mm
- when printing with 1st extruder: 305×305×605 mm
- Wide range of materials (due to extruder heating up to 300℃): PLA / ABS / HIPS / PC / TPU / NYLON / TPE / FLEX / PETG / BRONZE / WOOD / CARBON
- Double extruder with electronic lifting drive for more convenient and high-quality printing with two materials at the same time.
Switching between extruders takes less than 1 second. Lift height 1.5 mm.
- User friendly interface:
7 inch touch screen with visual full color interface.
Quick preview, full control of all 3D printing parameters and display of the printing process.
- Next Generation Print Resume System - Retains print results during a power outage. nine0079
- Wireless print management via proprietary ideaMaker software. All the most necessary functions for working with the printer.
- Position control with industrial grade components and standalone motor driver (400MHz ARM Cortex-M7 32bit RISC FPU). Control system with 256 micro steps.
- Extruder with optical filament end sensor.
Better filament grip without slippage for more reliable printing. nine0079
- Air filter for safe printing.
Absorbs more than 91% of harmful substances.
- Updated platform with advanced materials for long life, even heat distribution and good adhesion.
- Built-in online video camera to control the 3D printing process.
- High quality optical end switches. nine0071
| 3D printer | 1 PC |
| Print Platform | 1 PC |
| Reel holder | 2 pcs |
| Tweezers | 1 PC |
| Circuit breakers | 2 pcs nine0355 |
| Glass in a protective box | 1 PC |
| Hex key set | 1 kit |
| Spatula for removing models | 1 PC |
| USB flash drive | 1 PC |
| Coil plastic nine0355 | 2 pcs |
| screws | spare |
| Heat resistant gloves | 1 pair |
| Nozzle cleaning kit | 1 PC |
| Filament guide tube | 2 pcs. |
