FARO Focus 3D S120 Laser Scanner

Set up is in good condition and ready to go to work, FARO Scene 5.1 includes Hard Lock Dongle. Been serviced, calibrated by authorized Faro, set up ready to working condition and works flawlessly

FARO Focus 3D S120 for sale includes:

• 1x Faro Focus-3D S120, with Compass, Altimeter (Barometer), Dual-­Axis Compensator and WLAN
• 1x Power Supply, 2x PowerBlock Batteries and 1x Charging Cradle
• 1x Laser Protection Goggle
• 2x 32GB SD card, 1x SD Card Reader and 1x SD Card Cover
• 1x FARO Scene w/ Hard Lock Dongle
• 1x Rugged Transport Case
• GITZO Carbon Fibre Tripod with Carry Bag

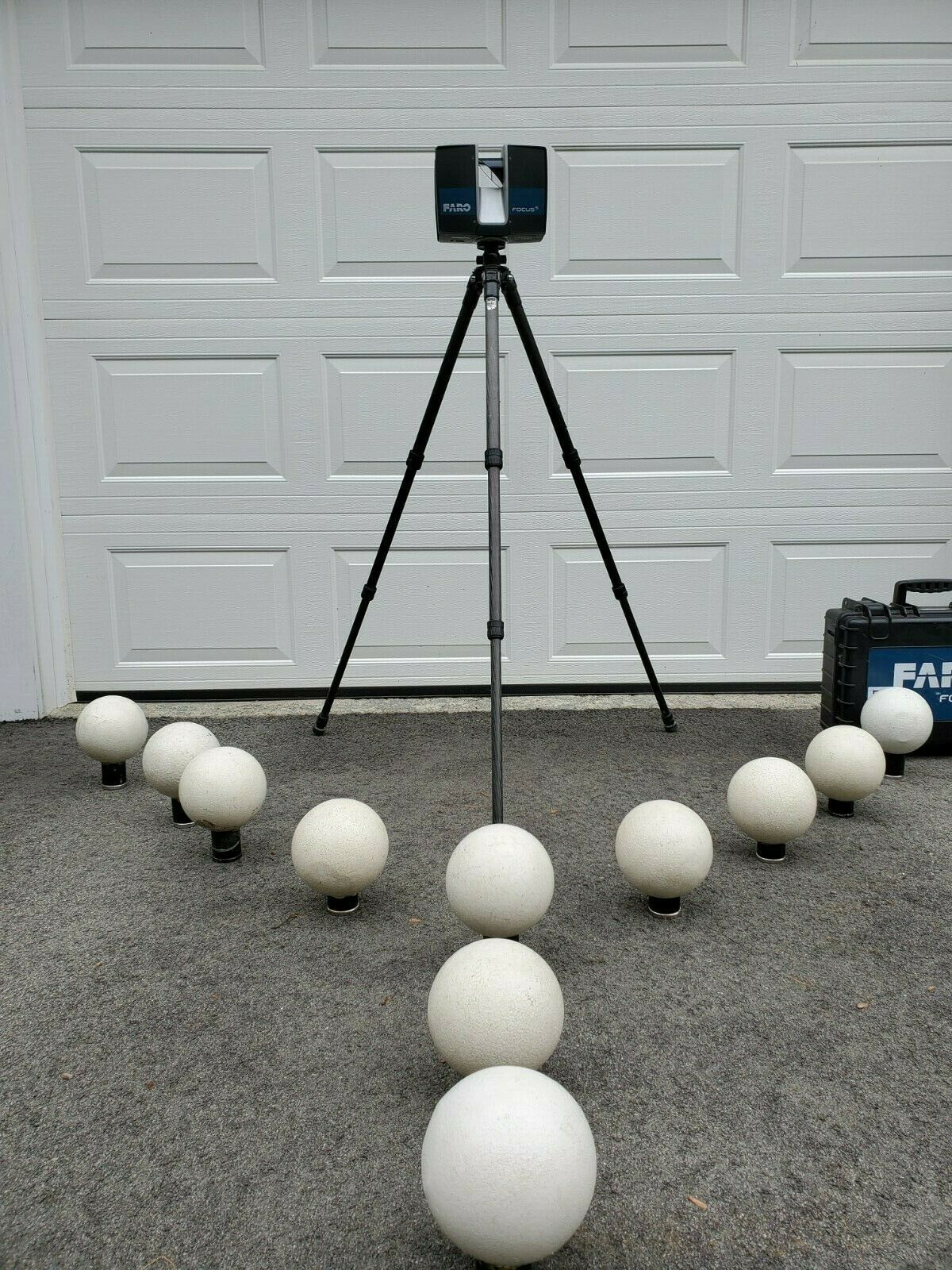

• 1x case with 6 reference spheres
• 1x Tribrach Adapter

FARO Focus 3D S120 | A leap in innovation and effciency to lower your costs

The Focus3D is a high-speed 3D laser scanner for detailed measurement and documentation. With a touch operated screen to control scanning functions and parameters, the Focus3D uses laser technology to produce incredibly detailed threedimensional images of complex environments and large scale geometries in only a few minutes. The resulting image is an assembly of millions of 3D measurement points that provide an exact digital reproduction of existing conditions.

The Focus3D offers the most effcient method for three-dimensional documentation of building construction, excavation volumes, façade and structural deformations, crime scenes, accident details, product geometry, factories, process plants and more. Given its minimal size and weight as well as touch interface, the Focus3D is easy to work with and saves up to 50% of scan time compared to conventional scanners

FARO Focus 3D S120 Features:

• Intuitive touchscreen display: Control all scanner functions with a touch interface for unparalleled ease of use and control
• Small and compact: With a size of only 9.5 x 8 x 4in and a weight of just 11lbs, the Focus3D is the smallest 3D scanner ever built
• Integrated color camera: Photorealistic 3D color scans due to an integrated color camera featuring an automatic 70 megapixels parallax-free color overlay
• High-performance battery: Integrated lithium-ion battery provides up to fve hours of battery life and can be charged during operation
• Data management: All data is stored on a SD card enabling easy and secure transfer to a PC. Using SCENE WebShare, images can be shared on the internet
• Compass: An electronic compass is now included within the unit to associate directional data to your scans and facilitate the auto-registration process
• Height Sensor (Altimeter): Each scan now includes height information which can be used to scan different foor levels in a building. The data can then be used to differentiate the ?oors
• Dual Axis Compensator: To minimize the number of targets needed, the dual axis compensator enables every scan to have integrated level information
• WLAN (WiFi): WLAN remote control permits you to start, stop, view or download scans at a distance

FARO Focus 3D S120 Perfomance Spesification

Ranging Unit

• Unambiguity interval: 153.49m (503.58ft)
• Range Focus3D 1201: 0.6m - 120m indoor or outdoor with low ambient light and normal incidence to a 90% re?ective surface
• Range Focus3D 20: 0.6m - 20m at normal incidence on >10% matte re?ective surface*
• Measurement speed: 122,000 / 244,000 / 488,000 / 976,000 points/sec
• Ranging error2: ±2mm

Color Unit

• Resolution: Up to 70 megapixel color
• Dynamic color feature: Automatic adaption of brightness

Detection unit

• Vertical feld of view (vertical/horizontal): 305° / 360°
• Step size (vertical/horizontal): 0. 009° (40,960 3D pixels on 360°) / 0.009° (40,960 3D pixels on 360°)
• Max. vertical scan speed: 5,820rpm or 97Hz

Laser (Optical transmitter)

• Laser power (cw Ø): 20mW (Laser class 3R)
• Wavelength: 905nm
• Beam divergence: Typical 0.19mrad (0.011°)
• Beam diameter at exit: 3.0mm, circular

Data handling and control

• Data storage: SD, SDHC™, SDXC™; 32GB card included
• Scanner control: Via touch-screen display
• New WiFi(WLAN) access: Remote control, Scan Visualization and download are possible on mobile devices with Flash®

Multi-Sensor

• Dual axis compensator: Levels each scan with an accuracy of 0.015° and a range of ±5°
• Height sensor: Detects the height relative to a fxed point via an electronic barometer and adds it to the scan
• Compass: Electronic compass gives the scan an orientation. A calibration feature is included

Hardware Spesification

• Power supply voltage: 19V (external supply), 14. 4V (internal battery) Cable connector: Located in scanner mount
• Power consumption: 40W and 80W respectively (while battery charges) Weight: 5.0kg
• Battery life: Up to 5 hours Size: 240x200x100mm3
• Ambient temperature: 5° - 40°C Maintenance calibration: Annual
• Humidity: Non-condensing Parallax-free: Yes

Faro Focus S350 Laser Scanner

Faro Focus S350 Laser Scanner for sale, brand new 1 Year Faro Manufacturer Warranty including 1 Year License SCENE Software and Maintenance Contract.

Faro Focus S350 sale includes;

• Faro Focus S350 Laser Scanner: with HDR Photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, Accessory Bay, IP Rating 54, On-site Compensation Functionality, Calibration Certificate, Quick Start Guide, User's manual,  Rugged Transport Case
• Battery Power Block, Battery Power Dock, 90W Power Supply
• Optic Cleaning Fluid, Optic Cleaning Tissues
• 32GB SD Card, SD Card Reader, SD Card Cover
• Allen Wrench
• USB stick with SCENE software Licence
• Tripod

We currently have for sale used Faro Focus S350 3D laser scanner, very lightly used, still like new in perfect condition, used on a single project in the past, the project is wrapped up and the owner no longer use the scanner. Everything is fully functional in excellent perfect condition, full calibration, re-certification and services by authorized Faro service to enhance its performance and accuracy to meet factory specifications. Fresh 12 months calibration certificate included, 1 Year extended Faro warranty.

FARO FOCUS S350 LASER SCANNER

The Faro FocusS 350 combines all benefts from FARO’s well-known Focus3D Laser Scanners with today’s most innovative features to perform laser scanning in both indoor and outdoor environments - truly mobile, fast and reliable. The FARO FocusS 350 provides the next level of laser scanning for all applications in industries like Construction, BIM/CIM, Public Safety and Forensics.

BENEFITS

• Scanning in rough environments while providing protection from dust, debris and water splashes
• Confdent data quality through the on-site compensation
• Reality-like scan data by increased distance accuracy and angular accuracy
• Future-proof investment and expandability due to the integrated accessory bay
• Easy handling of scanner control through its large and luminous touchscreen
•

FARO FOCUS S350 LASER SCANNER FEATURES

- ACCURACY
The FocusS now captures environments with increased accuracy regarding distance, dualaxis compensator and angular measurement.

- TEMPERATURE

Extended temperature range allows scanning in challenging environments

- ON-SITE COMPENSATION

With the on-site compensation functionality users can verify and adjust the FocusS
compensation on-site.

- IP RATING - CLASS 54

With the sealed design, the FocusS is certifed with the industry standard Ingress Protection (IP) Rating and classifed in class 54 against environmental infuences.

- HDR PHOTO OVERLAY

The HDR camera captures detailed imagery easily while providing a natural color overlay to the scan data captured under extreme brightness gradients.

- ACCESSORY BAY

With this future-proof interface users can connect additional accessories to the scanner, which offers an option for user specifc customization.

FARO Focus S 350 Laser Scanner, the latest ultra-portable enables you to capture fast, straightforward and accurate measurements of complex objects and buildings. The intuitive touch-screen of the FocusS models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural colour overlay to the scan data in extreme lighting conditions. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge makes the Focus S Laser Scanner truly mobile for fast, secure and reliable scanning.

The Focus S 350 offers extra long range of 350m, with their sealed design, are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. The devices are built to safeguard against intrusions such as dirt, dust, fog and rain as well as other outdoor elements which typically occur in challenging scanning conditions. In addition the laser scanner offers a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.

The FARO Focus S 350 is specially designed for outdoor applications due to its small size, extra light weight and extended scanning range. The FocusS 350 provides scanning results even in challenging environments, narrow job-sites, dusty or humid areas, in rain or direct sunlight applications. An on-site compensation tool allows data quality optimisation on-site. Integrated GPS & GLONASS receiver enable easy positioning. HDR imaging and HD photo resolution ensure true-to-detail scan results with high data quality.

Remote scanning as well as almost limitless scan data sharing via SCENE Webshare Cloud make the laser scanning solution truly mobile.

Faro Focus S 350 Technical Information

• Range: 0.6 - 350m
• High Dynamic Range (HDR) Photo Recording 2x/3x/5x
• Measurement Speed: up to 976,000 points/second
• Ranging Error: ± 1mm
• Sealed Design - Ingress Protection (IP) Rating Class 54
• On-site Compensation
• Accessory Bay
• Angular Accuracy: 19 arc sec for vertical/horizontal angles
• Integrated Colour Camera: Up to 165 mio. pixel
• Laser Class: Laser class 1
• Weight: 4.2kg
• Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
• Size: 230 x 183 x 103mm
• Scanner Control: via Touch Screen Display and WLAN

Downloads

• FARO_Focus_S_350_Laser_Scanner_Datasheet
• FARO_Focus_S150_S350_Laser_Scanner_Flyer
• FARO_Focus_Series_Laser_Scanner_Datasheet
• Faro_Focus_M70_S70_S150_S350_User_Manual
• Faro_Focus_M70_S70_S150_S350_Quick_Start_Guide



Laser 3D scanner Faro Focus 3D X120 description and characteristics, scanning features and measurement results.

Faro Focus 3D X120 3D Laser Scanner is a portable, high-speed 3D laser scanner for high-precision scanning and documenting measurements. Using laser scanning technology, the Faro Focus 3D X120 laser scanner in a matter of minutes creates a three-dimensional digital model of the surrounding space and objects, including geospatial data.

The 3D Focus laser scanner is equipped with a touch screen to control scanning options. The resulting image is a cloud of millions of 3D points in color, which creates an accurate color digital 3D model of the existing environment.

Measuring range Faro Focus 3D X120 - up to 120 meters. It is ideal for outdoor use, 3D building documentation, accident and crime scene recording, building shrinkage monitoring and construction work, and more.

Application of Faro 3D laser scanner in architecture

Architectural measurements, geodetic support for the design and installation of facade structures, control of deformations when loads are applied to structures, three-dimensional modeling of buildings, streets and quarters, drawing up detailed plans and 2D drawings, monitoring of facades , creation and restoration of as-built design documentation and the creation of working drawings, laser scanning and road mapping. This entire list of applications of 3D scanners in architecture is constantly expanding by professionals who daily find new applications for laser scanning technologies.

Technical characteristics

General technical characteristics

Weight: 5.0 kg
Gabarit dimensions: 240 x 200 x 100 mm
Calibration: Annually
Parallax: there is no
Vertical sensor from
Lontaniya for two axes: accuracy 0.015 °;
Range ±5°
Voltage: 19V (external power),
14.4V (battery)
Power: 40 W (powered by battery or external power)
80 W (powered by external power while charging battery)
Battery life: up to 5 hours
Ambient temperature: +5°C ÷ +40°C (continuous use)
From -20°C (short-term, up to 30 minutes).
Humidity: Non-condensing
Cable connector: Located on scanner base
Measuring speed: 122 kpts/s
244 kpts/s
488 kpts/s
976 kpts/s
System error: ±2 mm at 10 m and 25 m, at 90% and 10% reflectance

System noise:
* 10m - raw data:
0.6mm at 90% reflection
1.2mm at 10% reflection
* 10m - noise filter:
0.3mm at 90% reflection
0. 6mm at 10% reflection
* 25m - raw data:
0.95mm at 90% reflection
2.2mm @ 10% reflection
* 25m - Noise filter:
0.5mm @ 90% reflection
1.1mm @ 10% reflection

camera

Resolution: up to 70 MPIX, color
Dynamic color: Automatic adaptation of brightness
Paralyx: absent (camera is built -in the measurement channel)

Feature area

Vertical field of view: 305 °
Horizontal field of view : 360°
Vertical pitch: 0.009° (40.960 3D pixels at 360°)
Horizontal pitch: 0.009° (40.960 3D pixels at 360°)
Maximum vertical scan speed: 5.820 rpm or 97Hz

Laser (Optical Transmitter)

Laser Power: 20mW (Laser Class 3R)
Wavelength: 905nm
Beam Divergence: Typical 0.16mrad (0.009°)
Output Beam Diameter: 9005, 3.8mm Scanner control and data storage

Scanner control: Touch display
Data storage: SD, SDHCTM, SDXCTM; 32GB card included

---

Print

Industrial 3D scanner FARO Focus S70

3D printers and scanners / 3D Scanners / Industrial 3D scanners (laser) / Industrial 3D scanner FARO Focus S70

Service

Taiwanese equipment is highly reliable, well-proven components are used in its production.
The warranty period for equipment is 1 year from the date of signing the acceptance certificate. In the event of a warranty case, spare parts and repairs are absolutely free for the customer. Troubleshooting is carried out by the own service department World of the Machine Tool. The main spare parts are in our warehouse, repairs take a short time.

Leasing

We have extensive experience in supplying equipment to Leasing. Contact us for details.

Warranty

The warranty period for the equipment is 1 year from the date of signing the acceptance certificate. In the event of a warranty case, spare parts and repairs are absolutely free for the customer.

Tools and accessories

Our technologists and programmers will work out the technology for free and write control programs for the manufacture of your parts. Including we can supply equipment with technology and production of a batch of parts. You pay for equipment, tooling and tools. The Machine Tool World is an official dealer of the leading tool manufacturers, so we can offer competitive prices and delivery times.

Writing control programs

Our software engineers will write control programs for your details. He has experience in implementing complex projects in the defense and aviation industries. When you purchase a tool from us, the service is free.

Commissioning

Commissioning of the equipment takes place in several stages: equipment installation, accuracy check and signing of the accuracy check certificate, manufacturing of parts and signing of the equipment acceptance certificate. Training of your employees takes place simultaneously with commissioning and launch of parts.

Delivery

Delivery time for most items is 10-12 calendar days. Warehouse items are delivered within 1-2 working days from the date of payment of the invoice. When issuing an invoice, our process engineer without fail checks the availability of items in the warehouse and informs you. Delivery is carried out by courier service at our expense.

Writing control programs

Our software engineers will write control programs for your details. He has experience in implementing complex projects in the defense and aviation industries. When you purchase a tool from us, the service is free.

Warranty

We guarantee the correct selection of tools and accessories, corresponding to your tasks. Free replacement in case of error.

Price on request

Permissible systematic measurement error (3), no more than - 0.9 mm per 15 m
Measurement speed - 976,000 measurements / s
Light source - laser
Scanning area - 0.6-70 m
Type - Industrial scanners for large objects



Service



Warranty



Commissioning



Demonstration

• Description
• Specifications
• Tasks
• Programs for processing scan data
• Education

Product Description

Designed for 3D measurements of complex objects, buildings and utilities in open areas and industrial environments. Designed for both indoor and outdoor applications requiring scanning up to 70 meters away and with an accuracy of +/- 1mm.

Specifications

Recommended operating range	0.6-70 m
Angular uncertainty (2 sigma)	19 arcsec
Noise level at 90% reflectance (filtered)	0.15 mm at 25 m
Noise level at 90% reflectivity (no filtering)	0.3 mm at 25 m
Noise level at 10% reflectance (filtered)	0.25 mm at 25 m
Noise level at 10% reflectance (no filtering)	0.5 mm at 25 m
Permissible systematic measurement error (3), no more than	0.9 mm at 15 m
Laser wavelength	1550 nm
Laser class (IEC EN60825-1:2007)	Class 1
Scan speed, dots per second	976 000
Field of view (vertical/horizontal)	300 / 360°
Dimensions (L × W × H), no more than	230 × 183 × 103 mm
