Creaform handyscan 700 3d scanner

HandySCAN 700 provides high accuracy and resolution. It is the most versatile 3D scanner for checking available on the market. The data collection speed of the HandySCAN 700 will pleasantly surprise you.

• Benefits
• Operating sequence
• Applications
• Accessories
• specifications

• Dynamic coupling between tube and scanner maintains accuracy and resolution in all conditions, including high vibration conditions.
• The system generates accurate, reproducible high resolution 3D data (0.040-0.050 mm).
• Improved virtual level gauge capabilities. The transmitter is configured to provide the most accurate measurements close to welds.
• Comparison of Internal Pipe Condition Data : Access inspection results by comparing internal pipe inspection data and data from tools with data from the Pipecheck system. This helps operators to more accurately identify areas where earthworks need to be done.
• Depth of Corrosion Within a Mechanical Fault : Unique and innovative tools for determining the depth of corrosion within a mechanical fault.

• Scanning and analysis are accurate, intuitive to use and independent of operator skill.
• Very fast learning, regardless of user experience.
• Launch and start in less than 2 minutes.
• Simplicity: simple and fast learning.
• The ability to change the working distance allows access to isolated areas.
• Visualization of the scanned surface in real time.

• Portable from place to place and used both indoors and outdoors.
• Weight 0.85 kg; possibility of use in limited spaces. Fits in a portable case.
• The mass of the scanner is approx. 1 kg.

Pipecheck: Your best ally in all phases of your pipeline integrity program

SCAN

• Corrosion
  • High definition image capture for all areas showing signs of corrosion
  • Fast surface imaging for increased efficiency
  • Improved scanning of fine details such as pitting
• Mechanical damage

  • High resolution mesh files for analysis optimization
  • Quick measurements to check any surface finish
• Comparison of pipe internal inspection data
  • Skill-independent high-precision measurements for more accurate matched data
  • Improved performance to cover more area and get more accurate statistical trends

ANALYSIS

• Corrosion
  • Troubleshooting using real pipeline geometry
  • Automatic application of interaction rules
  • Estimated Burst Pressure Calculation
  • Improved virtual level gauge for working near welds and obstacles
• Mechanical damage

  • Automatic maximum depth detection
  • Automatic creation of a 2D cross profile in both directions at maximum depth
  • Measuring the maximum depth in both directions with straightedge
  • Lug section available
• Comparison of pipe internal inspection data
  • Automatic detection of coincidences when overlapping surfaces
  • Manual match function
  • Axial and circular offset function for optimum overlap

REPORT

• Corrosion
  • Excel report including worst case profile and predicted fault evolution
  • Ability to export to CSV format for further analysis
  • Ability to export coordinate grid
  • Configurable Pass/Fail criteria
  • Photographic device for 3D report
• Mechanical damage

  • Excel report with ovality measurements
  • Detailed cross section (axial and cylindrical)
  • Depth mesh export to CSV format
  • Ability to export coordinate grid
  • Excel report with ovality measurement results (diameter measurement with caliper)
    • Dat, maximum depth point
    • Dat, 90° from maximum depth point
    • Dmax
• Comparison of pipe internal inspection data
  • Visual overlay of pipe internal inspection data and faults detected by scan
  • General Graph for Evaluating the Performance of Sizing, Maximum Depth and Estimated Burst Pressure Tools
  • List of coordinated and inconsistent functions

• Piping corrosion assessment
• Assessment of mechanical damage to pipelines
• Estimation of hail damage to aircraft
• 3D Simulation for Phased Array Inspection - Aerospace
• 3D Simulation for Phased Array Inspection - Energy

Rugged field kit with wireless tablet

For companies looking for optimal performance in the field, Creaform has developed a complete set of accessories. Our rugged field kit includes a wireless tablet for real-time visualization of scanned surfaces.

It also offers a choice of three compatible power sources: Creaform battery with charger*, 110/220V direct input or car battery.

Package includes:

• Wireless tablet powered by VXremote
• Pelican rugged laptop case
• Creaform battery with charger
• Magnetic support for scanner
• Magnetic tablet support
• USB 3.0 cable, 8m

Accessories:

• Emergency power cables for car battery

*When used with a Creaform rechargeable battery, the rugged field kit provides 8 hours of battery life.

3D Scanner Power Bank: Takes portability to a whole new level

Lightweight 3D scanner power bank with three hours of battery life improves data acquisition efficiency. Ideal for short term projects and applications where the object is accessed with a tether and provides complete freedom of movement. Combined with HandySCAN 3D, you can use the scanner wherever you are. The small weight and size guarantee a new level of portability! Offered at a reasonable and affordable price, the rechargeable battery is ideal for working in confined spaces as well as outdoors!

• Autonomy: 3 hours of continuous scanning
• Dimensions: 180x110x20 mm / 7.1x4.3x0.8 inches.
• Weight: 0.52 kg / 1.14 lb
• Charging time: 4 hours

VXremote™: Remote Access Software

VXremote improves field efficiency by providing quick and easy remote access to Pipecheck. This software guarantees fast start-up and configuration without any hardware. All 3D scanner functions are at your disposal... Only available with Creaform Certified Rugged Tablets!

Complete solution includes:

• Handyscan 3D Laser Scanner
• Pipecheck software license
• Calibration plate
• Pointer with protective cover
• USB 3. 0 cable, 4m
• Power supply
• 4 sets of 500 alignment marks
• One year parts and labor warranty

Accessories

• Certified Notebook PC
• Sample Pipecheck

https://www.creaform3d.com/ru/sistemy-nerazrushayushchego-kontrolya/lazernye-skanery-handyscan-3d/tehnicheskie-harakteristiki

HandySCAN 700 review of Creaform 3D scanner

The purpose of this review is to help the reader understand the features of the 3D scanner from the Canadian manufacturer Creaform. You will find a detailed description of the HandySCAN 700 model, information about the configuration, scope of application, and also get the opportunity to read the instructions for setting up and preparing the device for operation.

Creaform HandySCAN 700 3D Scanner Overview

New generation HandySCAN handheld 3D scanners were invented to meet the needs of quality product developers and engineers who are looking for the most efficient and reliable way to get 3D measurements of objects. The Creaform HandySCAN 700 is the latest addition to the new generation of handheld 3D scanners from Creaform 3D. This model is one of the most popular in the line of similar devices that are actively used by specialists and engineers.

The machine can easily scan any type of object and provides reliable results. New generation scanners have gone through a complete reengineering process. As a result of this upgrade, they can operate more efficiently. Devices have become faster and more portable, which significantly reduces the time spent on scanning an object.

Description

Creaform HandySCAN 700 was developed by the Canadian company Creaform and is an advanced addition to the range of 3D scanners. Small dimensions, reliability and high speed characteristics make it in demand among buyers.

Important! The Creaform company has a corresponding certificate of approval of the type of metrological measuring instruments in the territory of the Russian Federation. Also, the manufactured equipment is included in Rosreestr as a scanner used in the field of metrology.

The HandySCAN 700 scanner model is equipped with seven ultra-high precision lasers that provide high-quality and high-speed scanning.

Key features

• Model building accuracy up to 0.03 mm.
• Equipped with a dynamic stabilization system.

Help. Thanks to this feature, it becomes possible to move the object without losing quality.

• High scanning speed - 25% faster than its predecessors.
• Produces 480,000 scans in 1 second.
• Quick preparation for further operation - no more than 2 minutes.
• The scanned object is displayed immediately on the monitor, which allows you to instantly visualize.
• The laser is safe for the cornea.
• Equipment weighs only 0.85 kg.
• There is a battery for autonomous operation.

3D scanner Creaform HandySCAN 700

• Dimensions, mm 122x77x294
• Software Pipecheck
• Producing country Germany
• Weight, kg 0. 85

• Scan depth 250
• Scan area 200 x 200 x 200 mm
• Interfaces USB 3.0
• Light source 7 transversely pumped lasers (+1 additional line)
• Laser class II (safe for eyes)
• Volumetric accuracy 20+60 mm/m
• Scan resolution 50
• Distance to object 300 mm
• Scan speed 480,000 measurements/sec
• Scanner Technology Laser phase triangulation, non-contact
• Scanner type manual
• Color scanning no
• Scan Accuracy 30

Go to product

Equipment

Equipment includes:

• 3D scanner;
• computer cable;
• charger;
• calibration field;
• 4 packs with markers;
• software;
• wipe;
• carrying case.

This configuration is able to fully satisfy the needs of even the most demanding customer and reduce the cost of purchasing additional equipment.

For whom?

Recently, 3D scanners have become widely used in various industries. The HandySCAN 700 is no exception. Next, we consider where and for what purpose portable devices can be used.

Medicine

Today, 3D scanning is increasingly used in medicine. With this high-quality technique, a three-dimensional image of a person or his individual parts can be obtained. Plastic surgeons most often use such mechanisms in their work. In a short period of time, an image of the chest, face and other parts of the body can be displayed on the screen, demonstrating future results to the client for further coordination of operational actions.

The 3D scanner is also widely used by prosthetists and orthopedists. This allows you to quickly and efficiently design body parts. Previously, it took quite a lot of time, which made the procedure not so convenient and comfortable.

The use of HandySCAN 700 in medicine makes it possible to no longer store plaster casts in an archive, but to place all three-dimensional models on a digital medium.

In addition, the HandySCAN scanner is ideal for dentists. The introduction of 3D scanning is helping to ensure high quality implant fabrication for their patients. The facial reproduction procedure is quite fast, followed by the smile scan. On average, it takes no more than 3 seconds, while everything is displayed in real time. This process will allow you to model ideal implants.

Oil and gas industry

All pipelines in the oil and gas industry that are in operation need to be carefully inspected for damage and service life. For more accurate analysis, the HandySCAN 700 scanner is suitable. It is also applicable for collecting and storing large amounts of information. The model is compact, which allows you to easily use it over long distances.

Thanks to the 3D scanner, pipeline damage can be checked in two ways:

• based on depth value;
• based on strain value.

Jewelcrafting

Modern 3D scanning technology has opened up endless possibilities for jewelers to create masterpieces. The use of a scanner in this area implies the following possibilities:

• formation of a digital archive of products;
• reproduction of lost or damaged jewelry;
• development of new product models or their restoration.

3D scanning is very important in the jewelry industry, because the most important thing in this business is to reproduce the smallest details, complex shapes and textured surfaces.

HandySCAN 700 allows you to create high-quality copies of original, antique or branded jewelry. It takes a small amount of time, and the product is 100% identical to the original.

Automotive industry

Quality car tuning is not a cheap pleasure. Each car owner must understand in advance how he sees the future image of his car. 3D scanning and modeling will help to digitally show how this or that part of the car will look like. This allows you to evaluate whether the change will fit into the overall design. And most importantly - the client and the master can get accurate data on the geometry, dimensions and surfaces of the tuning car.

The Creaform HandySCAN 700 3D model allows you to scan the necessary elements of the car into a digital format, on the basis of which parts developers can design future tuning.

Scanning examples

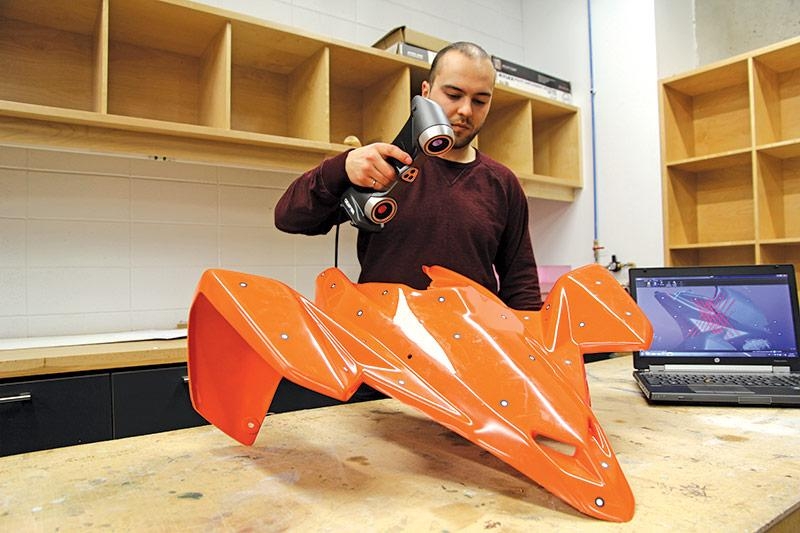

This is how the process of scanning car parts looks like.

Software used

The HandySCAN 700 3D Scanner comes with synchronized VXelements software that is fully integrated for 3D scanning and measurement technologies. The program combines all the necessary elements and tools in an easily accessible, simple and sophisticated interface. Real-time image acquisition makes the scanning process the most interesting. Scanned files after the scanning process is completed are automatically optimized and generated, which significantly reduces the design process.

VXelements also includes a program such as VXscan, which is fully responsible for collecting and optimizing 3D data. This software contributes to high performance in solving specific tasks. It is so simple and user-friendly that even a beginner can handle it.

VXelements has the following features:

• User friendly interface - VXelements uses powerful yet simple technologies for the scanning process.
• The 3D model optimization algorithm avoids the overlap of multiple scan layers and provides the most accurate image without the need for post-processing.
• The optimized mesh can be exported to all standard formats immediately after the scanning process is completed. No complex alignment or point cloud processing is required.
• There are no restrictions on scanning resolution in the program - you just need to set the required image quality value, regardless of the size of the object. You can also change the resolution after scanning at any time.
• Real-time reproduction of the object - you can control on the screen how to get a 3D model during the scanning process.
• The software allows you to improve your results by filling gaps using smart filters.

Initial setup and preparation instructions

First of all, it is necessary to check the presence of all components of the supplied equipment. Next, insert the included USB flash drive into your computer and copy the contents. Then run the installation file with the software.

Be sure to follow the instructions when installing the program on your computer. When you reach the section where you will be prompted to enter CD keys, visit the manufacturer's official website by clicking on the link https://support.creaform3d.com. Next, you need to go to the "Products" tab, where you can find all the equipment that the company produces. Select the Creaform HandySCAN 700 3D scanner, then copy the CD key to the installer and click on the "Add key" button.

After installation is complete, open VX Elements. Before connecting the scanner, go to the configuration tab and select HandySCAN 700.

Help. If you are experiencing software or hardware issues, please contact Creaform Support.

To continue with the setup, open the VX Scan application and connect all the cables needed for further work. It is recommended that you perform a quick manual calibration before starting a scan. To do this, you need to install the scanner horizontally on the surface. Next, you should launch the VX Scan software and click on the scanner calibration command in the upper left corner.

Important! It is recommended to periodically calibrate the scanner before starting new scanning projects.

In conclusion, the Creaform HandySCAN 700 3D scanner model is a good choice for both beginners and professionals. High speed, simple operation, good technical characteristics, reliability and versatility make this model one of the most popular.
