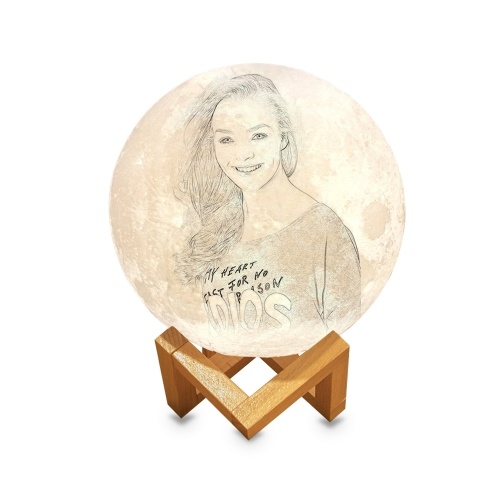

3D printing personalized moon lamp

The preparation of such inscriptions requires a lot of effort and time, experiments and development of technology and parameters. That's just what we do! We call such inscriptions “designs”.
When you write your inscription in this design, we use this design as a "template".

Stages of work

Application

Make an order on our website Choose from the catalog the most suitable design, size, attach a photo.

We will contact you during business hours within 20 minutes.

Free layout

we will prepare a layout with your photo and a personalized inscription, we will correct photo distortions, we will do a little retouching

Approval

You look at the layout if you like it or make adjustments to it. At this stage, we can try on up to 3 photos

Production

The body of the luminaire is printed from scratch, especially for you, after assembling the luminaire, we will shoot a video report on which the luminaire will be visible from all sides.

Sending and payment

We send a link to pay through the online checkout (the safest payment method) along with the video report. After receiving the payment, we will send it in the agreed way and send a link and a track number to track the parcel

After the sale

After sending, we continue to track the movement of the parcel, in case of delays we contact the shopping mall ourselves. A week after receiving, we ask for feedback to constantly improve the quality of service

Frequently asked questions

Frequently asked questions and answers

Can any photo be printed?

Almost any photo can be saved. It is better to send several at once, the designer will choose the most suitable one in terms of brightness, composition, framing

Can I see it before printing?

Yes, of course! Coordinate the layout before printing. You can try on several photos

Do you need batteries or not?

No, batteries are not required. Powered by built-in battery, charged by USB (5V, 1000 mAh)

How to change a light bulb, what is the warranty?

LEDs inside, with a service life of up to 10 years, no need to change them. 1 year warranty - if something happens, call us, we will replace it.

Can you take a photo before shipping?

We send a video report to everyone. You will see your lamp in all its beauty, fully tested.

We make not just nightlights, but unique gifts — high-quality lamps, bright packaging, complete set!

How to create your own Moon / Sudo Null IT News

This article shows you how to make a 3D model of the Moon from scratch. It would seem, Why create a model of the Moon yourself, if you can buy it? If only because when you make a model of the Moon yourself, you can set the desired parameters, for example, the dimensions and thickness of the shell, image resolution, rotation limits, the position of the cutting plane, you can make a hole for the lamp, and so on. Let us proceed to the creation of our own moon.

A variety of 3D models of the Moon can be found on the Internet. Some can be purchased from online stores, others can be downloaded as files and printed on a 3D printer. Finished models can be divided into 2 categories:

1. The surface of the Moon is drawn in detail and with high quality, but if a light source is placed in the model, its details are not illuminated from the inside.

2. Surface details are well rendered when illuminated from the inside, but they are not visible without illumination.

Step 1: Draw details

Details are drawn well when illuminated from the inside

If you do not have a 3D printer, you can buy a lamp like Moon Lamp on the Internet.

Step 2: Prepare the software

Below is a list of the software involved. After familiarizing yourself with the technique, you will be able to do the same thing as I did with ordinary tools.

Modeling Tools

Download my custom version of Banate CAD from GitHub .

The Banate CAD package is written in Lua, so install Lua for Windows to run scripts on Windows.

STL Editing Tools

Meshmixer

Step 3 Preparing Materials

Plastic for Printing

The images above show PLA products. Products resulting from 3D printing using different types of white PLA plastic may have different shades. The plastic supplier claims that option B is the best, but that, alas, is stuck in my printer.

Light source

There are many ways to illuminate the moon model, the light source can be powered by batteries, mains, and so on. The size of the model also affects the choice of light source. There are a lot of options, and if we start discussing them here, we will deviate from the topic of printing. It is enough to understand that there are a lot of options. I want to note that the warm white light of the source is more pleasing to the eye.

Matte Spray Paint

Most PLA models are highly reflective, so I recommend a matte finish. Matte spray paint will easily solve the problem.

Step 4. Images of the Moon

Two images of the Moon are required for the simulation. They are located in the BanteCAD/Examples folder. I reduced the resolution to 720x360, it should be enough for the model. If necessary, search for higher resolution images online.

Bump map

There is a special map for surface modeling, usually called a bump map. The shade of gray indicates the height of the corresponding point on the sphere. Having a bump map, you can accurately display all the details of the surface on the model. However, if you compare the bump map with the moon in the sky, you will notice that they are different from each other.

Visual map

Details of the real moon are not only different heights at different points. Color is also important. Naturally, we can instruct the printer to print different colors, but, fortunately, we see the real moon in grayscale. To allow light to pass through the model at different intensities, you can print the model with different wall thicknesses and superimpose a grayscale image on the model. To adjust the wall thickness of the model, we need a visual map of the moon.

Post-processing

• Lunar surface map is a regular bump map. I need to take into account the internal thickness, so using the Level function (Level) I shift the value to the right (a brighter image will be displayed on the bump map).

• Inner map of the Moon is the shape of the inner surface of the model. From this map, we determine the thickness at each point of the surface, that is, the desired shade of gray. This map is built from a visual map, which in turn has thickness settings based on a bump map applied to it. Or, to use another calculation method, by subtracting the bump map from the inverted visual map.

Adjustable Parameters

• If you lower the bump map level, the elevations on the surface will be smaller, and the sag will decrease, but the surface details will have to be distributed differently.

• If you move the visual map level to the left, the shell becomes thicker, and vice versa. In this case, it must be remembered that the level should not be shifted too far to the right. The cladding must be at least 0.4 mm thick (if a 0.4 mm extruder nozzle is used), otherwise the cladding must be manually punched.

• The range of the light gray scale depends on the level range of the visual map.

Attached files: moon.xcf

Step 5: Control the layer thickness above. If the shell is thinner than it is possible to print, the printer simply will not print anything, holes may even form on the surface in unexpected places. You can fix it like this.

1. Open the STL file generated by BanateCAD with Meshmixer.

2. Delete the inner surface model.

3. Run the Edit command.

4. Select Hollow.

5. Set thickness to 0.5mm (for extruder size 0.4mm).

6. Run the Hollow command again.

7. Accept the changes, now the thickness of the lunar surface shell is 0.5 mm.

8. Rotation and cut of the plane are carried out in the same way as in the settings of the lunar shell.

9. Export the STL file.

10. Open the moon shell STL file in Microsoft 3d Builder.

11. Repair any defects.

12. Open the STL file of the lunar surface with a shell thickness of 0.5 mm.

13. Repair object defects.

14. Select the entire object.

15. Accept the changes, now the thickness of the lunar shell is 0.5 mm.

16. Export the STL file.

Step 6 Modeling - BanateCAD

BanateCAD can model a 3D shape from a bump map. In the examples folder, I posted the corresponding script. It reads a map of the surface and an internal map of the moon, and then models both shapes. The following are the steps for modeling with BanateCAD:

1. Open the BanateCAD.wlua file.

2. On the File menu, choose Open.

3. Open the file moonlamp.lua in the Examples folder.

4. Optional: change parameters.

5. From the Compile menu, choose Compile and Render.

6. After a while, the 3D model will appear.

7. From the File menu, choose Export -> Export STL.

8. Enter a name for the STL file and click the save button.

Configurable Parameters

Sphere output diameter in inches, bump map and internal map are generated based on this parameter:

 local outputSize = 3 -- inches

Surface height factor:

 local outputSize = 3 -- inches

The resolution must not be greater than the resolution of the PNG image:

 USteps = 720, WSteps = 360,

Step 7: Create a Shell – Meshmixer

Based on the shapes made in BanateCAD, we can create a shell by subtracting the surface of the inner shape from the shape.

The following describes the steps to create a skin using Meshmixer:

1. Open the exported STL file using Meshmixer.

2. Wait for the download to complete.

3. Select both models in the Object Browser.

4. On the left toolbar, select Edit, then select Boolean Difference.

5. Wait for the calculation to complete.

6. Select Accept.

7. Wait for the calculation to complete.

8. Leave one model in the Object Browser, this will be the lunar shell.

9. Save the file.

Step 8. Modify and display the model - Meshmixer

Before 3D printing, you can configure any parameters. The options are:

• If you want to put a model of the moon on your desktop, I suggest that the z-axis rotates from -45 to -60 degrees, so the moon will be directed towards you in its usual direction.

• If you want to hang the moon model from the ceiling, I suggest that the z-axis be rotated 120 to 135 degrees for the same reason as above.

• If you want to install a light inside, do not forget to make a hole for the wire (if you have difficulty printing a hole on a 3D printer, you can, like me, just drill a hole with a drill after printing.

• 90% percent The cutaway moons are flat, so you can hide the seams and print it easily without sagging.0005

When finished, export the STL file for printing.

Step 9: 3D Print

Open the object in the 3D Slicer, make sure there are no holes in the shell, and start printing.

If the moon needs to be perfect, you can skip the previous step of cutting the plane and turn on the support option. But, in my opinion, removing the remnants of the caliper is quite difficult.

If the previous step was difficult for you and you could not print the STL file, use my file.

Assemble the top, light source and bottom together.

Step 10: Coating the Surface with Matte Paint
