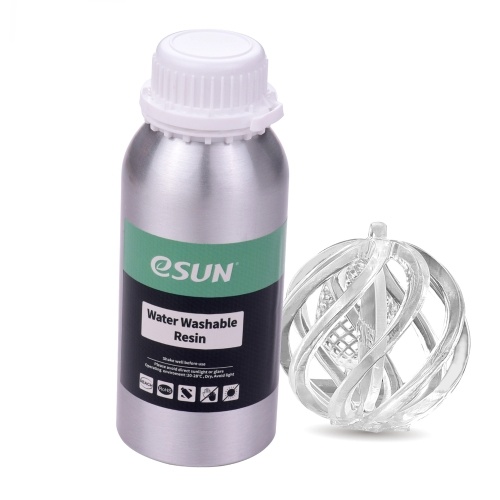

3D printer water washable resin

66

50

-10

79

9

6

-10

-10

-40

208

24

50

25

14

-100

6

23

175

10

88

4

60

31

-100

Quantity

EU Resin Mega Sales (no color limit):

Buy at lease  5*500G and get -42% OFF EU ONLY

Apply code 42OFFWWR500 at check out

Buy at lease 5*1000G and get -38% OFF EU ONLY

Apply code 38OFFWWR1000 at check out

Shop on Amazon

Amazon. US

Amazon.DE

Amazon.FR

Amazon.UK

Amazon.ES

Amazon.CA

Amazon.IT

Amazon.JP

Amazon.SE

Amazon.NL

Amazon.PL

Amazon.AU

Technical Specifications

Printing Setting: (For Mars)

• Bottom Exposure: 60s
• Normal Exposure: 8s

Resin Parameters:

• Hardness: 80-85 D;
• Viscosity (25°C): 100-350 mPa·s
• Liquid Density: 1.05-1.25 g/cm³
• Solid Density: 1.05-1.25 g/cm³
• Volumetric shrinkage: 3.72-4.24 %
• Flexure Strength: 40-70 Mpa
• Extension Strength: 30-52 Mpa
• Shelf Life: 2 year

Precautions:

• Shake well before use
• Recommended temperature 20°C - 25°C
• Always wear gloves and mask to avoid direct skin contact
• Keep away from children, dust and direct sunlight
• Wash with plenty of water immediately if you get direct skin contact with resin

Resource

• Free shipping

• Secured payment

Support Files & Resources:

Download

Sale Off

ELEGOO Water Washable Rapid Resin LCD UV-Curing Resin for 3D Printers

US / 500G / White - $18. 99 USDUS / 500G / Grey - $18.99 USDUS / 500G / Black - (Sold Out)US / 500G / Beige - (Sold Out)US / 500G / Yellow - (Sold Out)US / 500G / Green - (Sold Out)US / 500G / Clear Blue - (Sold Out)US / 500G / Red - (Sold Out)US / 500G / Mint Green - (Sold Out)US / 500G / Smoky Black - (Sold Out)US / 1000G / White - $34.99 USDUS / 1000G / Grey - $34.99 USDUS / 1000G / Black - $34.99 USDUS / 1000G / Beige - (Sold Out)US / 1000G / Yellow - (Sold Out)US / 1000G / Green - (Sold Out)US / 1000G / Clear Blue - (Sold Out)US / 1000G / Red - (Sold Out)US / 1000G / Mint Green - (Sold Out)US / 1000G / Smoky Black - (Sold Out)EU / 500G / White - (Sold Out)EU / 500G / Grey - (Sold Out)EU / 500G / Black - (Sold Out)EU / 500G / Beige - (Sold Out)EU / 500G / Yellow - (Sold Out)EU / 500G / Green - $18.99 USDEU / 500G / Clear Blue - $18.99 USDEU / 500G / Red - $18.99 USDEU / 500G / Mint Green - $18.99 USDEU / 500G / Smoky Black - $18.99 USDEU / 1000G / White - (Sold Out)EU / 1000G / Grey - (Sold Out)EU / 1000G / Black - (Sold Out)EU / 1000G / Beige - $34. 99 USDEU / 1000G / Yellow - $34.99 USDEU / 1000G / Green - $34.99 USDEU / 1000G / Clear Blue - $34.99 USDEU / 1000G / Red - $34.99 USDEU / 1000G / Mint Green - $34.99 USDEU / 1000G / Smoky Black - (Sold Out)UK / 500G / White - (Sold Out)UK / 500G / Grey - (Sold Out)UK / 500G / Black - (Sold Out)UK / 500G / Beige - (Sold Out)UK / 500G / Yellow - (Sold Out)UK / 500G / Green - (Sold Out)UK / 500G / Clear Blue - (Sold Out)UK / 500G / Red - (Sold Out)UK / 500G / Mint Green - (Sold Out)UK / 500G / Smoky Black - (Sold Out)UK / 1000G / White - $34.99 USDUK / 1000G / Grey - $34.99 USDUK / 1000G / Black - (Sold Out)UK / 1000G / Beige - (Sold Out)UK / 1000G / Yellow - (Sold Out)UK / 1000G / Green - (Sold Out)UK / 1000G / Clear Blue - (Sold Out)UK / 1000G / Red - (Sold Out)UK / 1000G / Mint Green - (Sold Out)UK / 1000G / Smoky Black - (Sold Out)AU / 500G / White - (Sold Out)AU / 500G / Grey - (Sold Out)AU / 500G / Black - (Sold Out)AU / 500G / Beige - (Sold Out)AU / 500G / Yellow - (Sold Out)AU / 500G / Green - (Sold Out)AU / 500G / Clear Blue - (Sold Out)AU / 500G / Red - (Sold Out)AU / 500G / Mint Green - (Sold Out)AU / 500G / Smoky Black - (Sold Out)AU / 1000G / White - (Sold Out)AU / 1000G / Grey - (Sold Out)AU / 1000G / Black - (Sold Out)AU / 1000G / Beige - (Sold Out)AU / 1000G / Yellow - (Sold Out)AU / 1000G / Green - (Sold Out)AU / 1000G / Clear Blue - (Sold Out)AU / 1000G / Red - (Sold Out)AU / 1000G / Mint Green - (Sold Out)AU / 1000G / Smoky Black - (Sold Out)

• 【Low Shrinkage and High Precision】ELEGOO photopolymer resin is specially designed for reducing volume shrinkage during the Photocuring process ,which ensures the high precision of the print model with smooth finish.
• 【Fast Curing and Great Stability】ELEGOO 405nm Rapid Resin was designed to significantly reduce printing time with its excellent fluidity. Meanwhile its great stability and proper hardness guarantee a worry-free printing experience and successful printing.
• 【Bright and Stunning Colors】: With high quality pigments and photo-initiators inside ELEGOO UV-Curing resin, the models printed with resin have a very pure and stunning color effect just like an artwork.
• 【Wide Applications】Given the outstanding performances, ELEGOO standard resin is suitable for most DLP/LCD 3D printers. Works best with the LCD 3D Printers.
• 【Safe and Secure Packaging】Leak-proof bottle fully wrapped with a plastic bubble bag and exquisite designed package box make sure the resin stays in place where they belong

ELEGOO Water Washable Photopolymer Resin is compatible with the most LCD 3D printers using the 405nm wavelength light source. It’s specifically designed for LCD/LED light source to achieve better printing quality. Instead of using IPA to clean up the prints, you can use tap water to wash the prints.

This product comes with four features:

• Amazing Detail
• No Expensive cleaners
• No hazardous chemicals
• Water washable. No detergent or alcohol required and can clean any residual stains directly with water.

The water that washed the water washable resin models can not be poured directly into the sewer or sink. It should be placed under the sunlight to completely cure the remainIng resin in the water before processed to avoid environment pollutioin.

Wash away uncured resin using only water

With Water Washable Resin, you no longer need to use expensive and dangerous solvents like acetone or alcohol to remove excess resin on your 3D prints – simply rinse with water, what is safe and free.

Great Aesthetics and easy to clean

Prints made with Water Washable Resin are attractive and durable, with applications ranging from secondary school projects to industry use. Printing with water washable resin is the same as printing with any other common resin and requires no additional expertise. Dissolving excess resin in water is simple and straightforward, requiring only a short period of rinsing or soaking.

Compatible with DLP/SLA printers

Water Washable Resin is designed to be compatible with full range of stereolithography (SLA), digital light projector (DLP) and liquid crystal display (LCD) 3D printers. High speed adhesion with faster curing time, higher precision prints and easy to take out from the printing plate.

Wide Applications

ELEGOO photopolymer resin is compatible with the LCD 3D printers using the UV light source to cure models.

It has a wide range of application from board game miniatures to industrial parts and components.

You can also use it to print your 3D CAD design works and make it from an idea into reality.

The only limitation is your imagination. Print now and go with ELEGOO.

Water washable resin: advantages and disadvantages

Over the past years a wide range of water-washable resins were introduced to the market to make resin printing more consumer friendly. But what are the advantages of these water-washable resins and how do they compare to other resins?

Post-processing of 3D-printed resin parts

One of the biggest disadvantages of resin 3D-printing is the post-processing. Supports need to be removed and parts need to be washed and cured to achieved proper end properties. Post-process Liqcreate resins are already described in an earlier article. In short these can be divided in two mayor steps. Cleaning and curing. Water-washable resins have their advantage in the cleaning step.

When comparing different washing methods it can be summarized to three main methods. Cleaning in IPA/Ethanol, resin cleaner or water. In this article we will discuss the main differences and advantages and disadvantages of these methods.

The biggest advantage of cleaning in IPA/ethanol is that after cleaning these solvent evaporate very fast and leave a solvent free clean surface. The biggest disadvantage is that these solvent are considered to be dangerous goods and leave a nasty smell. Because of the volatility and the flammability it is also not advised to use these solvents directly in an ultrasonic cleaners.

Advantages and disadvantages of water-washable resin

The advantage of water-washable resin is that it can be used in an ultrasonic cleaner and it leaves no smell or vapor. It is very important that the residual water is not thrown in the drain because it contains resin. Water washable resin often contains raw materials that can be harmful to aquatic life. Therefor the washing method would be similar to using a resin cleaner. A second and perhaps more important disadvantage is that the liquid resin is in water soluble. Making the printed part also be sensitive to water and most likely can’t be used in a wet or highly moist environment. At Liqcreate we test all our materials on solvent and chemical compatibility including water. More information about this can be found here. There is one main disadvantages often reported by users of water washable resin. Printed parts can crack over time due to water uptake and swelling, even in (dry) office environments.

Source: Crack in part made with water washable resin from Reddit member.

As an alternative Liqcreate offers a non-toxic, non-volatile resin cleaner instead of a water-washable resin. This is because the raw materials used in our resins are specifically selected to reach the best properties. Changing these raw materials for water soluble materials would be a trade-off in regard to environmental hazards, mechanical properties, quality and long term-stability of the end parts.

Team Liqcreate wish you happy printing. If there are any questions or remarks, feel free to contact us at [email protected] any time.

Liqcreate product page

Eryone water washable resin for photopolymer 3D printers

This resin is designed for most photopolymer 3D printers.
The key feature of this resin is the ability to remove residues after printing the main part with plain water, without the use of chemicals. In this case, the printed part itself can be thrown into water and it will not dissolve.
Volume 0.5l.
Delivery is made from the Russian warehouse.

A little about photopolymer LCD printing:

This technology is quite new and cheap to produce. It is also called DUP or mSLA.
The technology works thanks to a powerful ultra-bright UV LED that evens out the glow - a Fresnel lens and directly to the matrix of the IPS LCD panel, which forms a white outline and a black background of the light layer. The black color does not pass through the radiation, and the white light is freely exposed, due to which a hardening layer of the material is formed. The model is built layer by layer.

Now color LCD screens have been replaced by monochrome ones and this is a big breakthrough in technology. A monochrome display lasts much longer, and the print speed with such a display is much higher. Thanks to the monochrome matrix, the exposure of the layer was reduced to an average of 2 seconds. nine0003

There are 8 colors of this resin in total, but only 7 are currently available. 500 ml

Supplied in an unmarked cardboard box.

Resin jar is securely packaged.

I ordered gray. The label indicates the manufacturer, color, volume and type of resin. nine0003

There are also instructions and recommendations.

The mouth of the jar is very large. This is very handy for draining the resin back into the jar.

Printing parameters with this resin for different printers.

My exposure time on Photon Mono is slightly different, but more on that below.

For the test I will use 2 popular models from Harz labs and 3DSLA.
In all models, I used the default layer of 0.05mm.
The first layer I have perfectly keeps with a light exposure of 23s. nine0006

Harzlabs prints in just 12 minutes.
Illumination time from 1.8 to 3s. This timing was not chosen by chance, I was guided by the table above from the manufacturer.
Test model size 30x30x2mm
Pencil for sizing. Immediately I apologize for the dust on the models.

Exposure 1.8s

Exposure 2s

Exposure 2.5s

Exposure 3s

nine0006

The second test model will be a cube from 3DSLA with dimensions 10x10x10mm.
Layer 0.05mm.
The best quality was obtained with an illumination of 2s.

Another test, exposure time 2s, layer 0.05mm.

Now started printing Wonder Woman.
In the end, it should turn out like this

In the meantime, I have this)

Links to models:
Test model from Harz labs
Test cube from 3DSLA
ELECTRONOOBS test model
Wonder Woman model

Resin was provided at 50% discount, so I'll mark it as #18.

Terminals
Pretty good resin for the money. Residues after printing are perfectly removed with water. There is a smell, but it is not directly sharp and caustic. Water-washable resins would be good for teaching photopolymer printing in schools or some circles, because alcohol is not required.

Product for writing a review provided by the store. The review is published in accordance with clause 18 of the Site Rules. nine0006

A short review of Elegoo photopolymer

Recently in the comments I mentioned that Anycubic has no competitors in the cost of polymers, to which andron_h countered by referring to Elegoo polymers. Screenshots for Enikubik and Elegu polymers today:

Apparently, even without coupons, Elegu is 300 rubles cheaper :)

After his comment, I became interested and ordered a liter of black and a liter of red transparent for testing. Then it came out to me at 2035 rubles per liter, taking into account the coupon. (This radish also tempted me to polymers from WEISTEK - ABS Like and Tough, I also ordered 0.5 liters per sample, but it's a long wait :)) )

The courier brought the parcel seems to be 5-6 days after the order. And just the other day I got to testing them for exposure time and sharpness :)

Briefly for the impatient - the resin is even better than Kubikovskaya, but with a slightly longer exposure time (by 20-30 percent). You can take it :)

On the pictures from the site the bottle with polymer looks black, but in reality it is brown - the same color as the Enikubik bottles. The packaging is the same as Enikubik's - a sealed bag, an air bag and a box, only a box made of coated cardboard with color printing. nine0006

Otherwise, if you peel off the labels, it's just twins with Ekubikov resin :) Whether to trust her is another question :) He is much less strong and sharp in Elegu than in Enikubik. Here, put two bottles of polymers Elegu and Enikubik - by smell you can immediately distinguish who is who :)

Although I don't pay much attention to smells when printing either on FDM or photopolymer, but with Cubikov's polymer I noticed a smell if you enter the room where printing is in progress, but with Elegu I didn't catch myself on it. Although I printed them just nothing.

And now the testing itself.

Resin Black

First ran the Harzlabs quick flat plate test as usual, it only takes 15-25 minutes to print and gives a first impression of exposure time. Layer 0.04 mm. I set the time in the test from 4 to 7 seconds, assuming that this resin was poured from the same barrel as the Enikubikovskaya, for which I have the optimal time for such a layer on a black polymer 4-5 seconds. But it turned out that this resin was from another barrel :) The optimal time for black resin was 6-7 seconds. nine0006

Hint : Clicking on a photo will open the portal's standard photo browser window. If you right-click in it in the center of the photo and select "Open image in a new tab", then a photo of the original size will be opened in a new tab, which can be viewed in detail :)

Layer 0.04 mm, exposure 4 sec:

Layer 0.04 mm, exposure 5 sec:

0.04 mm layer, 6 sec exposure:

0. 04 mm layer, exposure 7 sec:

Very worthy. XY detail is excellent for such a cheap resin.

After that, you can try to print a standard cube from 3DSLA, which has been printed for an hour or more. It already shows the exact exposure time and vertical resolution. I also printed with a layer of 0.04 mm, also 4 pieces, but I already set the time a little more - from 5 to 8 seconds. For the photo, I chose a cube with a print time of 7 seconds, as the most optimal result. nine0006

Very, very good. Vertical slots were printed up to 0.2 mm inclusive. With horizontal ones, everything is sadder - in the thin part, only up to 0.5, and in the thick part, only 1 mm at all. But I did not expect something excellent in vertical resolution, still the resin is one of the cheapest :)

To better see, I took a picture with a strip of paper inside: that I have visited. I took two photos of test plates made of polymers from different manufacturers in the light. nine0006

First photo, from left to right: Harzlabs Model, Elegoo, FunToDo Deep Black, Hardlight Tough:

Phantudou's resin name looks like some kind of mockery, looking at the result :)) Although it is really a deeper black color in reflection , than others. But in the light it leaves much to be desired ... And the rate of settling of black pigment in it is simply a record. My model with a height of 100 mm did not have time to finish printing before the pigment had already settled on the film. nine0006

Second photo, Anycubic, Elegoo again (for comparison with the previous photo), custom Ameralabs, standard Ameralabs:

Custom Amera is generally out of competition, it does not shine through at all, but the standard one is not far behind Elegoo either.

Red resin

Again, first a quick test with the test plate. The layer is still the same - 0.04 mm. I also set the time in the test from 4 to 7 seconds.

0.04 mm layer, 4 sec exposure:

0. 04 mm layer, 5 sec exposure:

0.04 mm layer, 6 sec exposure:

0.04 mm layer, 7 sec exposure:

Again, a very good result. The optimum is the same as for black at 6-7 seconds.

And a 3DSLA cube with the same 0.04 mm layer and 7 sec time per layer.

The result is approximately the same as black resin. Same excellent XY detail and mediocre Z detail. Surprisingly, I expected Z detail to be worse than black. nine0006

And one more thing. When I broke off these "indicators" connecting them from the plates (they serve me so that later on the plate you can see in what position it was and, accordingly, what exposure time it had):

then I was surprised the tenacity with which these sticks did not want to break off. And after a full backlight and a photo session, I tried to break the test plates from Elegu and Enikubik. So, subjectively, it seemed to me that the Elegu polymer is noticeably stronger than Enikubik.
