HandySCAN 3D Scanners | Portable 3D Scanning & Metrology

CREAFORM

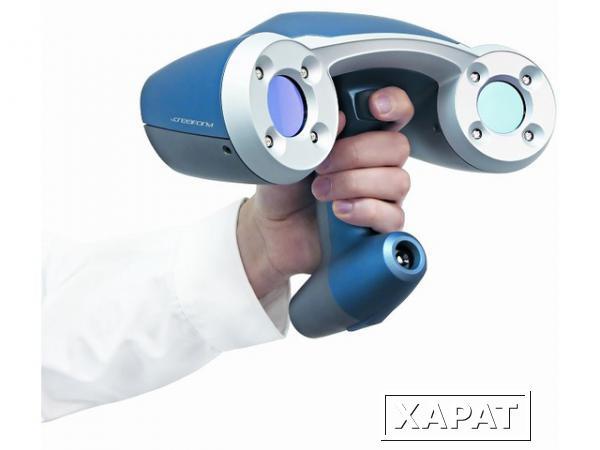

An Accurate and Portable 3D Scanning Solution

Creaform's flagship 3D scanner is now more portable than ever and is faster at delivering accurate and high resolution 3D scans while remaining simple to use. With dynamic referencing you can take the system anywhere and have accurate and repeatable 3D scanning results in any environment. It is the perfect tool for reverse engineering and inspection across the entire product development lifecycle.

View Video Brochure Request Demo Request a Quote

Overview

Key Features

Key Features

Advantages

Applications

Software

Specifications

Request a Quote

Faster, More Accurate, & Redesigned for the Best Metrology Experience
The HandySCAN 3D handheld scanners from Creaform have been optimized to meet the needs of product development and engineering professionals on the lookout for the most effective and reliable way to acquire 3D measurements of physical objects
Explore the HandySCAN 3D by watching the video

TRUaccuracy
Achieve precise, metrology-grade measurements in real life operating conditions. Get consistent and repeatable results across all work conditions and environments without the need for a rigid setup.
TRUportability
Take 3D scanning wherever you need to go. Ditch external positioning systems, arms and fixtures for a high-tech stand-alone device that weights under 1kg and small enough to fit inside a carry-on case.
TRUsimplicity
It’s as simple as it gets. This user-friendly device carries a short learning curve and is up and running in less than 2 minutes- regardless of the user’s experience level.

New Features
25 times faster than the previous generation

40% more accurate

improved ergonomy:
35% lighter

50% smaller

Greater freedom of movement

Multi-function buttons for easier interaction with the software

Accuracy
Metrology-Grade Measurements: Accuracy of up to 0. 030 mm (0.0012 in.), resolution of up to 0.050 mm (0.002 in.), high repeatability and traceable certificate.
Accuracy in real-life conditions: Regardless of environment conditions, part set-up or user.
No rigid setup required: Optical reflectors are used to create a reference system that is “locked” to the part itself, so users can move the object any way they want during scanning sessions (dynamic referencing). Changes in surrounding environment have no impact on data acquisition quality or accuracy.
Self-positioning: The HandySCAN 3D scanner is a data acquisition system and its own positioning system. This means that no external tracking or positioning devices is required. It uses triangulation to determine its relative position to the part in real time.
Reliable: Consistent and repeatable results across all work conditions or environments.
On-demand user calibration: The 3D scanner can be calibrated as often as necessary (day-to-day basis or before each new scanning session). Calibration takes about 2 minutes and guarantees optimal operation

TruPortability
Stand-alone device: There is no need for an external positioning system, arms, tripod or fixture.
On-the-go scanning: You can take it from place to place or use it in-house or on site.
Lightweight: Weighs under 1 kg.
Small: Fits into a case the size of a carry-on.
Easy access to confined spaces: Thanks to its small size and flexible stand-off distance.

Speed
Fastest 3D Scanner on the Market: 25 times faster than the previous generation
Highest measurement rate among all laser scanners: 480,000 measure/s.
Automatic mesh output: Ready-to-use files, right as you complete acquisition.
Quick workflow integration: Usable scan files can be imported into RE/CAD software without post-processing.

TruSimplicity
User Friendly: Very short learning curve, regardless of the user’s experience level.
Quick Setup: Up and running in less than 2 minutes.
Direct Mesh Output: No complicated alignment or point cloud processing.
Real-Time Visualization: Look at the computer screen to see what you are doing and what is left to be done.
Versatile: Virtually limitless 3D scanning – no matter the part size, complexity, material or color.

Applications
HandySCAN 3D scanners present opportunities for process improvement across all the stages of the product development lifecycle; from concept development through to design, prototyping, manufacturing and after sales support and servicing. Let our team guide you in integrating this technology into your current workflow

Concept Development

and Early Stage Prototyping

Requirements and Specifications
Competition Analysis

Product environment and mapping

Measurements of existing parts for aftermarket or custom equipment

Concept Design
Clay model measurement and reverse engineering

Models and mockups reverse engineering

Styling and aesthetics

Concept Prototyping
Integration of prototype Modifications into CAD

Proof of concept prototypes

Ergonomic prototypes

Design, Rapid Prototyping

and Simulation

CAD Design
3D scan-to-CAD

Reverse engineering

Packaging design

Rapid Prototyping
Rapid prototyping and low-volume manufacturing

Prototype modifications and iterations

Inspection of prototypes

Testing, Simulation and Analysis
Finite Element Analysis (FEA)

Interference analysis

Deformation and geometry analysis

Manufacturing

Tooling Design
Create digital archive of tooling library

Tooling that is accurate and custom to the parts

Reverse engineering of dies, molds, fixtures, jigs and patterns

Tooling validation and inspection

Assembly and Production
Virtual assembly

Tool and Robot path programming

Part assessment before machining

Quality Control
First article inspection

Inspection on the line

Part-to-CAD inspection

Supplier quality inspection

After Sales Support & Servicing

Product Documentation
Documentation of parts library and tooling

3D training systems

Product marketing

Digital archiving and preservation

Maintenance, Repair, and Overhaul (MRO)
Wear and tear analysis

Dents and damage assesment

Custom repairs and modifications

As-built documentation of parts and tooling before maintenance

Replacement and Recycling
Reverse engineering for part replacement

Restoration parts

Complex assembly diassembly planning

Scan with Confidence
The new HandySCAN 3D performs 25 times faster- the fastest 3D scanner on the market. The device also carries the highest measurement rate among all laser scanners at 480,000 measures per second, allowing it to be 40% more accurate than previous generations.
Improved Ergonomics
The new HandySCAN 3D performs 25 times faster- the fastest 3D scanner on the market. The device also carries the highest measurement rate among all laser scanners at 480,000 measures per second, allowing it to be 40% more accurate than previous generations.
Two Variants
The HandySCAN 3D scanners feature two distinct models to suit the needs of your organization. The HandySCAN 300 is the most efficient device to reverse engineering and/or design, achieve quick and accurate scans from a reliable tool.
The HandySCAN 700 features increased accuracy and resolution and is the most versatile 3D scanner on the market for inspection and reverse engineering.

Speed, Accuracy and Comfort All in One Reliable Tool

VXelements: 3D Software Platform
The HandySCAN 3D scanners come with VXelements, a fully integrated 3D software platform that powers our entire fleet of 3D scanning and measurement technologies. The user-friendly software thrives off a sleek and simple working platform. gathering essential elements, including real-time visualization, it creates the best scanning experience.
Upon completing the scan, an optimized file is automatically created, significantly reducing the time involved in your inspection/design process.
VXscan: Scan Software Module
VXscan is entirely dedicated to the acquisition and optimization of 3D scanning data. It delivers high performance for that specific task, yet it is simple and user-friendly enough to suit any user’s experience level.
User-friendly interface: VXelements was designed to simplify the whole scanning process to its essential core, through a powerful and simple process.

Surface optimization algorithm: avoids the creation of multiple scan layers and ensures a more accurate mesh without any post-treatment;

Direct mesh output: an optimized mesh can be exported in all standard formats, right as you complete acquisition. No complicated alignment or point cloud processing needed;

No limitation to the scan resolution: you simply need to input a resolution value, independent from the size of the scanned object. Resolution can be changed at any time before/after the scan;

Real-time visualization: the user can view the 3D surface as the object is being scanned;

Scan results enhancement: hole filling, smart decimation, boundary filters, etc.

Compatible Software: 3D Systems (Geomagic), InnovMetric (Polyworks), Dassault Systèmes (CATIA V5, SolidWorks), PTC (ProEngineer), Metrolog X4 and V5, Simens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage)

VXinspect
3D Inspection Software Designed for Article Inspection and Quality Control
Learn More
VXmodel
Seamlessly integrate 3D scan data into your CAD & 3D printing process
Learn More
VXremote
Remote Access Software Application for 3D Measurements in the Field
Learn More

Industries
The versatility of HandySCAN 3D scanners mean that they can be applied to applications across various industries regardless of environments. Explore some of the advantages in your industry or call us to speak with one of our industry experts.

HandySCAN 300

HandySCAN 700

Weight
0. 85 kg [1.9 lbs] 0.85 kg [1.9 lbs]
Weight
0.85 kg [1.9 lbs]

Dimensions
12.2 x 7.7 x 29.4 cm [4.8 x 3.0 x 11.6 in] 12.2 x 7.7 x 29.4 cm [4.8 x 3.0 x 11.6 in]
Dimensions
12. 2 x 7.7 x 29.4 cm [4.8 x 3.0 x 11.6 in]

Measurement Rate
205,000 measures/s 480,000 measures/s
Measurement Rate

205,000 measures/s

480,000 measures/s

Scanning Area
225 x 250 mm [8. 8 x 10 in] 275 x 250 mm [10.8 x 10 in]
Scanning Area

225 x 250 mm [8.8 x 10 in]

275 x 250 mm [10.8 x 10 in]

Light Source
3 Laser Crosses 7 Laser Crosses (+1 extra line)
Light Source

3 Laser Crosses

7 Laser Crosses (+1 extra line)

Laser Class
II (eye-safe) II (eye-safe)
Laser Class
II (eye-safe)

Resolution
0. 10 mm [0.004 in] 0.05 mm [0.002 in]
Resolution

0.10 mm [0.004 in]

0.05 mm [0.002 in]

Volumetric Accuracy
0.020 mm + 0.025 mm/m
[0.0008 in. + 0.0003 in./ft]
0. 020 mm + 0.025 mm/m
[0.0008 in. + 0.0003 in./ft]

Volumetric Accuracy
0.020 mm + 0.025 mm/m
[0.0008 in. + 0.0003 in./ft]

Stand-off Distance
300 m [12 in] 300 m [12 in]
Stand-off Distance
300 m [12 in]

Depth of Field
250 mm [10 in] 250 mm [10 in]
Depth of Field
250 mm [10 in]

HandySCAN 3D laser scanners | Creaform

HandySCAN 3D handheld scanners are optimized for the needs of pipeline integrity engineers and provide the most efficient and reliable way to obtain 3D measurements of physical objects.

Creaform's flagship metrology scanners have been redesigned. They're lighter and deliver high-resolution 3D scans faster, while still being just as easy to use. nine0003
The Creaform Pipecheck system offers a choice of two models of 3D laser scanners depending on the required level of accuracy.

A COMBINATION OF PRECISION AND PORTABILITY. INTRODUCING HANDYSCAN 3D SCANNERS.

Looking for the most efficient way to accurately quantify material loss and mechanical damage ? HandySCAN 300 is a reliable tool that will solve this problem.

HandySCAN 700 provides high accuracy and resolution. It is the most versatile 3D scanner for checking available on the market. The data collection speed of the HandySCAN 700 will pleasantly surprise you.

Benefits

Operating sequence

Applications
nine0035 Accessories
specifications

TRUaccuracy (True Accuracy)

Dynamic coupling between tube and scanner maintains accuracy and resolution in all conditions, including high vibration conditions.

The system generates accurate, reproducible high resolution 3D data (0.040-0.050 mm).

Improved virtual level gauge capabilities. The transmitter is configured to provide the most accurate measurements close to welds. nine0036
Comparison of Internal Pipe Condition Data : Access inspection results by comparing internal pipe inspection data and data from tools with data from the Pipecheck system. This helps operators to more accurately identify areas where earthworks need to be done.

Depth of Corrosion Within a Mechanical Fault : Unique and innovative tools for determining the depth of corrosion within a mechanical fault. nine0036

TRUsimplicity : A very simple 3D scanning process

Scanning and analysis are accurate, intuitive to use and independent of operator skill.

Very fast learning, regardless of user experience.

Launch and start in less than 2 minutes.

Simplicity: simple and fast learning.

The ability to change the working distance allows access to isolated areas. nine0036
Visualization of the scanned surface in real time.

TRUportability : 3D scanning where you need it

Portable from place to place and used both indoors and outdoors.

Weight 0.85 kg; possibility of use in limited spaces. Fits in a portable case.

The mass of the scanner is approx. 1 kg.

Pipecheck: Your best ally in all phases of your pipeline integrity program

SCAN

Corrosion

High definition image capture for all areas showing signs of corrosion

Fast surface imaging for increased efficiency

Improved scanning of fine details such as pitting

Mechanical damage

High resolution mesh files for analysis optimization

Quick measurements to check any surface finish

Comparison of pipe internal inspection data

Skill-independent high-precision measurements for more accurate matched data

Improved performance to cover more area and get more accurate statistical trends

ANALYSIS

Corrosion

Troubleshooting using real pipeline geometry
nine0035 Automatic application of interaction rules
Estimated Burst Pressure Calculation

Improved virtual level gauge for working near welds and obstacles

Mechanical damage

Automatic maximum depth detection

Automatic creation of a 2D cross profile in both directions at maximum depth

Measuring the maximum depth in both directions with straightedge

Lug section available

Comparison of pipe internal inspection data

Automatic detection of coincidences when overlapping surfaces

Manual match function

Axial and circular offset function for optimum overlap

REPORT

Corrosion

Excel report including worst case profile and predicted fault evolution

Ability to export to CSV format for further analysis

Ability to export coordinate grid

Configurable Pass/Fail criteria

Photographic device for 3D report

Mechanical damage

Excel report with ovality measurements

Detailed cross section (axial and cylindrical)

Depth mesh export to CSV format

Ability to export coordinate grid

Excel report with ovality measurement results (diameter measurement with caliper)

Dat, maximum depth point

Dat, 90° from maximum depth point

Dmax

Comparison of pipe internal inspection data nine0034
Visual overlay of pipe internal inspection data and faults detected by scan

General Graph for Evaluating the Performance of Sizing, Maximum Depth and Estimated Burst Pressure Tools

List of coordinated and inconsistent functions

Piping corrosion assessment

Assessment of mechanical damage to pipelines

Estimation of hail damage to aircraft

3D Simulation for Phased Array Inspection - Aerospace

3D Simulation for Phased Array Inspection - Energy

Rugged field kit with wireless tablet

For companies looking for optimal performance in the field, Creaform has developed a complete set of accessories. Our rugged field kit includes a wireless tablet for real-time visualization of scanned surfaces. nine0003
It also offers a choice of three compatible power sources: Creaform battery with charger*, 110/220V direct input or car battery.

Package includes:

Wireless tablet powered by VXremote

Pelican rugged laptop case

Creaform battery with charger

Magnetic support for scanner

Magnetic tablet support

USB 3.0 cable, 8m

Accessories:

Emergency power cables for car battery

*When used with a Creaform rechargeable battery, the rugged field kit provides 8 hours of battery life.

3D Scanner Power Bank: Takes portability to a whole new level

Lightweight 3D scanner power bank with three hours of battery life improves data acquisition efficiency. Ideal for short term projects and applications where the object is accessed with a tether and provides complete freedom of movement. Combined with HandySCAN 3D, you can use the scanner wherever you are. The small weight and size guarantee a new level of portability! Offered at a reasonable and affordable price, the rechargeable battery is ideal for working in confined spaces as well as outdoors! nine0003

Autonomy: 3 hours of continuous scanning

Dimensions: 180x110x20 mm / 7.1x4.3x0.8 inches.

Weight: 0.52 kg / 1.14 lb

Charging time: 4 hours

VXremote™: Remote Access Software

VXremote improves field efficiency by providing quick and easy remote access to Pipecheck. This software guarantees fast start-up and configuration without any hardware. All 3D scanner functions are at your disposal... Only available with Creaform Certified Rugged Tablets! nine0003
Complete solution includes:

Handyscan 3D Laser Scanner

Pipecheck software license

Calibration plate

Pointer with protective cover

USB 3. 0 cable, 4m

Power supply

4 sets of 500 alignment marks

One year parts and labor warranty

Accessories

Certified Notebook PC

Sample Pipecheck

https://www.creaform3d.com/ru/sistemy-nerazrushayushchego-kontrolya/lazernye-skanery-handyscan-3d/tehnicheskie-harakteristiki

Non-contact 3D scanner - HandySCAN series - Creaform

Add to favorites

Add to compare

More information on the Creaform website

Specifications

Type

0003
---

This is an automatic translation. (view original in English)

Catalogs

No catalogs are available for this product.

See all Creaform catalogs

Visit the Creaform website for more information

More Creaform products

PROFESSIONAL AND INDUSTRIAL PORTABLE 3D SCANNERS

See all Creaform products

duties and do not include additional costs associated with installation or commissioning.
Learn more

3D printer bed temp

3D printer skateboard

Robot factory 3d printer

180 dollar 3d printer

Monoprice maker select 3d printer v2 review

3D print nintendo switch case

New 3d printing tech

3D printer nozzle camera

New style 3d printer

3D printed gun blueprints link

Free 3d printing plans


Requirements and Specifications Competition Analysis Product environment and mapping Measurements of existing parts for aftermarket or custom equipment	Concept Design Clay model measurement and reverse engineering Models and mockups reverse engineering Styling and aesthetics	Concept Prototyping Integration of prototype Modifications into CAD Proof of concept prototypes Ergonomic prototypes


CAD Design 3D scan-to-CAD Reverse engineering Packaging design	Rapid Prototyping Rapid prototyping and low-volume manufacturing Prototype modifications and iterations Inspection of prototypes	Testing, Simulation and Analysis Finite Element Analysis (FEA) Interference analysis Deformation and geometry analysis


Tooling Design Create digital archive of tooling library Tooling that is accurate and custom to the parts Reverse engineering of dies, molds, fixtures, jigs and patterns Tooling validation and inspection	Assembly and Production Virtual assembly Tool and Robot path programming Part assessment before machining	Quality Control First article inspection Inspection on the line Part-to-CAD inspection Supplier quality inspection


Product Documentation Documentation of parts library and tooling 3D training systems Product marketing Digital archiving and preservation	Maintenance, Repair, and Overhaul (MRO) Wear and tear analysis Dents and damage assesment Custom repairs and modifications As-built documentation of parts and tooling before maintenance	Replacement and Recycling Reverse engineering for part replacement Restoration parts Complex assembly diassembly planning

	HandySCAN 300	HandySCAN 700
Weight	0. 85 kg [1.9 lbs]	0.85 kg [1.9 lbs]	Weight 0.85 kg [1.9 lbs]
Dimensions	12.2 x 7.7 x 29.4 cm [4.8 x 3.0 x 11.6 in]	12.2 x 7.7 x 29.4 cm [4.8 x 3.0 x 11.6 in]	Dimensions 12. 2 x 7.7 x 29.4 cm [4.8 x 3.0 x 11.6 in]
Measurement Rate	205,000 measures/s	480,000 measures/s	Measurement Rate 205,000 measures/s 480,000 measures/s
Scanning Area	225 x 250 mm [8. 8 x 10 in]	275 x 250 mm [10.8 x 10 in]	Scanning Area 225 x 250 mm [8.8 x 10 in] 275 x 250 mm [10.8 x 10 in]
Light Source	3 Laser Crosses	7 Laser Crosses (+1 extra line)	Light Source 3 Laser Crosses 7 Laser Crosses (+1 extra line)
Laser Class	II (eye-safe)	II (eye-safe)	Laser Class II (eye-safe)
Resolution	0. 10 mm [0.004 in]	0.05 mm [0.002 in]	Resolution 0.10 mm [0.004 in] 0.05 mm [0.002 in]
Volumetric Accuracy	0.020 mm + 0.025 mm/m [0.0008 in. + 0.0003 in./ft]	0. 020 mm + 0.025 mm/m [0.0008 in. + 0.0003 in./ft]	Volumetric Accuracy 0.020 mm + 0.025 mm/m [0.0008 in. + 0.0003 in./ft]
Stand-off Distance	300 m [12 in]	300 m [12 in]	Stand-off Distance 300 m [12 in]
Depth of Field	250 mm [10 in]	250 mm [10 in]	Depth of Field 250 mm [10 in]
