The Free Beginner's Guide - 3D Printing Industry

Welcome to 3DPI”s Beginner’s Guide to 3D Printing. Whether you are new to 3D printing technology or just looking to close a few knowledge gaps, we’re glad you stopped by. By now, most of us have heard, at some level, about the potential of 3D printing. But with this guide we are offering insights into the history and the reality of 3D printing — the processes, materials and applications — as well as measured thoughts on where it might be heading. We hope you’ll find this to be one of the most comprehensive 3D printing resources available, and that no matter what your skill level is, there will be plenty in here to meet your needs.

Are you ready? Let’s get started !

01 - Basics



3D Printing — also known as additive manufacturing — has been quoted in the Financial Times and by other sources as potentially being larger than the Internet. Some believe this is true. Many others urge that this is part of the extraordinary hype that exists around this very exciting technology area. So what really is 3D printing, who generally uses 3D printers and what for ?

Overview

The term 3D printing covers a host of processes and technologies that offer a full spectrum of capabilities for the production of parts and products in different materials. Essentially, what all of the processes and technologies have in common is the manner in which production is carried out layer by layer in an additive process which is in contrast to traditional methods of production involving subtractive methods or moulding/casting processes. Applications of 3D printing are emerging almost by the day, and, as this technology continues to penetrate more widely and deeply across industrial, maker and consumer sectors, this is only set to increase. Most reputable commentators on this technology sector agree that, as of today, we are only just beginning to see the true potential of 3D printing. 3DPI, a reliable media source for 3D printing, brings you all of the latest news, views, process developments and applications as they emerge in this exciting field. This overview article aims to provide the 3DPI audience with a reliable backgrounder on 3D printing in terms of what it is (technologies, processes and materials), its history, application areas and benefits

Introduction – What is 3D printing ?



3D Printing is a process for making a physical object from a three-dimensional digital model, typically by laying down many successive thin layers of a material. It brings a digital object (its CAD representation) into its physical form by adding layer by layer of materials.

There are several different techniques to 3D Print an object. We will go in further details later in the Guide. 3D Printing brings two fundamental innovations: the manipulation of objects in their digital format and the manufacturing of new shapes by addition of material.

Digital

+

Additive Manufacturing

Technology has affected recent human history probably more than any other field. Think of a light bulb, steam engine or, more latterly, cars and aeroplanes, not to mention the rise and rise of the world wide web. These technologies have made our lives better in many ways, opened up new avenues and possibilities, but usually it takes time, sometimes even decades, before the truly disruptive nature of the technology becomes apparent.

It is widely believed that 3D printing or additive manufacturing (AM) has the vast potential to become one of these technologies. 3D printing has now been covered across many television channels, in mainstream newspapers and across online resources. What really is this 3D printing that some have claimed will put an end to traditional manufacturing as we know it, revolutionize design and impose geopolitical, economic, social, demographic, environmental and security implications to our every day lives?

The most basic, differentiating principle behind 3D printing is that it is an additive manufacturing process. And this is indeed the key because 3D printing is a radically different manufacturing method based on advanced technology that builds up parts, additively, in layers at the sub mm scale. This is fundamentally different from any other existing traditional manufacturing techniques.

There are a number of limitations to traditional manufacturing, which has widely been based on human labour and made by hand ideology rooting back to the etymological origins of the French word for manufacturing itself. However, the world of manufacturing has changed, and automated processes such as machining, casting, forming and moulding are all (relatively) new, complex processes that require machines, computers and robot technology.

However, these technologies all demand subtracting material from a larger block whether to achieve the end product itself or to produce a tool for casting or moulding processes and this is a serious limitation within the overall manufacturing process.

For many applications traditional design and production processes impose a number of unacceptable constraints, including the expensive tooling as mentioned above, fixtures, and the need for assembly for complex parts. In addition, the subtractive manufacturing processes, such as machining, can result in up to 90% of the original block of material being wasted. In contrast, 3D printing is a process for creating objects directly, by adding material layer by layer in a variety of ways, depending on the technology used. Simplifying the ideology behind 3D printing, for anyone that is still trying to understand the concept (and there are many), it could be likened to the process of building something with Lego blocks automatically.

3D printing is an enabling technology that encourages and drives innovation with unprecedented design freedom while being a tool-less process that reduces prohibitive costs and lead times. Components can be designed specifically to avoid assembly requirements with intricate geometry and complex features created at no extra cost. 3D printing is also emerging as an energy-efficient technology that can provide environmental efficiencies in terms of both the manufacturing process itself, utilising up to 90% of standard materials, and throughout the products operating life, through lighter and stronger design.

In recent years, 3D printing has gone beyond being an industrial prototyping and manufacturing process as the technology has become more accessible to small companies and even individuals. Once the domain of huge, multi-national corporations due to the scale and economics of owning a 3D printer, smaller (less capable) 3D printers can now be acquired for under $1000.

This has opened up the technology to a much wider audience, and as the exponential adoption rate continues apace on all fronts, more and more systems, materials, applications, services and ancillaries are emerging.

02 - History

The earliest 3D printing technologies first became visible in the late 1980’s, at which time they were called Rapid Prototyping (RP) technologies. This is because the processes were originally conceived as a fast and more cost-effective method for creating prototypes for product development within industry. As an interesting aside, the very first patent application for RP technology was filed by a Dr Kodama, in Japan, in May 1980. Unfortunately for Dr Kodama, the full patent specification was subsequently not filed before the one year deadline after the application, which is particularly disastrous considering that he was a patent lawyer! In real terms, however, the origins of 3D printing can be traced back to 1986, when the first patent was issued for stereolithography apparatus (SLA). This patent belonged to one Charles (Chuck) Hull, who first invented his SLA machine in 1983. Hull went on to co-found 3D Systems Corporation — one of the largest and most prolific organizations operating in the 3D printing sector today.

3D Systems’ first commercial RP system, the SLA-1, was introduced in 1987 and following rigorous testing the first of these system was sold in 1988. As is fairly typical with new technology, while SLA can claim to be the first past the starting post, it was not the only RP technology in development at this time, for, in 1987, Carl Deckard, who was working at the University of Texas, filed a patent in the US for the Selective Laser Sintering (SLS) RP process. This patent was issued in 1989 and SLS was later licensed to DTM Inc, which was later acquired by 3D Systems. 1989 was also the year that Scott Crump, a co-founder of Stratasys Inc. filed a patent for Fused Deposition Modelling (FDM) — the proprietary technology that is still held by the company today, but is also the process used by many of the entry-level machines, based on the open source RepRap model, that are prolific today. The FDM patent was issued to Stratasys in 1992. In Europe, 1989 also saw the formation of EOS GmbH in Germany, founded by Hans Langer. After a dalliance with SL processes, EOS’ R&D focus was placed heavily on the laser sintering (LS) process, which has continued to go from strength to strength. Today, the EOS systems are recognized around the world for their quality output for industrial prototyping and production applications of 3D printing. EOS sold its first ‘Stereos’ system in 1990. The company’s direct metal laser sintering (DMLS) process resulted from an initial project with a division of Electrolux Finland, which was later acquired by EOS.

Other 3D printing technologies and processes were also emerging during these years, namely Ballistic Particle Manufacturing (BPM) originally patented by William Masters, Laminated Object Manufacturing (LOM) originally patented by Michael Feygin, Solid Ground Curing (SGC) originally patented by Itzchak Pomerantz et al and ‘three dimensional printing’ (3DP) originally patented by Emanuel Sachs et al. And so the early nineties witnessed a growing number of competing companies in the RP market but only three of the originals remain today — 3D Systems, EOS and Stratasys.

Throughout the 1990’s and early 2000’s a host of new technologies continued to be introduced, still focused wholly on industrial applications and while they were still largely processes for prototyping applications, R&D was also being conducted by the more advanced technology providers for specific tooling, casting and direct manufacturing applications. This saw the emergence of new terminology, namely Rapid Tooling (RT), Rapid Casting and Rapid Manufacturing (RM) respectively.

In terms of commercial operations, Sanders Prototype (later Solidscape) and ZCorporation were set up in 1996, Arcam was established in 1997, Objet Geometries launched in 1998, MCP Technologies (an established vacuum casting OEM) introduced the SLM technology in 2000, EnvisionTec was founded in 2002, ExOne was established in 2005 as a spin-off from the Extrude Hone Corporation and Sciaky Inc was pioneering its own additive process based on its proprietary electron beam welding technology. These companies all served to swell the ranks of Western companies operating across a global market. The terminology had also evolved with a proliferation of manufacturing applications and the accepted umbrella term for all of the processes was Additive Manufacturing (AM). Notably, there were many parallel developments taking place in the Eastern hemisphere. However, these technologies, while significant in themselves and enjoying some local success, did not really impact the global market at that time.

During the mid noughties, the sector started to show signs of distinct diversification with two specific areas of emphasis that are much more clearly defined today. First, there was the high end of 3D printing, still very expensive systems, which were geared towards part production for high value, highly engineered, complex parts. This is still ongoing — and growing — but the results are only now really starting to become visible in production applications across the aerospace, automotive, medical and fine jewellery sectors, as years of R&D and qualification are now paying off. A great deal still remains behind closed doors and/or under non-disclosure agreements (NDA). At the other end of the spectrum, some of the 3D printing system manufacturers were developing and advancing ‘concept modellers’, as they were called at the time. Specifically, these were 3D printers that kept the focus on improving concept development and functional prototyping, that were being developed specifically as office- and user-friendly, cost-effective systems. The prelude to today’s desktop machines. However, these systems were all still very much for industrial applications.

Looking back, this was really the calm before the storm.

At the lower end of the market — the 3D printers that today are seen as being in the mid range — a price war emerged together with incremental improvements in printing accuracy, speed and materials.

In 2007, the market saw the first system under $10,000 from 3D Systems, but this never quite hit the mark that it was supposed to. This was partly due to the system itself, but also other market influences. The holy grail at that time was to get a 3D printer under $5000 — this was seen by many industry insiders, users and commentators as the key to opening up 3D printing technology to a much wider audience. For much of that year, the arrival of the highly-anticipated Desktop Factory — which many predicted would be the fulfillment of that holy grail — was heralded as the one to watch. It came to nothing as the organization faltered in the run up to production. Desktop Factory and its leader, Cathy Lewis, were acquired, along with the IP, by 3D Systems in 2008 and all but vanished. As it turned out though, 2007 was actually the year that did mark the turning point for accessible 3D printing technology — even though few realized it at the time — as the RepRap phenomenon took root. Dr Bowyer conceived the RepRap concept of an open source, self-replicating 3D printer as early as 2004, and the seed was germinated in the following years with some heavy slog from his team at Bath, most notably Vik Oliver and Rhys Jones, who developed the concept through to working prototypes of a 3D printer using the deposition process. 2007 was the year the shoots started to show through and this embryonic, open source 3D printing movement started to gain visibility.

But it wasn’t until January 2009 that the first commercially available 3D printer – in kit form and based on the RepRap concept – was offered for sale. This was the BfB RapMan 3D printer. Closely followed by Makerbot Industries in April the same year, the founders of which were heavily involved in the development of RepRap until they departed from the Open Source philosophy following extensive investment. Since 2009, a host of similar deposition printers have emerged with marginal unique selling points (USPs) and they continue to do so. The interesting dichotomy here is that, while the RepRap phenomenon has given rise to a whole new sector of commercial, entry-level 3D printers, the ethos of the RepRap community is all about Open Source developments for 3D printing and keeping commercialization at bay.

2012 was the year that alternative 3D printing processes were introduced at the entry level of the market. The B9Creator (utilising DLP technology) came first in June, followed by the Form 1 (utilising stereolithography) in December. Both were launched via the funding site Kickstarter — and both enjoyed huge success.

As a result of the market divergence, significant advances at the industrial level with capabilities and applications, dramatic increase in awareness and uptake across a growing maker movement, 2012 was also the year that many different mainstream media channels picked up on the technology. 2013 was a year of significant growth and consolidation. One of the most notable moves was the acquisition of Makerbot by Stratasys.

Heralded as the 2nd, 3rd and, sometimes even, 4th Industrial Revolution by some, what cannot be denied is the impact that 3D printing is having on the industrial sector and the huge potential that 3D printing is demonstrating for the future of consumers. What shape that potential will take is still unfolding before us.

03 - Technology

The starting point for any 3D printing process is a 3D digital model, which can be created using a variety of 3D software programmes — in industry this is 3D CAD, for Makers and Consumers there are simpler, more accessible programmes available — or scanned with a 3D scanner. The model is then ‘sliced’ into layers, thereby converting the design into a file readable by the 3D printer. The material processed by the 3D printer is then layered according to the design and the process. As stated, there are a number of different types of 3D printing technologies, which process different materials in different ways to create the final object. Functional plastics, metals, ceramics and sand are, now, all routinely used for industrial prototyping and production applications. Research is also being conducted for 3D printing bio materials and different types of food. Generally speaking though, at the entry level of the market, materials are much more limited. Plastic is currently the only widely used material — usually ABS or PLA, but there are a growing number of alternatives, including Nylon. There is also a growing number of entry level machines that have been adapted for foodstuffs, such as sugar and chocolate.

How it Works

The different types of 3D printers each employ a different technology that processes different materials in different ways. It is important to understand that one of the most basic limitations of 3D printing — in terms of materials and applications — is that there is no ‘one solution fits all’. For example some 3D printers process powdered materials (nylon, plastic, ceramic, metal), which utilize a light/heat source to sinter/melt/fuse layers of the powder together in the defined shape. Others process polymer resin materials and again utilize a light/laser to solidify the resin in ultra thin layers. Jetting of fine droplets is another 3D printing process, reminiscent of 2D inkjet printing, but with superior materials to ink and a binder to fix the layers. Perhaps the most common and easily recognized process is deposition, and this is the process employed by the majority of entry-level 3D printers. This process extrudes plastics, commonly PLA or ABS, in filament form through a heated extruder to form layers and create the predetermined shape.

Because parts can be printed directly, it is possible to produce very detailed and intricate objects, often with functionality built in and negating the need for assembly.

However, another important point to stress is that none of the 3D printing processes come as plug and play options as of today. There are many steps prior to pressing print and more once the part comes off the printer — these are often overlooked. Apart from the realities of designing for 3D printing, which can be demanding, file preparation and conversion can also prove time-consuming and complicated, particularly for parts that demand intricate supports during the build process. However there are continual updates and upgrades of software for these functions and the situation is improving. Furthermore, once off the printer, many parts will need to undergo finishing operations. Support removal is an obvious one for processes that demand support, but others include sanding, lacquer, paint or other types of traditional finishing touches, which all typically need to be done by hand and require skill and/or time and patience.

04 - Processes

Stereolithography

Stereolithography (SL) is widely recognized as the first 3D printing process; it was certainly the first to be commercialised. SL is a laser-based process that works with photopolymer resins, that react with the laser and cure to form a solid in a very precise way to produce very accurate parts. It is a complex process, but simply put, the photopolymer resin is held in a vat with a movable platform inside. A laser beam is directed in the X-Y axes across the surface of the resin according to the 3D data supplied to the machine (the . stl file), whereby the resin hardens precisely where the laser hits the surface. Once the layer is completed, the platform within the vat drops down by a fraction (in the Z axis) and the subsequent layer is traced out by the laser. This continues until the entire object is completed and the platform can be raised out of the vat for removal.

Because of the nature of the SL process, it requires support structures for some parts, specifically those with overhangs or undercuts. These structures need to be manually removed.

In terms of other post processing steps, many objects 3D printed using SL need to be cleaned and cured. Curing involves subjecting the part to intense light in an oven-like machine to fully harden the resin.

Stereolithography is generally accepted as being one of the most accurate 3D printing processes with excellent surface finish. However limiting factors include the post-processing steps required and the stability of the materials over time, which can become more brittle.

DLP — or digital light processing — is a similar process to stereolithography in that it is a 3D printing process that works with photopolymers. The major difference is the light source. DLP uses a more conventional light source, such as an arc lamp, with a liquid crystal display panel or a deformable mirror device (DMD), which is applied to the entire surface of the vat of photopolymer resin in a single pass, generally making it faster than SL.

Also like SL, DLP produces highly accurate parts with excellent resolution, but its similarities also include the same requirements for support structures and post-curing. However, one advantage of DLP over SL is that only a shallow vat of resin is required to facilitate the process, which generally results in less waste and lower running costs.

Laser Sintering / Laser Melting

Laser sintering and laser melting are interchangeable terms that refer to a laser based 3D printing process that works with powdered materials. The laser is traced across a powder bed of tightly compacted powdered material, according to the 3D data fed to the machine, in the X-Y axes. As the laser interacts with the surface of the powdered material it sinters, or fuses, the particles to each other forming a solid. As each layer is completed the powder bed drops incrementally and a roller smoothes the powder over the surface of the bed prior to the next pass of the laser for the subsequent layer to be formed and fused with the previous layer.

The build chamber is completely sealed as it is necessary to maintain a precise temperature during the process specific to the melting point of the powdered material of choice. Once finished, the entire powder bed is removed from the machine and the excess powder can be removed to leave the ‘printed’ parts. One of the key advantages of this process is that the powder bed serves as an in-process support structure for overhangs and undercuts, and therefore complex shapes that could not be manufactured in any other way are possible with this process.

However, on the downside, because of the high temperatures required for laser sintering, cooling times can be considerable. Furthermore, porosity has been an historical issue with this process, and while there have been significant improvements towards fully dense parts, some applications still necessitate infiltration with another material to improve mechanical characteristics.

Laser sintering can process plastic and metal materials, although metal sintering does require a much higher powered laser and higher in-process temperatures. Parts produced with this process are much stronger than with SL or DLP, although generally the surface finish and accuracy is not as good.

Extrusion / FDM / FFF

3D printing utilizing the extrusion of thermoplastic material is easily the most common — and recognizable — 3DP process. The most popular name for the process is Fused Deposition Modelling (FDM), due to its longevity, however this is a trade name, registered by Stratasys, the company that originally developed it. Stratasys’ FDM technology has been around since the early 1990’s and today is an industrial grade 3D printing process. However, the proliferation of entry-level 3D printers that have emerged since 2009 largely utilize a similar process, generally referred to as Freeform Fabrication (FFF), but in a more basic form due to patents still held by Stratasys. The earliest RepRap machines and all subsequent evolutions — open source and commercial — employ extrusion methodology. However, following Stratasys’ patent infringement filing against Afiniathere is a question mark over how the entry-level end of the market will develop now, with all of the machines potentially in Stratasys’ firing line for patent infringements.

The process works by melting plastic filament that is deposited, via a heated extruder, a layer at a time, onto a build platform according to the 3D data supplied to the printer. Each layer hardens as it is deposited and bonds to the previous layer.

Stratasys has developed a range of proprietary industrial grade materials for its FDM process that are suitable for some production applications. At the entry-level end of the market, materials are more limited, but the range is growing. The most common materials for entry-level FFF 3D printers are ABS and PLA.

The FDM/FFF processes require support structures for any applications with overhanging geometries. For FDM, this entails a second, water-soluble material, which allows support structures to be relatively easily washed away, once the print is complete. Alternatively, breakaway support materials are also possible, which can be removed by manually snapping them off the part. Support structures, or lack thereof, have generally been a limitation of the entry level FFF 3D printers. However, as the systems have evolved and improved to incorporate dual extrusion heads, it has become less of an issue.

In terms of models produced, the FDM process from Stratasys is an accurate and reliable process that is relatively office/studio-friendly, although extensive post-processing can be required. At the entry-level, as would be expected, the FFF process produces much less accurate models, but things are constantly improving.

The process can be slow for some part geometries and layer-to-layer adhesion can be a problem, resulting in parts that are not watertight. Again, post-processing using Acetone can resolve these issues.

Inkjet

There are two 3D printing process that utilize a jetting technique.

Binder jetting: where the material being jetted is a binder, and is selectively sprayed into a powder bed of the part material to fuse it a layer at a time to create/print the required part. As is the case with other powder bed systems, once a layer is completed, the powder bed drops incrementally and a roller or blade smoothes the powder over the surface of the bed, prior to the next pass of the jet heads, with the binder for the subsequent layer to be formed and fused with the previous layer.

Advantages of this process, like with SLS, include the fact that the need for supports is negated because the powder bed itself provides this functionality. Furthermore, a range of different materials can be used, including ceramics and food. A further distinctive advantage of the process is the ability to easily add a full colour palette which can be added to the binder.

The parts resulting directly from the machine, however, are not as strong as with the sintering process and require post-processing to ensure durability.

Material jetting: a 3D printing process whereby the actual build materials (in liquid or molten state) are selectively jetted through multiple jet heads (with others simultaneously jetting support materials). However, the materials tend to be liquid photopolymers, which are cured with a pass of UV light as each layer is deposited.

The nature of this product allows for the simultaneous deposition of a range of materials, which means that a single part can be produced from multiple materials with different characteristics and properties. Material jetting is a very precise 3D printing method, producing accurate parts with a very smooth finish.

Selective Deposition Lamination (SDL)

SDL is a proprietary 3D printing process developed and manufactured by Mcor Technologies. There is a temptation to compare this process with the Laminated Object Manufacturing (LOM) process developed by Helisys in the 1990’s due to similarities in layering and shaping paper to form the final part. However, that is where any similarity ends.

The SDL 3D printing process builds parts layer by layer using standard copier paper. Each new layer is fixed to the previous layer using an adhesive, which is applied selectively according to the 3D data supplied to the machine. This means that a much higher density of adhesive is deposited in the area that will become the part, and a much lower density of adhesive is applied in the surrounding area that will serve as the support, ensuring relatively easy “weeding,” or support removal.

After a new sheet of paper is fed into the 3D printer from the paper feed mechanism and placed on top of the selectively applied adhesive on the previous layer, the build plate is moved up to a heat plate and pressure is applied. This pressure ensures a positive bond between the two sheets of paper. The build plate then returns to the build height where an adjustable Tungsten carbide blade cuts one sheet of paper at a time, tracing the object outline to create the edges of the part. When this cutting sequence is complete, the 3D printer deposits the next layer of adhesive and so on until the part is complete.

SDL is one of the very few 3D printing processes that can produce full colour 3D printed parts, using a CYMK colour palette. And because the parts are standard paper, which require no post-processing, they are wholly safe and eco-friendly. Where the process is not able to compete favourably with other 3D printing processes is in the production of complex geometries and the build size is limited to the size of the feedstock.

EBM



The Electron Beam Melting 3D printing technique is a proprietary process developed by Swedish company Arcam. This metal printing method is very similar to the Direct Metal Laser Sintering (DMLS) process in terms of the formation of parts from metal powder. The key difference is the heat source, which, as the name suggests is an electron beam, rather than a laser, which necessitates that the procedure is carried out under vacuum conditions.

EBM has the capability of creating fully-dense parts in a variety of metal alloys, even to medical grade, and as a result the technique has been particularly successful for a range of production applications in the medical industry, particularly for implants. However, other hi-tech sectors such as aerospace and automotive have also looked to EBM technology for manufacturing fulfillment.

05 - Materials

The materials available for 3D printing have come a long way since the early days of the technology. There is now a wide variety of different material types, that are supplied in different states (powder, filament, pellets, granules, resin etc).

Specific materials are now generally developed for specific platforms performing dedicated applications (an example would be the dental sector) with material properties that more precisely suit the application.

However, there are now way too many proprietary materials from the many different 3D printer vendors to cover them all here. Instead, this article will look at the most popular types of material in a more generic way. And also a couple of materials that stand out.

Plastics

Nylon, or Polyamide, is commonly used in powder form with the sintering process or in filament form with the FDM process. It is a strong, flexible and durable plastic material that has proved reliable for 3D printing. It is naturally white in colour but it can be coloured — pre- or post printing. This material can also be combined (in powder format) with powdered aluminium to produce another common 3D printing material for sintering — Alumide.

ABS is another common plastic used for 3D printing, and is widely used on the entry-level FDM 3D printers in filament form. It is a particularly strong plastic and comes in a wide range of colours. ABS can be bought in filament form from a number of non-propreitary sources, which is another reason why it is so popular.

PLA is a bio-degradable plastic material that has gained traction with 3D printing for this very reason. It can be utilized in resin format for DLP/SL processes as well as in filament form for the FDM process. It is offered in a variety of colours, including transparent, which has proven to be a useful option for some applications of 3D printing. However it is not as durable or as flexible as ABS.

LayWood is a specially developed 3D printing material for entry-level extrusion 3D printers. It comes in filament form and is a wood/polymer composite (also referred to as WPC).

Metals

A growing number of metals and metal composites are used for industrial grade 3D printing. Two of the most common are aluminium and cobalt derivatives.

One of the strongest and therefore most commonly used metals for 3D printing is Stainless Steel in powder form for the sintering/melting/EBM processes. It is naturally silver, but can be plated with other materials to give a gold or bronze effect.

In the last couple of years Gold and Silver have been added to the range of metal materials that can be 3D printed directly, with obvious applications across the jewellery sector. These are both very strong materials and are processed in powder form.

Titanium is one of the strongest possible metal materials and has been used for 3D printing industrial applications for some time. Supplied in powder form, it can be used for the sintering/melting/EBM processes.

Ceramics

Ceramics are a relatively new group of materials that can be used for 3D printing with various levels of success. The particular thing to note with these materials is that, post printing, the ceramic parts need to undergo the same processes as any ceramic part made using traditional methods of production — namely firing and glazing.

Paper



Standard A4 copier paper is a 3D printing material employed by the proprietary SDL process supplied by Mcor Technologies. The company operates a notably different business model to other 3D printing vendors, whereby the capital outlay for the machine is in the mid-range, but the emphasis is very much on an easily obtainable, cost-effective material supply, that can be bought locally. 3D printed models made with paper are safe, environmentally friendly, easily recyclable and require no post-processing.

Bio Materials



There is a huge amount of research being conducted into the potential of 3D printing bio materials for a host of medical (and other) applications. Living tissue is being investigated at a number of leading institutions with a view to developing applications that include printing human organs for transplant, as well as external tissues for replacement body parts. Other research in this area is focused on developing food stuffs — meat being the prime example.

Food

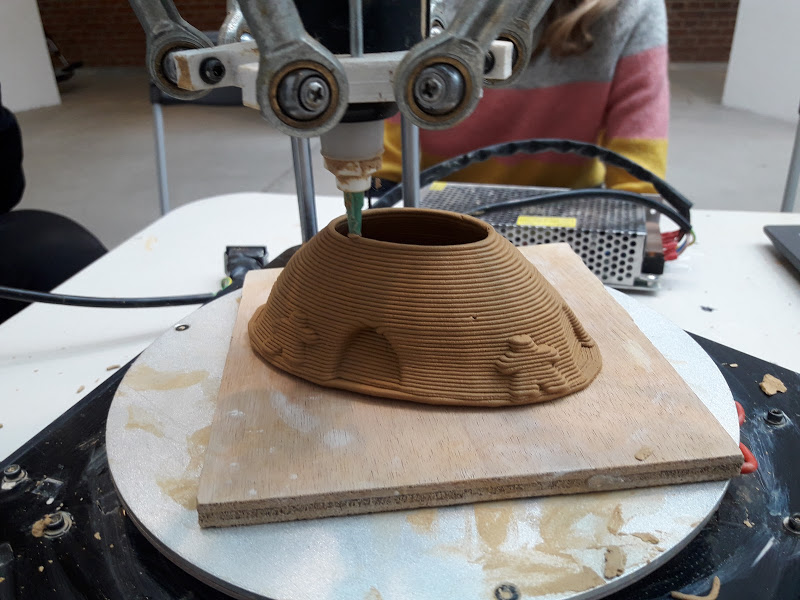

Experiments with extruders for 3D printing food substances has increased dramatically over the last couple of years. Chocolate is the most common (and desirable). There are also printers that work with sugar and some experiments with pasta and meat. Looking to the future, research is being undertaken, to utilize 3D printing technology to produce finely balanced whole meals.

And finally, one company that does have a unique (proprietary) material offering is Stratasys, with its digital materials for the Objet Connex 3D printing platform. This offering means that standard Objet 3D printing materials can be combined during the printing process — in various and specified concentrations — to form new materials with the required properties. Up to 140 different Digital Materials can be realized from combining the existing primary materials in different ways.

06 - Global Effects

Global Effects on Manufacturing

3D printing is already having an effect on the way that products are manufactured – the nature of the technology permits new ways of thinking in terms of the social, economic,environmental and security implications of the manufacturing process with universally favourable results.

One of the key factors behind this statement is that 3D printing has the potential to bring production closer to the end user and/or the consumer, thereby reducing the current supply chain restrictions. The customisation value of 3D printing and the ability to produce small production batches on demand is a sure way to engage consumers AND reduce or negate inventories and stock piling — something similar to how Amazon operates its business.

Shipping spare parts and products from one part of the world to the other could potentially become obsolete, as the spare parts might possibly be 3D printed on site. This could have a major impact on how businesses large and small, the military and consumers operate and interact on a global scale in the future. The ultimate aim for many is for consumers to operate their own 3D printer at home, or within their community, whereby digital designs of any (customizable) product are available for download via the internet, and can be sent to the printer, which is loaded with the correct material(s). Currently, there is some debate about whether this will ever come to pass, and even more rigorous debate about the time frame in which it may occur.

The wider adoption of 3D printing would likely cause re-invention of a number of already invented products, and, of course, an even bigger number of completely new products. Today previously impossible shapes and geometries can be created with a 3D printer, but the journey has really only just begun. 3D printing is believed by many to have very great potential to inject growth into innovation and bring back local manufacturing.

Potential Effects to the Global Economy

The use of 3D printing technology has potential effects on the global economy, if adopted world wide. The shift of production and distribution from the current model to a localized production based on-demand, on site, customized production model could potentially reduce the imbalance between export and import countries.

3D printing would have the potential to create new industries and completely new professions, such as those related to the production of 3D printers. There is an opportunity for professional services around 3D printing, ranging from new forms of product designers, printer operators, material suppliers all the way to intellectual property legal disputes and settlements. Piracy is a current concern related to 3D printing for many IP holders.

The effect of 3D printing on the developing world is a double-edged sword. One example of the positive effect is lowered manufacturing cost through recycled and other local materials, but the loss of manufacturing jobs could hit many developing countries severely, which would take time to overcome.

The developed world, would benefit perhaps the most from 3D printing, where the growing aged society and shift of age demographics has been a concern related to production and work force. Also the health benefits of the medical use of 3D printing would cater well for an aging western society.

07 - Benefits & Value

3D printing, whether at an industrial, local or personal level, brings a host of benefits that traditional methods of manufacture (or prototyping) simply cannot.

Customisation

3D printing processes allow for mass customisation — the ability to personalize products according to individual needs and requirements. Even within the same build chamber, the nature of 3D printing means that numerous products can be manufactured at the same time according to the end-users requirements at no additional process cost.

Complexity

The advent of 3D printing has seen a proliferation of products (designed in digital environments), which involve levels of complexity that simply could not be produced physically in any other way. While this advantage has been taken up by designers and artists to impressive visual effect, it has also made a significant impact on industrial applications, whereby applications are being developed to materialize complex components that are proving to be both lighter and stronger than their predecessors. Notable uses are emerging in the aerospace sector where these issues are of primary importance.

Tool-less

For industrial manufacturing, one of the most cost-, time- and labour-intensive stages of the product development process is the production of the tools. For low to medium volume applications, industrial 3D printing — or additive manufacturing — can eliminate the need for tool production and, therefore, the costs, lead times and labour associated with it. This is an extremely attractive proposition, that an increasing number or manufacturers are taking advantage of. Furthermore, because of the complexity advantages stated above, products and components can be designed specifically to avoid assembly requirements with intricate geometry and complex features further eliminating the labour and costs associated with assembly processes.

Sustainable / Environmentally Friendly

3D printing is also emerging as an energy-efficient technology that can provide environmental efficiencies in terms of both the manufacturing process itself, utilising up to 90% of standard materials, and, therefore, creating less waste, but also throughout an additively manufactured product’s operating life, by way of lighter and stronger design that imposes a reduced carbon footprint compared with traditionally manufactured products.

Furthermore, 3D printing is showing great promise in terms of fulfilling a local manufacturing model, whereby products are produced on demand in the place where they are needed — eliminating huge inventories and unsustainable logistics for shipping high volumes of products around the world.

08 - Applications

The origins of 3D printing in ‘Rapid Prototyping’ were founded on the principles of industrial prototyping as a means of speeding up the earliest stages of product development with a quick and straightforward way of producing prototypes that allows for multiple iterations of a product to arrive more quickly and efficiently at an optimum solution. This saves time and money at the outset of the entire product development process and ensures confidence ahead of production tooling.

Prototyping is still probably the largest, even though sometimes overlooked, application of 3D printing today.

The developments and improvements of the process and the materials, since the emergence of 3D printing for prototyping, saw the processes being taken up for applications further down the product development process chain. Tooling and casting applications were developed utilizing the advantages of the different processes. Again, these applications are increasingly being used and adopted across industrial sectors.

Similarly for final manufacturing operations, the improvements are continuing to facilitate uptake.

In terms of the industrial vertical markets that are benefitting greatly from industrial 3D printing across all of these broad spectrum applications, the following is a basic breakdown:

Medical and Dental



The medical sector is viewed as being one that was an early adopter of 3D printing, but also a sector with huge potential for growth, due to the customization and personalization capabilities of the technologies and the ability to improve people’s lives as the processes improve and materials are developed that meet medical grade standards.

3D printing technologies are being used for a host of different applications. In addition to making prototypes to support new product development for the medical and dental industries, the technologies are also utilized to make patterns for the downstream metal casting of dental crowns and in the manufacture of tools over which plastic is being vacuum formed to make dental aligners. The technology is also taken advantage of directly to manufacture both stock items, such as hip and knee implants, and bespoke patient-specific products, such as hearing aids, orthotic insoles for shoes, personalised prosthetics and one-off implants for patients suffering from diseases such as osteoarthritis, osteoporosis and cancer, along with accident and trauma victims. 3D printed surgical guides for specific operations are also an emerging application that is aiding surgeons in their work and patients in their recovery. Technology is also being developed for the 3D printing of skin, bone, tissue, pharmaceuticals and even human organs. However, these technologies remain largely decades away from commercialisation.

Aerospace

Like the medical sector, the aerospace sector was an early adopter of 3D printing technologies in their earliest forms for product development and prototyping. These companies, typically working in partnership with academic and research institutes, have been at the sharp end in terms or pushing the boundaries of the technologies for manufacturing applications.

Because of the critical nature of aircraft development, the R&D is demanding and strenuous, standards are critical and industrial grade 3D printing systems are put through their paces. Process and materials development have seen a number of key applications developed for the aerospace sector — and some non-critical parts are all-ready flying on aircraft.

High profile users include GE / Morris Technologies, Airbus / EADS, Rolls-Royce, BAE Systems and Boeing. While most of these companies do take a realistic approach in terms of what they are doing now with the technologies, and most of it is R&D, some do get quite bullish about the future.



Automotive



Another general early adopter of Rapid Prototying technologies — the earliest incarnation of 3D printing — was the automotive sector. Many automotive companies — particularly at the cutting edge of motor sport and F1 — have followed a similar trajectory to the aerospace companies. First (and still) using the technologies for prototyping applications, but developing and adapting their manufacturing processes to incorporate the benefits of improved materials and end results for automotive parts.

Many automotive companies are now also looking at the potential of 3D printing to fulfill after sales functions in terms of production of spare/replacement parts, on demand, rather than holding huge inventories.

Jewellery



Traditionally, the design and manufacturing process for jewellery has always required high levels of expertise and knowledge involving specific disciplines that include fabrication, mould-making, casting, electroplating, forging, silver/gold smithing, stone-cutting, engraving and polishing. Each of these disciplines has evolved over many years and each requires technical knowledge when applied to jewellery manufacture. Just one example is investment casting — the origins of which can be traced back more than 4000 years.

For the jewellery sector, 3D printing has proved to be particularly disruptive. There is a great deal of interest — and uptake — based on how 3D printing can, and will, contribute to the further development of this industry. From new design freedoms enabled by 3D CAD and 3D printing, through improving traditional processes for jewellery production all the way to direct 3D printed production eliminating many of the traditional steps, 3D printing has had — and continues to have — a tremendous impact in this sector.

Art / Design / Sculpture



Artists and Sculptors are engaging with 3D printing in myriad of different ways to explore form and function in ways previously impossible. Whether purely to find new original expression or to learn from old masters this is a highly charged sector that is increasingly finding new ways of working with 3D printing and introducing the results to the world. There are numerous artists that have now made a name for themselves by working specifically with 3D modelling, 3D scanning and 3D printing technologies.

  • Joshua Harker
  • Dizingof
  • Jessica Rosenkrantz at Nervous System
  • Pia Hinze
  • Nick Ervinck
  • Lionel Dean
  • And many others.

The discipline of 3D scanning in conjunction with 3D printing also brings a new dimension to the art world, however, in that artists and students now have a proven methodology of reproducing the work of past masters and creating exact replicas of ancient (and more recent) sculptures for close study – works of art that they would otherwise never have been able to interact with in person. The work of Cosmo Wenman is particularly enlightening in this field.

Architecture



Architectural models have long been a staple application of 3D printing processes, for producing accurate demonstration models of an architect’s vision. 3D printing offers a relatively fast, easy and economically viable method of producing detailed models directly from 3D CAD, BIM or other digital data that architects use. Many successful architectural firms, now commonly use 3D printing (in house or as a service) as a critical part of their workflow for increased innovation and improved communication.

More recently some visionary architects are looking to 3D printing as a direct construction method. Research is being conducted at a number of organizations on this front, most notably Loughborough University, Contour Crafting and Universe Architecture.

Fashion



As 3D printing processes have improved in terms of resolution and more flexible materials, one industry, renowned for experimentation and outrageous statements, has come to the fore. We are of course talking about fashion!

3D printed accessories including shoes, head-pieces, hats and bags have all made their way on to global catwalks. And some even more visionary fashion designers have demonstrated the capabilities of the tech for haute couture — dresses, capes, full-length gowns and even some under wear have debuted at different fashion venues around the world.

Iris van Herpen should get a special mention as the leading pioneer in this vein. She has produced a number of collections — modelled on the catwalks of Paris and Milan — that incorporate 3D printing to blow up the ‘normal rules’ that no longer apply to fashion design. Many have followed, and continue to follow, in her footsteps, often with wholly original results.

Although a late-comer to the 3D printing party, food is one emerging application (and/or 3D printing material) that is getting people very excited and has the potential to truly take the technology into the mainstream. After all, we will all, always, need to eat! 3D printing is emerging as a new way of preparing and presenting food.

Initial forays into 3D printing food were with chocolate and sugar, and these developments have continued apace with specific 3D printers hitting the market. Some other early experiments with food including the 3D printing of “meat” at the cellular protein level. More recently pasta is another food group that is being researched for 3D printing food.

Looking to the future 3D printing is also being considered as a complete food preparation method and a way of balancing nutrients in a comprehensive and healthy way.

Consumers



The holy grail for 3D printing vendors is consumer 3D printing. There is a widespread debate as to whether this is a feasible future. Currently, consumer uptake is low due to the accessibility issues that exist with entry level (consumer machines). There is headway being made in this direction by the larger 3D printing companies such as 3D Systems and Makerbot, as a subsidiary of Stratasys as they try to make the 3D printing process and the ancillary components (software, digital content etc) more accessible and user-friendly. There are currently three main ways that the person on the street can interact with 3D printing tech for consumer products:

  • design + print
  • choose + print
  • choose + 3D printing service fulfillment

09 - Glossary

3DP 3D Printing

ABS Acrylonitrile Butadiene Styrene

AM Additive Manufacturing

CAD / CAM Computer-aided design / Computer-aided manufacturing

CAE Computer-aided engineering

DLP Digital Light Processing

DMD Direct Metal Deposition

DMLS Direct Metal Laser Sintering

EBM Electron Beam Melting

EVA Ethylene Vinyl Acetate

FDM Fused Deposition Modelling (Trademark of Stratasys)

FFF Freeform Fabrication

LENS Laser Engineering Net-Shaping (Trademark of SNL, licensed to Optomec)

LS Laser Sintering

PLA Polylactic Acid

RE Reverse Engineering

RM Rapid Manufacturing

RP Rapid Prototyping

RT Rapid Tooling

SL Stereolithography

SLA Stereolithography Apparatus (Registered Trademark of 3D Systems)

SLM Selective Laser Melting

SLS Selective Laser Sintering (Registered Trademark of 3D Systems)

STL / . stl Stereo Lithograpic

Virtual Public Workshop - 3D Printing in Hospitals: Veteran’s Health Administration’s Experiences in Point of Care 3D Printing of Device and Implementing a Quality Management System - 03/16/2022

On This Page

  • Meeting Information
  • Event Materials

The Food and Drug Administration (FDA) is announcing a virtual public workshop in collaboration with the Veteran’s Health Administration (VHA) to share VHA’s experiences using 3D printing/additive manufacturing in their hospitals. The workshop is also intended to provide a forum for VHA and other stakeholders to present and discuss their experience that could be useful for healthcare facilities considering 3D printing medical devices.

BACKGROUND:

VHA’s Office of Advanced Manufacturing has worked diligently to evaluate how to safely 3D print devices at VHA hospitals and the VHA has successfully implemented a quality management system (QMS) per 21 CFR part 820 for 3D printing medical devices in three hospitals, with plans to implement a QMS in more hospitals in the future. The VHA speakers will share their perspective and lessons learned through that process. Speakers from other hospitals, professional societies, and medical device manufacturers will also share their experiences in these areas and each session will conclude with a group discussion and provide opportunity for the speakers to address audience questions.

3D printing at the point of care (PoC) may serve an important public health purpose by providing for rapid and agile production of devices, such as patient-matched devices and anatomical models for surgical planning. This technology has the potential to help a healthcare facility quickly respond to patient needs, bring personalized care to patients in a timely manner, and lead to new innovations in patient care and treatment. Over the last two years during the COVID-19 pandemic for example, many hospitals have used 3D printing of devices to meet supply needs and address shortages. This workshop will help inform and spur additional discussion with the public on 3D printing at hospitals by sharing the VHA’s experiences, hearing from others in the field, and having an open dialogue with relevant stakeholders.

The FDA recently issued a discussion paper on 3D printing at the PoC, and while the discussion paper may provide helpful context in preparation for the workshop, it is not the focus of this workshop.

  • Date and Time
  • Webcast
  • Preliminary Agenda
  • Registration
  • Comments
  • Contact

DATE and TIME

This meeting will be held on March 16 and 17 2022, from 12:00 noon to 5:30 pm (ET) by webcast only.

WEBCAST

The virtual public workshop will be a live webcast and the link will be provided in your confirmation email once you have registered. The link for archived webcast will be posted to this webpage for viewing after the public workshop.

We recommend using web browser “Chrome” to view the webcast. Click the webcast link then follow the instructions on screen to sign in using the “Register” section:

March 16 - Live webcast link: https://fda.yorkcast.com/webcast/Play/a9a4a0d21cf848fa8d85cf6c09ba39c21d
March 17 - Live webcast link: https://fda. yorkcast.com/webcast/Play/f4d1646c263e4c2da407bd3134ebc8cd1d

PRELIMINARY AGENDA

This agenda is preliminary and subject to change. More information will be made available as presenters are confirmed.

March 16, 2022 VHA 3D printing at PoC Experience

Time Subject Name of Speaker
12:00 noon Welcome/Opening Ryan Vega, MD; Chief Officer, Healthcare Innovation and Learning, VHA
12:10 pm Overview of FDA Discussion Paper Matthew Di Prima, PhD; Research Materials Scientist; Center for Devices and Radiological Health, FDA
12:20 pm Overview of VHA 3D Printing Activities Beth Ripley, MD, PhD; Deputy Chief Officer, Healthcare Innovation & Learning; Acting Director of VA Ventures; VA Puget Sound Healthcare System
12:30 pm 3D Printing at PoC Experience: Speaker 1 Dmitry Levin, Clinical Director; Advanced Manufacturing; VA Puget Sound Healthcare System
12:50 pm 3D Printing at PoC Experience: Speaker 2 Brian Laymam; Orthotist/Prosthetist; Southeast Louisiana VA Healthcare System
1:10 pm 3D Printing at PoC Experience: Speaker 3 Peter Liacouras, PhD; Director of Services, 3D Medical Application Center, Walter Reed National Military Medical Center
1:30 pm 3D Printing at PoC Experience: Group Q&A Moderator: Laura Gilmour, Principal Consultant, Additive Manufacturing and Regulatory Strategy, Office of Advanced Manufacturing, Veterans Health Administration
2:00 pm Break
2:15 pm Clinical Ideas/Applications: Speaker 1 Nikki Beitenman, BSBME, BBA, CAM-F; Advanced Manufacturing Site Lead; Supervisory Biomedical Engineer; Ralph H. Johnson VA Healthcare System
2:35 pm Clinical Ideas/Applications: Speaker 2 Michael F. Amendola, MD, MEHP, FSVS, FACS; Professor of Surgery, VCU School of Medicine CRQS and 3D Printing Fellowship Program Director; Division Chair, Vascular Surgery; Director of the Arterial Duplex Laboratory; Central Virginia VA Healthcare System
2:55 pm Clinical Ideas/Applications: Speaker 3 Diana Otoya, MD, 3D Printing Fellow, Chief Resident in Quality, Safety Fellow, Central Virginia VA Healthcare System
3:15 pm Clinical Ideas/Applications: Group Q&A Moderator: William Corcuera, Innovations Program Coordinator and 3D Printing Lab Manager, VA Northeast Ohio Healthcare System
3:45 pm Break
3:50 pm Outstanding Challenges: Speaker 1 Nikki Beitenman, BSBME, BBA, CAM-F; Advanced Manufacturing Site Lead; Supervisory Biomedical Engineer; Ralph H. Johnson VA Healthcare System
4:10 pm Outstanding Challenges: Speaker 2 Melissa Oliver, MS, OTR/L; Assistive Technology Program Director and AT Design Lab Director; Interim OAM Site Lead; Central Virginia VA Healthcare System
4:30 pm Outstanding Challenges: Speaker 3 Henry Pinchbeck, CEO, 3D Lifeprints
4:50 pm Outstanding Challenges: Group Q&A Moderator: Nicole Wake, Regional Director, Medical and Scientific Affairs, GE Healthcare, Executive Committee, Radiological Society of North America (RSNA) Special Interest Group on 3D Printing
5:20 pm Closing TBD

March 17, 2022: Implementing a Quality Management Systems (QMS) at Point of Care (PoC)

Time Subject Name of Speaker
12:00 noon Day 2 Opening TBD
12:10 pm VHA Experience: Speaker 1 Joe Beedle, CPA; Chief Financial Officer, VA Puget Sound Health Care System
12:30 pm VHA Experience: Speaker 2 Gregory Voss, BS, MBA; Biomedical Research Engineer, MADE Lab; Minneapolis VA Healthcare System
12:50 pm VHA Experience: Speaker 3 Arrianna Willis, MGEL; Director of Operations; Advanced Manufacturing; VA Puget Sound Healthcare System
1:10 pm VHA Experience: Panel Q&A Moderator: Laura Gilmour, Principal Consultant, Additive Manufacturing and Regulatory Strategy, Office of Advanced Manufacturing, Veterans Healthcare Administration
1:40 pm Break
1:45 pm Non-PoC QMS Experience: Speaker 1 Patricia Fleenor, Director Global Quality Healthcare, 3D Systems
2:05 pm Non-PoC QMS Experience: Speaker 2 Alain Fortuney, Director, Scan2Health and 3DP at Point of Care Engineering, Johnson and Johnson
2:25 pm Non-PoC QMS Experience: Speaker 3 Phil Pontikos; Medical Device National Expert Investigator; Office of Regulatory Affairs, FDA
2:45 pm Non-PoC QMS Experience: Group Q&A Moderator: Kim Torluemke, Regulatory Affairs Consultant, KT Regulatory Consulting, LLC
3:15 pm Break
3:20 pm PoC QMS Gaps and Needs: Speaker 1 Brian Strzelecki; Director of Quality and New Products; Advanced Manufacturing; VA Puget Sound Healthcare System
3:40 pm PoC QMS Gaps and Needs: Speaker 2 Amy Alexander; Unit Head, Biomechanical Development & Applied Computational Engineering, Mayo Clinic Division of Engineering
4:00 pm PoC QMS Gaps and Needs: Speaker 3 Lauralyn McDaniel; Strategy & Engagement at Metrix Connect, an ASME Company
4:20pm PoC QMS Gaps and Needs: Speaker 4 Shane Collins, Senior Associate Consultant, Wohlers Associates, ASTM
4:40 pm PoC QMS Gaps and Needs: Panel Q&A Moderator: Andy Christensen, Adjunct Faculty, Department of Radiology, University of Cincinnati, Executive Committee 2022 Chair, Radiological Society of North America (RSNA) Special Interest Group on 3D Printing
5:20 pm Closing TBD

REGISTRATION

Registration is closed as of March 15, 2022.

SUBMIT COMMENTS

Please submit your comments regarding the workshop to https://www.regulations.gov/, Docket No. FDA-2022-N-0145 by April 18, 2022.

Please refer to the Instructions for submitting comments (include the hyperlink) to the docket to ensure that your feedback is received.

The resulting discussions from the workshop and comments received in the docket will be taken into consideration.

Please be advised that as soon as a transcript is available, it will be posted in the Dockets and accessible at http://www.regulations.gov.

CONTACT

For questions regarding workshop content please contact:

Matthew Di Prima
Center for Devices and Radiological Health
U.S. Food and Drug Administration
10903 New Hampshire Ave.
Silver Spring, MD 20993
E mail: [email protected]


Event Materials

Title File Type/Size
Transcript: Vitural Public Workshop - 3D Printing in Hospitals - March 16, 2022 pdf (695. 73 KB)
Transcript: Vitural Public Workshop - 3D Printing in Hospitals - March 17, 2022 pdf (704.29 KB)

Printing 3D models on a 3D printer

Workshop: Printing 3D models on 3D printer.

The purpose of the master class: create conditions for familiarization students with modern technologies of 3D printing and 3D modeling.

Master class technology algorithm:

1. Introductory speech of the teacher computer technology has confidently conquered our world. For many today it is simply unthinkable to abandon the new technological innovations that have become a necessity for humanity. The way a 3D printer works is recently was out of reach for most users, today technology available to everyone. Thanks to this device, fantasy becomes reality. What is a 3D printer capable of? Is it really necessary for a person?

2. Student reports

3D printing technology

Three-dimensional or 3D printing is a layered creation of a physical object based on a virtual three-dimensional model. Printing comes from several hundred and even thousands of layers on special device - a 3D printer. A 3D printer is called an output device three-dimensional data, it is from a conventional printer that outputs two-dimensional information on a sheet, in that it allows you to display three-dimensional information (immediately in three dimensions) according to the principle of layer-by-layer growth of a physical model, as usually from bottom to top. In turn 3D printing called the process creating physical objects from digital 3D models created by 3D modeling in any CAD or CAD program.

3D technology printing originated in the middle of the twentieth century, at the same time the first 3D printers, more like manufacturing machines than printing devices. The price of such devices ranged from several tens to several hundred thousand dollars. With the development of 3D printing technology printers became smaller and cheaper. The first devices appeared available not only for industrial enterprises and large commercial organizations, but also for small businesses and households. materials for 3D printing can be very different from the so-called ABC plastic to chocolate.

Fig. 1.1. - Modern compact 3D printer

Modern three-dimensional printing devices have learned to create not only household items and clothes, but also their own parts, food, human tissues and organs.

3D printing has its own history since 1948, when the American Charles Hull developed the technology layer-by-layer growth of physical three-dimensional objects from photopolymerizable compositions (FPK).

Patent for own the author received the invention only at 1986, the same year he founded the company 3D System and started developing the first industrial device for 3D press, which was presented to the public a year later, in 1987. So as the term "3D printer" has not yet been introduced into circulation, the apparatus of Charles Hull was called the "installation for stereolithography".

3D Capabilities print. Methods for obtaining three-dimensional models. 3D scanner

3D printing capabilities are limitless. With the help of a 3D printer, you can create a variety of things: from shoes to jewelry, from plastic phone cases to implants spine, which are made of medical grade titanium.

2008 - Objet Geometries announced the creation of a revolutionary rapid prototyping system Connex500 ™. It was the first system in the world that allowed the production of 3D parts using different materials at the same time.

November 2010 - Urbee the first prototype of a printed car was presented. This is the first a car whose body was printed by a giant 3D printer. All external components - including glass panel prototypes - were created using Dimension 3D Printers and 3D Systems Fortus.

In 2011 the company Lockheed demonstrated at the British air show in Farnborough a large an unmanned aircraft, most of which was made using the 3D print. The Polecat aircraft is a flying prototype designed to show performance of new 3D printing technology. To the merits of such parts manufacturing is not only speed, but also relatively low the cost of such parts, and this is the main goal.

Preparation methods 3D models. 3D scanner.

As mentioned earlier, three-dimensional (3D) printing consists in printing three-dimensional three-dimensional models from hundreds or even thousands of layers.

Three-dimensional model, which will need to be printed can be obtained in three ways:

download finished model, for example, from the Internet;

draw from scratch full-fledged three-dimensional model;

Scan an existing object.

Scan object You can use a 3D scanner, which is a special device. A 3D scanner analyzes a specific physical object or space in order to obtain data on the shape of the object and, if possible, on its appearance (to for example, about color). The collected data is then used to create 3D digital model of this object.

Materials used for making 3D models

ABS plastic ABS plastic is known as acrylonitrile butadiene styrene. This is one of the best consumables for 3D printing. Such plastic is odorless, non-toxic, impact-resistant and elastic. The melting temperature of ABC plastic is from 220°C to 248°C. He enters retail sale in the form of powder or fine plastic threads wound on reels.

3D ABS models durable, but do not tolerate direct sunlight. With this plastic only opaque models can be obtained.

Acrylic. Acrylic used in 3D printing for creating transparent models. When using acrylic, consider the following features: this material needs a higher temperature melting point than for ABS plastic, and it cools and hardens very quickly. AT heated acrylic, a lot of small air bubbles appear, which may cause visual distortion of the finished product.

Concrete. Currently test samples of 3D printers for printing with concrete were made. These are huge printing devices that painstakingly, layer by layer, “print” from concrete building details and structures. Such a 3D printer can in just 20 hours to "print" a residential two-story house with a total area of ​​230 m2.

For 3D printing an improved grade of concrete is used, the formula of which is 95% the same with the formula of ordinary concrete.

Hydrogel. Illinois scientists University (USA) printed using a 3D printer and hydrogel biorobots 5-10 mm long. Cells of heart tissue were placed on the surface of biorobots, which spread through the hydrogel and began to contract, setting in motion robot. Such hydrogel robots are capable of moving at a speed of 236 micrometers per second. In the future, they will be launched into the human body for detection and neutralization of tumors and toxins, as well as for transportation medicines to the destination.

Paper. Some 3D printers in A4 size plain paper is used as the print media. Because paper is an affordable and inexpensive material, then paper models are obtained inexpensive and accessible to users. Such models are printed in layers, moreover, each subsequent layer of paper is cut out by the printer and pasted on previous. Paper models print quickly, but cannot boast strength or aesthetics. They are perfect for a quick computer project prototyping.

Plaster. Widely used in modern 3D printing gypsum materials are used. Models made of plaster are short-lived, but have a very low cost. These models are ideal for production of objects intended for presentations. They can be shown as samples to customers and customers, they will perfectly convey the shape, structure and size original product. Since plaster models are characterized by high heat resistance, they are used as samples for casting.

Wooden fiber. Inventor Kai Parthi has developed a special wood fiber for 3D printing. Fiber consists of wood and polymer and is similar in properties to polyactide (PLA). The combined material allows to obtain durable and solid models, which outwardly look like wooden products and have the smell of freshly sawn tree.

Ice. In 2006, two Canadian professors received a grant for the development of 3D printing technology for ice figures. Per three years they learned how to create small ice cubes using 3D printers. items. Printing proceeds at a temperature of -22 ° C, as consumables The materials used are water and methyl ether, heated to a temperature of 20°C.

Metal powder. None one plastic cannot replace metal with its pleasant soft sheen and high strength. Therefore, in 3D printing, powder from the lungs and precious metals: copper, aluminum, their alloys, as well as gold and silver. However, metal models do not have sufficient chemical resistance and have high thermal conductivity, so the metal powder for printing fiberglass and ceramic additives are added.

3D printed metal powder jewelry.

Nylon. Nylon printing has a lot in common printed with ABS plastic. Exceptions are higher print temperatures (about 320 about C), high ability to absorb water, more long curing period, the need to evacuate air from the extruder due to the toxicity of the nylon components. Nylon is quite slippery material, for its application it is necessary to equip the extruder with spikes. In spite of listed disadvantages, nylon is successfully used in 3D printing, since parts from this material are not as rigid as those from ABC plastic, and sliding hinges can be used for them.

Polycaprolactone (PCL). Polycaprolactone close in properties to biodegradable polyesters. This is one of the most popular consumables for 3D printing. It has a low melting point, quickly hardens, provides excellent mechanical properties of the finished products, easily decomposes in the human body and is harmless to humans.

Polycarbonate (PC). Polycarbonate is a hard plastic that is able to retain its physical properties in conditions of extremely high and extremely low temperatures. Possesses high opacity, high melting point, suitable for extrusion processing. At the same time, its synthesis is associated with a number of difficulties and not environmentally friendly. Used for printing heavy-duty models in several 3D printing technologies: SLS, LOM and FDM.

Polylactide (PLA). Polylactide is the most biocompatible and environmentally friendly material for 3D printers. It is made from biomass residues, sugar beet silage or corn. Having a lot of positive properties, polylactide has two essential disadvantage. Firstly, the models made from it are short-lived and gradually decompose under the influence of heat and light. Secondly, the cost of production polylactide is very high, which means that the cost of models will be much higher similar models made of other materials. Used in 3D printing technologies: SLS and FDM.

Chocolate. British scientists presented to the public the first chocolate 3D printer that prints any chocolate figurines, ordered by the operator. The printer applies each subsequent layer of chocolate on top of the previous one. Due to the ability of chocolate to quickly solidify and harden when cooling, the printing process proceeds quite quickly. In the near future such printers will be in demand in confectionery and restaurants.

what I expected was that houses would not just be built, but printed on 3D printer. The Chinese were able to think of this, and as it turned out, it turned out to be very reasonable.

The fact is that the 3D printer builds a house from industrial waste, fiberglass and cement, which is, according to in fact, slag concrete, which is both environmentally friendly and cheap. Besides, absolute automation eliminates the costly manual labor of the builder. Eventually the cost of the finished house is in the aisles of $ 4800, which is scanty.

Teacher's story about the device and principle of operation of the Alpha 3D printer.

Teacher demonstration 3D printer "Alpha". Printing 3D models.

Teacher's story about the benefits of 3D printing:

-3D printing - advanced technology that will allow designers and engineers to save precious time and effort;

- Essential device increases the flexibility of production;

- Production cost, especially in small-scale production, it is noticeably reduced;

- Creation of products, their entering the market in the shortest possible time.

3D printing - one one of the most promising computer technologies applicable to humans.

Summing up master class. The final word of the teacher.

3D printers already went to the masses, Petrosyan and the KVN teams even joke about them, that is, everything is already began.

To whom and for whom? Before only for the Kulibins and homemade people of different ages and political views, and as an investment in yourself and your children. They will have to live in the world robots, virtual reality, biotechnology and 3D printing. Want to To avoid the shock of meeting the future, start preparing now.

Large Area 3D Printer

Create functional plastic items up to 2.5 meters!

Learn more

Discovery 3D Printer is a range of industrial 3D printers made in Spain for creating large-sized products and prototypes using FFF/FDM technology.

Discovery 3D Printer Additive Machines produce high-strength thermoplastic objects for industries ranging from shipbuilding and automotive to architecture and medicine.


Tasks to be solved

Replacement of spare parts or lost parts in engineering, shipbuilding, oil and gas and energy enterprises

Production of small and medium series of products as an alternative to injection or molding of plastic parts automotive, shipbuilding and oil and gas industries

Creation of objects of exterior and interior design and design products for construction, production of facing materials

Production of functional prototypes for R&D and design bureaus in mechanical engineering, shipbuilding and aircraft building

Production of large-sized stencils or burnt-out master models for metal casting and metallurgy or trolleys)

Looking for a 3D printer for your needs?

Leave a request for a personal consultation!

Solutions catalog

3D printers

3D printer DISCOVERY 3D Printer 2021

Compact solution for 3D printing of large-sized products

Read more

3D printer 3D PRINTER COMPACT 9000 9000 9000 9000 9000 9000 9000 9000 9000 9000 9000 9000 9000 9000

More details

Super Discovery 3D Printer Hybrid

Advantages of printing with granules and filaments in one device

Details

Super Discovery 3D Printer 3D Printer

Large build chamber and print speed up to 6kg/h

Details

Super Discovery 3D Printer Workstation 3D Printer

Unique 2 in 1 Large Format Printer Combination and milling systems

More details

Your unique 3D printer

Do you need to print a product larger than 6 meters?

We will develop an individual solution with any build chamber for your needs. tasks - for printing products of any size!

Choose the right solution for you - compare specifications by model

Compare 3D Printer

Solutions catalog

3D Printing Consumables

Do you have questions about 3D printing media?
Set them to our experts online!

Discovery 3D Printers work with all thermoplastics, including:

PLA / PLA
biodegradable polymer provides a smooth and gliding surface products. Designed to obtain detailed and ready-to-use objects
ABS / acrylonitrile butadiene styrene
impact-resistant material is able to withstand heavy loads and high temperature, resistant to heat, moisture and various alkalis
PET / polyethylene terephthalate
is a hard and strong material with high abrasion resistance. Excellent suitable for making gears, carriages and guides
PA / polyamide
hard engineering plastic with excellent mechanical properties characteristics. Widely used in various industries
ASA / acrylonitrile styrene acrylate plastic
analogue of ABS, characterized by increased weather resistance, minimal shrinkage and high impact strength
Nylon
is flexible, wear-resistant and remarkably durable. Good suitable for printing functional parts and mechanisms
HIPS / polystyrene
lightweight, alkali and acid resistant polymer. deserved popular in traditional manufacturing due to its impact resistance

Advantages of Discovery 3D Printer Solutions

ISO 9001 certified products

3D printers with the largest build chamber in the world

Ability to design a custom printer

The only 3D printer on the market with an integrated CNC system for finishing milling of a part after printing

Faster creation of new products thanks to the dual extrusion system

Repairs and replacements faster and more economically than contractors

Ability to use a large number of third-party materials

Self-leveling platform function for automatic compensation of irregularities

Case Studies

FDM 3D Printing of Airbus Parts

Industry: Aircraft
Equipment: Super Discovery 3D Printer
Material: CFRP SABIC LNP™ THERMOCOMP™ AM EZ006EXAR1

Created a strong mold for autoclave forming parts with a sealed surface and a low coefficient of thermal expansion.

3D printed car bumper

Industry: Automotive
Equipment: Super Discovery 3D Printer
Material: ABS with carbon fiber

Prototype car bumper printed, measuring 1800 x 600 x 4500 mm and weighing 12 kg.

Large format 3D printed chair

Industry: Design
Equipment: Super Discovery 3D Printer
Material: 3D850

Printed design armchair measuring 45 x 50 x 95 cm and weighing 18 kg.

3D printed architectural statue

Industry: Architecture
Equipment: Super Discovery 3D Printer
Material: ABS with cellulose fiber

Printed sturdy statue, 1. 87m high and 45kg weight.

3D printing of railway components

Industry: Railway industry
Equipment: Super Discovery 3D Printer
Material: plastic

The front part of a tram for CAF was made in one printing session.

Helicopter seat 3D printing

Industry: Design
Equipment: Super Discovery 3D Printer
Material: ABS with carbon fiber

Printed helicopter seat measuring 120 x 70 x 45 cm and weighing 20 kg.

3D printed internal combustion engine

Industry: Engineering
Equipment: Discovery 3D Printer 2021
Material: Premium PLA

Prototype of an internal combustion engine was created, the dimensions of which were 100 x 60 x 50 cm and the weight was 5. 5 kg.

3D printed exclusive piece of furniture

Industry: Design
Equipment: Super Discovery 3D Printer Workstation
Material: ABS plastic

A custom and exclusive chair created without the need for any further finishing.

Architectural 3D printed in durable ABS with cellulose

Industry: Design
Equipment: Super Discovery 3D Printer Workstation
Material: ABS plastic

A street sculpture has been made that fully implements the initial decorative idea of ​​the project.

Dior boutique window dressing

Industry: Advertising
Equipment: Super Discovery 3D Printer Workstation
Material: plastic

3D printed oversized bottles for the exclusive display of Dior brand stores.

FDM Cap Prototype

Industry: Design
Equipment: Discovery 3D Printer 2021
Material: 3D850

Prototype cap printed at 29 x 19 x 4.5 cm and weighing 146 g. Shipbuilding Equipment: Super Discovery 3D Printer Material: flame retardant ABS

Prototype of a modular toilet is printed, measuring 2200 x 1700 x 1200 mm and weighing 250 kg. At the same time, the weight of the product was reduced by almost 50%.

3D printed marine ventilation grille

Industry: Shipbuilding
Equipment: Super Discovery 3D Printer
Material: ABS with carbon fiber

Printed ventilation grille measuring 59 x 89 x 4. 5 cm and weighing 3500 g. Automotive Equipment: Discovery 3D Printer 2021 Material: PACF

Printed motorcycle part measuring 42.5 x 16.5 x 4.5 cm and weighing 165 g. Instrumentation Equipment: Discovery 3D Printer 2021 Material: ABS HI

Prototype printed with support measuring 10 x 9 x 2.5 cm and weighing 18 g. Instrumentation Equipment: Discovery 3D Printer 2021 Material: flame retardant ABS

Created a square mold that measures 10 x 10 x 2 cm and weighs 67 g. Automotive Equipment: Discovery 3D Printer 2021 Material: E.P.

Printed fender for a wheel measuring 55 x 16 x 20 cm and weighing 645 g. Energy Equipment: Super Discovery 3D Printer Workstation Material: ABS with carbon fiber

3D printed and post-processed a high-strength mold for wind turbine blades.

3D printed car wheel

Industry: Automotive
Equipment: Super Discovery 3D Printer
Material: ABS with carbon fiber

A wheel for a car was made, the diameter of which was 440 mm, and the weight of the product was 5 kg.

3D printed designer vase

Industry: Design
Equipment: Super Discovery 3D Printer Workstation
Material: ABS with carbon fiber

Printed vase in ABS for excellent interlaminar adhesion and minimal warping.

Geometric 3D printing

Industry: Design
Equipment: Super Discovery 3D Printer Workstation
Material: ABS with carbon fiber

Pyramid printed with an 8mm extruder with a smooth surface thanks to the built-in milling system.

More projects and examples of 3D printing in production - on the blog 3D experts

Go to blog

Useful materials

Webinar on 3D printing large, complex geometries

  • How can 3D printing help you optimize production?
  • Features FDM technology for printing products up to 2. 5 meters
  • Benefits of using 3D plastic printing
  • Real cases

Large Format Plastic 3D Industrial Printing Brochure

Benefits of FDM technology, overview of equipment and supplies, industries and implementation examples - this and much more in one material!

About the manufacturer

CNC Barcenas / Spain

is one of the leaders in the European market for large format 3D printing.

The company specializes in the production of industrial 3D printers Discovery 3D Printer for printing large-sized products and prototypes based on FFF/FDM technology.

discovery3dprinter.com

Explore Discovery 3D Printer solutions - take a virtual tour of companies!

3D TOUR OF COMPANY

About us

iQB Technologies is a Russian distributor of 3D printers, consumables, 3D scanners and software from the world's leading manufacturers.

We develop complete 3D solutions, provide printing services and scanning, as well as training specialists in the use of 3D technologies in their work.

iQB Technologies is the exclusive distributor of Discovery 3D Printer solutions in Russia.
3D printers are available for order
in this section .

iqb.ru

Why you should order a 3D printer in iQB Technology?

The best prices for this class of equipment

Training on how to use 3D printers

A wide range of integrated solutions: 3D printer + 3D scanner + software

Provision of services for the implementation, maintenance and repair of 3D equipment throughout Russia

Participation in public procurement and tenders

Still have questions?

Our experts will advise you free of charge on Discovery 3D Printer solutions

Frequently Asked Questions

Which technology to choose: the method of fusing granules (FGF) or polymer filaments (FFF / FDM)?

What are the kinematics and mechanics of the Discovery equipment?

In this respect, all Discovery equipment differs from budget additive solutions. The products are based on the kinematic diagram of a CNC machine. Gears, pulleys, lead screws, no belts. HIVIN rail guides are used. The entire structure is made with European quality from advanced products in the machine tool industry.

What consumables can be used with Discovery products?

Any material (other than PEEK and PEKK) sold in bars or pellets. First of all, thanks to the heating of the table to 175 ° C and vacuum fixation, as well as due to the installed nozzles made of hardened steel.

How is such a large print platform heated?

A matrix of separate equidistant heaters is built into the platform from the bottom side; these modules provide uniform heating of the surface of the printing platform. The maximum recorded temperature difference over the entire area is 3°C.

How to speed up printing on such large dimensions?

There is a special method for properly emptying the internal volume, which you can learn more about from our technical experts. This procedure will have very little effect on the strength and elasticity of the print object, but will still reduce the time by up to 60%.
It is important to consider that with a large range of large-sized products, it is better to consider Super Discovery 3D Printer or Super Discovery 3D Printer Workstation with a capacity of up to 11 kg / h (depending on the material used).

Is it possible to upgrade this equipment for a specific enterprise?

Yes. Most of the Discovery machines can be upgraded for a specific production project. This is possible, since the equipment was designed for the tasks of Production 4.0, and our specialists will help to integrate it correctly.

What is the warranty for this equipment?

24 months, which is 1.5 - 2 times longer than analogues from Europe, Russia and China. Permanent customer support is provided directly by the vendor or iQB Technologies specialists.

How to get a high quality product so that it can be handed over as a final product?

3D printing is basically a high quality prefabricated process.


Learn more
