3D printed falcon heavy

Fab365

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

+ more- less

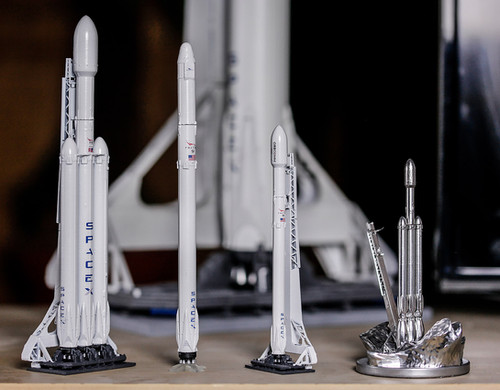

The Falcon 9 rocket and dragon capsule are successfully launched and in operation. Perhaps that's why the previously made Falcon 9 rocket and Dragon Capsule models were also very popular. And there was a request to continuously produce Falcon heavy.
However, Falcon Heavy is a very large project and I was hesitant because it was a time-consuming task. However, it started to be produced at the constant request of customers, and it was finally completed.

Second stage and fairing are not included.
Second stage link ➪
Fairing link ➪

The composition of the parts is as follows.
X2 means you need 2 sets, X12 means you need 12 sets. So, you need to print as many more as you need.
Inter Stage Min
Inter Stage Side x2
Inter Stage Hinge x2
Side Cable Main
Side Cable Side x2
FH Main
FH Side x2
SpaceX Side
SpaceX Side x2
Middle Main
Middle Side x2
Bottom Main
Bottom Side x2
Booster Main
Booster Side x2
Landing Leg Bar x12
Landing Leg x12

If you've ever built a Falcon 9 rocket, it's easy to do.
Please check the video for the assembly process.

Scale 1 : 66
Size when finished, X 233mm, Y 81mm, Z Fairing 1058mm, Second Stage 936mm, Heavy 730mm

PRUSA Slicing Settings	Simplify 3D
Extuder	Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings	Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings	First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill	Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions	Raft : OK / Brim : NO / Support : NO

PRUSA Slicing Settings	PrusaSlicer
PRUSA MK3	Layer Height : 0. 1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO

Ender Slicing Settings	Simplify 3D
Extuder	Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings	Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings	First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill	Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions	Raft : OK / Brim : NO / Support : NO

CR-10S Pro Slicing Settings	Cura
Quality	Layer Height : 0.1mm, 0.2mm / Line Width : 0. 4mm
Shell	Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill	Infill Density : 20% / Patten : Grid
Material	Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion	Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm

File: File 201.4 MB

Average Time: [0.1mm] Inter Stage Main: 15h 55m; [0.1mm] Inter Stage Side: 11h 5m; [0.1mm] Inter Stage Hinge: 1h 5m; [0.1mm] Side Cable Main: 4h 20m; [0.1mm] Side Cable Side: 4h 40m; [0.1mm] FH Main: 17h 15m; [0.1mm] FH Side: 17h 15m; [0. 1mm] SpaceX Main: 18h 30m; [0.1mm] SpaceX Side: 18h 30m; [0.1mm] Middle Main : 14h 20m; [0.1mm] Middle Side : 14h 20m; [0.1mm] Bottom Main : 16h 45m; [0.1mm] Bottom Side : 16h 45m; [0.1mm] Booster Main : 7h 50m; [0.1mm] Booster Side : 5h 55m; [0.1mm] Landing Leg Bar : 1h 35m; [0.1mm] Landing Leg : 4h 5m

Notice !

Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted

did you make it? please write making story !

Write Review

Hot This Week

Excavator (Print-in-Place articulated)

$ 6. 79

Foldable Mystery machine - Scooby Doo

$ 5.99

Foldable Caterham Super 7

$ 5.79

Space X Falcon 9 Rocket

$ 5.99

Want to Be Like Elon? 3D Print Your Own Falcon Heavy

When you purchase through links on our site, we may earn an affiliate commission. Here’s how it works.

A 3D-printed model of the SpaceX Falcon Heavy rocket fairing, complete with a model car to represent the Tesla Roadster that flew on the real Falcon Heavy's maiden flight. The design is freely available via the website thingiverse.com. (Image credit: psync/thingiverse)

Just a few days ago, a Tesla Roadster soared into space aboard a SpaceX Falcon Heavy rocket, on its way to an orbit around that sun that could extend beyond the orbit of Mars. To commemorate the excitement of Tuesday's (Feb. 6) launch, you can 3D print your own version of the Falcon Heavy payload fairing. The model is just big enough to fit a Hot Wheels or Matchbox car inside.

Instructions uploaded to Thingiverse — a website devoted to 3D-printed objects — detail how to create the Falcon Heavy fairing. The design was created by a San Francisco engineer named Paul, under the username "psync," who wrote a few assembly instructions explaining how to put the booster together and mount a toy car inside. The last step? "Launch to Mars," he wrote.

A 3D-printed model of the Falcon Heavy payload fairing. (Image credit: psync/thingiverse)

The Falcon Heavy launch attracted worldwide attention while meeting most of its major objectives. Two boosters on the rocket successfully landed right side up, although the core stage missed its drone-ship landing pad and hit the ocean at 300 mph (480 km/h), SpaceX said in a press conference Tuesday following the launch.

But it was the video livestream showing the Tesla and its spacesuited mannequin passenger, "Starman," that stole the show. Musk, who is also the CEO of Tesla Motors, chose to put the car inside the rocket to act as a test weight for the Falcon Heavy. While the car is intact right now, radiation will likely tear the vehicle apart in about a year, Live Science previously reported.

A toy car mounted inside a 3D model of a Falcon Heavy payload fairing. (Image credit: psync/thingiverse)

Starman's name was just one of many pop culture references associated with the launch; the moniker references the famous 1972 David Bowie song of the same name. Part of the SpaceX broadcast of the launch featured another famous Bowie song, "Life on Mars." And instructions printed on the Tesla dashboard — "Don't Panic" — quoted a famous line from the Douglas Adams book "The Hitchhiker's Guide to the Galaxy" (Pan Books, 1979).

In the near future, Falcon Heavy will focus on near-Earth missions. In 2018, it is expected to fly two missions: one to launch a large communications satellite called Arabsat-6A and another for the U. S. Air Force's Space Test Program 2, a launch that will include the LightSail 2 solar sail for The Planetary Society.

Follow us @Spacedotcom, Facebook and Google+. Original article on Space.com.

Join our Space Forums to keep talking space on the latest missions, night sky and more! And if you have a news tip, correction or comment, let us know at: [email protected].

Elizabeth Howell, Ph.D., is a staff writer in the spaceflight channel since 2022. She was contributing writer for Space.com for 10 years before that, since 2012. Elizabeth's reporting includes an exclusive with Office of the Vice-President of the United States, speaking several times with the International Space Station, witnessing five human spaceflight launches on two continents, working inside a spacesuit, and participating in a simulated Mars mission. Her latest book, "Why Am I Taller?", is co-written with astronaut Dave Williams. Elizabeth holds a Ph.D. and M.Sc. in Space Studies from the University of North Dakota, a Bachelor of Journalism from Canada's Carleton University and (soon) a Bachelor of History from Athabasca University. Elizabeth is also a post-secondary instructor in communications and science since 2015. Elizabeth first got interested in space after watching the movie Apollo 13 in 1996, and still wants to be an astronaut someday. Mastodon: https://qoto.org/@howellspace
