Geeetech aluminum prusa i3 3d printer kit


GeeeTech Prusa i3 A Pro 3D printer DIY kit

This Prusa I3 A pro 3D printer is streamlined and optimized based on the previous Geeetech Prusa Aluminum I3 3D printer. This Prusa I3 A pro has the following features.

3-in-1 3D printer control box


As you can see, the most obvious modification is that we add a 3-in-1 3D printer control box for this Prusa I3 A pro which gathers the motherboard, power supply and LCD Cpanel in one box, saving the space taken by the printer and bringing you a neat and organized desktop, most importantly, the power supply is installed inside the control box now, which is not only for protecting the power supply, but also for eliminating unnecessary dangers, protecting your family and your pets.


Easy assembly, easy debugging
High precision machined parts and well-designed mounting holes make the installation process simple and fast. The control box is already assembled by us, what you need to install is only the body, which saves a lot of time for you. The detailed assembly manual makes your DIY assembly easy and time-saving. Detailed instructions provide you with convenient debugging guidance.


Reserved design for upgrading
In consideration of your need to upgrade the extruder in the future, we use reserved design on this printer and you can upgrade any part. This kind of design provides you with more choices of revamping this printer and more ways to use it.


Visible parts, convenient for trouble shooting
Compared with the box-type printer, Prusa I3 3D printer DIY kit is more suitable for starters. All the parts are visible, and you can easy access to those parts. It is very convenient for for trouble shooting when you are using the printer.



For more information, please visit wiki.

Printing specifications:

Print technology: FFF/FDM

Build volume: 200 x200x190mm

Printing resolution: 0.1-0.3mm

Filament diameter: 1. 75mm

Nozzle diameter: 0.4mm

Filament type: ABS/ PLA/Flexible PLA/Wood-polymer



Software:

Operating system: Windows/Mac/Linux

Control software: Repetier-Host, Printrun

File format: .STL , G-code



Temperature:

Max heated bed temperature: about 110°C

Max extruder temperature: about 240°C



Electrical:

Power supply:

Input: 115V  or 230V

Output：DC12V/20A

Control board: GT2560

LCD: LCD12864

Connectivity: USB, SD card (support stand-alone printing)



Mechanical:

Body: Aluminum plate of 6 mm thickness

Build Platform: aluminum plate +  heated bed

XYZ Rods: Wear-resistant, stainless steel

Stepper Motors: 1.8° step angle with 1/16 micro-stepping

Physical structure: Reprap



Physical dimensions:

Machine size: 450x380x435mm

Shipping box: 520 x 420 x 230 mm

Machine Net weight : 9. 5 kg

Shipping weight: 11.5kg

Price match guarantee:

We work very hard to ensure that we offer the absolute best prices online for all of our printers including Tevo 3D printer kits. If you find another online store that offers a lower price than us on Tevo 3D printers for sale, please let us know and we will refund your original payment for the difference. Read More

30 day price assurance guarantee:

We want you to feel confident that you are getting the absolute best price for the product. If you find that our own website has a lower price for the same item you have ordered within 30 days of your purchase date, we will refund the difference! Read More

Full manufacturer direct warranty:

We are an authorized dealer for all our products and comes with the full manufacturer warranty.

Tax free (except California and Nevada):

The price you see is the price you pay but because we operate in California and Nevada we must charge tax in California and Nevada.

Safe & secure online ordering:

We are certified Level 1 PCI DSS compliant. What this means is that we meet all the requirements defined by the Payment Card Industry Security Standards Council. For additional information on PCI Compliance, visit the PCI Compliance Guide website. We also accept payment via Pay Pal, a leader in secure online payment processing.

Best customer service:

We strive to offer the best customer service we can. If you have any questions please let us know by phone or email.

Exclusive deals:

We appreciate each and every customer that comes to our store. We know you have a lot of choices when it comes to your 3D printing purchase. That's why we'd like to show our appreciation by periodically sending out exclusive coupons and deals to our past customers!

Order Confirmation:

As soon as you place your order you will receive an order confirmation e-mail.  This means that we have received your order in our system and pre-authorized your credit card for the purchase.  As soon as we receive your order we automatically reach out to our suppliers to confirm that it is in stock and available for immediate shipment.  If your item is on backorder or unavailable we will void the pre-authorization and reach out to you via e-mail.  If your item(s) are available for immediate shipment (within 5 business days) we will process the charges and submit the order for shipment.

Order Shipment:

If your order is in stock and we process the charges to your credit card, it will ship within five business days from the date of your order.  We will send you tracking information within 24 hours of your order leaving the warehouse to the e-mail address you provide when checking out.  If you do not receive tracking information from us within six business days of your order feel free to follow up with us at [email protected]

Domestic Shipping:

We do not ship to P. O. Box.

International Shipping:

Please contact us for international shipping rates



We work very hard to ensure that we offer the absolute best prices online for all of our printers including Tevo 3D printer kits. If you find another online store that offers a lower price than us on Tevo 3D printers for sale, please let us know. We want you to feel confident when you buy a Tevo 3D printer or any of our other printers that you are getting the absolute best price for the product.

To request your partial refund simply e-mail us a link to the same product on our website, or on our competitors’ website and we will process the credit accordingly.

Our 100% Price Guarantee has some limitations:

  • You must purchase the item from our website before requesting your Price Match Guarantee
  • Promotions such as rebates and buy one, get one free offers are not eligible
  • The item must be in stock on the competitors website
  • The competitor must be an online store, they may not have a retail location
  • The item must ship from the same country.
  • The website cannot be a discounter or auction website (ie; eBay, overstock, etc..)
  • The competitor must be an Authorized Retailer for the product in question
  • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax or any customs and duties

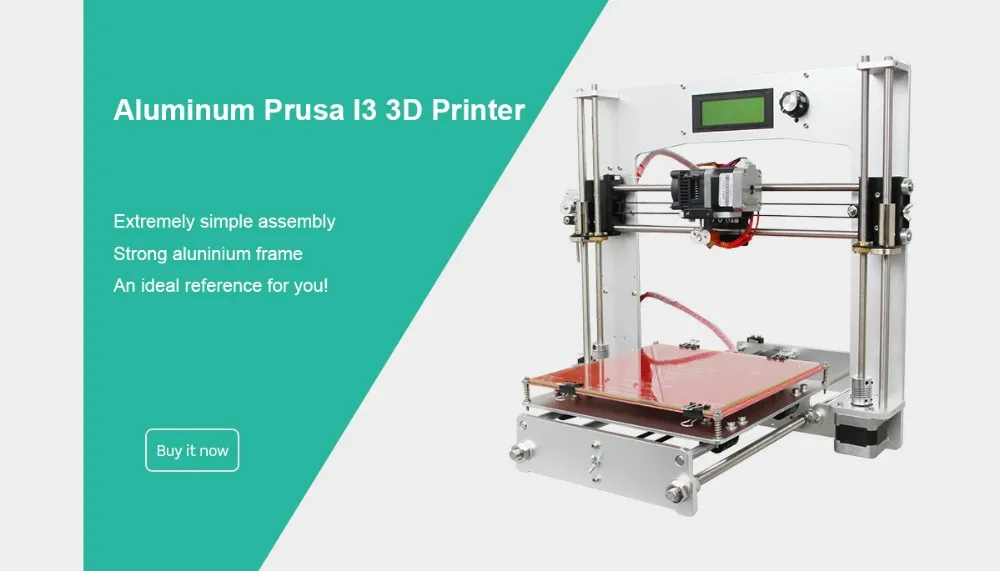

Geeetech Aluminium Prusa i3 3D printer

This entry was posted in Unclassifiable by Pandoon (updated on )

Everyone or nearly has already heard of 3D printers.

But for those who still do not know what is a 3D printer, it's like a conventional printer that allows you to create your paper documents, except that here, it's in 3D! You can also choose the color, and even material! Generally, it is the PLA or ABS plastic. But you also have metal, wood, etc…!

A 3D printer allows you a lot of things (as long as you have time): create replacement pieces yourself, create works of art, create or copy figurines, etc. )

Having heard a lot about 3D printers and the fascinating prints that could be obtained, I got one, the Geeetech Prusa i3 aluminum 3D printer!

Why test the 3D Aluminium Geeetech Prusa i3 printer as a first test?

Why did you choose the Geeetech Prusa i3 aluminium as the first 3D printer?

Mainly for 3 reasons:

  • The first is that it is relatively affordable price for a 3D aluminum printer level.
  • The second is that the Prusa i3 model is very well known in the world of 3D printing, so I knew that in case of difficulty, in addition to the Geeetech company, I can find information and assistance without too much difficulty on the net for it.
  • And the third is that, according to my research, the cheapest 3D printers are all in acrylics, but only as a result of the structure of the skeleton of the 3D printer be acrylic, the printer is very stable when printing! However, a printer, still makes good spurts! (Besides, printer paper, also!) All the tremors will eventually resulted in several problems of tension, torsion, calibration, detachment, etc… I've already put a paper printer on an unsteady table, which made the printer shake from left to right every time I printed, well I can tell you it didn't take very long to notice any printing problems!
    So I decided to opt directly for a more stable printer and not start investing afterwards in improvements or another printer afterwards.

Be aware that there are different types of 3D printers. Among the best known, you have the FDM 3D printer, which comes to deposit melted filament layer by layer, and the 3D resin printers that come solidify the resin layer by layer.

Characteristics of the Geeetech Prusa i3 aluminum



The printer's specifications

  • Printing technology: manufacture by filament melted (FFF).
  • Max print volume: 200 x 200 x 180 mm
  • Printing precision: 0, 1-0, 3 mm
  • Filament diameter: 1.75 mm
  • Nozzle diameter: 0.3 mm
  • Type of filament: PLA, ABS, wood, flexible PLA, Nylon and wood polymer.

Software

  • Operating system: Windows / Mac / Linux
  • Control software: Easy-print, Repetier-Host, Simplify 3D
  • File format: .stl, G-code

temperature

  • Bed temperature max: 110 ° C
  • Temperatures extruder max: 240 ° C

Power supply

  • Input: 230V / 0. 75 was
  • Output: DC12V / 15A
  • Connectivity: USB, SD card

mechanical

  • Setting: plate thickness of 6 mm (Silver) aluminium
  • Axes X Y Z: durable, stainless steel
  • Threaded rods
  • Stepper motor: angle 1.8 ° with 1/16 microstepping

Weight and physical dimensions

  • Dimensions: 450 x 380 x 435 mm
  • Shipping box: 520 x 420 x 230 mm
  • Net weight: 7.2 kg
  • Shipping weight: 11.5 kg officially. According the label on my package, 8.84 kg

Contents of the package

  • Geeetech aluminum i3 printers 3D full kit
  • control motherboard (Sanguinololu)
  • 3-metre blue filament
  • screwdriver with several tips
  • diamond stem to file
  • extrusion rod

Geeetech Prusa i3 Aluminium 3D printer test

Since construction may take some time, I will write this article while building the printer.

Unpacking

The expedition went very well. When you open the package, you get a few slips. A booklet containing the different parts and their quantity, a sheet containing the different characteristics of the printer and 2 sheets stapled together that includes the list of all the components.

These sheets stapled are here to tell you that the contents of the box has been checked manually by a human being. As often in large parcels, it is not uncommon to end up with missing parts.

Note: The notices are in English. Personally, I haven't even checked if a manual was available in french, as in all cases, the instructions in English would have been the most up-to-date and best explained, because usually it's from English that it is translated into french. But it seems to me that it is available in french.

The rest of the parts is separated by a block of foam separated in 3 floors.

The parcel

I forgot to mention one detail: the Geeetech Prusa i3 Aluminium is self-assembly.

It's cheaper, but it also helps to know his machine. And in case of concern, it is much easier to detect the source of the problem and fix it if possible.

Then, the package is very well protected by of the foams and parts by paper bubbles. The foam is thick enough and is separated in 3 floors.

And level parts, we can say that it was worth his money: screwdriver to multi tips, protect-cables, a bunch of clamps, stem for filing if necessary, etc…

The Assembly

For editing, look carefully at all the documents: booklet, pdf, videos. Compare them between them. They have errors on both sides, and given the number of screws, you can't blame them too much. Especially since they change the printer over time. We also see in videos that they show is either identical or similar, and besides, the pdf that is often updated, indicates that this or that piece has changed.

It's great to change and improve the printer over time. But unfortunately there is no indication of the printer version.

At most, you will find a date here and there that indicates the last audit. It's especially bad for those who does not command at Geeetech directly and are likely therefore to have an older version (although I think that it would be fully functional without the improvements, but it's still a shame).

The funny thing about editing videos is that at times you see the guy who says to himself: "Ben shit! Are they or the following pieces?! Or did I put them on? "And hey, he's going to get them! Xd

Or: "I live this there, then this, I try to insert it there" and there you have a hand that says no, it's not in this place! Xd

Little by little it takes shape!

Ah, first concern, it lacks a screw! Not thought to check whether the number of screws was correct or not.

A quick note to the technical support: Nickel, they will send me some!

Ah, and they didn't think of everything! A tool is missing: enough to make a hole in rubber to screw the belt! Fortunately I had the necessary stuff, but it would have been nice to clarify.

With this kind of leather punch, it works very well, it is with a tool of the kind that I did: https://www.amazon.fr/Aodoor-renouvelable-ceinture-tournante-perforateur/dp/B01HPMTLGE

And we're still editing!

When you see the number of wires, you understand the number of colsons provided!

And here's what the final version of the 3D printer looks like:

Then comes the programming!

On this side, nothing special to say, these are software that can practically be used with any 3D printer. The whole thing is to set them up well.

Furthermore, a Geeetech error, is that in the manual, the settings are made for a diameter of 0.4 mm nozzle while the printer I has been provided with a 0.3 mm nozzle.

This difference of 0.1 mm is change everything, a piece that looks like nothing, you have a beautiful printed piece!

Conclusion

It was a great experience to assemble this 3D printer yourself. It was very informative and I do not regret it at all! Setting up your own 3D printer makes you learn a lot about them, and allows you in case of trouble to discover the source of the problem, to be able to fix it, to understand exactly how it works, etc.

Note that the assembly did not necessarily take a long time: making it at my ease, it took me 1 day and 2 afternoons to mount it from A to Z.In case
of trouble, the customer service is on whatsapp and reacts fairly quickly and helps you quite well (in English).

I can't actually compare to a 3D acrylic printer, but from the few I could compare with videos, this Geeetech aluminum really gives an impression of rigidity to any test, I really recommend it!

Edit: Since my test, know that there are now much stiffer aluminum 3D printers that require almost no assembly, the best known being the Creality Ender 3. They come to you in 2-3 parts, and you'll just have to screw a few screws and your 3d printer will be almost ready for use.

I also advise you to read my other article things to know about 3D printing.
