8.9" 4K Monochrome LCD
4K resolution at 8.9 inch size, allows larger prints, more detail and accuracy.
Fast Printing Speed
Making printing speed 3X faster than the Photon.
Large Build Volume
A large build area for your 3D-printed creations : 192mm (L) * 120mm (W) * 245mm (H).
APP Remote Control
Remote control of print operations.
Technical Specifications
● System : ANYCUBIC Photon Mono X
● Operation : 3.5 inch Touch Screen
● Build Volume: 192mm(L)*120mm(W)*245mm(H)
● Light-source: high-quality filament(wavelength 405nm)
● XY Res.: 0.050mm 3840*2400(4K)
● Z Axis Res. : 0.01mm
● Layer Res.: 0.01-0.15mm
● Printing Speed: MAX 60mm/h
● Rated Power: 120W
● Material: 405nm UV Resin
● Software : ANYCUBIC Photon workshop
● Connectivity : USB
● Technology: LCD-based SLA
● Printer Size : 270mm(L)*290mm(W)*475mm(H)
● Net Weight: ~10.75kg
Safe Design
Printer will be immediately shut off if the top cover has been removed. This feature is turned off by default
Anycubic Slicer Software
New features are added to the software. Supports up to 8x anti-aliasing: Fast slicing, Hollowing, Split Model, Text Paste
Fast Printing Speed
The time of exposure is as low as 1.5-2 seconds, and the max print speed is 60mm/h, making printing speed 3X faster than the Photon.
High Performance Z-axis
The Z-axis is supported by dual linear rails,stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of layer shifting.

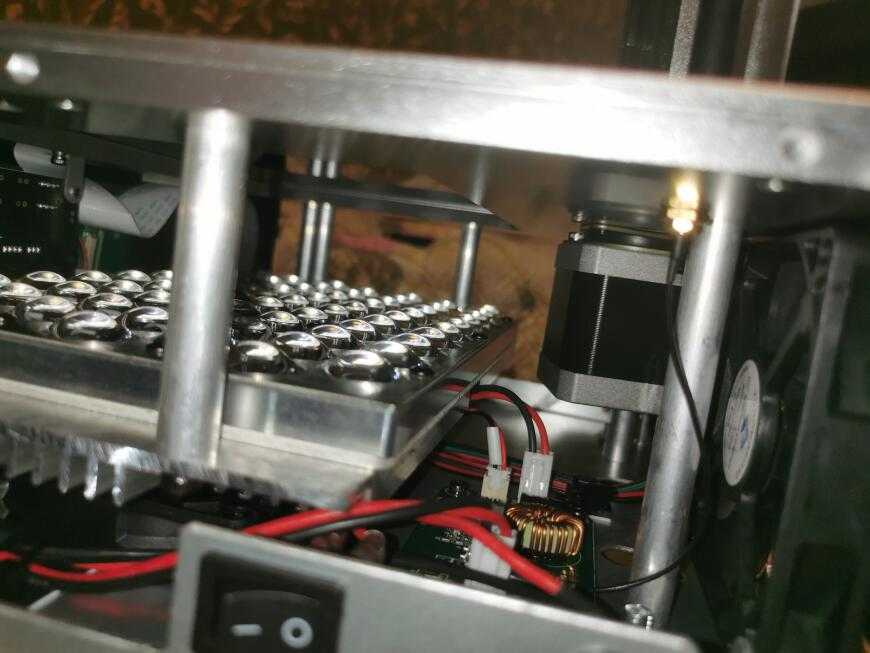

New Matrix UV Light Source
High quality quartz lamp bead and new matrix design for uniform UV light energy. 4K monochrome LCD delivers high-quality prints
Anycubic APP Remote Control
Remote control of print operations,monitor printing progress,adjust the print settings, you could download it from HERE.
UV Cooling System
Cooling device for stable printing performance and longer service life.
Large Build Volume
A large build area for your 3D-printed creations :192mm(L)*120mm(W)*245mm(H)
8.9″ 4K Monochrome LCD
Monochrome screens can last several thousand hours. Monochrome screens allow for very short layer exposure times for faster print times.

Parts List

User Manual

SD-Card

Tool set

SD-Card Reader

Scraper

Resin Vat

Platform

Power Cord

Service Card

Wifi Antenna

Glove


    Photon Mono X
   Photon Mono 4K
   Photon Mono X 6k
Machine Weight 10. 8kg 4.3kg 11kg
Machine Size 475x290x270mm 383x227x222mm 475x290x270mm
LCD Resolution 3840x2400px(4k) 3840x2400px(4k) 5760x3600px(6k)
LCD Size 8.9’’ monochrome 6.23’’ monochrome 9.25’’ monochrome
XY Resolution 50 microns 35 microns 34 microns
Z axis Accuracy 10 microns 10 microns 10 microns
Build volume 245xx192x120mm(5. 6L) 165x132x80mm(1.74L) 245x197x122mm(5.89L)
Max.Printing Speed 60mm/h 50mm/h 80mm/h
  • Photon
    LCD-based SLA
    Build Area: 115x65x155mm
    Filament:405nm UV Resin
    Diffusion Illuminant
    Single Z-axis
  • Photon S
    LCD-based SLA
    Build Area: 115x65x165mm
    Filament:405nm UV Resin
    Matrix Illuminant
    Double Z-axis
  • 4Max Pro
    FDM (Fused Deposition Modeling)
    Build Area: 270x205x205mm
    Filament: PLA, ABS, HIPS, PETG,
    Wood and TPU
    Titan Extruder
    Suspended Filament Rack
    Single Z-axis

Anycubic Care

Firmware

MONO X 3. 5.4

Driver

/

Slicer

V2.1.29-Mac
V2.1.29-Win X86
V2.1.29-Win X64
Manual

Test model

Test_model_1
R_E_R_F.pwmx

Manual
Anycubic App Manual


please click on it to download.

Anycubic Photon Mono X 3D Printer Review: Great Quality, Large Volume

Tom's Hardware Verdict

The large build volume and fast print speed of the Anycubic Photon Mono impressed us, but our issues with the built-in WiFi and the slicer app kept this printer from rising to the top.

Pros
  • +

    + Large build volume (almost 10 inches on the Z)

  • +

    + Rigid dual-Z gantry and hefty metal frame

  • +

    + Photon Workshop software is easy to use

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Today's best AnyCubic Photon Mono X deals

$479. 99

$299

View

Reduced Price

$374

View

$547.93

View

Show More Deals

The Anycubic Photon Mono X is the largest printer in the Photon family of printers and offers a lightning-fast, 2-second per-layer cure time thanks to the included 4K Mono LCD used for masking. An impressive printer that doesn’t compromise between speed and size, the Photon Mono X offers the best of both worlds while remaining at the sub-$600 price point. The XY resolution of .05mm is comparable to smaller 3D printers that use lower-resolution screens such as the Anycubic Photon Mono or the Elegoo Mars 2 Pro. Despite a few quirks that require some attention to get the most out of the Photon Mono X, the included Photon Workshop software is relatively easy to use.

Anycubic Photon Mono X Specifications

Swipe to scroll horizontally

Machine Footprint10.63" x 11.42" x 18.7" (27cm x 29cm x 47.5cm)
Build Volume7.55" x 4.72" x 9.84" (192mm x 120mm x 245mm)
ResinDLP Photopolymer Resin
UV Light405nm UV LED
Masking LCD Resolution3840 x 2400 px
Masking LCD Size8.9-inch
Interface3.5-inch LCD Touchscreen
XY Axis Resolution.05mm

Included in the Box of Anycubic Photon Mono X

(Image credit: Tom's Hardware)

The Anycubic Photon Mono X ships in a reinforced box with all of the included accessories nested inside the printer. All of the accessories required to use the printer as well as enough consumables to get you through a couple of prints are included in the box. This includes a bag with several rubber gloves for handling the resin, a hospital-style fabric mask, a plastic scraper for stirring resin, a metal scraper for removing parts from the build platform, a few paper funnels for recycling the resin after printing and a few extra screws. I appreciate that Anycubic includes a paper copy of the assembly instructions with the printer, which is always a nice touch when first getting the print up and running.

(Image credit: Tom's Hardware)
  • AnyCubic Photon Mono X (Yellow) at Walmart for $299

(Image credit: Tom's Hardware)

The Anycubic Photon Mono X looks like a standard resin 3D printer from a distance, but take a closer look and you’ll see a machine that is built with high-throughput in mind. A bright and distinct yellow color, the UV-resistant lid feels solid but not brittle, and the base of the machine has a groove that runs along the edge which mates up perfectly with the lid. The metal base of the machine feels sturdy and bottom-heavy, which inspired confidence that this machine was made with high-performance components.

(Image credit: Tom's Hardware)

The large build platform of the Photon Mono X means that the amount of force required to pull the build platform up will be higher than machines that cure smaller cross-sections of material. To avoid bending or any wobbling in the Z axis, Anycubic has built a rigid Z-stage that uses a threaded rod and a pair of linear rails to move the build platform up and down between layers. This is a solid mechanical system, and I was impressed with the overall fit and feel of the all-metal gantry.

(Image credit: Tom's Hardware)

The build platform has a taper on two sides which is designed to allow resin to drip back into the vat after it has lifted clear of the resin. It works reasonably well, but the resin has a tendency to pool around the edges and has to be scraped back into the vat manually with the plastic scraper between prints. The surface of the build platform has a brushed aluminum surface which has a high level of adhesion and is easy to clean.

Image 1 of 2

(Image credit: Tom's Hardware)(Image credit: Tom's Hardware)

Unfortunately, the design of the build platform includes four upward-facing bolts which can submerge into the resin vat during printing. The build platform bracket also has a slot cut in the center which fills with resin during printing and is difficult to clean. This is a poor design choice, as the flooded area drips uncured resin into the groove cut between the bracket and the platform. This build platform design is difficult to fully clean manually, and requires a lot of scrubbing to get into the various nooks and crannies to remove uncured resin when switching materials or colors.

(Image credit: Tom's Hardware)

The Photon Mono X uses a resin vat with a removable FEP film liner on the bottom, unlike the proprietary FEP assembly found on the Photon Mono. This means you can replace the FEP film (a consumable) with either a direct replacement from Anycubic or any number of aftermarket replacements. The FEP film is held in place with 14 rear-mounted bolts and 22 smaller bolts that keep tension on the film after mounting. My favorite feature of the resin vat on the Photon Mono X is the four small studs at the corners of the vat which elevate the FEP film above whatever surface it’s sitting on. Puncturing the vat can be a messy experience, so keeping it suspended above a flat surface will keep it above anything that might make an indentation.

(Image credit: Tom's Hardware)

The base of the Photon Mono X has four locating holes which the vat uses to click into place. This means the vat is held in place while it’s being tightened down with the two included thumbscrews. The vat also has a pour spout integrated into one of the corners, so draining resin back into a bottle doesn’t result in a mess.

(Image credit: Tom's Hardware)

Included with the Photon Mono X is a small antenna to enable the built-in WiFi capability, which attaches to the base of the printer on the upward-facing surface directly behind the resin vat. The WiFi on the Photon Mono X was a disappointing experience since the connection isn’t actually used by the Photon Workshop app. Using the WiFi requires a complicated set-up that involves putting your password into a .txt file and manually uploading it to the printer. The WiFi is only used to communicate with a mobile app that lets you monitor the print, view the printer history, and adjust a few parameters while printing.

(Image credit: Tom's Hardware)

I was able to get the mobile app working, which felt like a major victory after the half hour I spent fiddling with the .txt file to get the printer to recognize my network. The Anycubic 3D iOS app currently has a 2.5/5 rating on the iOS App Store and multiple complaints from users who weren’t able to get it working with the Photon Mono X.

Despite getting it working, I had a hard time finding any real reason to use this app instead of just checking on the printer directly. Without a webcam, a progress bar doesn’t actually inform you how much of the print has finished, only how much of the print should have finished. In addition, the lack of an ability to upload, process, and send a file to the printer means that this app isn’t likely to see a lot of use.

(Image credit: Tom's Hardware)

The Photon Mono X uses a 3.5-inch color LCD touchscreen as a primary interface. The UI feels a little dated (it reminds me of the default WinAmp skin), but it contains all of the functionality required to calibrate the printer and start a print. You can also use the LCD touchscreen to pause, stop, and monitor the parameters of the print during a print job. The printer has the USB input, power switch, and power input located on the side of the machine which makes it easier to access than reaching behind the machine to turn it on and off between jobs.

Leveling the Build Platform on Anycubic Photon Mono X

(Image credit: Anycubic)

Like most resin 3D printers, the Anycubic Photon Mono X requires a manual calibration process to ensure the build platform is perfectly level with the masking LCD. This allows each layer to cure evenly between the build platform and masking LCD while only adhering to the platform. The included printed user manual and the digital .PDF included with the USB drive cover this process in detail, and also include pictures to show the calibration process step-by-step.

(Image credit: Tom's Hardware)

This calibration process is the same as the process used by the smaller Anycubic Photon Mono, and it works about as well. I’m not a fan of the four bolt process, as over-tightening the bolts can cause the build platform to shift slightly during leveling. The two bolt ball-and-socket build platform leveling used by the Elegoo Mars 2 Pro and Elegoo Saturn is easier to use, and provides a very consistent leveling experience with less manual input required.

Printing Safety with Anycubic Photon Mono X

(Image credit: Tom's Hardware)

The Anycubic Photon Mono X uses 405nm UV resin, a material that you need to handle safely when in an uncured state to avoid injury. The resin can be harmful when making contact with skin, so make sure to wear gloves when pouring, cleaning up, or handling uncured resin. I also make sure I’m wearing gloves when removing the build platform after a print, as the resin tends to pool on top of the platform and can drip off while the platform is being removed.

Make sure you use the Photon Mono X in a well-ventilated room to minimize the danger from inhaling fumes. Any spills or uncured resin stuck to a surface should be cleaned using 99% Isopropyl Alcohol and the container for the resin should be kept closed and secured when not actively pouring material.

(Image credit: Tom's Hardware)

Anycubic sent a bottle of their Plant-Based Eco Resin for testing this printer. This material is advertised as being made from soybean oil and is a biodegradable eco-friendly alternative to other thermoset resins. The exposure times for this resin are similar to standard photopolymer resins, so I didn’t make any modifications to print settings for this material. Another advertised feature of this material is the low odor; something I did notice and appreciate during printing.

Printing the Included Test Print on the Anycubic Photon Mono X

(Image credit: Tom's Hardware)

The Anycubic Photon Mono X includes a prepared test model on the USB thumb drive, and it’s the same model that is included with the smaller Anycubic Photon Mono. The model is a thin lattice structure in the shape of a cube with the Anycubic Photon logo suspended internally. I opened the file in Photon Workshop to see what settings were used, and I was surprised to see a 1.5-second per-layer cure time and a 45-second bottom exposure time, as opposed to the default 2 second per-layer cure time and 40 second bottom exposure used by the Photon Workshop.

(Image credit: Anycubic)

(Image credit: Tom's Hardware)

The leveling of the printer wasn’t dead-on for this first print, and you can see the bottom few layers of the cube have been compressed together and formed a ring around the base. Despite this slight compression, the base of the model measured 35.05mm in diameter at various points, which is within the advertised .05mm / 50 micron accuracy of the machine. Printing a lattice structure like this is always an ambitious test for most 3D printers due to the thin walls and lack of support structure, but the Photon Mono X printed the model without any defects or issues.

(Image credit: Tom's Hardware)

Preparing Files for Printing with Photon Workshop

(Image credit: Anycubic)

The Anycubic Photon Mono X is compatible with Anycubic’s slicer app, called Photon Workshop. Photon Workshop allows users to import 3D models, hollow them, add support structures, export 3D printable files, and more. Interestingly enough, the USB drive included with the Photon Mono X doesn’t include any software, so I downloaded the latest version (2.1.24) from the Anycubic site . While I appreciate the fact that this would encourage a user to download the latest version of the software, it might be an issue for anyone who is expecting the printer to ship with the software already loaded on the drive.

Image 1 of 2

(Image credit: Anycubic)(Image credit: Anycubic)

Adding a support structure to a resin 3D print is a critical step, and the overall experience of generating support structures with Photon Workshop left me underwhelmed. Unlike the support structure on an FDM printer where the support keeps the model from collapsing, the support structure on a resin printer keeps the part suspended from the build platform without falling. Resin printers lift the part between layers, so the thicker the cross-section of the part, the more force is required to separate it from the FEP film on the bottom of the vat.

To combat these peel forces, adding a tilt of 45 degrees or so will minimize the cross-sectional width and make a part easier to print. Unfortunately, Photon Workshop doesn’t lift the part after this tilt is added, so models will typically need to be manually raised on the Z axis to add supports underneath the model. This operation is performed automatically in Chitubox, a similar slicing app used by the Elegoo resin 3D printers like the Saturn and the Mars 2 Pro. This seems like a small step, but the lack of support generated on those initial layers can be the difference between a successful print and an unsuccessful one.

(Image credit: Anycubic)

I used the 32mm miniature Throne 3D model from Loot Studios as a benchmark piece for testing the latest release of Photon Workshop. I’m using the Anycubic Plant-Based Eco Resin , so I selected ‘Plant-Based’ as resin type in Photon Workshop. Changing this setting doesn’t seem to change any print settings and I’m not sure that it makes any impact in the finished print. With a per-layer cure time of 2 seconds and a bottom exposure of 40 seconds for the first 6 layers, the Throne model had an estimated print time of 3 hours and 42 minutes. After exporting the 3D model, I transferred the file via USB and started the print on the Photon Mono X.

Image 1 of 2

(Image credit: Tom's Hardware)(Image credit: Tom's Hardware)

The model printed perfectly, and the hybrid automatic/manual support structure held the model firmly to the build platform. After washing the model using the Anycubic Wash and Cure Plus, I easily removed the support structure and put it back in the Wash and Cure Plus for a cure cycle. Despite the small size of the part, the fine details and thin structures were strong enough to stay attached to the model while the support structure was being removed.

(Image credit: Tom's Hardware)

The detail on the model is crisp and in-focus, and the even the fine detail on the fabric of the seat of the throne is easily visible. This level of detail is what I would expect from a printer with an XY accuracy of 50 microns, and it is equivalent to the results I’ve seen from other resin 3D printers with a similarly advertised accuracy.

Washing and Curing Models with Anycubic Wash and Cure Plus

(Image credit: Tom's Hardware)

The Anycubic Wash and Cure Plus is an accessory designed to complement the Anycubic Photon Mono X and make post-processing resin 3D prints a clean and easy process. After printing a model on a resin 3D printer, there are three important follow-up steps. First, the part has to be rinsed of excess resin using an isopropyl alcohol solution. Second, the support structure must be manually removed from the model. Third, the model must be cured in a UV chamber to fully polymerize and solidify the resin. This can be a really messy process, and the Wash and Cure Plus provides a clever solution to this problem. Anycubic sent us the Wash and Cure Plus along with the Photon Mono X, so we could test the full workflow from liquid resin to finished part using these two machines.

(Image credit: Tom's Hardware)

After a print is finished on the Photon Mono X, the build platform will lift clear of the vat. This allows you to remove the build platform and clean the part, and also gives any accumulated resin time to drip back into the vat without spilling onto the printer. I printed the bust of Alexandra Uthgrade from Loot Studios, which prints in two pieces and is also hollow to reduce the amount of resin required for printing.

Image 1 of 2

(Image credit: Tom's Hardware)(Image credit: Tom's Hardware)

The Wash and Cure Plus uses a plastic basket with a magnetically-driven impeller at the base and a metal basket that safely holds the parts above the impeller. After placing the parts in the basket, I ran the wash cycle for 4 minutes, which created a vortex in the basket and did a thorough job rinsing the excess resin from the part. The magnetic impeller ramps up in speed and changes direction during the wash cycle, so the part is evenly rinsed of excess resin.

Image 1 of 2

(Image credit: Tom's Hardware)(Image credit: Tom's Hardware)

The basket can be lifted from the tank without touching the isopropyl alcohol, which is something that I really appreciate Anycubic designing into the machine. After letting the alcohol air-dry from the parts, I removed the support structure from the part by peeling it off. The support structure wasn’t difficult to remove in the semi-cured state, and the alcohol wash got rid of the film of resin on the part.

Image 1 of 2

(Image credit: Tom's Hardware)(Image credit: Tom's Hardware)

Once the model has been rinsed and the support structure has been removed, the model needs to be cured before it can be safely handled. The Wash and Cure Plus features a strip of LED lights that fully cure the resin and the very top of the strip can be angled down to cure the top of the model as well as the sides. The Wash and Cure Plus uses a reflector strip underneath the transparent spinning base to cure the underside of the model, which means the model is being cured fully as the plate rotates.

(Image credit: Tom's Hardware)

Once the curing process is complete, the model can be painted, sanded, coated, or simply left as-is. The grey color of the Anycubic Plant-Based Eco Resin is a favorite of mine because it shows a lot of detail and contrast without being difficult to photograph. The completed bust looks impressive, with a high amount of detail visible on the armor and even individual hairs visible on the eyebrows.

Printing a Full Build Platform on the Anycubic Photon Mono X

(Image credit: Tom's Hardware)

With an 8.9-inch 4K masking LCD, the Anycubic Photon Mono X has a strong advantage when compared to most resin MSLA 3D printers due to the large XY footprint of the machine. Resin MSLA 3D printers operate by curing a single layer at a time, so for the most part, printing one part or 10 parts takes about the same amount of time. The large build volume of the Photon Mono X is ideal for printing multiple parts, so I printed 11 parts simultaneously to test out the throughput of the machine.

(Image credit: Anycubic)

Photon Workshop easily handled all 11 models and didn’t slow down during slicing, despite the ~20 MB file size per part. Photon Workshop gave an accurate estimate of 3 hours and 26 minutes to print all of these models simultaneously. This type of throughput is beneficial for anyone printing large quantities of parts. The Photon Mono X is capable of making lots of small parts in a short period of time, especially when compared with an FDM 3D printer like the Elegoo Neptune 2 which has a print time that is tied to the amount of material usage (doubling the number of parts roughly doubles the amount of time).

Image 1 of 2

(Image credit: Tom's Hardware)(Image credit: Tom's Hardware)

Another benefit of using a post-processing station like the Anycubic Wash and Cure Plus is that the parts can be processed as a batch. I put all of these parts in the wash basket of the Wash and Cure Plus and rinsed them as a single batch, which offered substantial time savings when compared with rinsing each model individually. After removing the support structure, the parts could also be cured in a single batch, which again reduces the overall amount of time from liquid resin to finished part.

Image 1 of 2

(Image credit: Tom's Hardware)(Image credit: Tom's Hardware)

Printing 32mm miniatures can be a challenge due to the amount of detail present on the models and the difficulty in removing the support material typically present. For instance, one of the models had a shovel on his back, which had a handle that was about the same thickness as a column of support. The Anycubic Plant-Based Eco Resin separated easily from the model and I didn’t have any issues with the models being too brittle or breaking during printing. There are some small marks left on the model from the support removal process, but they didn’t seem to be any better or worse than similar marks left on models printed by the Elegoo Saturn.

Comparison of the Anycubic Photon Mono X vs. Elegoo Saturn

Image 1 of 2

(Image credit: Tom's Hardware)(Image credit: Tom's Hardware)

The Anycubic Photon Mono X shares enough similar features and specs with the Elegoo Saturn to make the two machines direct competitors, so it’s worth examining the two machines side-by-side. The Photon Mono X has a much larger overall build volume than the Saturn, but it’s also a physically larger machine which will take up more space on a desk or table.

Swipe to scroll horizontally

Header Cell - Column 0 Anycubic Photon Mono XElegoo Saturn
Masking LCD Resolution3840 x 24003840 x 2400
XY Resolution.05mm.05mm
Build Dimensions7. 55 x 4.72 x 9.84 inches7.55 x 4.72 x 7.87 inches
Build Volume350.66 cubic inches280.46 cubic inches
Printer Dimensions10.63 x 11.42 x 18.7 inches11.02 x 9.44 x 17.55 inches
Printer Volume2270.08 cubic inches1825.71 cubic inches
Build / Footprint Ratio (higher is better)15.40%15.40%

The specs of these two printers are similar, but the numbers don’t tell the entire story. While the Elegoo Saturn uses a ball and socket leveling process for the build platform which is easier to use, the scarce availability of this machine means that it will take some luck to find for sale at the standard retail price of $499. The additional two inches of Z height on the Photon Mono X could also be a make-or-break feature for anyone interested in printing long or tall parts in a single piece.

(Image credit: Tom's Hardware)

The Photon Mono X is currently available for $529 directly from Anycubic or $599 with free shipping from Amazon . This price point and feature set is directly comparable to the Elegoo Saturn, which has a smaller build volume but similar XY resolution and per-layer cure times. The Saturn has a reputation for being difficult to find and is frequently sold out (it’s currently sold out on Amazon as of the writing of this review), so the availability of the Photon Mono X as well as the extended Z height make it an appealing option in the sub-$600 price range.

The large build volume of the Anycubic Photon Mono X makes it an easy decision for anyone interested in a high-throughput 3D printer or just a machine that is capable of making large parts in a single print. If you’re more interested in ultra-high resolution for making miniatures and a large build volume isn’t important, the Phrozen Sonic Mini 4K uses similar technology but offers higher resolution.

Andrew Sink first used a 3D printer in 2012, and has been enthusiastically involved in the 3D printing industry ever since. Having printed everything from a scan of his own brain to a peanut butter and jelly sandwich, he continues to dive ever more deeply into the endless applications of additive technology. He is always working on new experiments, designs, and reviews and sharing his results on Tom's Hardware, YouTube, and more.

Anycubic Photon Mono X 3D Printer

Out of stock

Add to compare

Item added to compare Go

10% discount on materials Free shipping within Russia

Bundled cheaper

44 900 ₽

60 900 ₽

-26%

Exchange of old equipment for a new one with a surcharge. Detailed information is available on the page or from our managers.

Notify me of admission

Official distributor

We work directly with manufacturers.

Any form of payment

The opportunity to see the 3D printer in action in our demo room.

Own warranty service

Warranty and post-warranty service for equipment purchased from us.

Permanent 10% discount on consumables

When you buy a 3D printer from us,
, you get a 10% discount on all consumables.

Anycubic Photon Mono X is a desktop 3D printer with a large working area for 3D printing with photopolymer resins. Monochrome 8.9-inch matrix (Mono LCD type) provides the device with a resolution of 4K (3840x2400), as well as higher print speed compared to other Mono series printers from Anycubic. 3D printing technologies supported by this model are DLP/SLA/LCD. Among the main advantages of the Anycubic Photon Mono X desktop 3D printer is an increased build area (192×120×245 mm), exceptional detail accuracy and working life up to 2000 hours. It takes only a couple of seconds to expose one printed layer, and the speed of the 3D printer is up to 60 mm/h. Such a high speed of 3D printing is provided by the high light transmission of a monochrome matrix.

The 3D printer table is made of high-quality anodized steel and has a milled surface, thanks to which the printed models practically do not stick to the surface. Improved pot design makes changing resin easier and also prevents overflow of printed material. The 3D printer works with most types of model photopolymer resins.

It is possible to connect a 3D printer via USB or Wi-Fi to choose from, as well as remotely control the printing process via a downloadable smartphone application. Wi-Fi antenna is included in the equipment package upon delivery. The manufacturer offers proprietary Anycubic Photon Workshop software that is compatible with all popular operating systems. The device weighs only 10 kg and does not take up much space on the desktop.

You can buy the Anycubic Photon Mono X 3D printer from the official distributor in our online store. Our company works directly with the Anycubic manufacturer, and for this reason, you can buy a 3D printer at the lowest price in Russia.

  1. SD card
  2. Card reader
  3. Gloves
  4. Tool kit
  5. Spatula
  6. Print bath
  7. Print platform
  8. WiFi antenna
  9. Power cable
  10. Instruction

First of all, we will, of course, talk about the new Anycubic Mono X printer. It represents a complete rethinking of the company's photopolymer printers. New chassis, new 4K sensor, Wi-Fi, and more. For dessert, this printer will have a washing and curing device: Anycubic Wash&Cure 2.0. There are not many changes in it, and I will analyze them all. But everything has its time. First, let's talk about the printer itself.

Read more

Maxim M.

03.11.2021

Wonderful device!!! You need to get serious about printing.

Payment and delivery

Delivery scale

Delivery to all regions of Russia and countries of the Customs Union.

Free shipping

When you buy a 3D printer (except assembly kits) you get free shipping.

Cash

In our store you can pay for your order in cash.

Online payment on the website

You can pay for orders with a bank card on the website of our online store.

Buyers with this product

Add to compare

Product added to compare Go

Out of stock

Uniz Ultrasonic Cleaner UC-4060HL, 2L Accessories

Add to Compare

Item added to Compare Go

Available

ESUN Standard Photopolymer Clear (1L) Photopolymer resin for 3D printers

Add to compare

The item has been added to compare Go

Out of stock

Photopolymer resin Wanhao red (0.5 l.) Photopolymer resin for 3D printers

Add to compare

The item has been added to compare Go

Out of stock

Photopolymer Wanhao, white (1 l) Photopolymer resin for 3D printers

Add to compare

The item has been added to compare Go

Out of production

Anycubic Wash&Cure model cleaner and curer Additional equipment

Similar Items

Free Shipping

Add to Compare

Item added to Compare Go

Out of stock

Phrozen Sonic Mini 3D Printer 3D Printers

Free Shipping

Add to Compare

Product added to comparison Go

Out of stock

3D Printer Elegoo Mars UV Photocuring LCD 3D printers

Free shipping

Add to compare

Item added to compare Go

Out of stock

Anycubic Photon S 3D printer black 3D printers

Free shipping

Add to compare

Product added to compare Go

Out of production

Wanhao GR1 3D printer 3D printers

ANYCUBIC Photon Mono X Overview - 3D Printer Specifications

The Anycubic Photon Mono X is Anycubic's next step into the world of medium-sized but cutting-edge MSLA printers.

And that's why.
Important Preface

Buying a 3D printer in our store, you get: free shipping, training, technical support, 1 year warranty and a lifetime discount on consumables.

On the occasion of its 5th Anniversary (Autumn 2020), Anycubic has hosted a massive sale of its most popular printers and launched a fleet of new machines.

And now the Anycubic Photon Mono X enters the arena with a working volume of 192 × 120 × 245 mm and a monochrome matrix. Not only does it promise lightning-fast cure times, it's a compelling contender to fill the niche in the mid-sized resin printer market that the Elegoo Saturn has spotted, though it doesn't actually exist yet. 9The 0003

Photon Mono X was revealed on the Anycubic YouTube channel on September 2nd, with special pre-orders and offers starting September 1st.

Next, we will tell you what we know about this machine.

Contents

Benefits of Photon Mono X
Specifications Photon Mono X
Print quality, gallery of works
Where to buy

Advantages Anycubic Photon Mono X

Print Speed ​​

Heavy Artillery MSLA today has two main advantages: faster print speed and higher resolution.

More recently there has been a breakthrough with monochrome matrices and the average layer cure time has been reduced from about 6 to about 2 seconds. The fact is that monochrome matrices transmit a more intense radiation flux, which is why they are more efficient than the widely used RGB.

Photon Mono X, as you might guess from the name, is just the same monochrome (its matrix). This allows you to print at speeds up to 60mm/hr at 0.05mm layer height, making it about three times faster than previous Anycubic MSLA printers like the Photon S.

Taking into account the large working volume (192 x 120 x 245 mm) and the fact that the layer curing time is independent of the size of the printed object, the potential performance jump is even higher, which means more models created at the same time and even more quickly.

Resolution

The second trump card of MSLA 3D printers is matrix resolution. The Photon Mono X features an 8.9-inch (monochrome) liquid crystal display (LCD) display with 4K (3840 × 2400) resolution. If we translate this into XY resolution, we get 50 microns.

The Phrozen Sonic Mini 4K, for example, outputs 35 microns and has a smaller sensor. The larger the matrix, the more pixels are needed to get smaller voxels and, accordingly, finer printing. The difference between 35 and 50 microns is not so easy to see, but for some special applications it matters.

In addition, monochrome sensors usually have a longer service life - over a thousand hours.

Working volume

2 × 120 mm. If we also take into account the Z-axis of 245 mm, then we get that the working volume of the Photon Mono X is about four and a half times, and the print platform is about three times larger than that of the Photon S.

Construction

designs of Anycubic Photon Mono X, while we can say that all the fundamental points are ticked: a removable top cover provides easy access to the print platform and the resin tray; the quartz emitter has become more perfect, having received a facet design, which promises a uniform distribution of ultraviolet radiation; the lead screw in Z has two linear guides for the stability of the device, and a 3. 5-inch touch screen is planted in an aluminum base. Everything you need, it seems to be not even unusual.

Slicer

Anycubic Photon X Mono comes with Anycubic Photon Workshop, proprietary model slicing software. With it, you can perform almost all the operations to prepare a successful resin print, including the creation of cavities, holes, trimming and something else - such as writing. And this slicer supports 8x anti-aliasing.

Previous Anycubic MSLA printers have been compatible with the widely used ChiTuBox slicer and we really hope it will be supported here soon if not immediately.

Interfaces

Anycubic says you can change settings and monitor print progress remotely. For this, a Wi-Fi module is installed.

Anycubic Photon Mono X features include:

  • Resin bath indicator
  • Brushed Aluminum Print Platform
  • New user interface
  • Auto stop feature (introduced in Photo Zero, where the machine automatically stops printing if the top cover is removed during operation)

Specifications Anycubic Photon Mono X

General specifications

Technology LCD
Type polymer
Year of manufacture 2020
Assembly complete
Manufacturer Anycubic
Country China

3D printing specifications

Displacement 192 × 120 × 250 mm
Layer height 10+ micron
XY resolution 50 micron (3840 × 2400 pixels)
Positioning accuracy Z 0.

Learn more
