3D Printer: Sunhokey prusa i3 2015 review | Xylitol

I'm the owner of a Sunhokey prusa i3 2015 model, and i forgot to talk about it so here is a review of my model.

Build volume is 200mm x 200mm x180mm (approximate) arround 15KG and 12v rated.

I bought it in kit to assemble for 300$ (including taxes) from Shenzhen Sunhokey Electronics Co.

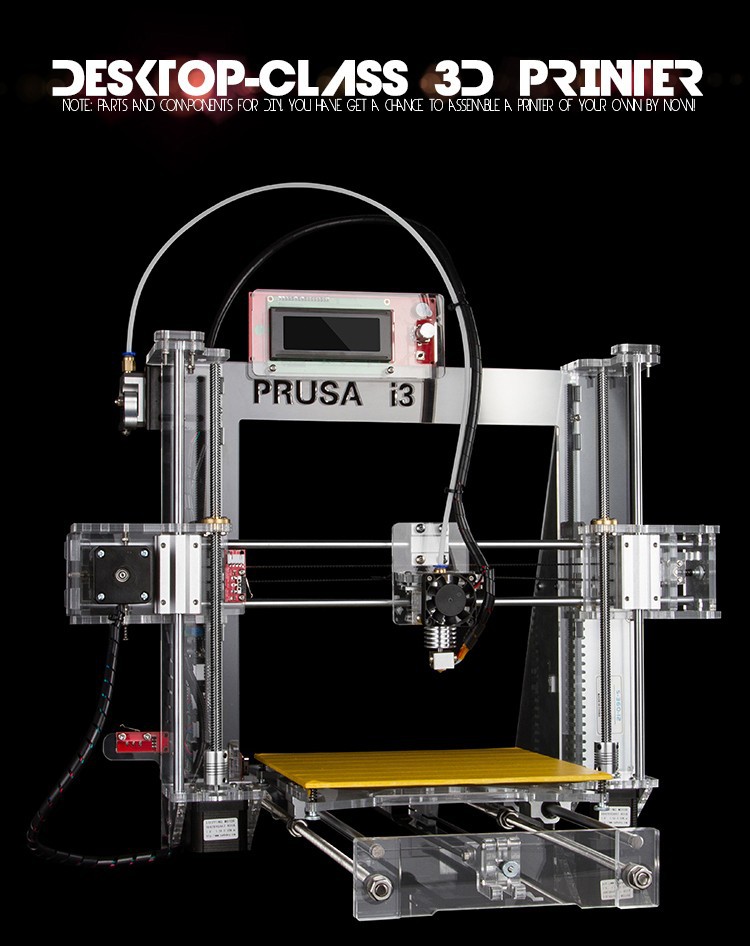

Here is the global view of the printer:

The Hotbed is a MK2b, with a BuildTak plastic sheet on print bed.
Customized with a Hackers sticker and a RGB 5050 SMD LED strip.

IR Remote controler for LED.

Comparison between the original Sunhokey hotbed and my MK2b hotbed (on the left):

The power wire of the resistor on my original Sunhokey hotbed have burn and damaged the plate.
MK2b is a very good alternative, and heat come munch more rapidly, i would recommend replacing the original hotbed.
My MK2b is using this time silicone insulated wires and a thermistor 3950, everything is attached with high temperature tape (Kapton).
Then i'm covering the back of the plate with styrofoam-like for heat transfer.

Bowden extruder:

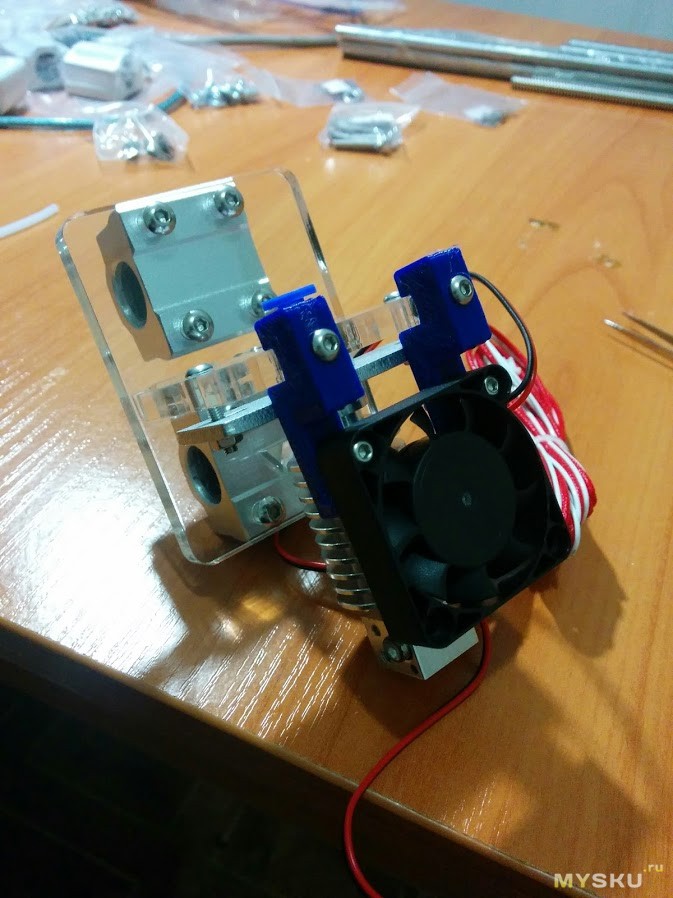

Extruder with 40x40 cooling fan:

The Hotend is a ALU J-head, with a 0.4mm nozzle and a push fit pneumatic for the PTFE Tubing.
Teflon tube is for 1.75mm filament.

LCD screen control, support SD card print, using Marlin firmware:

You can get Marlin for Sunhokey 2015 here: https://github.com/rene-aguirre/Marlin
You can know your fimrware version by sending the gcode instruction: M503 to your printer.

LCD menu tree:

Motion menu relative to my printer:
Accel: 950
Vxy-jerk: 20
Vz-jerk: +000.40
Ve-jerk: 5
Vmax x: 100
Vmax y: 100
Vmax z: 5
Vmax e: 50
Vmin: 0
Vtrav min: 0
Amax x: 5000
Amax y: 5000
Amax z: 90
Amax e: 10000
A-retract: 950
Xsteps/mm: +080.50
Ysteps/mm: +080.50
Zsteps/mm: +0405.6
Esteps/mm: +0080.5

Temperature menu:
Min: 210
Max: 250
Fact: 000. 10
PID-P: +022.20
PID-I: +001.08
PID-D: +114.00
PID-C: 1

MKS motherboard:

You can get the schematic here: https://github.com/makerbase-mks/MKS-GEN (mks_gen_sch.pdf)

Hardware connect:

A Sunhokey 3D Printer owner on thinginverse reported that the motherboard was catching fire, i never experienced this problem.

Now for Endstops, you can know their statut (triggered or not) by sending to your printer the gcode: M119
If you are going to use an inductive sensor and a MKS Gen board, keep in mind that the board have pullup resistors (meaning you need to desolder) so check your board schematic first !
Here is a pic i took, showing where the resistors are located, R28 goes to microcontroller and R20 is pullup.
Resistors are using 0603, yes this is small, if you use hot air beware of connectors.

Picture from microscope of R20:

I would recommend using NPN DC6-36V LJ12A3-4-Z/BX 12 MM as proximity sensor, this version have built-in NPN transistor, and so all needed is to edit Marlin and add the 10k and 15k resistors on the sensor.

X axis endstop:

Adjustable X axis endstop:

Z axis endstop is also adjustable the same way.

Adjustable Y axis belt tensioner:

X Axis have also a belt tensioner.
Making maintenance operations very easy.

Maintenance tools:

CRC 41220 Multi-purpose grease (100 ml) for the trapezoidal screw (Z axis)
And to lubricate the rest: WD-40 3 in one Drip Oil (200ml) any VG 100 oil can be fine i suppose.
For cleaning the acrylic frame i'm using KFC alcohol-based hand wipes (work very well against dust !)

Steel cleaning rods for clogged nozzle:

And of course safety gloves, if you think this is optional.. wait to have a 3D printer ;)
You aren't a truly 3D printer enthusiast if you haven't burn yourself once or cut yourself while removing a print or doing maintenance stuff :)

Some even do battle wounds.

Now related to problem i encountered:

⚠ This printer don't work with Cura.
For an unknown reason cura turn off the fan, but anyway the manufacturer configuration is established with Repetier.

🔥 Original hotbed have burn
As i explained the hotbed is lame, and must be changed.

Apart that i don't really have negative critics about it, only improvement ideas.
If you want some:
- Add another cooling fan
- Changing the acrylic for a metal frame or at least the hotbed chariot by MDF or something who can resist more to temperature deformation (although i don't have deformation problem)

This printer is friendly, easy to assemble, (instructions on how to build come in a video DVD)

Easy to calibrate and do work of quality with PLA, printing with ABS is a bit challenging.
May only the challenge guide you :)

If you have any questions you can ask them here and i will reply, otherwise you can also ask the Sunhokey 3D printer owner community of Thinginverse.

To backup your firmware using avrdude:
avrdude -p m2560 -c wiring -P com5 -b 115200 -F -U flash:r:prusa_i3_backup. hex:i
avrdude -p m2560 -c wiring -P com5 -b 115200 -F -U eeprom:r:prusa_i3_backup.eep:i

A 3D printed weighted storage cube gears with my printer:

Good luck with calibration !
You can find all my makes and designs on my Thinginverse profile here: http://www.thingiverse.com/Xylitol/about

My CuraEngine parameters can be found here: http://pastebin.com/gqw52Pqx
Oh, and guess who did this mess http://hackaday.com/2015/09/18/dear-tsa-this-is-why-you-shouldnt-post-pictures-of-your-keys-online/

Sunhokey Prusa i4 Kit 3D Printer

Sunhokey

$499⁹⁹

Default Title - Sold Out Quantity

Info
Specs
Videos
Why buy from us?
Shipping
Price Guarantee

Free Shipping to US, UK, AUS.

Sunhokey Prusa I4 Plus is a new member of the prestigious Prusa family, it was engineered to provide redefined usability, quality, performance and most important, best affordability in desktop 3D printer market.

It is made from aluminum & acrylic. To maintain the garage-built feel and the handmade charm, Sunhokey Prusa I3 Plus is a pre-assembled kit, which provide you an unforgettable step-by-step learning experience of 3D printer from scratch.

Lead time: up to 7 days

Features:

1. Multiple 3D printing filament supportable: PLA, ABS, Wood-Polymer, flexible, PVA.
2. High quality Assembled MK8 Extruder.
3. 210x210x190mm printing volume, just right for you.
4. Reserved 70% improvement space of this machine.
5. Aluminium and acrylic decoration frame for rigidity and pretty .
6. Stainless steel rail rods, gears, bearings and connectors for smoother movement.
7. All metal pulleys for improved functionality and performance.
8. Super-flat aluminum alloy print surface for better adherence.
9. Quick-release feed gears for faster and fluent filament feeding.
10. Unique X axis design.
11. Updated and stable 24v voltage.

Technical Specifications
3D printing Software	Repetier-Host
Chassis	Acrylic + Aluminum
Client Operating System	Windows/MAC/Linux
Connectivity (Interface)	USB, LCD display and SD card reader
Electronics	MKS Gen-2Z V 1.1 (Ramps Compatible )
Extruder Type	MK8 Upgraded Assembly
Filament Compatibility	PLA, ABS, HIPS, WOOD, PVC, Nylon, PC and Flexible PLA.
Filament Diameter	1.75 mm
Layer Resolution	100 microns
Lead time	5 to 7 days
Machine Dimensions	430 x 505 x 380 mm
Machine weight	11 kg
Manufacturer Warranty	1 Year
No. of Extruders	One
Nozzle Diameter	0.4 mm (customized 0.3mm/0.5mm)
Power Requirements	Input: 100-120VAC/4.8A or 200-240VAC/2.4A
Print Head/Hotend/Nozzle Type	MK8
Print Plate (Build Platform)	Heated Bed ( Aluminium Platform)
Print Plate Size	213x 200 mm
Print size ( X Y Z )	210 x 210 x 190 mm
Print Speed	40 to 100 mm/sec
Shipping box dimensions	300 x 460 x 640 mm
Shipping box weight	13.5 kg
Shipping Location	China.
The Layer Thickness	0.1 mm- 0.5 mm
3D printing Software	Repetier-Host
Chassis	Acrylic + Aluminum
Client Operating System	Windows/MAC/Linux
Connectivity (Interface)	USB, LCD display and SD card reader
Electronics	MKS Gen-2Z V 1. 1 (Ramps Compatible )
Extruder Type	MK8 Upgraded Assembly
Filament Compatibility	PLA, ABS, HIPS, WOOD, PVC, Nylon, PC and Flexible PLA.
Filament Diameter	1.75 mm
Layer Resolution	100 microns
Lead time	5 to 7 days
Machine Dimensions	430 x 505 x 380 mm
Machine weight	11 kg
Manufacturer Warranty	1 Year
No.of Extruders	One
Nozzle Diameter	0.4 mm (customized 0.3mm/0.5mm)
Power Requirements	Input: 100-120VAC/4.8A or 200-240VAC/2.4A
Print Head/Hotend/Nozzle Type	MK8
Print Plate (Build Platform)	Heated Bed ( Aluminium Platform)
Print Plate Size	213x 200 mm
Print size ( X Y Z )	210 x 210 x 190 mm
Print Speed	40 to 100 mm/sec
Shipping box dimensions	300 x 460 x 640 mm
Shipping box weight	13. 5 kg
Shipping Location	China.
The Layer Thickness	0.1 mm- 0.5 mm

Price match guarantee:

We work very hard to ensure that we offer the absolute best prices online for all of our printers including Tevo 3D printer kits. If you find another online store that offers a lower price than us on Tevo 3D printers for sale, please let us know and we will refund your original payment for the difference. Read More

30 day price assurance guarantee:

We want you to feel confident that you are getting the absolute best price for the product. If you find that our own website has a lower price for the same item you have ordered within 30 days of your purchase date, we will refund the difference! Read More

Full manufacturer direct warranty:

We are an authorized dealer for all our products and comes with the full manufacturer warranty.

Tax free (except California and Nevada):

The price you see is the price you pay but because we operate in California and Nevada we must charge tax in California and Nevada.

Safe & secure online ordering:

We are certified Level 1 PCI DSS compliant. What this means is that we meet all the requirements defined by the Payment Card Industry Security Standards Council. For additional information on PCI Compliance, visit the PCI Compliance Guide website. We also accept payment via Pay Pal, a leader in secure online payment processing.

Best customer service:

We strive to offer the best customer service we can. If you have any questions please let us know by phone or email.

Exclusive deals:

We appreciate each and every customer that comes to our store. We know you have a lot of choices when it comes to your 3D printing purchase. That's why we'd like to show our appreciation by periodically sending out exclusive coupons and deals to our past customers!

Order Confirmation:

As soon as you place your order you will receive an order confirmation e-mail. This means that we have received your order in our system and pre-authorized your credit card for the purchase. As soon as we receive your order we automatically reach out to our suppliers to confirm that it is in stock and available for immediate shipment. If your item is on backorder or unavailable we will void the pre-authorization and reach out to you via e-mail. If your item(s) are available for immediate shipment (within 5 business days) we will process the charges and submit the order for shipment.

Order Shipment:

If your order is in stock and we process the charges to your credit card, it will ship within five business days from the date of your order. We will send you tracking information within 24 hours of your order leaving the warehouse to the e-mail address you provide when checking out. If you do not receive tracking information from us within six business days of your order feel free to follow up with us at [email protected]

Domestic Shipping:

We do not ship to P. O. Box.

International Shipping:

Please contact us for international shipping rates

We work very hard to ensure that we offer the absolute best prices online for all of our printers including Tevo 3D printer kits. If you find another online store that offers a lower price than us on Tevo 3D printers for sale, please let us know. We want you to feel confident when you buy a Tevo 3D printer or any of our other printers that you are getting the absolute best price for the product.

To request your partial refund simply e-mail us a link to the same product on our website, or on our competitors’ website and we will process the credit accordingly.

Our 100% Price Guarantee has some limitations:

You must purchase the item from our website before requesting your Price Match Guarantee
Promotions such as rebates and buy one, get one free offers are not eligible
The item must be in stock on the competitors website
The competitor must be an online store, they may not have a retail location
The item must ship from the same country.
The website cannot be a discounter or auction website (ie; eBay, overstock, etc..)
The competitor must be an Authorized Retailer for the product in question
The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax or any customs and duties

Info▼

Free Shipping to US, UK, AUS.

Lead time: up to 7 days

Features:

1. Multiple 3D printing filament supportable: PLA, ABS, Wood-Polymer, flexible, PVA.
2. High quality Assembled MK8 Extruder.
3. 210x210x190mm printing volume, just right for you.
4. Reserved 70% improvement space of this machine.
5. Aluminium and acrylic decoration frame for rigidity and pretty .
6. Stainless steel rail rods, gears, bearings and connectors for smoother movement.
7. All metal pulleys for improved functionality and performance.
8. Super-flat aluminum alloy print surface for better adherence.
9. Quick-release feed gears for faster and fluent filament feeding.
10. Unique X axis design.
11. Updated and stable 24v voltage.

Why buy from us?▼

Price match guarantee:

30 day price assurance guarantee:

Full manufacturer direct warranty:

We are an authorized dealer for all our products and comes with the full manufacturer warranty.

Tax free (except California and Nevada):

The price you see is the price you pay but because we operate in California and Nevada we must charge tax in California and Nevada.

Safe & secure online ordering:

Best customer service:

We strive to offer the best customer service we can. If you have any questions please let us know by phone or email.

Exclusive deals:

Shipping▼

Order Confirmation:

Order Shipment:

Domestic Shipping:

We do not ship to P.O. Box.

International Shipping:

Please contact us for international shipping rates

Price Guarantee▼

We work very hard to ensure that we offer the absolute best prices online for all of our printers including Tevo 3D printer kits. If you find another online store that offers a lower price than us on Tevo 3D printers for sale, please let us know. We want you to feel confident when you buy a Tevo 3D printer or any of our other printers that you are getting the absolute best price for the product.

To request your partial refund simply e-mail us a link to the same product on our website, or on our competitors’ website and we will process the credit accordingly.

Our 100% Price Guarantee has some limitations:

You must purchase the item from our website before requesting your Price Match Guarantee
Promotions such as rebates and buy one, get one free offers are not eligible
The item must be in stock on the competitors website
The competitor must be an online store, they may not have a retail location
The item must ship from the same country.
The website cannot be a discounter or auction website (ie; eBay, overstock, etc..)
The competitor must be an Authorized Retailer for the product in question
The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax or any customs and duties

We Also Recommend

ANTCLABS BLTouch Auto Bed Leveling Sensor - Ships from US

Sale $37⁹⁸ Reg. ~~$48.00~~

More Options

Monocure Rapid 3D Resin

$34⁹⁹

More Options

Wanhao UV Cure 3D Printer Resin 500ml/1L (1000ml)

$39⁹⁹

More Options

Wanhao Duplicator 6 Acrylic Enclosure

$119⁰⁰

More Options

3D Printer Universe Premium PLA Filament

$29⁹⁹

More Options

Sunhokey PRUSA I3 3D Printer DIY Kit

Share to:

Description
Reviews (0)
Delivery and payment
Bulk request

Sunhokey PRUSA I3 3D Printer Kit Youtube video reviews

Descriptions of Sunhokey PRUSA I3 3D Printer Kit

High Precision 3D - Printer Display Screen DIY LCD Control Kit

Description:
Are you still looking for a 3D printer, but it's hard for you to make a decision? You won't hesitate any more if you have already seen this Acrylic 3D - Printer with 200 x 200mm x 180mm build volume, nozzle diameter 0. 4mm. This is your best choice!

Main features:
● Support SD card or off-line printing, is especially handy when without a computer.
● 200 x 200 mm x 180 mm Assembly volume, is just right for you.
● LCD - screen shows your printing information directly and easy for you to manipulate.
● Support multiple 3D printing filament: ABS / PLA.
● All acrylic construction for improved functionality and performance.
● Adjustable X/Y axis belt tensioner.
● Adjustable Z distance of the switch limit axis.
● Designed to provide usability, quality and performance redefined.
● Suitable for a wide range of customers, young and old, professional or amateur, etc..
● This is an unassembled DIY kit that provides you with an unforgettable step by step learning experience of a 3D printer from scratch. As long as you have a passion for creativity, you cannot afford to miss this product.
● Color of consumables for printing depends on

2 x Coumpling

50 x Screw (M3 X 16MM)

2 x T2.5 Belt

20 X Screen (M3 x 25mm)
9000 9007 9007
2 x T8 LEAD SCREW NUT

10 x Screw (M3 x 30mm)

1 x Extruder

40 x SCREW (M4 x 12mm)

0 1 x

10 x SCREW (M5 X 25MM)

1 x Nozzle Hold Block

80 x M3 NUT 9000 9000 9000.15000 15000 NUT
5 x 30mm BOX-Type Slider

15 x M8 NUT

2 x 58mm Long Box-Type Slider
9000 X M3 Shim
9000 9000 1M ) 12/24V Output

20 x M5 shim

3 x End-Stop Red Board
9000 15 X M8 Shim
9000 4 X STEPPER Motor (1. 8 Degree 0.000)
10 x Flange Nut

1 x 2004LCD Red Board

7 X Black Spring

1 x Hot Bed

1 x Forcl0088
1 x USB wire

1 x HEXAGON WRENCH

1 x FAN

1 x Wrench 9000 1 x Power Supply) TIE

2 x Power Supply Wire1

1 x Winding Pipe

1 X Power Supply Wire2 9000 9000 1 x CD 9000 9000 9000 9000 1 x CD 9000 9000 9000 1 x CD 9000 9000 9000 1 x CD 9000 9000 1 x CD 9000 10002 2 x Screw Lever (M8 x 490)

1 x Yellow Tape

2 X Polish Rod (M8 x 460)
9000 1 x Teflon Tube
9000 ROD (M8 x 490)

1 x Hot Thermistor

2 x Polish Rod (M8 x 340)

5 X Heat Sink

X SCREW (TE 300mm)

Color and Design Disclaimer: The color and design (or pattern) of a product is subject to stock availability, we reserve the right to change to a different color.

All (0)

Photo (0)

Video (0)

Sort by: All
All Popularity Most Helpful Most Recent

Translate into English

Get G points! Be the first to write a review!

Do you want to wholesale Sunhokey PRUSA I3 3D Printer Kit ? Please send your wholesale inquiry of Sunhokey PRUSA I3 3D Printer Kit below. Please note that we usually don't provide free shipping on bulk orders of Sunhokey PRUSA I3 3D Printer Kit, but the wholesale price will be a big deal.

Your target price:

Quantity ordered:

Country

Your name:

Your Phone:

Your Email:

Company Name:

Inquiry Details:

Your Recently Viewed Items

Pre-Sales Support

Sunhokey Prusa i3 3D printer

Hello dear reader.
I want to present to your subjective judgment a review of a Chinese miracle of technology called Sunhokey Prusa i3 Acrylic. So let's get started.
Let's start with delivery. Delivery took about two weeks, all this happiness was delivered by DHL to Kazakhstan. I want to warn my compatriots right away, if you have not previously encountered DHL, get ready for the fact that they will be stupid out of the blue.
Firstly, you will be required to sign an agreement with them (if necessary, I will post the form in the comments, the usual jpg in which you need to sign and send them a scan, no one needs the original.).
Secondly, you will be asked to pay a brokerage fee in the amount of one and a half thousand tenge (however, this information is outdated. Now the price is higher, but not much. On the edhl.kz website, the information says about 2000 tenge.)
Only after that DHL will start customs clearance of your cargo. The procedure takes 2-4 days.
In total, I received the box, signed the invoice and happily ran to collect this happiness. We must pay tribute, the box was not damaged.
Inside, everything is covered with polyethylene foam, which protects our valuable cargo quite well.
Together with the printer, I ordered 3 spools of plastic, but I forgot to indicate that I would like ABS, for which I paid. The seller put all 3 spools of PLA plastic. Fortunately, at least the colors were given exactly the ones that I asked for. Also, along with the printer, two spools of trial plastic are included as a gift, they were still there in our large box. Trial plastic was two colors, black (PLA) and white (ABS).

Additional photos of box and packaging

Let's start assembling. All parts are laid out in their cells cut out in polyethylene, acrylic parts are also covered on both sides with packaging film.
Separate compartments are also cut out for engines. All bolts, nuts, washers are in individual resealable bags with signatures of what, where, and what size it is.
The assembly process took two working days (it was all assembled during working hours). Under the spoiler are photos of some parts during the assembly process.

Parts in progress

assembled Z-axis parts
X-axis carriage, with extruder installed
"almost" assembled frame
Assembled frame with suspended electronics.

Electronics:

The MKS Gen-2Z board version 1.1 is used as the “brain” here (it is a customized version of the MKS Gen v1.1 board converted for two motors on the Z axis. According to the manufacturer, connecting a second extruder to this board is impossible). All connectors on this board are keyed, so plugging something upside down will not work, which is undoubtedly a plus for a person who is not very connected with electronics (polarity must be observed, many people know this, yes ... But not all).
Stepper motor drivers are the most common A4988, I got it already with Vref set, but I slightly adjusted it to fit my needs.
The kit also included heatsinks for drivers, I advise you to attach them right away.
Stepper motors: Nema17 SL42STh58-1504A in the amount of 5 pieces. One for the XY axis, two for the Z axis, and one for the extruder. The wires are inserted deep into the engines, and it will not work out without picking. The wires must be said to be sooooo long, and at the end of the installation you are left with a kind of pasta factory on the left side of the printer.
Hotend: he's a hothead. This printer has a Chinese copy of the E3D v5, with a “guess it!” nozzle diameter. Maybe get 0.3mm, or maybe 0.5, and if you're lucky, then 0.4mm. In general, this is not very critical, but for good printing it is desirable to know the diameter of the nozzle in advance. Personally, I had to find out this empirically (and as it turned out in my version it was a 0.5mm nozzle).
Extruder: We have an all-metal extruder, with a brass gear, a gear with very large teeth, and if the settings are set incorrectly, it simply gnaws the bar into powder. Which is not buzzing, since printing simply stops, due to the lack of something to print. I also advise you to immediately print a suitable airflow for the thermal barrier (E3d v5 fan holder), since the native fan mount places it extremely poorly, and immediately cools both the model, the thermal barrier, and the extruder (which reduces the temperature of the extruder itself, but for us it’s not really necessary).
Heated bed: He is also a heating table. It is made in the form of an acrylic plate fixed on round rails with three bearings. From above, the heating element itself is placed on the bolts with springs (an aluminum plate with wiring for heating).

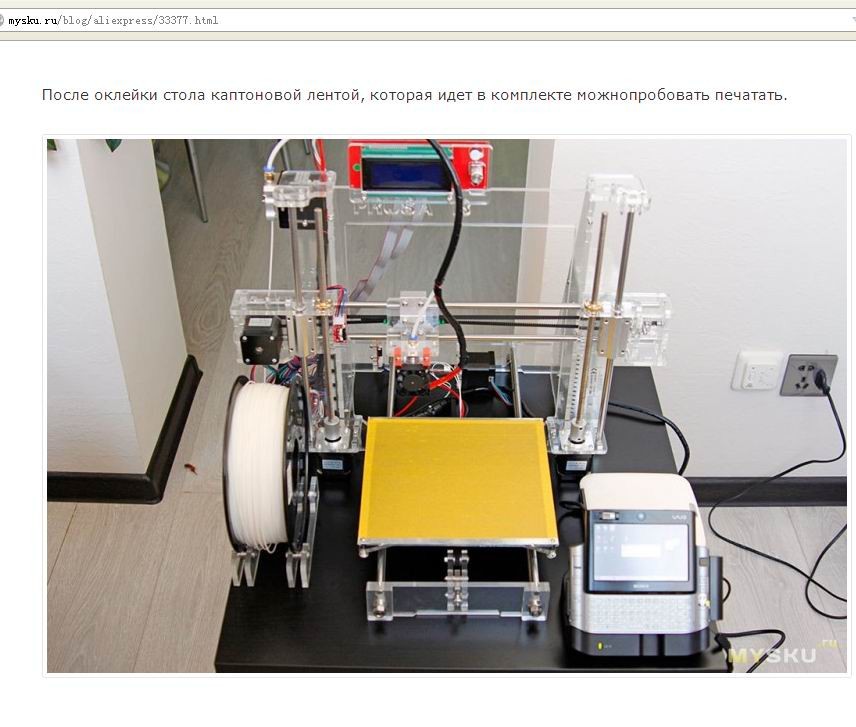

The kit also comes with yellow masking tape. The manufacturer assumes that we will print directly on top of aluminum, on which we will stick this very adhesive tape. Tried maybe, but not worth it. It is better to immediately think about installing glass, preferably heat-resistant. So does a mirror. Required dimensions ~21*21cm. This device has a slightly larger table than the standard 20 * 20, but this does not affect the working area.

Just as important, this KIT has an LCD screen that allows you to control the printing process much easier than through the Repetier Host application.

Also in the box you can find a CD with video instructions, assembly photos, board pinout, and slicer settings. And of course, outdated software versions (repetier host and slic3r).

Before that everything was fine. Now let's start with the bad.
When connecting everything and everything, after I sent the printer to the “Home” position, it did it once, and my control board died. That is, absolutely.. But fortunately, after talking with the manager Eva, I received a new board along with spare drivers (which died along with the board) for only one dollar. Of course, they offered to send them a burned-out board for replacement and repair, but this option did not suit me very much. We must give them their due, they quickly adapt to the client and go to a meeting.
About a month later, I received my replacement board and driver kit.
I must say that by this time I had been tormenting the printer mercilessly for some time, trying to adapt to Chinese plastic. Nothing good to say about the plastic, alas, I can not say.
During the absence of my native “brains”, I found in the bins of my homeland (and to be precise, I asked my friends) an arduino mega board and ramps, and assembled everything on them. . I managed to start this miracle far from the first time, and for a long time instead of eye-pleasing products, I received pieces of plastic on the table, and a bunch of spent nerves.
I managed to achieve acceptable quality with ABS plastic, but it was also far from immediately. PLA I still torture (well, the stone flower does not come out).

photos of printing examples

This Betsova was printed for about 10 hours, and in height this is almost the maximum print size.

.

Small finishes were also made, such as changing the extruder, and fastening the X-axis carriage belt to the printed clamps.
Learn more

3D printing gaskets

3D printer stringing problem

How to make money at home with a 3d printer

Folger kossel 3d printer

How much does a 3d printer

How to design for 3d printer

3D printed figet spinner

Zcorp 3d printer for sale

3D printer bay area

3D printed dress moma

3D printing holes in top layer
