3D printer k8200

K8200 downloads – Vertex 3D Printers -

Repetier software

Before you can start 3D printing, you will need a 3D design of something that you want to 3D print and you will need to ‘prep’ it for your Vertex Delta. To ‘prep’ this design, you will need a custom software called Repetier. Just download our customized Repetier Host, install it and start printing, it is easy as that. No more troubles with driver installation or fiddling with settings and config files. This leaves more time for creativity. Try it now!

VERSION 2.0.5

Custom Repetier host for Velleman K8200 3D printer – Download

Manual

Short user manual: important safety instructions / getting started – Download
Assembly manual: explains how to build the kit and how to use the printer – Download
CNC milling machine transformation manual: how to transform your 3D printer into a CNC milling machine – Download

Latest Firmware

K8200 firmware Marlin V1: version 1 of the k8200 firmware called Marlin based on Sprinter and grbl Reprap firmware. Copyright (C) 2011 Camiel Gubbels / Erik van der Zalm – Download
K8200 firmware Marlin V2: version 2 of the k8200 firmware called Marlin based on Sprinter and grbl Reprap firmware. Copyright (C) 2011 Camiel Gubbels / Erik van der Zalm.This version supports the VM8201 (LCD and SD card controller. – Download
K8200 firmware K8200 V2.1.1: this version supports the K8204 Z AXIS UPGRADE ROD AND COUPLER FOR K8200 and the VM8201 LCD and SD card controller. DO NOT FORGET TO RESET YOUR EEPROM SETTINGS AFTER THE UPGRADE!. Copyright (C) 2011 Camiel Gubbels / Erik van der Zalm – Download

STL and GCODE files

K8200 board cover: .STL 3D file for the board cover (needs to be sliced before you can print this file, see the manual how to do this). – Download
K8200 board cover: .GCODE file for the board cover (can be printed directly with a K8200). – Download
K8200 fannozzle: .STL 3D file for the fan nozzle (needs to be sliced before you can print this file, see the manual how to do this). – Download
K8200 fannozle: .GCODE file for the fan nozzle (can be printed directly with a K8200). – Download
VM8201 enclosure files: contains all the .STL files for the VM8201 module enclosure. – Download
Glass plate clip: use these clips (4x) to clamp the GP8200 glassplate tot the printing bed. – Download

Slic3r configuration

K8200 PLA standard: slic3r configuration file for standard PLA prints. Consult the K8200 manual on how to use this file. This file is only compatible with Repetier 0.84 and Slic3r 0.9.8. – Download
K8200 PLA standard new: slic3r configuration file for standard PLA prints. Consult the K8200 manual on how to use this file. This file is only compatible with Repetier 0.90 and Slic3r 0.9.10b. – Download
K8200 ABS standard new: Slic3r configuration file for standard ABS prints. Consult the K8200 manual on how to use this file. This file is only compatible with Repetier 0.90 and Slic3r 0.9.10b. Make sure to read the FAQ’s on how to get good result printing with ABS! – Download

0.

35mm Direct drive extruder for K8200 3D printer (K8203)

Firmware K8200 V2.2: this version supports the K8203 DIRECT DRIVE EXTRUDER and the VM8201 LCD and SD card controller. DO NOT FORGET TO RESET YOUR EEPROM SETTINGS AFTER THE UPGRADE!. Copyright (C) 2011 Camiel Gubbels / Erik van der Zalm. – Download
Firmware K8200 V2.3: this version supports the K8203 DIRECT DRIVE EXTRUDER and the K8204 Z AXIS UPGRADE ROD AND COUPLER FOR K8200 and the VM8201 LCD and SD card controller. DO NOT FORGET TO RESET YOUR EEPROM SETTINGS AFTER THE UPGRADE! (C)2011 C. Gubbels E. van der Zalm – Download
K8203 PLA standard: slic3r configuration file for standard PLA prints. Consult the K8200 manual on how to use this file. This file is only compatible with Repetier 0.90 and Slic3r 0.9.10b. – Download

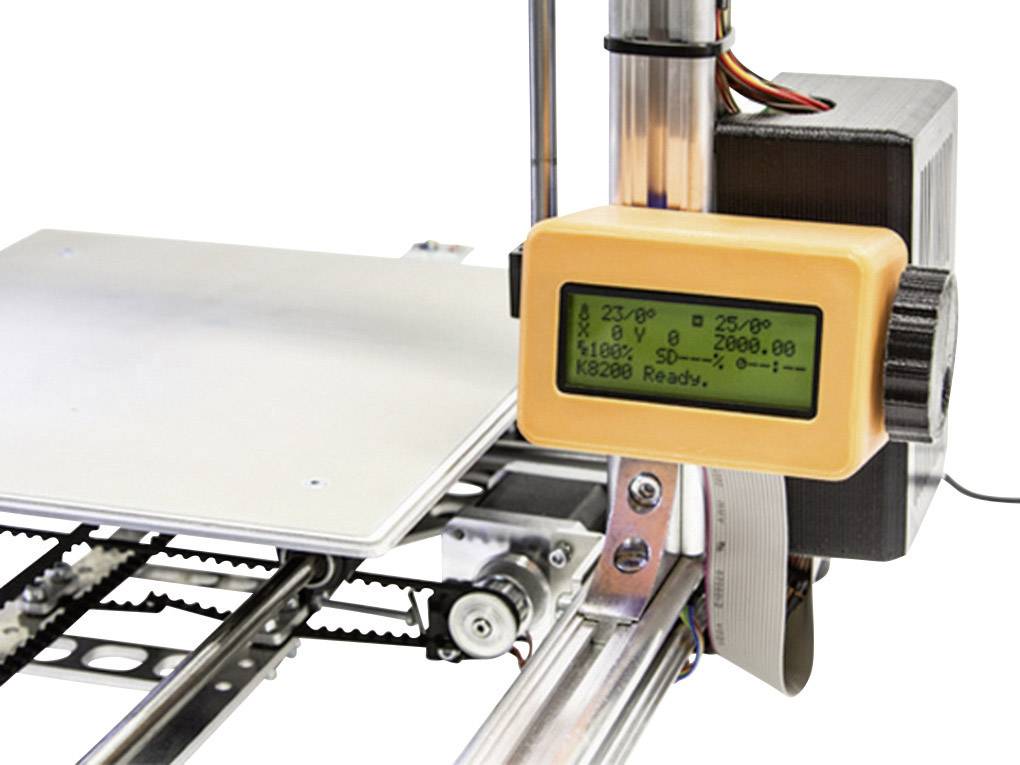

Stand-alone controller for K8200 3D printer (VM8201)

assembly instructions: manual explaining how to mount the module. – Download
VM8201 enclosure files: contains all the . STL files for the VM8201 module enclosure. – Download

K8200 3D Printer head LED ring (VM8202)

Assembly instructions: manual explaining how to mount the module. – Download

We use cookies to ensure that we give you the best experience on our website. If you continue to use this site we will assume that ypu are happy with it. Read more

Reprap Velleman K8200 3D Printer Kit - Most Hackable, Tweakable 3D Printer

Home
Store
Reprap Velleman K8200 3D Printer Kit - Most Hackable, Tweakable 3D Printer

The perfect DIY project! Why build your own 3D printer? When you build it yourself you have an innate understanding of the fundamentals of 3D printing. This increases your capability to build and create anything you can imagine! Assemble this printer and start building your dreams!

Remove from wishlist Add to wishlist loading. ..

Product No. M-AUG-38MV

List Price:	$599.00

Stop dreaming and start doing with the Velleman K8200 3D printer kit. Sure, you've been investigating 3D printing for a while now. But now is the time to take action and start building and creating custom parts, household goods, or anything else you can imagine! In the days of old intro level 3D printers used to cost upwards of $3,000. Now we are pleased to offer the Velleman K8200 3D printing kit for an industry low price point of $599 (with free shipping). This is your chance to be a part of the 3D printing revolution and to start creating the products that you use every day. The Velleman K8200 is an incredibly sturdy and accurate 3D printing machine which will act as a workhorse for you for years to come. This printer is the perfect summer project (will probably take you 10-20 hours to assemble). By assembling your own 3D printer you gain a deep and functional level of understanding of the mechanics of 3D printing. This puts you at a distinct advantage when 3d printing because you know how to optimize your prints and how to make adjustments to get the most accurate prints possible. Now is the time to take action and purchase your very own DIY 3D printer kit by Velleman. Order before 1:00 PM PST and we will ship it out the same business day via priority mail (that means you will get your printer 2-3 days after ordering).

Tech Specs

- The K8200 is compatible with MatterControl and MatterSlice

- Prints in PLA and ABS

- Linear ball bearings: 8 and 10 mm (0.314" and 0.393")

- Technology: FFF (Fused Filament Fabrication)

- Power supply: 15 V / 6,6A max.

- FTDI USB 2.0 to Serial

- Dimensions of printable area: 20 x 20 x 20cm / 7.87 x 7.87 x 7.87"

- Typical printing speed: 120 mm/s

- Maximum print speed: 150 to 300 mm/s (depending on the object to be printed)

- Extrusion nozzle: 0.5 mm

- Extrusion thermistor: NTC 100K

- Extruded aluminum profiles: 27. 5 mm / 1.08" wide

- Movement: 4 NEMA 17 stepper motors

- Nominal mechanical resolution:

- X and Y: 0.015 mm / 590.55 µin (smallest step the printing plate can move in the X and Y direction)

- Z: 0.781 µm / 30.74 µin(smallest step the printing plate can move in the Z direction)

- Nominal printing resolution:

- Wall thickness (X,Y): 0.5 mm / 0.019"

- Layer thickness (Z): 0.20 - 0.25 mm / 0.0078 - 0.0098"

- Dimensions:

- Width: 50cm / 19.7"

- Depth: 42cm / 16.5"

- Height: 62cm / 24.4"

- Weight: 9Kg / 19.84lbs

- Software: MatterControl

- Included: 5m PLA black sample

User Manuals

Short user manual

Assembly manual

User manual

Please note that printer kits are not returnable after having been opened and worked on. If there is a problem with the packaging or damage during shipment please return the product immediately, otherwise a return will not be offered after assembly.

First "home" 3D printer will cost £700

RIA Novosti: Bolshoi Potemkin Island near Kherson is fully controlled by the RF Armed Forces 20:18

The US authorities are stepping up the fight against illegal migration by placing additional. .. 20:06

The head of Chuvashia, Nikolaev: in Cheboksary, after the fire, an emergency mode was introduced 20:00

Marat Kasem, editor-in-chief of Sputnik Lithuania, was detained in Riga 19:58

Seventh Fleet Press Service: US Navy ship made passage through the Taiwan Strait 19:50

The RFU reacted to the words of Kanchelskis about fixed matches of the national team... 19:49

Chinese BYD introduced an SUV in the style of the new Land Rover Defender 19:38

Polyansky refused to discuss in the UN Security Council "copied"... 19:37

Ministry of Defense of the Russian Federation: on behalf of Putin, troops in the special operation zone will cease fire for 36... 19:34

The Russian Orthodox Church welcomed Putin's instruction on a Christmas truce in the... nineteen:27

July 10, 2013, 19:59 Technology

100%

The first "home" 3D printer Velleman K8200 went on sale in the UK. It allows you to print small parts from plastic with a side length of no more than 20 centimeters. You can buy the device for 700 pounds, consumables will cost 30 pounds per kilogram.

The

Compact Home 3D Printer is now available for pre-order at UK online retailer Maplin Electronics for £700 (approximately $1,040). Maplin's press service told Gazeta.Ru that the printers will be delivered to the first buyers on September 23rd. nine0003

“Until now, the cost of 3D printers has limited their use to the professional market. However, with the release of the Velleman K8200, we can introduce it to the mainstream market as well,” Maplin commercial director Oliver Meakin told The Daily Telegraph.

The Velleman K8200 3D printer allows you to print small objects from plastic with a side length of no more than 20 centimeters. The creators of the device, for example, claim that the printer is great for printing original cases for mobile phones, accessories or toys. nine0003

The printer uses what is known as plastic resin as a printing consumable and is now available for £30 per kilogram. Resin comes in different colors and can only be used once for printing. If the user wants to create a multi-colored object, he will need to print the parts of different colors separately.

To create an object on a 3D printer, you first need to develop a three-dimensional model of it on a computer. The simulation program can be downloaded for free. Having received the task, the printer “builds” the object by applying plastic in layers 0.5 mm thick. In order to print a case for a smartphone in this way, it will take about half an hour, the company says. nine0003

Meekin expects families and schools to be most interested in the device. “I hope some kids will build objects on a 3D printer instead of playing video games,” he said.

Maplin's 3D printer model has another interesting feature: customers receive it in a DIY kit. It may take up to 10 hours to assemble the device, company representatives warn.

“We chose this model because it provides quality printing at an affordable price for our customers. In addition, it must be assembled before use, which fits perfectly into the concept of our store. Our customers pay not only for the printer itself, but also for the experience of creating it, ”said Mikin. nine0003

Until now, 3D printers have not been available to the general public. One of the main obstacles was the high cost of an industrial 3D printer and materials for it. However, even before reaching the mass market, 3D printers became the subject of discussion and debate.

With 3D printing, you can create not only toys, cases, product models or shoes, as Maplin offers, but many other things. For example, American doctors are using 3D printing technology for developments in the field of regenerative medicine. For example, last week in the USA they printed a prosthesis paw, with the help of which a sick duck again was able to walk and swim , and in May, Defense Distributed developed a functioning plastic pistol, , which can even be printed on a home 3D printer. The creator of the weapon posted files with drawings on the Internet, but the US State Department demanded that they be removed.
