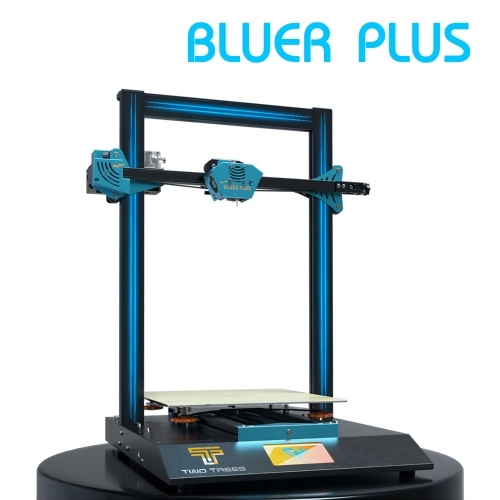

Two trees bluer plus 3d printer
TwoTrees 3D Printer BLU-5(Bluer Plus) Desktop i3-style Auto-leveling BMG extruder – TwoTrees Official Shop
Home Bluer Plus(BLU-5) i3-style 3D Printer - TwoTrees
ex.VAT, Direct Ship & Free Shipping over $100
€225,74
US 110V
EU 230V
UK 230V
AU 230V
1-Year Warranty Terms & conditions
Limited-Time Offers, End in:
Black Friday Deals 2022 - Save Your Money! | Benifit | Coupon | |
Twotrees Hello Coupon | 3% OFF | TT3 | |
Laser Engraver | TS2 | 16% OFF | TS2 |
Laser Engraver | TS3 | $50 OFF | TS3 |
Laser Engraver | TTS Series | $30 OFF | TTS30 |
Air Assist Kit | Air Assist Kit | $20 OFF | AIR20 |
TR2 Pro Rotary | TR2 Pro | $50 OFF | TR2 |
Accessories | ACCESSORIES & MATERIAL PACK | Spend over $100 and get $15 off | O1G15 |
* Please add machine and accessories to cart then apply discount coupon.
283 customers are viewing this product
Reliable Metal Design: This printer is mainly composed of 2040 aluminum extrusion and sheet metal base, which makes this large size printer stronger and less prone to deformation. The position of the base motherboard is designed with a skylight, which is convenient for viewing the motherboard and replacing the driver. The surface of the sheet metal base is painted, anti-scratch, anti-rust, and more beautiful. Auto-leveling system: Magnetic PEI print beds are also easy to use, thanks to the auto-leveling system built into the hot end. When the filament runs out, the extruder stops printing and sounds an alarm.
Quiet and Precise Printing: Our 3D printer uses a transparent double wheel extruder, 32-bit silent motherboard, synchronized dual Z-axis, and printing is more precise and quiet. Printing accuracy: ±0.1mm. 1.75mm printing material: PLA, ABS, PETG, TPU, wood, etc.
Smart Color Touch Screen: Our 3D printer uses a 4.3" color touch screen, which is much larger than other 3.5" screens. Sensitive and simple operation, easy to use. Do you have any other questions? Then please contact us.
Resume Printing: Our 3D printers can resume printing after a power outage or other unexpected downtime. Save time, material and effort. Large print size: 300 x 300 x 400 mm. Larger size models can be printed.
Tags: / 3D Printer / Clearance / I3 Printer / Machines
Frequently Bought Together
Please choose options for all selected products:
This item: Bluer Plus(BLU-5) i3-style 3D Printer - TwoTrees
€225,74
Select Options
Select options
US 110V
EU 230V
UK 230V
AU 230V
1kg PLA Filament 1. 75MM Per Roll More Toughness Non-Toxic Fast Shipping 1.75 Impressora 3D Filament For 3D Printer 3D Pen
€18,72
Select Options
Select options
Red
Blue
Green
Yellow
Orange
White
Grey
Black
4pcs(Random) - Save 25%OFF
10pcs(Random) - Save 28%OFF
Makerbase 3D Touch Sensor Auto Bed Leveling reprap mk8 i3 ender 3d printer parts
€16,76
Select Options
Select options
Standard
With Cable L1700mm
With needle
With Cable L1700mm & needle
Trimming knife Scraper 3D print tool 3D printer tool
Square Heatbed Sticker Hot Bed Build Plate Tape Surface Flex Plate for Ender 3
€14,79
Select Options
Select options
Blue(with handle)
220x220mm
235x235mm
310x310mm
PEI Magnetic Base Textured Hotbed For 3D Printer
€25,63
Select Options
Select options
220x220mm
235x235mm
310x310mm
Total: €0,00
Bluer Plus(BLU-5) i3-style 3D Printer - TwoTrees
US 110V - €225,74
- US 110V - €225,74
- EU 230V - €225,74
- UK 230V - €225,74
- AU 230V - €225,74
You have successfully subscribed!
This email has been registered
Two Trees is dedicated to making our efforts to provide our customers best after-sale service.
If any quality issues, please feel free to contact us to get professional and timely help and instructions.
AFTER-SALE & RETURN POLICY
Newsletter
Join Our Mailing List
Sign Up for exclusive updates,
new arrivals & monthly discounts code
Ask the Tech Expert anything on TwoTrees 3D Official Store
We will follow up with you via email within 24-36 hours
Please answer the following questionnaire
US 110V
EU 230V
UK 230V
AU 230V
{{ tier_title }}
","reward_you_get_popup":"You get","reward_they_get_popup":"They get","reward_free_shipping_popup":"You get free shipping discount\r\n They get free shipping discount","reward_you_get_free_popup":"Free shipping","popup_item_tier_benefits_title":"Benefits","popup_item_tier_benefits_next_tier":"Next tier","popup_item_tier_benefits_list_of_tiers":"List of tiers","reward_tier_achieved_on":"Achieved on {{ month }} {{ day }}, {{ year }}","reward_tier_multiply":"Multiplier","reward_tier_multiply_points":"{{ multiply_points }}x","earn_tier_more_points":"Earned {{ more_points }}/{{ next_tier_points }} {{ points_name }}","reward_as_discount":"{{ amount }} discount","reward_as_points":"{{ amount }} {{ points_name }}","reward_as_gift_card":"{{ amount }} gift card","flexible_discount":"Discount","flexible_discount_price":"Discount price","available_discount_title":"You don't have any available rewards at the moment","reward_your_tier":"Your tier:","reward_next_tier":"Next tier:","reward_page_confirm":"Confirm exchanging","reward_redeem_cancel":"Cancel","reward_redeem_confirm":"Confirm","reward_page_earn_points":"Earn points","reward_not_enough_points":"Not enough points","select_rewards":"Select Reward","reward_birthday":"Birthday","reward_enter_birthday":"Enter your birthday","reward_please_enter_birthday":"Please, enter your birthday","reward_enter_valid_birthday":"Enter valid birthday date","warning_title_for_reward":"Oops, it seems like the Loyalty & Rewards program is not available for this account. ","warning_title_for_reward_requirelogin":"To participate in our Loyalty & Rewards program, you should verify your account first. Please log in to check your eligibility.","reward_notifications_earned_points":"You’ve earned {{ points_name }}!","reward_notifications_spend_your_points":"Spend your points! You have {{ point_balance }} {{ points_name }}","reward_activity_reset_points":"Reset points","reward_activity_reset_tiers":"Reset tiers","reward_activity_reset_tiers_description":"","reward_notifications_you_have":"You have{{ points_name }}","reward_notifications_discount_check":"Use discount on the check out page","reward_notifications_add_discount_to_your_cart":"You have available discount. Add discount to your cart!","reward_discount_unavailable":"Discount unavailable","reward_program_emails":"Reward program emails","reward_title_earn_for_place_order":"Buy this item and earn {{ points_count }} {{ points_name }}","reward_title_earn_for_place_order_on_cart_or_checkout":"You are earning {{points_count}} {{points_name}} on this purchase","reward_save_btn":"Save","reward_delay_points_pending_status_rule":"Pending","referral_page_inviting_text":"By Inviting Your Friend","referral_page_your_benefit":"Your Benefit","referral_page_your_friends_benefit":"Your Friend's Benefit","referral_page_get":"Get","referral_page_no_reward_text":"praised by inviting your friends!","referral_link":"Referral link","copy_link":"Copy Link","referral_page_share_title":"Share on Social Media","referral_page_active_discounts":"Active discounts","claim_referral":"Claim","referral_notification_label":"Please enter your email to claim the gift","email_sent_successfully":"Your email has been sent successfully!","referral_page_share_link_not_log_in":"Log in to start sharing your link","reward_activities_order_refund":"Order refund","reward_activities_order_updated":"{{rule_title}} (Order updated)","activity_refund_earn_point":"-{{ points_count }} {{ points_name }}","activity_refund_earn_points":"-{{ points_count }} {{ points_name }}","activity_order_tier_lowered":"Tier lowered ({{ tier_title }})","order_refunded_activity_spend":"+{{ points_count }} {{ points_name }}","reward_activity_discount_refund":"Discount refund","reward_activity_gift_card_refund":"Gift card refund","refund_tier_activity_discount_refund":"Discount refund ({{ discount_code }})","referrer_guest_notify_message":"Sign up to get your discount","reward_sender_block_list_in_referral_program":"Sorry, this referral link is no longer active","referral_title_history":"History","referral_not_allowed_to_use_referral_program":"You are not allowed to use referral program","referral_no_activity":"No activity","referral_history_customer_name":"Name","referral_history_customer_email":"Email","referral_history_status":"Status","referral_history_date":"Date","order_redeem_discount_name":"Discount redeem on the order ({{ name_order }})","discount_expire_in_day":"Discount expires in {{ days_count }} day","discount_expire_in_days":"Discount expires in {{ days_count }} days","activity_discount_expired_code":"Discount expired {{ code }}","activity_discount_expired":"Discount expired","current_balance":"Current balance","birthday_gift_multiply_message":"Points for every order placed on your Birthday will get multiplied by {{ multiply_points }}!","your_discount_code":"Your discount code:","verify_account_message":"To get reward for creating an account, please verify your email address. ","verify_account_email_is_send_massage":"Verification email sent,
please check your inbox.","verify_account_button":"Verify account","spending_card":"Spending rule card","minimum_purchase":"Requires minimum purchase {{ discount_amount }}","tier_info":"Tier info","completed_rule":"Completed rule","earning_rule":"Earning rule","reward_popup":"Reward popup","birthday_field":"Birthday field","shop_it":"SHOP IT","back":"Back","click_for_sound_on":"Click for sound on","click_for_sound_off":"Click for sound off","view_on_instagram":"View on Instagram","view_on_tiktok":"View on Tiktok","instagram_gallery":"Instagram Gallery"}
Two Trees Bluer Plus (BLU-5) Review - Where's The QC?
With the Bluer Plus, Two Trees adds to their offering a large format cartesian 3D printer boasting a few interesting hardware features like 0.9-degree stepper motors, BMG extruder, auto-leveling v-slot wheels and a PEI sheet out of the box.
I was skeptic for testing this printer because I suspected quality control would be an issue, but I still gave the Bluer Plus a chance. Did it live up to my expectations? Let’s see.
Bluer Plus Shipping and Packaging
The Bluer Plus comes in a large carboard box, with ample protective foam on all sides. All the items are well packaged, and the printer should withstand any shipping challenges.
With the Bluer Plus, you get the following accessories:
- Manual
- USB Cable
- 2x RJ45 patch cords
- 200g PLA sample
- Spool holder
- Clippers
- PTFE tube
- Spare volcano nozzle
- Zip ties
The printer should have included a card reader with an SD card, but that’s missing from my package.
Assembly of the Bluer Plus
The Bluer Plus comes mostly pre-assembled, and you just need to connect the gantry to the base of the printer with four screws. Next, you install the three bundled cables and you’re almost done.
The hotend assembly is installed using two screws and after you also insert the PTFE tube the printer is ready to go.
When I first saw the Bluer Plus, I was not really a fan of the blue accents, but I must say that in real life it looks quite good.
One thing I noticed is that the gantry is much more stable than expected. There is quite less wobble compared to the Artillery Sidewinder X1 or the Mingda D3 Pro.
Bluer Plus Specs
Model | Bluer Plus |
Platform Size | 300*300*400mm |
Printing Accuracy | ±0.1-0.2mm |
Layer Thickness | 0.1-0.4mm |
Printing Method | SD Card/Online Printing |
Printing Speed | 20-200mm/s |
Extrusion Head Temperature | 260°C Max |
Heated Bed Temperature | 100°C Max |
Support Filament | PLA/ABS/PETG/Wood |
Filament Diameter | 1.75mm |
Software Format | STL/OBJ/JPG |
Print File Format | Gcode |
Power Supply | 220V/110V 360W |
Plug | EU/US/UK/AU |
Language | English/French/Spanish/German/Korean/Russian |
MKS Robin Nano V1.
2 – 32 bit board with TMC2209Powering the Bluer Plus we have a MKS Robin Nano V1.2, with four TMC2209 steper drivers. It’s a decent board which I used on a couple of printers without issues.
I would have liked to see the MKS Robin Wi-Fi module installed on the board from the factory, but this is not the case. Even so, upgrading the printer with Wi-Fi capabilities is easy. Just buy the module and install it in the dedicated slot.
I really like that the board is easily accesible from the top left side of the board, by simply removing four screws.
A 4010 fan is installed next to the board, which blows towards the board, but the airflow is low and the position is not that great either. Consider that there’s no cooling installed for the stepper drivers.
Even so, the stepper drivers are not overheating, and I haven’t experienced any lost steps during printing.
300×300 Heated Bed with PEI Magnetic Spring Steel Sheet
The print surface included with the Bluer Plus is a PEI spring steel sheet with a magnet sticker. Unfortunately, it doesn’t come pre-installed so you will need to apply the sticker yourself.
It’s not a complicated process. You just need to carefully align the corners of the sticker then gradually apply it to the aluminum bed making sure you don’t trap air bubbles.
Of course, the aluminum bed should be cleaned properly before applying the magnetic sticker to avoid adhesion issues.
The print surface works well, and adhesion is really good. It’s nice to see that most of the printers come with removable print sheets out of the box. This feature makes 3D printing much less frustrating for beginners because it solves the adhesion issues while also improving the removal process.
There is no bed insulation under the bed, and that’s a bit unfortunate because with added insulation, the printer would be more efficient when it comes to power draw. Besides that, there’s also no strain relief for the bed cable, but you can grab this one from Thingiverse and print your own.
Another thing I noticed is that the bed heats up a bit higher than the temperature shown on the screen. For example, when the bed is set to 60C, the measured temperature on the PEI sheet surface is ~68C.
Low quality PTFE lined hotend
I really hoped that Two Trees took their time to source another type of hotend, but instead, they used the same low quality hotend like with the Sapphire Plus.
The only difference for the Bluer Plus is the use of a volcano heatblock and nozzle.
I like the looks of the print head assembly, but it will be hard to adapt a different hotend to this printer, and also keep the original shroud.
360W Generic Power Supply
The Bluer Plus comes with a generic 360W power supply and to be honest, I wasn’t expecting anything else from Two Trees because they take every chance, they can to save a few cents with their printers.
I didn’t encounter any issues caused by the PSU during my time with the printer, but the fan is quite loud and it’s not spinning with a constant speed. That’s a sign of a low-quality and I expect it to fail soon.
3D Touch Auto Bed Leveling Sensor
Besides the regular assisted manual leveling you get on most printers, we also get a BLTouch clone installed out of the box. It works, and I can’t say I can see any difference between this one and the original BLTouch.
The bed is probed in 16 points then the mesh is saved. After probing, you are also asked to set the Z offset which is quite nice.
Since I’ve leveled the bed and set the Z offset, there was no need to repeat the process.
Dual Z Axis with Z sync belt
Another interesting feature of the Bluer Plus is the inclusion of Dual Z axis with a Z sync belt. This feature started to be quite common on larger format 3D printers and it’s nice to see it included with the Bluer Plus.
BMG extruder clone
The BMG extruder clone used with the Bluer Plus works well when it’s correctly installed, but of course, I had issues with it.
After fixing the issues, it performed well and I must say it’s a decently built BMG clone.
Auto-adjusting v-slot wheels
This is a particularly interesting feature of the Bluer Plus. The v-slot wheels don’t use regular eccentric nuts. Insdead, they use a strong spring which pushes the wheel against the v-slot.
I must say, this is working quite nice and it’s a great idea. No need to fiddle with tightening the wheels for the Z axis. Unfortunately, this feature is not present on the X and Y axis.
0.9 stepper motors
Having 0.9-degree stepper motors is quite rare for budget 3D printers, but Two Trees managed to install them on all axes. I’ve only previously seen this feature on the BIQU BX which is sort of a more premium machine.
I can’t really confirm if these stepper motors improve the quality dramatically, but I can see fewer stepping artifacts for smooth wall prints.
Unfortunately, I feel that these motors a bit louder compared to other 1.8-degree stepper motors when printing at higher speeds, but this might be related to the way the stepper drivers are configured.
Bad quality fans
I think this is one of the biggest issues of the Bluer Plus: the fan quality. All the fans used for the Bluer Plus are made by Usongshine which is a brand that Two Trees sells on their AliExpress store.
When I first started the printer, I could only hear the PSU fan. After about 2 hours of printing, I noticed that the hotend fan started to spin faster and was louder. After about 20 hours of printing, the fan started to be inconsistent when it comes to speed and sometimes it would just stop for a second or two. This is not something you want to see especially for a fan so important.
I previously bought similar fans and the quality is really bad. I expect these fans to need replacement soon, so if you plan to purchase this machine, I strongly recommend getting spare 4010 fans.
Belt Tensioners for X and Y
With the Bluer Plus, you also get belt tensioners for the X and Y axis, to make tightening the belts easier. This is a good upgrade to any printer if implemented right, but this wasn’t the case for my Bluer Plus because the Y belt was too long.
Having these issues with a brand new machine is not something I like seeing and this is proof that Two Trees doesn’t take quality control too seriously, but I will go over this topic later.
RJ45 connectors
Two Trees chose to use RJ45 connectors and network patch cords between them to power the hotend assembly, endstops and two of the motors. I like this implementation because it makes the printer look a bit cleaner.
Below, you can see the breakout board inside the printer.
MKS 4.3-inch touchscreen
The MKS 4.3 TFT touchscreen included with the Bluer Plus is fine but doesn’t stand up with extra features compared to the smaller 3.5-inch version I checked on the Sapphire Plus.
The firmware is updated with extra functionality, and you get easy access on most of the controls.
Unfortunately, the screen included with the printer was not working correctly out of the box, and I needed to open up the machine again to troubleshoot. More about this later.
After fixing the issue, I was able to properly use the screen. It’s responsive and works well, so I don’t think there will be issues in the future with it.
Lack of proper quality control
Touchscreen not working correctly
As previously mentioned, the touchscreen was not working well out of the box. Half of the screen was not detecting touches and was clicking other screen items.
After about 30 minutes of troubleshooting, I discovered that the screen was tightened too much on the printer’s frame. To fix this, I removed all screws and installed four small spacers between the screen and the frame which fixed the issue.
Hotend not installed correctly
I noticed this issue when I opened up the hotend assembly to take a few pictures. This happened during assembly, so the printer was not previously used.
The hotend looks to be pre-tested but the person doing this task didn’t check whether there are any leaks. I did, and as you can see red filament from the first test was leaked around the hotend.
After hot tightening the hotend and after completing the first print, I noticed plastic blobs around the silicone sock. I opened up the hotend again just to see the same issue.
I spent another hour troubleshooting this issue and I concluded that the heatbreak machining was not good enough to seal up properly, and I needed to replace it.
The good news is I had a spare laying around from when I replaced the hotend on my Sapphire Plus. I took that heat break, installed everything again and I was able to finally print reliably.
Y belt was too long
I previously told you that the Y belt tensioner was not working correctly because the Y axis belt was too long, and even with the Y tensioner cranked up to the max, I was not able to properly tighten the belt.
To fix this issue, I needed to remove the bed completely, shorten the belt a bit, then put everything back together. Another 30 minutes of troubleshooting invested in this machine…
Extruder motor gear not tightened
Another issue on the list of bad quality control for the Bluer Plus is the extruder motor gear. When printing the first benchy, the printer stopped extruding filament, but manually pushing filament was fine.
I concluded that the extruder has something to do with this and I opened it up to see that the motor gear was not properly tightened. The grub screw was not positioned on the D cut side of the motor and it wasn’t tightened properly.
After tightening the grub screw and putting everything back together, the printer was extruding correctly.
Heating time and power consumption
I tested the heating time for both hotend and heat bed and here are the results:
Hotend
- 200C in 60 seconds
- 250C in 75 seconds
Heatbed
- 60C in 4 minutes
- 95C in 16 minutes
Power Draw
Idle power draw is around 9W. When the hotend and heatbed are heating up, the Bluer Plus draws around 360W. After it starts printing, the power fluctuates between 60W and 250W.
All these measurements were taken with a Blitzwolf smart power socket which indicates the power draw, and it can also be used for remotely powering on and off the printer.
Bluer Plus Noise Levels
IdeaMaker profiles for Bluer Plus
During my time with the printer, I also tuned three IdeaMaker profiles for the Bluer Plus using the tools available in the 3D Printer Calibration Guide using IdeaMaker article. These profiles are tuned for the stock printer and worked well for me. Feel free to give them a go.
Bluer Plus IdeaMaker Profile – PLA – 3DPrintBeginner
Bluer Plus IdeaMaker Profile – PETG – 3DPrintBeginner
Test prints on Bluer Plus
3D Benchy
After fixing the printer, I was able to print my first 3D Benchy and the quality is decent for a first print.
- Material: Sunlu Gray PLA
- Layer Height: 0.2mm
- Nozzle Temperature: 205C
- Bed Temperature: 60C
- Print Speed: 50 mm/s
Grey Owl
The second print was this Grey Owl because I wanted to compare it with a different printer I’m testing now. The print looks great and can’t really complain about it.
- Material: Sunlu Gray PLA
- Layer Height: 0.15mm
- Nozzle Temperature: 200C
- Bed Temperature: 60C
- Print Speed: 50 mm/s
Phil-A-Ment
I printed Phil-A-Ment at 70% scale to test the cooling performance of the part cooling fans. I’m quite happy with it, considering that the speed is higher than usual (increased acceleration and jerk).
The underside of the gloves looks fine, and the backpack is flawless.
- Material: Sunlu Gray PLA
- Layer Height: 0.15mm
- Nozzle Temperature: 200C
- Bed Temperature: 60C
- Print Speed: 50 mm/s
Desert’s Kiss
The Desert’s Kiss took around 38 hours and the print, but this was the second try. First print failed due to a short power outage (a few seconds).
When the printer started, I was able to re-start the print but while the hotend moved on the same position to continue the print, the extruder was not pushing any filament.
- Material: Sunlu Gray PLA
- Layer Height: 0.16mm
- Nozzle Temperature: 200C
- Bed Temperature: 60C
- Print Speed: 50 mm/s
Daenerys
I had some leftover Glint Purple filament, so I printed this Daenerys bust from Thingiverse. The finish is excellent and I’m really happy with the results.
- Material: FilamentOne PLA Glint Purple
- Layer Height: 0.15mm
- Nozzle Temperature: 200C
- Bed Temperature: 60C
- Print Speed: 50 mm/s
Elf Archer Bust
The filament spool was not depleted so I did another print, this time the Elf Archer Bust. As with the previous print, I can’t really complain about the print quality.
- Material: FilamentOne PLA Glint Purple
- Layer Height: 0.15mm
- Nozzle Temperature: 200C
- Bed Temperature: 60C
- Print Speed: 50 mm/s
Psychic Elemental
Finally, I printed the Psychic Elemental in PETG and it looks great. Considering the small base, it has, it completed successfully, and the bed adhesion was great.
Considering the complex feature of this model with large overhangs and PETG material, the print quality is quite awesome
- Material: Devil Design Galaxy Black PETG
- Layer Height: 0. 15mm
- Nozzle Temperature: 230C
- Bed Temperature: 70C
- Print Speed: 50 mm/s
2022 Update: Updated Bluer Plus / BLU-5 3D Printer
Two Trees has updated the Bluer Plus printer, and the name has also been updated to BLU-5. They contacted me to ask if I want to check out the revised machine and post an update to the review. I accepted.
Please note that I cannot guarantee this is the same printer as you can receive from an online shop. I have no way of validating that this is exactly the same configuration other people will receive when ordering a machine. If you purchased a BLU-5 recently, and found the same upgrades, please leave a comment to confirm.
Here’s how Two Trees updated the Bluer Plus / BLU-5:
- The bed cable now has a strain relief from factory
- The bed v-slot wheels came really loose and three of the bed leveling knobs got unscrewed during shipping. You can tighten the eccentric nuts and fix this problem, but I hoped this wouldn’t be a problem anymore.
- The board comes with an extra stepper driver, but the G34 command is not enabled in the firmware. Besides that, the top Z sync belt is still installed. You could remove the belt and re-compile the firmware with G34 but I wonder why this hasn’t been enabled from factory.
- Part cooling fans have been upgraded to 2x 4020. One powered from the PSU, and the other powered from the board. This is a nice upgrade to provide better cooling, but the noise levels have been increased and you can feel a small vibration when idle.
- I received 2x 4GB micro SD cards (one in the SD card slot and one in the package).
- The printer has a pair of 3D printed supports to keep the gantry fixed during shipping
- I haven’t encountered any QC issues with the extruder, like I did with the first printer I reviewed.
- The hotend is not changed. It’s still one of the lowest quality hotends on the market and I strongly recommend upgrading the heat break with a bi-metal or a titanium variant. Fortunately, the PTFE tube was inserted correctly and I didn’t experience any clogs for now.
- The spool holder is unchanged and it’s not compatible with filament spools wider than 70mm.
- One of the part cooling fans is noisy/causes vibrations out of the box. It probably needs to be replaced soon.
- The hotend and heatbed heating is turned off if the thermistors are disconnected from the board, a sign that the printer has thermal protection enabled. An error 3 / error 4 shows up on the screen and the set temperature goes to 0.
Overall, the BLU-5 3D Printer from Two Trees is going to the right direction, but some parts (hotend, fans) are really low quality hindering the performance of the printer. I wouldn’t mind paying an extra 10-20$ for the printer, but have better quality parts. The PEI sheet should be installed right from the factory, because a new user wouldn’t want to spend time on installing it, and if the user is a beginner, there are high chances of a bad installation.
The conclusion hasn’t changed too much with the new machine. It’s still a decent printer if you want to put a bit of work in fixing some of the issues this printer has, but only if you get it for a good price (around ~350$). The base hardware configuration is good enough to be worth upgrading and have some of the best print quality on the market.
Conclusions: Is the Bluer Plus worth it?
I developed a love-hate relationship with the Bluer Plus. On one side, I hate it because the quality control seems to be completely missing. All those issues I encountered should not be present on a 3D printer because it can cause a lot of frustration to the end user.
For me, Two Trees is currently lower on the list of recommended brands just because the quality control is not as good as with other 3D printers I reviewed. Fortunately, after checking the 2022 version of the Bluer Plus / BLU-5, there are some signs of improvement from Two Trees. I hope this continues and the QC will get better over time, while they also listen to the community feedback to improve their products.
But on the same time, I love the print quality you can get with the Bluer Plus which is quite good for a large format printer. The overall build quality is also decent, and I’d say it’s a good starting point if you are a modder who is looking to upgrade a few things to make this a great 3D printer.
Would I recommend getting this printer? Depends on what type of user you are.
If you are looking for a ready-to-go large format 3D printer, that doesn’t require too much work, don’t get the Bluer Plus. I recommend you check out other machines like the Artillery Sidewinder X1 or Sidewinder X2. They have less QC issues out of the box.
If you are looking for a cheap project printer that’s capable of quality prints after some time spent upgrading and fixing some issues, then feel free to give the Bluer Plus a go. It has quite a list of upgrades already done, and after fixing a few of the issues covered, it can become a workhorse.
Where to buy the Bluer Plus?
The Bluer Plus can be purchased from the following websites:
Amazon
Banggood
AliExpress
Geekbuying
I recommend checking out the Discount Codes page before purchasing. I regularly update the article with discount codes for various online shops, and you might find one for this particular model.
The Bluer Plus was provided free of charge by Banggood for the purpose of this review. While the article includes affiliate links, all opinions are my own. Nobody reviewed the article before it was posted, following the Review Guidelines.
Liked it?Consider supporting 3DPrintBeginner if this content helped. You can also join Patreon for exclusive perks! |
Two trees Bluer Plus review, or what can the Chinese do? (Part 2) Guys, I'm sad!!!
Reviews
Subscribe to the author
Subscribe
Don't want
3
Good day to all.
Relatively recently, I did the first part of the review on Two trees Bluer Plus. Link here.

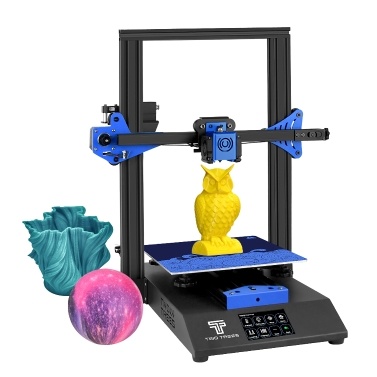

Photo for clarity of the printer itself
I'll tell you honestly. ... I'm shocked and saddened.
Here is a list of problems , which I encountered:
1. It's just crazy noisy. This is not the noise of drivers or motors, and not even the sound of movement. This is the sound coming from this thing. This y-axis belt tensioner design is rigidly fixed to the body without any vibration damping pads. And when the table moves quite quickly, the vibrations are transmitted to the tensioner, the tensioner transfers all this to the body and it simply starts to resonate unrealistically (maybe I made a mistake somewhere in the words, but the point is that it vibrates throughout the apartment)
2. Terrible configuration file
З and some knowledge thanks to Sergey Irbis , as he suggested where to look.
That is, the trees offer a large table, 310x310 in size automatically calibrated by only 9 points? This is not serious. What should they do in 4x4 or 5x5. It is clear that the change is not long, but still there is no desire. At the expense of probe offset. I suspect that the calculated distance is not correct, but this still needs to be confirmed.
3. Auto Print Off
Nope, this is not a fancy new feature. This is most likely a firmware glitch after their own configuration file. Background. After collecting the printer, I started printing. The only thing I could print normally was a test cube from a 20x20 flash drive. Then I decided after calibrating by 5 points. Print the calibration grid. The printer itself turned off at 51%. This was not a one-time test. Every time in the same place. Okay, I think. I pereslaysil grid, took another. Same story but at 49%. By the way, the grid turns out like this. Well, in general, this is not a grid. The problem is definitely not the plastic.
Now about the pros. They are:
1. The manufacturer partly took care of the end user. The instructions on the flash drive included are the most thorough I have ever seen. Up to setting the current on the drivers. Not everyone needs it, of course, but still. Plus, I really liked what they did and threw in a finished profile for the chicken. And it's really convenient. I inserted a USB flash drive into the PC, loaded it and everything was ready in just a couple of minutes. But even here they screwed up. In their starting jikoda for the chicken, it is written to make a thick strip almost in the center of the table. Well, trash. I didn't even take a picture. Of course, you can redo it, but the fact itself, it really interferes.
2. Filling in mechanics
I hope you have read the first part. The printer has well-thought-out components (except for the y tensioner), Bmg extruder, automatic adjustment of the rollers in z, pei magnetic substrate (an awesome thing after all, I’ll write about it later) and so on. In general, about all such pluses in the first part, and so it is written.
And so on.
Conclusion and my personal opinion. Firstly - be sure to write in the comments that this is an advertisement for a printer or a store)))
Seriously now. To be honest, I was very sad that the printer for $ 400 + I personally refused to print out of the box. In terms of content and chips, he must first print at least as much as artillery SW-01. I additionally installed an auto-calibration sensor on my art, glued pei and so on. Right there, everything at once (except perhaps not direct and there is no table insulation) is already there, and this should work better, but no.
The feeling that two trees did not test their product before releasing it to the conveyor. As Sergey said: "her patience ran out somewhere." In turn, I will communicate with the company and hope that the product will be re-released as v2 or they will somehow solve all the current shortcomings in some other way (to be honest, I don’t really know how). I want to bring it to mind, and make it really a printing machine. He has everything for this.
At the moment, I can only recommend the printer to those who are ready to "take up the file", as add. it will not require costs, but it will require good firmware settings and a solution to the problem with the y tensioner.
Thank you for reading my outpouring of heart.
Good luck and quality printing.
More interesting articles
5
Follow author
Follow
Don't want to
So, half a year since I own a Prusa i3 mk3s Bear Upgrade printer. The whole bearish upgrade is...
Read more
2
Subscribe to the author
Subscribe to the author
Don't want to
FARO is one of the leaders in the production of equipment for 3D metrology, construction and maintenance...
Read more
114
Follow author
Subscribe
Don't want
The review is a continuation of the story about the practical use of laser engraving at home. ..
Read more
features, photos and customer reviews
731.00 ₽Link copied, share it
Or send via social networks
900
1 cheaper than average, insignificantly 9000 -2 9000 %The reliability of the seller is 65 %
Be very careful, Shop5364026 Store
- A low total rating (422)
- Items as described
- Ships fast
- 2.6% of customers were dissatisfied for the last 3 months
Prices from other sellers from 362.38 ₽
733.08 – 807.21 ₽
Twotrees 3D printer part, MK8 extruder, J-head, 3D part, Aluminum Extruder with 1.75mm extruder fan, extruder parts
1 rating
- reliability 9002 2 %Seller unique3d Store
Go To StoreGo To Store
$4. 99 - $4.9
0 OTOCHOK
0 Help
Reliability -83 %
Seller Creative 3D Printer Store
In the store
Found 47 similar products
9000 -9000 % 9000 % 9000 % 9000.4 blasphem 3D printer, 1.75 mm, j-hed MK81
1
The seller’s reliability 100 %
9000 -2 -2 9000 %88.69-124.72 ₽
9000 3D Printer TC4 Titan alloy MK8 Nosya Repeat 1, 75mm 0.2/0.3/0.4/0.5mm for ender 3 cr10 ender 5 two wood bluer sapphire pro3
2
The reliability of the seller is 83 %
9000 -7%
278.54-298.63 ₽
Spare parts for the MK8 Extruder Extruder Extruder Extruder for a thread of 1.75 mm nozzle 0.4 mm extrusora 3d accessories
1
11
Seller reliability 66%
694. 27 ₽
myself"
0
0
The reliability of the seller 76 %
9000 -2%
135.81 -141.35 ₽
mk8 j -hed Extruder Extrusias Extrusias Extrusias ACCESSEARS for 1.75 mm EXTRUSISE OF EXTRUSION 3D Printers 3D Printes
1
0
The reliability of the seller 100%
195.39-268.84 ₽
3D CR10 EXTERNISED INILUMENT MK8 Printer Extruder Printer for Crealy CR-10S-10S REPRUP I3 1.75 mm 3D 3D 9D4
4
The reliability of the seller 55 %
-0.1
9000 %623.60 ₽
DIY RepRap Bulldog All-metal for 1.75 mm MK8, extruder, distance 3D printer
4
11
Reliable seller 100%
-25
%
1
3
The reliability of the seller 55 %
9000 -7%
185. 69 -198.86 ₽
Details for the 3D printer Ender 3 CR10 BLUER, Extruder MK8, updated aluminum block, extruder Bowden, Philament 1, Philament 1, Philament 1, Philament 1, Philament 1, Philament 1, Philament 1, Philament 75 mm, REPRAP
extrusion 00
The seller’s reliability 72 %
-4
9000 %36.03 ₽
Aluminum heat unit for 3D printer V6 J -hakerbot MK7/MK8 extruder
9 9,000 9 9000006 0
0
Reliability of the seller 89%
-3
% Extruders 3D Printer Part J-Head
1
1
The reliability of the seller 85 %
9000 -2 9000 % 9000 %356.14 ₽
CR10 HOTEND sets MK8 Extruder 0.4 mm J-hadden Bowden extruder nozzle heater block 3d printer parts for ender-3 cr10/s
1
1
Reliability of the seller 100 %
9000 -4%
1 413 ₽
Aokin MK8 Extruder J -had Hotend 0. 4 mm Nozzle set 1.75 mm Excessive transmission for 3D printers Parts
0
0
The seller’s reliability 100 %
-0.4
9000 %796.82 ₽
Red/Siliver Extruder Extruder for 1.75 mm Compatible J -Head MK8 extruder DIY
9,000 9 9000 9000 9000006 1
1
The reliability of the seller 55 %
-0.3
%
554.31 -1 084 ₽
3D printer BMG MK8, an extruder with cloning BTECH, an extruder with a double drive, an extruder with a filament BOWDEN, double sixat six For the 3D printer CR10 MK8 Reprap
3
5
The seller’s reliability is 83 %
-13
9000 %19.40 ₽
9000 MK7 MK8 Strend 0.3 mm 0. 2 mm 0.5 0.5 copper parts for 3d printer extruder threaded 1.75mm 3.0mm head filament brass nozzle part4
4
The reliability of the seller is 89 %
9000 -25 9000 %2 355 ₽
Two tree 3D Part of TPU Special Soft rubber extruder PLA/ABS/PETG/Soft 1.75 mm Soft Thread Extruder
0
1
The reliability of the seller is 89 %
-6
%
340.90 ₽
mk8 extruder, parts for a 3D -printer, an entire -metal remote control, 1.75 mm, thread, extruder, and head bracket
2
1
The reliability of the seller 100%
477.40-814.84 ₽
Parts 3D Printer Titan Extruder FELD FEM REPRAP MK8 KOSSEL J-HeAD BOWDEN 1.75 mm
9000 1 9000 1 9000 1 9000 1 9000
Seller Reliability 100%
650. 62 ₽
V6 j-head hotend remote extruder kit for e3d 3d printer part hot end metal extruder nozzle 0.4mm heating cooling block 1.75mm 3mm
0
0
The reliability of the seller is 100 %
9000 -5%
1 098 ₽
MK8 extruder for a 3D printer, J-had Hotend with an aluminum feeder and a step engine, a shade of 0.4 mm for MK 1.75 mm, left or right -wing part
1
1
The seller’s reliability 100 %
-1
9000 %1 448 ₽
MK8, J -Head Hotend 0.4 mm Fibu 1 .75mm filament, 3d printer parts, reprap feeder, 9 stepper motor extrusion0003
1
2
Reliable seller 100% 3 CR10 ENDER 5 Two Trees Bluer Sapphire Pro
1
4,0003
The reliability of the seller 65%
1 079 ₽
mk8 Extruder Set Set of Jotend 0. 0
0
Reliability of the seller 89%
-3
%
1 144 ₽
Reprap 3d printer peek j-head hotend extruder nozzle hot end kit 0.3mm, 0.4mm, 0.5mm 1.75mm/3mm filament extruder i3 Mendel
1
1
The reliability of the seller 100%1 430 ₽
mk8 Extruder J-chead Hotend 0.4 mm Nazadka set of extrusion engine Aluminum part 3D prints of Part
0 9000 0
0
Reliability of the seller 100%
Incomplete data
47.81 ₽
3D printer spare parts MK8 Extruder renewal of aluminum extruder Block 1.75 mm threads Shtrap Steg-Pressing for Ender-3PRO CR10 Blue
1
0
9000-Relief of the seller 0% 9000- 5%
24. 94 ₽
Jetting new aluminum thermal block for 3d printer v6 j-head makerbot mk7/mk8 extruder 1pc. spare parts for 3d printer
0
0
Reliability of the seller 85%
-9
%
244.59 ₽
MK8 Assked hot end set for Ender -3 printer 1.75 mm 0.4 mm nozzle Printer Aluminum Printer Accessories
9000 3The reliability of the seller 72%
215.49 ₽
Creative 3D printer, MK8 aluminum extruder for Ender 3 CR10 CR10 CR-10S PRO RePrap 1.75 mm
1
1
The reliability of the seller 72%
1 136 ₽ 9 ₽
Aokin new mk8 j-head hotend 1.75mm filament 0.4mm printer nozzle kit 3d printer extrusion parts with box moto
0
0
Seller Reliability 89%
Partial data
Incomplete data ₽
Yunbot 3d printer parts mk8 extruder upgrade aluminum block bowden extruder 1. 75mm filament reprap extrusion for cr-7 cr-8
0
1
0006 %
455.23 – 565.40 ₽
mk8 extruder, full metal aluminum block, DIY kit, mk8 bowden extruder for 1.75 mm filament for 3d printer, left and right direction parts
0 90 0003
Reliability of the seller 100%
-8
%
552.92 – 620.83 ₽
3d printer bmg, extruder, clone, dual drive, extruder, upgraded bowden extruder, 1.75 mm filament for crender pro bluer
1
3
The reliability of the seller 72%
237.66 ₽
Parts for the MK8 3D printer, extruder, an aluminum unit, a Bowden extruder, a RePrap thread for Ender 3 CR10 CR10S PRO
0
0
Seller Reliability 83%
-2
%
1 996 ₽
aibecy full metal bmg extruder, dual gear, flexible filament support for creality 3, two trees, bluer series dender-30003
0
1
Seller reliability 89%
Incomplete data Heating unit
1
1
The reliability of the seller 0 %
-38
9000 %Equal data
236. 97 ₽
Details for the 3D printer, an extruder MK8, an updated aluminum alloy, an updated bowden cr10 1, extruder of Bowden CR10 1, extruder. 75mm filament extrusion for mk8 cr-10
0
1
The reliability of the seller 0%
852.25 ₽
Tronxy Upgrade Kit MK10 24V Greeter Cable 100k Termistor 3D Printer J-Head Hotend for 1.4 mm Libe 9000 9000 2
4
Reliability of the seller 72%
-4
%
342.98 ₽
3d printer parts mk8 gray color extruder aluminum alloy block bowden extruder 1.75mm crender3 series 90 filament for printers0006 0
1
Reliability of the seller 83% + cable
1
1
Seller Reliability 68%
671.41 ₽
0. 4/0.5 mm
0
0
Reliability of the seller 100%
830.08 ₽
2 pcs. 12v v5 j-head hotend extruder 1.75mm bowden extruder 3d printer extruder for anycubic i3 mega mega-s 3d printer parts
1
1
Seller Reliability 89%
-20
Cr10 aluminum upgrade dual gear mk8 metal extruder kit for cr10s pro ender3 reprap 1.75mm 3d printer feed dual pulley extruder
1
1
The reliability of the seller 100%
356.14 ₽
CR10 Hotend/CR10S J-HeAD MK8 Extruder 3D spare parts for Ender 3/S CR10 Radiator MK8 Strail + CR10 Silicone socks
9000 2 9000 2Reliable Seller 100%
174.61 – 205.79 ₽
Mk8 Assembled Extruder Hot End Kit for ender 3 cr10 printer 1.
